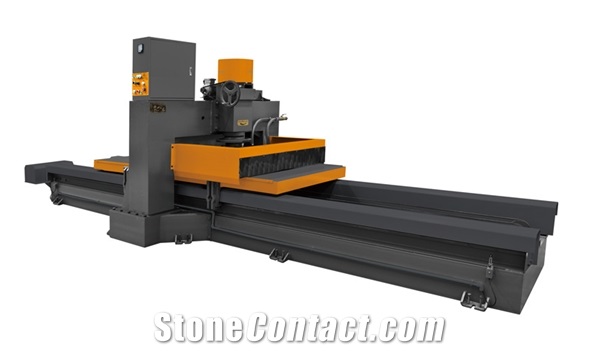

SXA-100L Automatic Gantry Calibrating Machine

FOB Price:$12000-14900

Type: Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 35 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment : Payment Payment Payment

Supplier

XIAMEN SHUINAN MACHINE CO.,LTD.

XIAMEN SHUINAN MACHINE CO.,LTD.
SHUINAN MACHINE

ChinaChina level5YR idicon

Eatablished :Sep 10,2018

Main Product:

Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|

Contact supplier

Start Order

You may also like
SXA-100L Automatic Gantry Type Calibrating Machine
SXA-100L Automatic Gantry Type Calibrating Machine
SXA-100L Automatic Gantry Calibrating Machine
SXA-100L Automatic Gantry Calibrating Machine
SWING TYPE THICKNESS Calibrating Machine OF LARGE & WIDE SLAB
SWING TYPE THICKNESS Calibrating Machine OF LARGE & WIDE SLAB
Four Heads Calibration Machine
Four Heads Calibration Machine
HLYD 1200/3 - HLYD 1600/4 -HLYD 2000/6 Multi-Disc Calibrating Stone for Slab Polishing Line
HLYD 1200/3 - HLYD 1600/4 -HLYD 2000/6 Multi-Disc Calibrating Stone for Slab Polishing Line
  • Overview
  • Components
  • Trade Terms
Machinery Function Features
SXA-100L calibrating machine for large-slate uses Plano-jointed structure, strong structural rigidity, the grinding head can move up and down neatly and feed automatically. With stable functions, high processing precision, convenient operating, and adopting Japanese Mitsubishi frequency converter, which make the whole machine good working and become the best choice for operating thickness and smoothness.

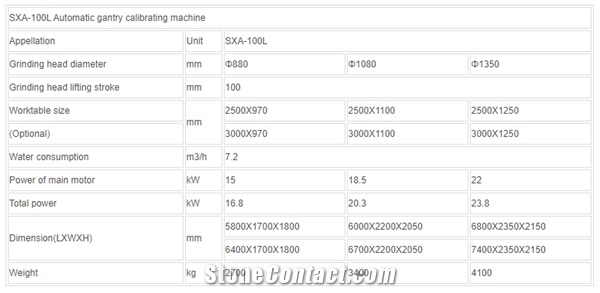

Technical Data
Parameters
Unit
SXA-100L 880
SXA-100L 1080
SXA-100L 1350
Maximum workable width
mm
970
1100
1250
Water requirement
m3/h
7.2
7.2
7.2
Machine overall length
mm
5800/6400
6000/6700
6800/7400
Calibrating spindle rotation motor power
kw
15
18.5
22
Total power installed
kw
16.8
20.3
23.8
Maximum workable length
mm
2500/3000
3500/3000
2500/3000
Machine overall height
mm
1800
2050
2150
Machine overall width
mm
1700
2200
2350
Diameter of calibrating head
mm
880
1080
1350
Z axis stroke
mm
100
100
100
Approx. Weight
Kg
2700
3400
4100

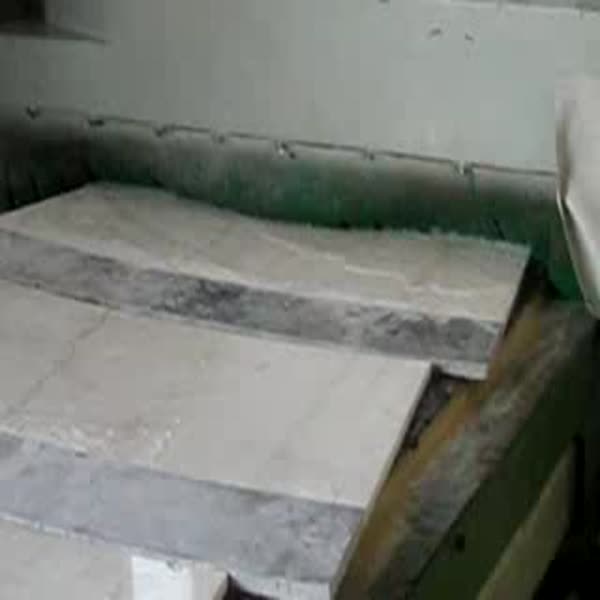

Processed Stone Photos
