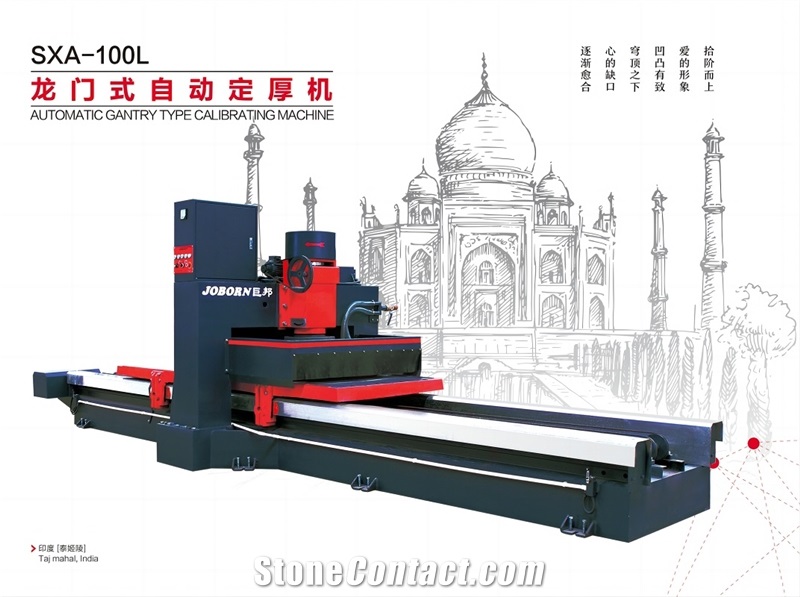

SXA-100L Automatic Gantry Type Calibrating Machine

Name: SXA-100L Automatic Gantry Type Calibrating Machine
Brand: FUJIAN JOBORN MACHINERY CO.,LTD.
SKU: 8127
Price: 11500 USD
Availability: InStock

FOB Price:$11500-13500

Type: Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 25~30 days after prepayment received

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

JOBORN MACHINERY

China level 4YR

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like

2 HEAD THICKNESS FIXING MACHINE

SAC-880/1080/1280 Stone Continuous Calibrating Machine

Calibration Machine For Granite And Marble

Two Heads Calibrating Machine

HLYD 1200/3 - HLYD 1600/4 -HLYD 2000/6 Multi-Disc Calibrating Stone for Slab Polishing Line

Product Detail
Company Profile

Overview

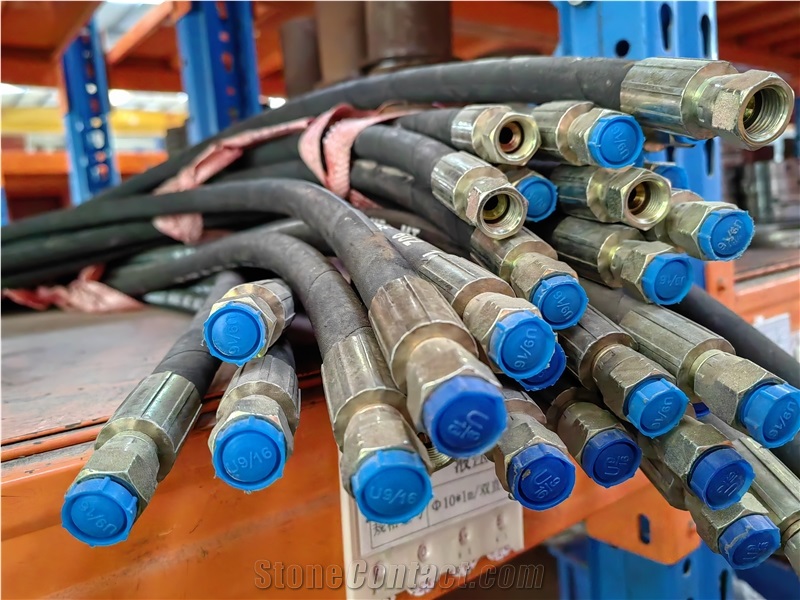

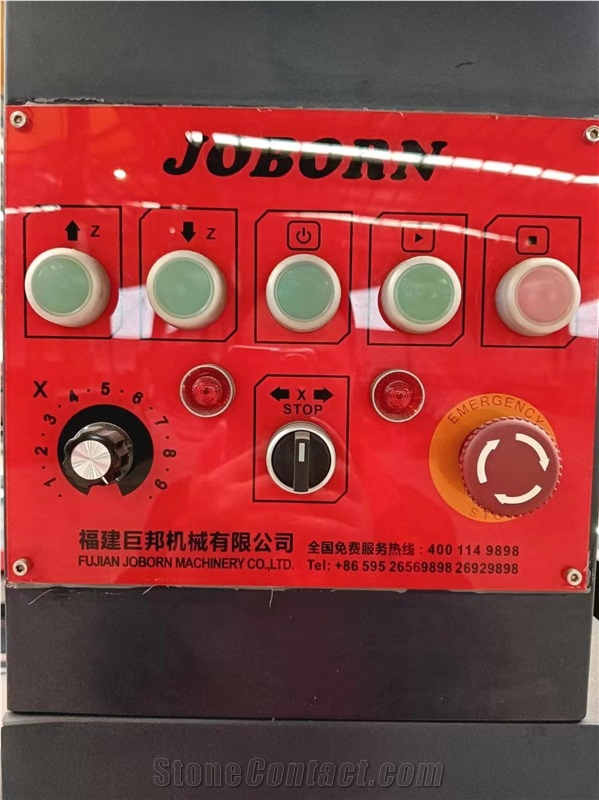

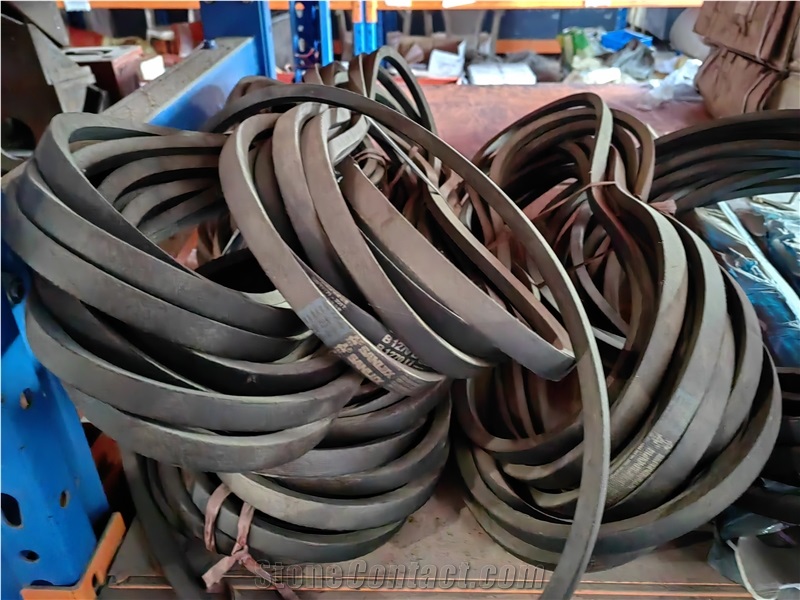

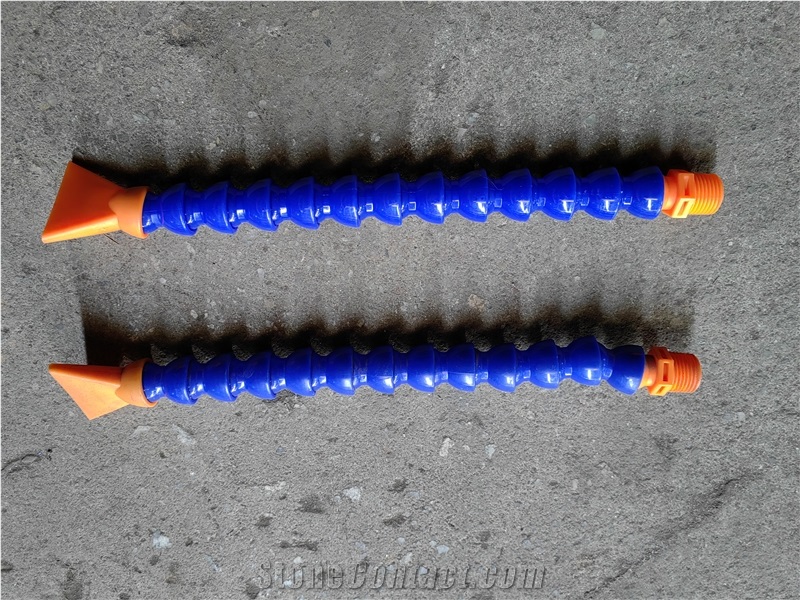

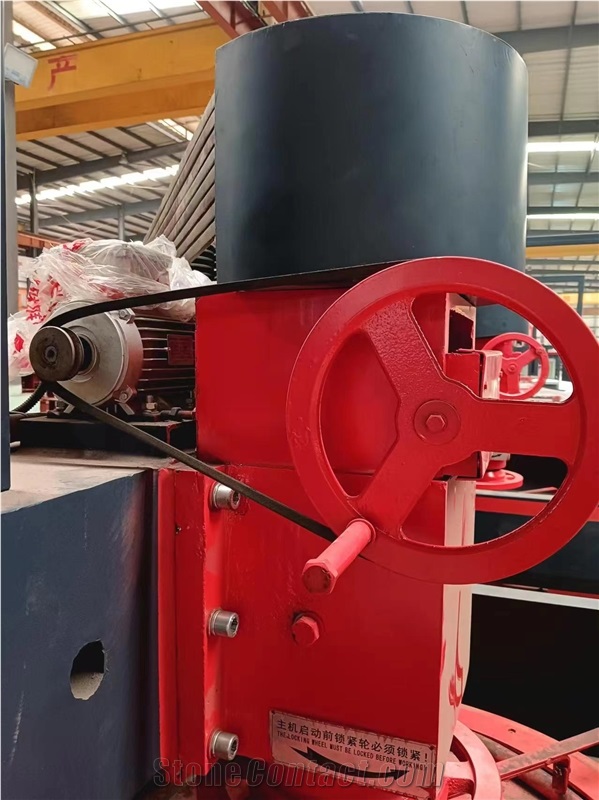

Components
Video

Machinery Function Features

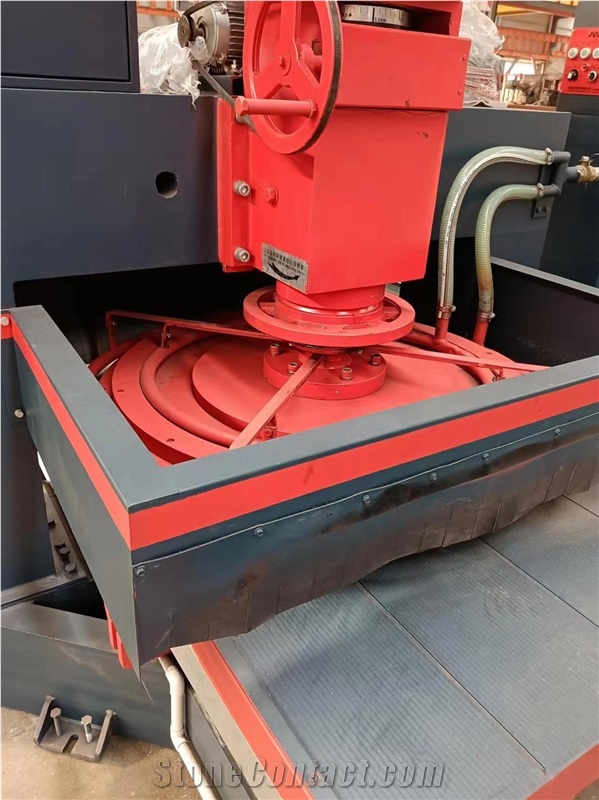

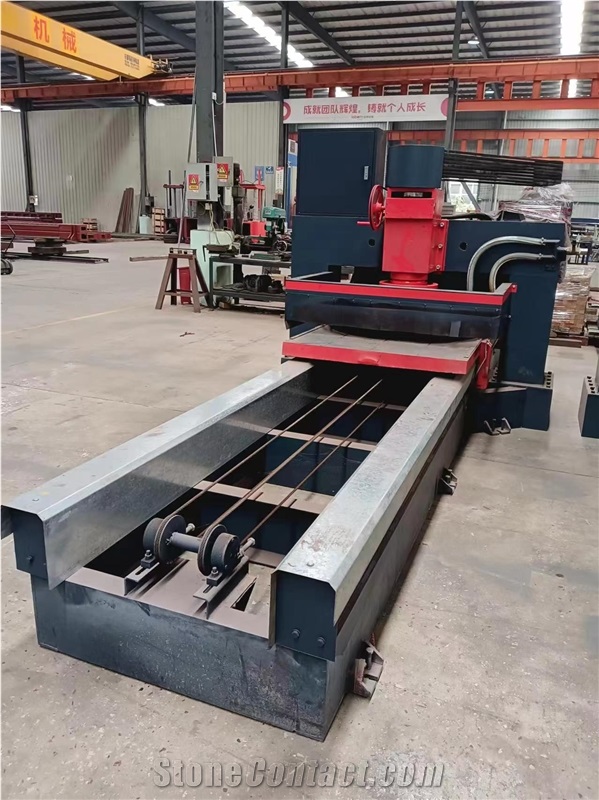

1.The table specification: 3000*1100mm, the trolley frequency conversion walking, the stroke is 4500mm, the cutter diameter is 1080mm, the main motor power is 22kW-6P, the cutter head electric lifting, the cutter head lifting stroke is 100mm; 2.The worktable specification is 3000*1250mm, the trolley frequency conversion walking, its stroke is 4300mm, the cutter diameter is 1350mm, the main motor power is 30kW-6P, the cutter head electric lifting, the cutter head lifting stroke is 100mm; 3.Working efficiency: 10 square meters/hour; (the original thickness error of the plate is less than 2mm)

Technical Data

Parameters	Unit	SXA-100L-1080	SXA-100L-1350
Approx. Weight	Kg	3500	4200
Main motor power	7	22	30
Machine overall width	mm	2150	2350
Max. working thickness	4	90	90
Total power	7	24	32
Max. working width	4	1100	1250
Max. working length	4	3000	3000
Machine overall length	mm	6800	7000
Water Consumption	30	6	6
Min. working thickness	4	10	10
Machine overall height	mm	2100	2150

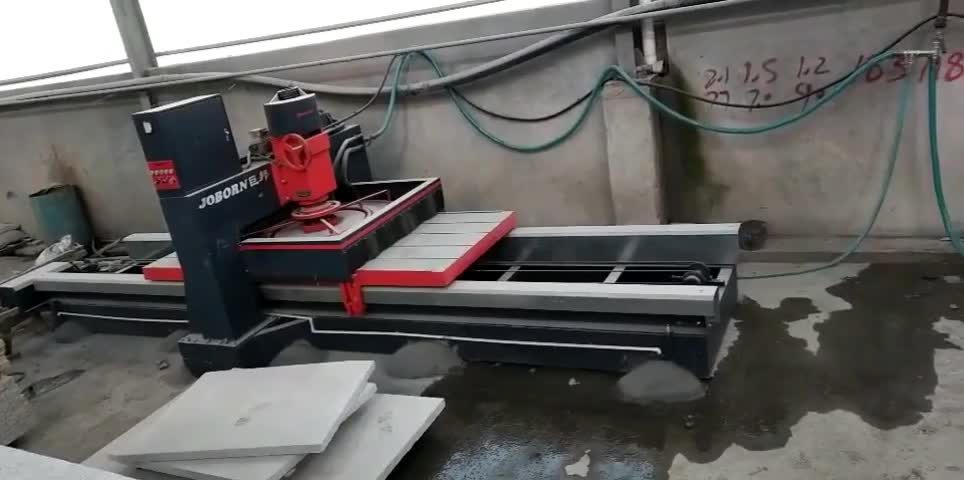

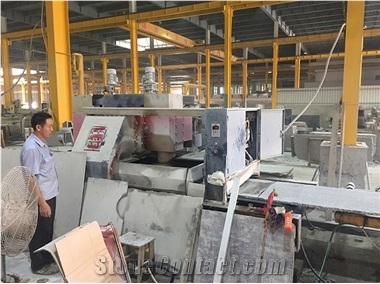

Work Example

2.The worktable specification is 3000*1250mm, the trolley frequency conversion walking, its stroke is 4300mm, the cutter diameter is 1350mm, the main motor power is 30kW-6P, the cutter head electric lifting, the cutter head lifting stroke is 100mm;

3.Working efficiency: 10 square meters/hour; (the original thickness error of the plate is less than 2mm)

Processed Stone Photos
