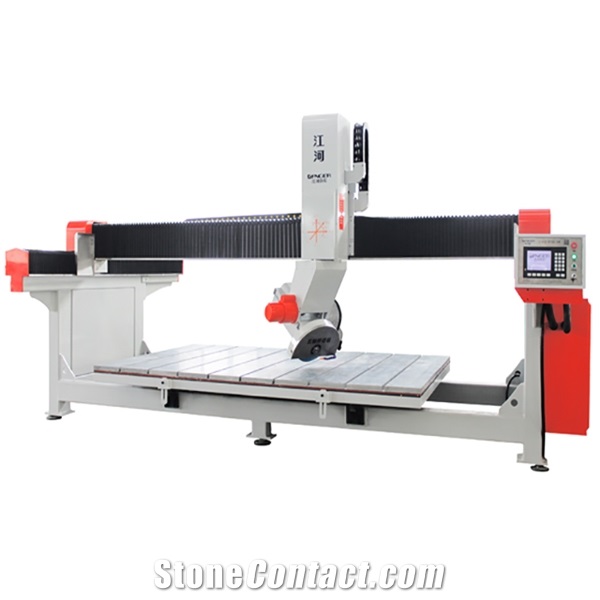

GQ-3220C 5 Axis CNC Bridge Cutting Machine

Features: XYZAC five axis, A axis 0 to 90 degrees automatic rotation, C axis 0 to 360 degrees automatic rotation. Cutting straight line, circular, arc, grid point. slotting, edging, beveling, chamfering and cutting; Curved surface, engraving, cutting holes, and contouring are all available. By infrared ray to confirm the position of the workpiece. Intelligent on-demand typesetting, saving time and materials. Applicable industry & material Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials. Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc. Technical Parameters Model GQ-3220C X/Y/Z Axis working size 3200*2000*500mm Diameter of blade 350mm Working table size 3200x2000mm Blade Motor power 15KW Total power 29KW Rotation speed of blade 3000/6000rpm (Optional, adjustable) A axis rotation angle 0-90° C axis rotation angle 0-360° Control system GANGER Gross weight 4500KGS
