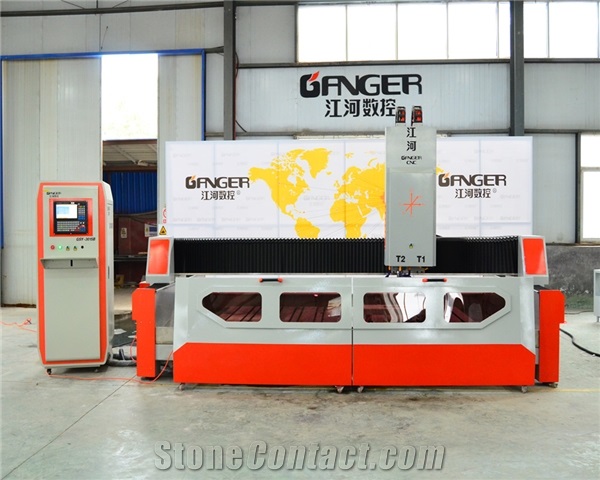

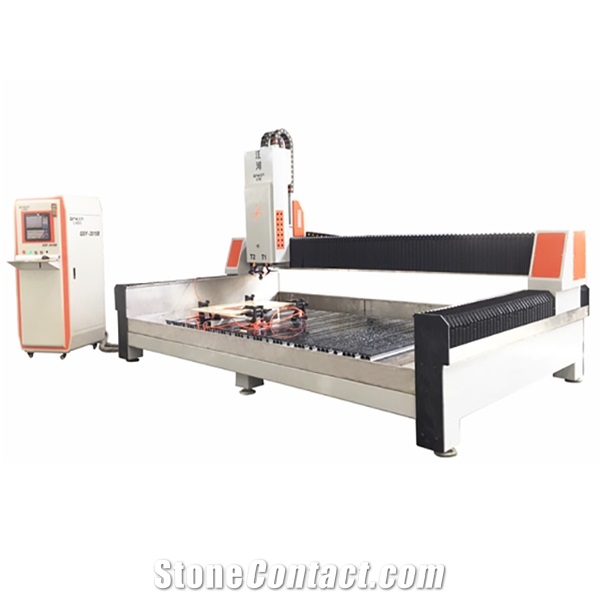

GSY-3015B CNC Bridge Cutting Machine

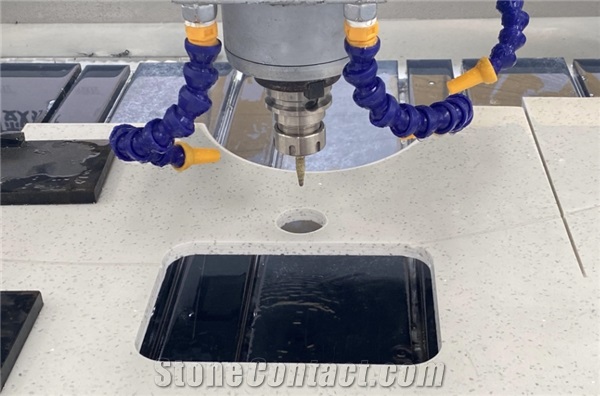

Machine feature 1. With double spindle, the two spindles can work alternately by pneumatic. Convenient and high efficiency. 2. Do cutting, drilling holes, edge profiling and polishing, finish one countertop at one time, high efficiency. 3. Without tool magazine, changing tools manually for the ATC spindle, fast and economy. 4. Humanized control system, easy to operate. 5. Whole steel structure machine body ensuring high stability. Applicable industry and applicable materials Applicable industries: Widely used in CNC processing and production of basins, cabinet countertops, bathroom countertops, bar counters, kitchen countertops, washstands, marble walls, dining tables, coffee tables, window sills, door pockets, etc. Applicable materials: widely used in granite, quartz stone, artificial stone, marble and other stone. Technical parameters Model GSY-3015B X/Y/Z Axis working size 3000*1500*430mm Working table Aluminum profile with T-slot and water tank X/Y/Z Axis transmission X/Y Axis helical Gear and rack, Z Axis Ball screw spindle power ATC spindle 5.5KW + Frequency conversion water-cooled spindle 7.5KW Max spindle speed 2700-24000rpm Driver motor servo Control system GANGER Gross weight 3500KGS
