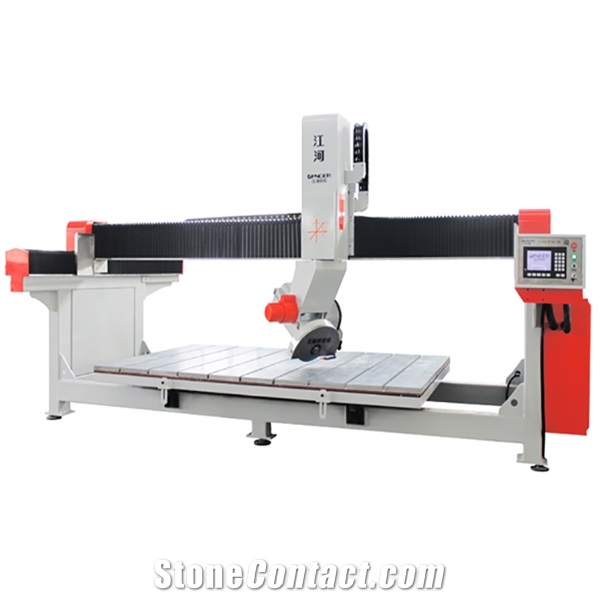

GQ-3018C CNC Bridge Cutting Machine
FOB Price:$14582-14999
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Mar 10,2021
Main Product:
Gq-3220d, Gq-3220c, Gq-3220b, Gsy-3015a, Gsy-3015b, Gsy-3015d|
Machinery Function Features
Machine features
1. Two saws, special for cutting sintered stone

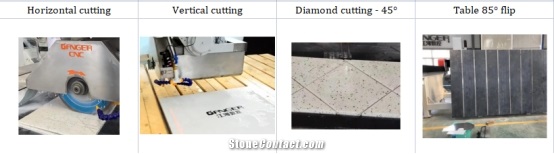

2. XYZC four axis, C axis 0 to 135 degree automatic rotation, horizontal, vertical and diamond cutting.
3. PLC control system, input operating parameters on the control panel, and the cutting process is automated and programmed.
4. By infrared ray to confirm the position of the workpiece.
5. whole steel structure machine body ensuring high stability.
6. Running stability, high precision, high speed.
7. Compact and rational design, small size machine, convenient to handle and move.
Applicable industry & material
Applicable Industries: fabricated building materials industry, home decoration materials industry, etc. Precision cutting, no edge clipping.
Applicable materials: sintered stone
Technical parameters
Model GQ-3218C
X/Y/Z Axis working size 3200*1800*200mm
Diameter of blade ≤280mm， 2 pieces
Working table size 3200x1800mm
Rotation speed of blade 3000/6000rpm
Blade motor power 4KW*2 pieces
Total power 16KW
C axis rotation angle 0° - 135°
Control system GANGER
Gross weight 4500KGS
Technical Data
Parameters |
Unit |
GQ-3018C |
Machine length |
mm |
2500 |
Max. workable thickness |
mm |
50 |
Machine width |
mm |
2700 |
Machine height |
mm |
5200 |
C axis blade rotation |
° |
0-135 |
Max.length of the cut slab |
mm |
350 |

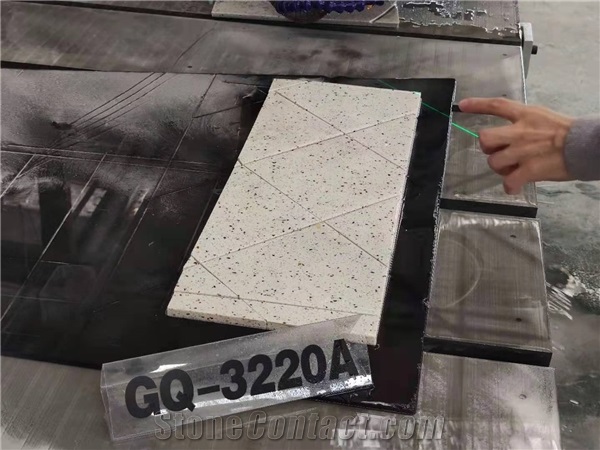

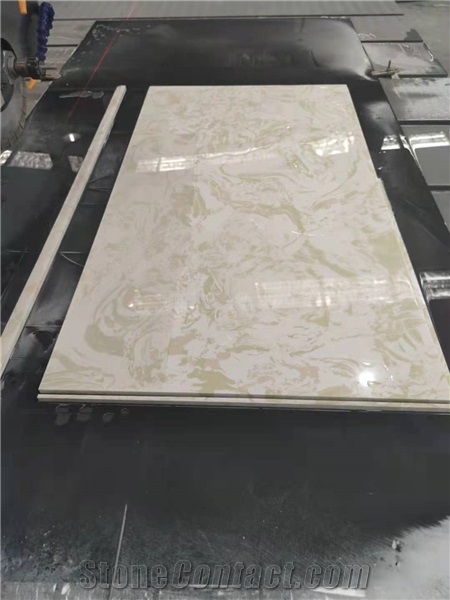

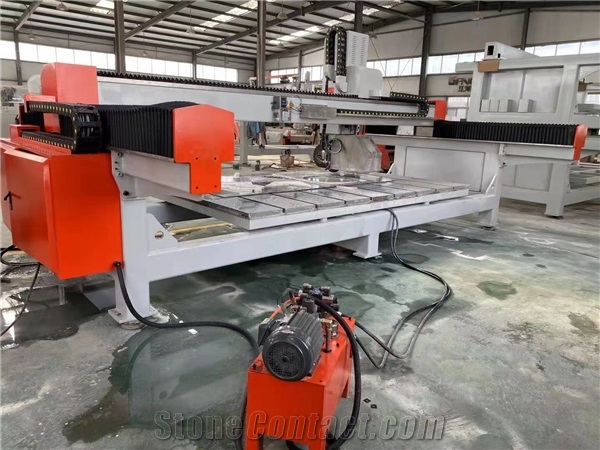

Processed Stone Photos
-
1

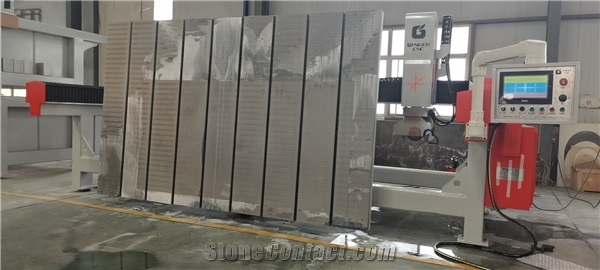

Components
-
1
Consumables
-
1
