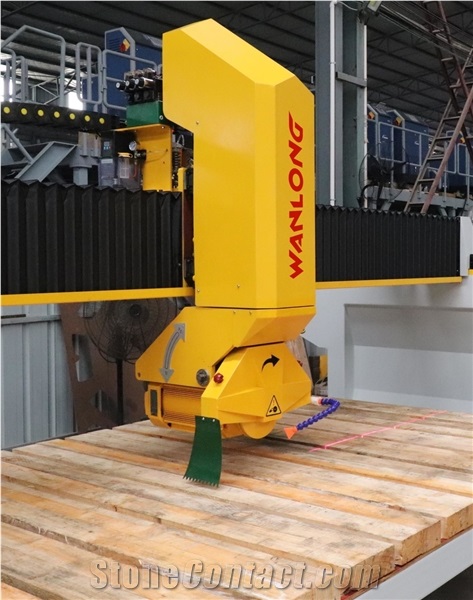

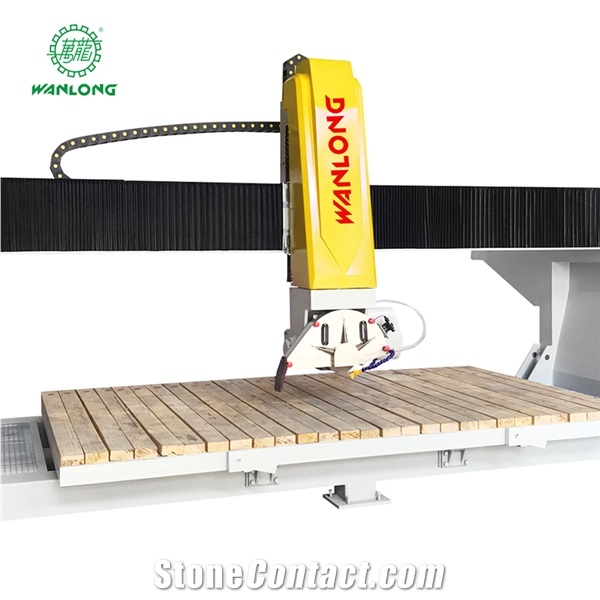

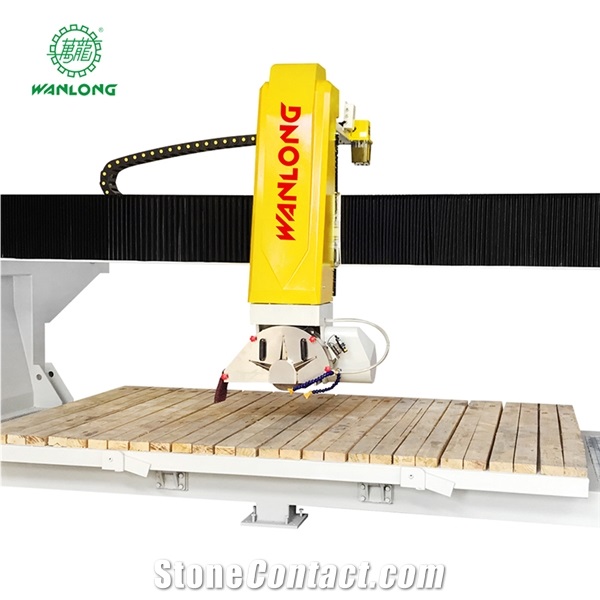

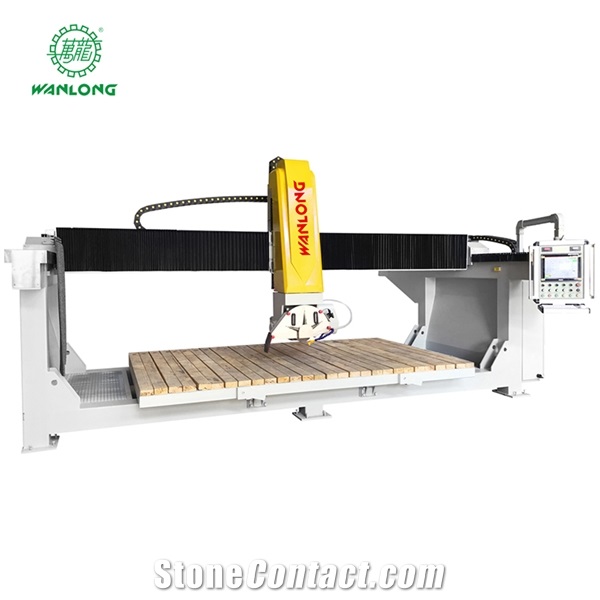

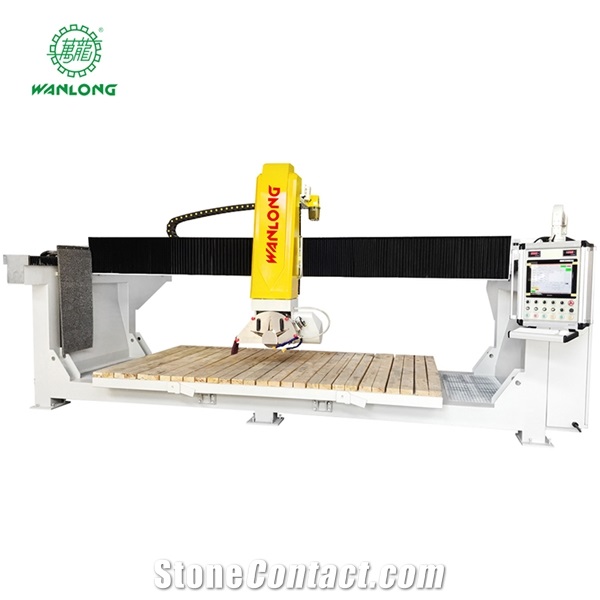

Stone Machinery WLSQ-450 4-Axis CNC Bridge Cutting Machine

Name: Stone Machinery WLSQ-450 4-Axis CNC Bridge Cutting Machine
Brand: FuJian WanLong Diamond Tools CO,.LTD
SKU: 5131
Price: 23000 USD
Availability: InStock

FOB Price:$23000-25000

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 30 days

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

FuJian WanLong Diamond Tools CO,.LTD

WANLONG

China

Eatablished :Jan 08,1993

ISO9001-2000,SGS,TUV

Main Product:

Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|

Contact supplier

Start Order

You may also like

Intelligent 5-Axis Bridge Cutting Machine IKCNC-3520-500

4+1 Monoblock Bridge Saw Machine For Marble Granite

Robostone - CNC Bridge Cutting Machine

K 900 Plus Cnc Saw 5 Axes

5 Axis Processing CNC Bridge Saw Stone Cutting Machine

Product Detail
Company Profile

Overview
Components
Customer Case

Machinery Function Features

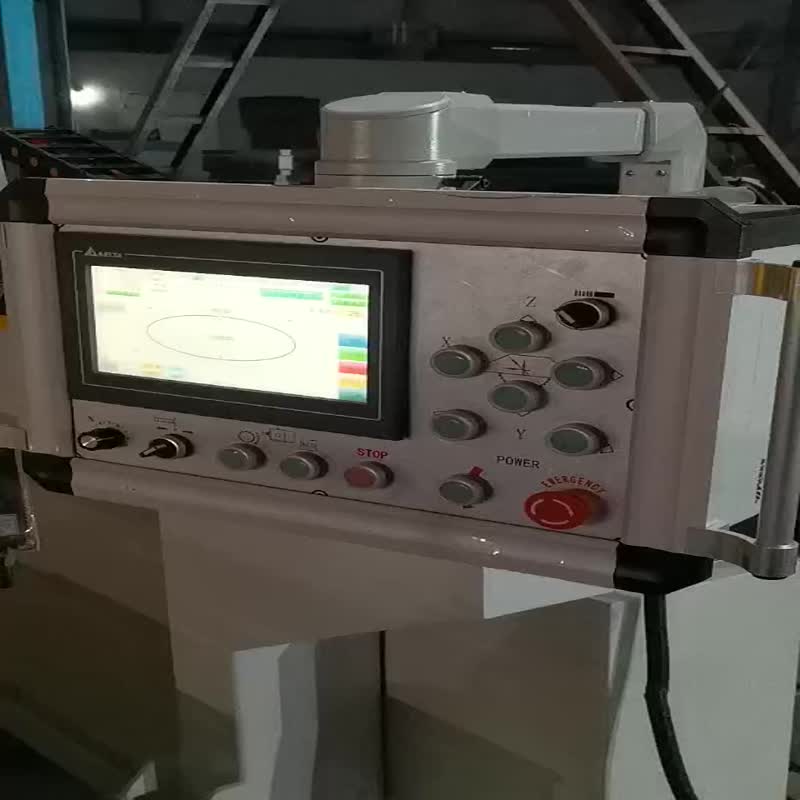

The machine is under computerized control, under the touch operating interface, and is equipped with wireless remote control, enabling the man-machine dialogue to be flexible and free. The main control components all use intermational famous brand components, cross frame oil diffuse type double V track, transverse knife adopts stepless frequency conversion speed regulation, longitudinal spliter adopts linear guide rail and high precision magnetic ruler count, to ensure the machine work stable and stable precision. The integration of fuselage and workbench base not only facilitates the installation and transportation of users, but also ensures the stability of the machine.

Technical Data

Parameters	Unit	WLSQ-450
Disc motor power	kw	1.5
Max. workable thickness	mm	90
Hydraulic station motor power	kw	2.2
Dimensions of the work table(L×W)	mm	3300×2000
Max.width of the cut slab	mm	2000
Machine height	mm	2765
Crossbeam motor power	kw	1.5
Head motor power	kw	1.1
Max. cutting depth	mm	90
C axis blade rotation	°	0-360
Machine length	mm	5700
Machine width	mm	3260
Head raising/lowering stroke(Z axis travel)	mm	300
Max.length of the cut slab	mm	3200
Disc diameter	mm	400-450
Approximate weight without table	Kg	5400
Horizontal stroke(X axis travel)	mm	2000
Bridge transversal stroke(Y axis travel)	mm	3200

Software

1. SIEMENS or indigenous main motor, 15KW.
2. PANASONIC PLC, PANASONIC converter, FUJI contactor
3. Adopts encoder for forward & backward slicing
4. Top quality laser device with longer life and brightness
5. Using linear guide rail for side beams
6. Blade can rotate 90 degrees automatically
6. Worktable can tilt 85 degrees, and rotate 360 degrees automatically

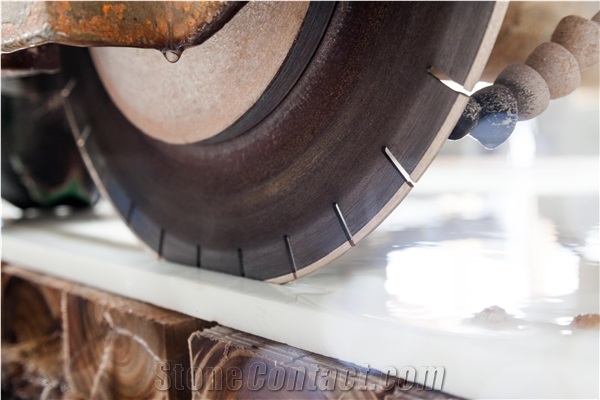

Work Example

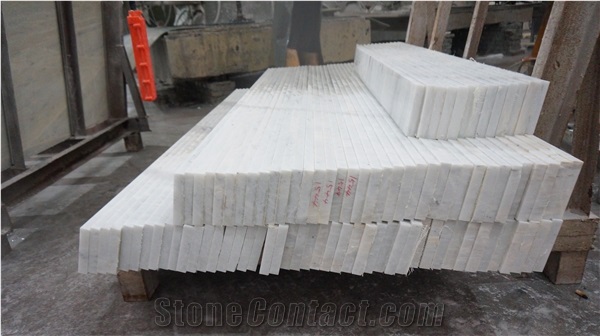

Processed Stone Photos
