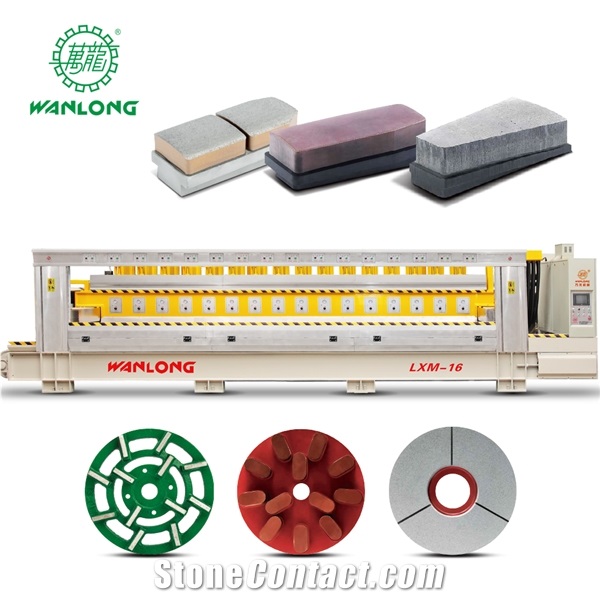

Stone Machinery LXM-16/20 Fully-Automatic Line Polishing Machine

Name: Stone Machinery LXM-16/20 Fully-Automatic Line Polishing Machine
Brand: FuJian WanLong Diamond Tools CO,.LTD
SKU: 5142
Price: 56000 USD
Availability: InStock

FOB Price:$56000-65000

Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 30 days

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

FuJian WanLong Diamond Tools CO,.LTD

WANLONG

China

Eatablished :Jan 08,1993

ISO9001-2000,SGS,TUV

Main Product:

Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|

Contact supplier

Start Order

You may also like

LXM- 8 /LXM- 10/LXM- 12/LXM- 16/ LXM- 20 Fully-Automatic Polishing Machine

Granite Automatic Polishing, Lichi-Surface Processing Machine

Dafon Auto Granite Marble Slabs Polishing And Grinding Line Machine

Line Polishing Machine For Kerbstone

Automatic Slab Polishing Line Machine

Product Detail
Company Profile

Overview
Components
Customer Case

Machinery Function Features

1. Applicable for polishing the surface of granite & marble slabs and tiles. 2. Using the most advanced technology for granite polishing 3. Superior material, reasonable structure, completed processing technique, stable performance, high efficiency and energy saving. 4. Electric parts are of worldwide brand, PLC control system and friendly human-machine interface via LCD to achieve fully auto computerized control. 5. Automatically detect the slab profile by laser scanning device. 6. Sensitive collision avoidance of polishing head.

Technical Data

Parameters	Unit	LXM-16	LXM-20
Diameter of abrasive-holding plates	mm	200	200
Slab polishing speed	m/min	2-3	2-3
Conveyor belt width	mm	500-2100	500-2100
Total Power	kw	135	162

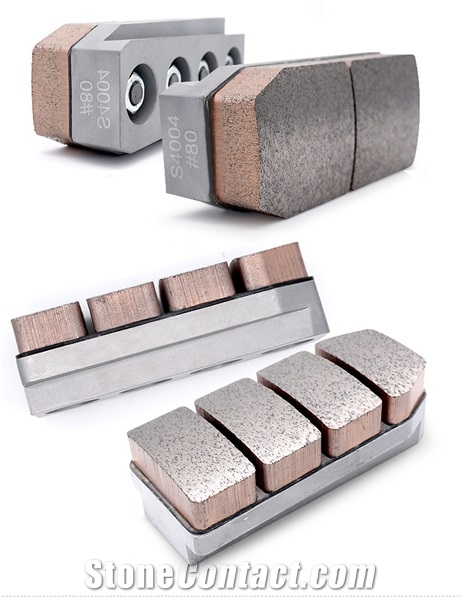

Number of abrasives for each plate	pcs	6	6
Slabs min. processable thickness	mm	15	15
Water Consupmtion	m3/h	18	22
Machine overall length	mm	7900	9200
Conveyor system forward speed	m/min	0-2.6	0-2.6
Slabs max. processable width	mm	500-2100	500-2100
Compressed air requirement	m3/h	19	24
Slabs max. processable length	mm	3000	3000
Machine overall height	mm	2200	2200
Approx. Weight	Kg	15000	18000
Polishing plates diameter	mm	200	200
Machine overall width	mm	2200	2200
Slabs max. processable thickness	mm	50	50
Polishing slabs efficiency	m2/h	25-30	40-45
Number of polishing heads/honing units	pcs	16	20

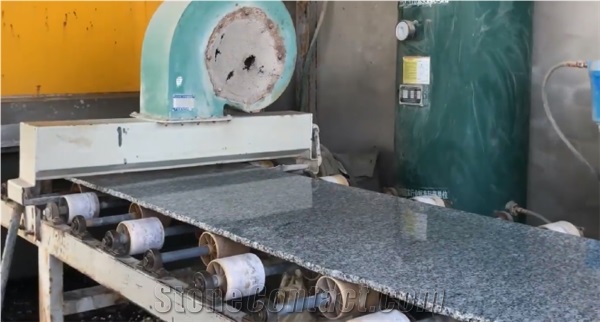

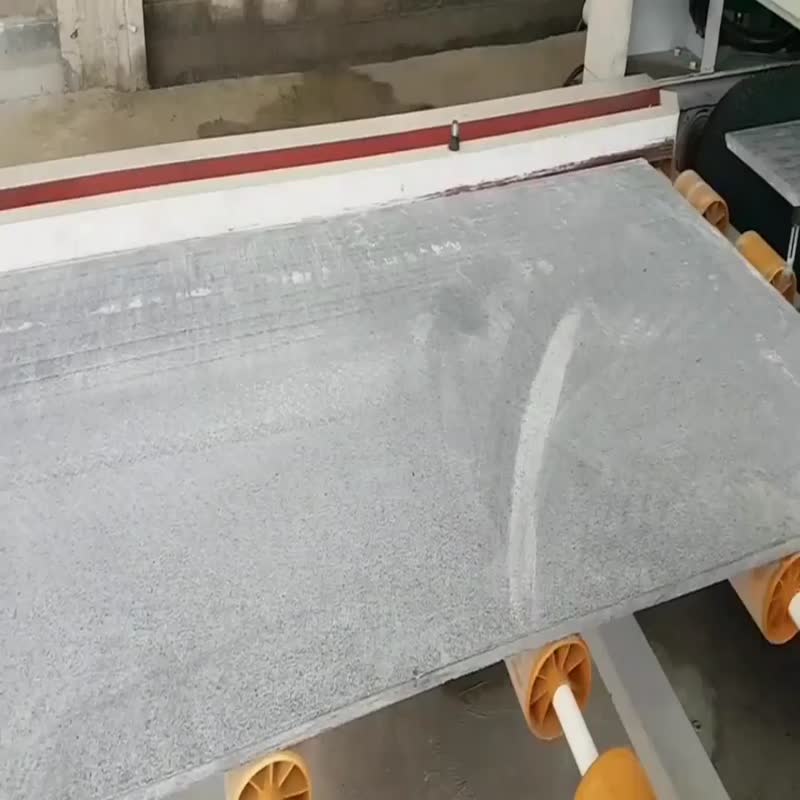

Work Example

Applicable for polishing the surface of granite & marble slabs and tiles.
2. Using the most advanced technology for granite polishing
3. Superior material, reasonable structure, completed processing technique, stable performance, high efficiency and energy saving.
4. Electric parts are of worldwide brand, PLC control system and friendly human-machine interface via LCD to achieve fully auto computerized control.
5. Automatically detect the slab profile by laser scanning device.
6. Sensitive collision avoidance of polishing head.

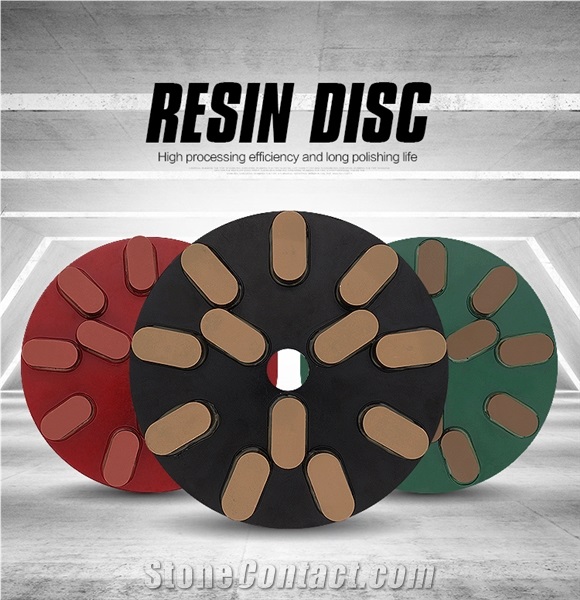

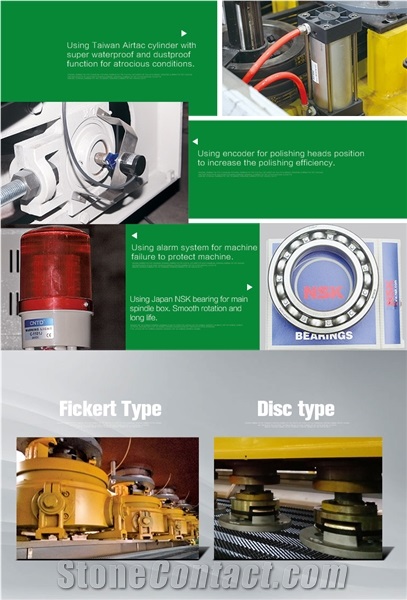

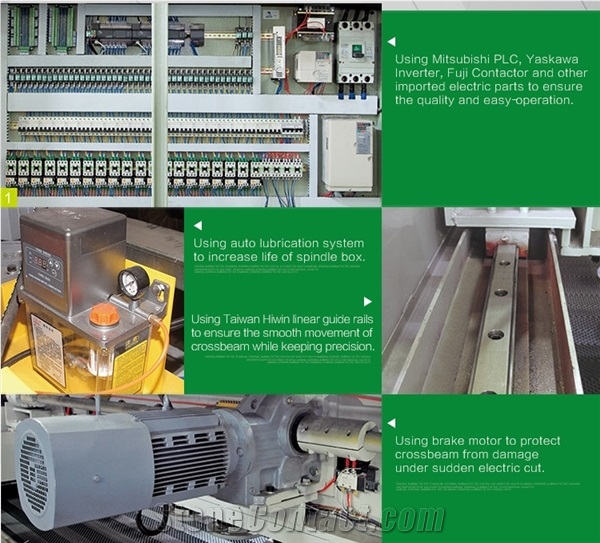

1. SIEMENS or indigenous premium beand main motor2. MITSUBISHI PLC, PANASONIC converter, YASKAWA inverter, FUJI contactor3. Auto lubrication system to increase service life.4. With Japan NSK bearing and Taiwan AIRTEC or XINYANG Air Cylinder 5. Using brake motor to protect crossbeam from damage of unexpectedly lose power.6. Resin plate type grinding head7. Accessories: A. Loading & Unloading trolley, B. conveying trolley, C. Air compressor, air tank and dryer
