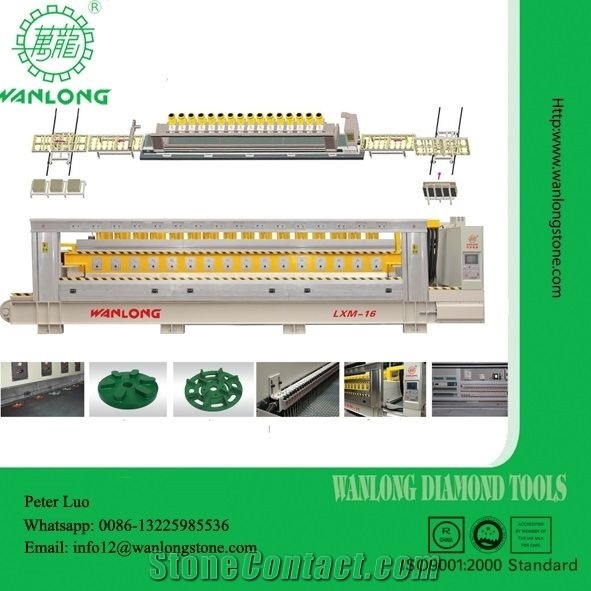

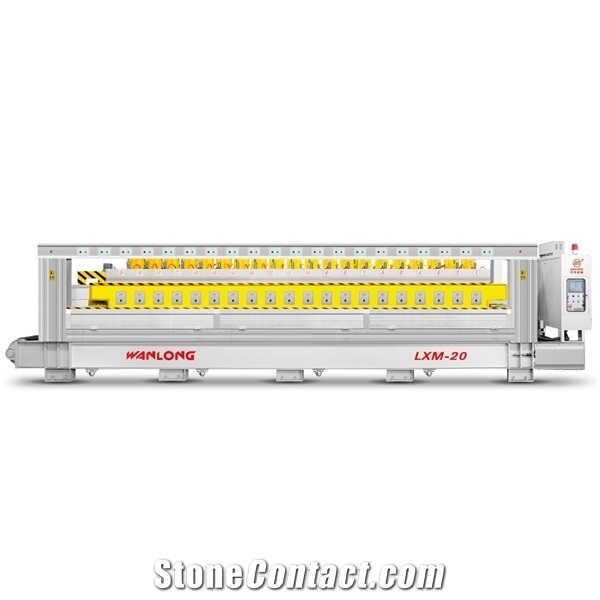

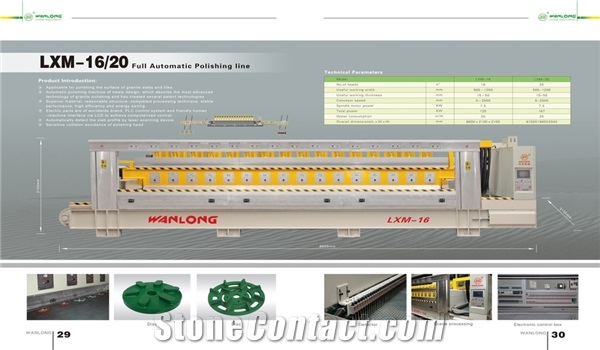

LXM- 8 /LXM- 10/LXM- 12/LXM- 16/ LXM- 20 Fully-Automatic Polishing Machine
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Usage:
Granite, Marble, Limestone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 08,1993
ISO9001-2000,SGS,TUV
Main Product:
Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|
Machinery Function Features

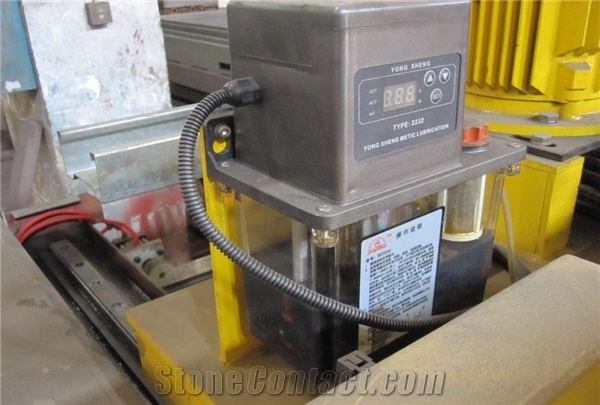

Auto Lubrication System for Polishing Heads and Key Bearings!
PLC Intelligent Control System! Warning Device for Polishing Material Wearing!
Imported Electric Parts:
SIEMENS Motor and Switch, FUJI Contactor, Japan Yaskawa Inverter
TAIWAN Linear Guide Rail for Crossbeam Back and Forward Movement.
Technical Data
Parameters |
Unit |
LXM- 8 |
LXM- 10 |
LXM- 12 |
LXM- 16 |
LXM- 20 |
Conveyor system forward speed |
mm/min |
0~2.6 |
0~2.6 |
0~2.6 |
0~2.6 |
0~3 |
Machine overall width |
mm |
2200 |
2200 |
2200 |
2200 |
2200 |
Slabs max. processable thickness |
mm |
50 |
50 |
50 |
50 |
50 |
Slabs max. processable width |
mm |
500 to 1300 |
500 to 1300 |
500 to 1300 |
500 to 1300 |
500 to 1300 |
Machine overall height |
mm |
2200 |
2200 |
2200 |
2200 |
2200 |
Cooling water requirement |
m3/h |
9 |
11 |
13 |
18 |
22 |
Total installed electrical power |
kw |
73.5 |
88.5 |
105 |
135 |
162 |
Slabs min. processable thickness |
mm |
15 |
15 |
15 |
15 |
15 |
Number of polishing heads/honing units |
nr |
8 |
10 |
12 |
16 |
20 |
Compressed air requirement |
m3/h |
10 |
12 |
14 |
19 |
24 |
main motor power |
kW |
6x7.5+2x9 |
8x7.5+2x9 |
9x7.5+3x9 |
12x7.5+4x9 |
16x7.5+4x9 |
Machine overall length |
mm |
5320 |
5960 |
6600 |
7900 |
9200 |
Approx. Weight |
T |
11 |
12 |
13 |
16 |
20 |
