Fickert Head Line 16 Heads Polishing Machine
FOB Price:$60000-92000
Type:
Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
30-35 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 08,1993
ISO9001-2000,SGS,TUV
Main Product:
Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|
Machinery Function Features

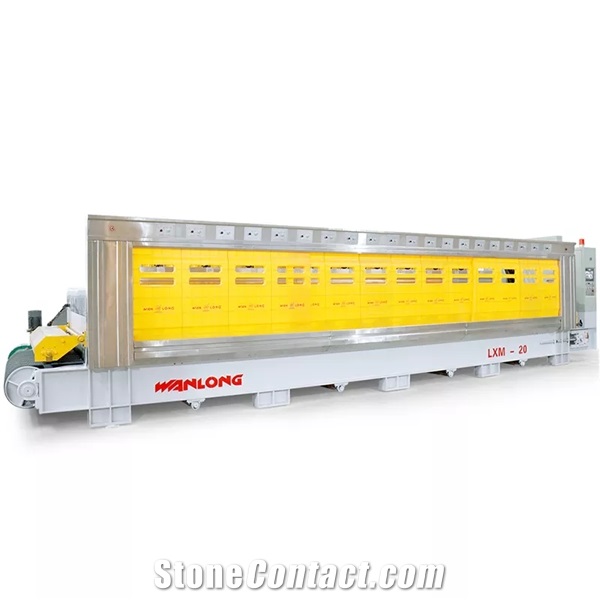

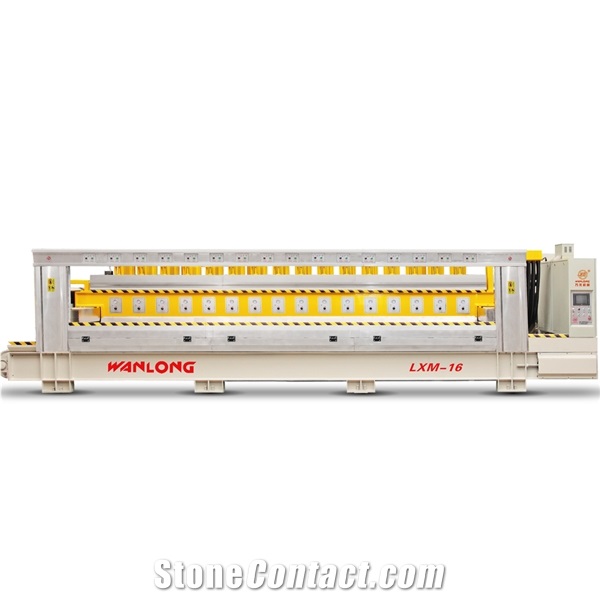

Fully-Automatic Line Polishing Machine
Model: LXMF-12, LXMF-16
Developed based on Italian technology, it gives efficient polishing and superb glossiness, plate head design reduces polishing tools cost and power cost to a large extent. Also, less maintenance is required and most lubrication will be done automatically.
Technical Data
Parameters |
Unit |
LXMF-12 |
Total installed electrical power |
kW |
188 |
Number of Dressing spindles |
nr |
12 |
Number of abrasives for each plate |
nr |
6-7 |
Slabs max. processable width |
mm |
1300 |
Slabs min. processable thickness |
mm |
10 |
Approx. Weight |
Kg |
20000 |
Conveyor belt width |
mm |
2200 |
Polishing heads/honing units motor power |
kW |
15 |
Slabs max. processable thickness |
mm |
50 |
Power of each dressing unit |
kW |
15 |
Slabs max. processable length |
mm |
3000 |
Slab polishing speed |
m/min |
0-2.6 |
Number of polishing heads/honing units |
nr |
12 |

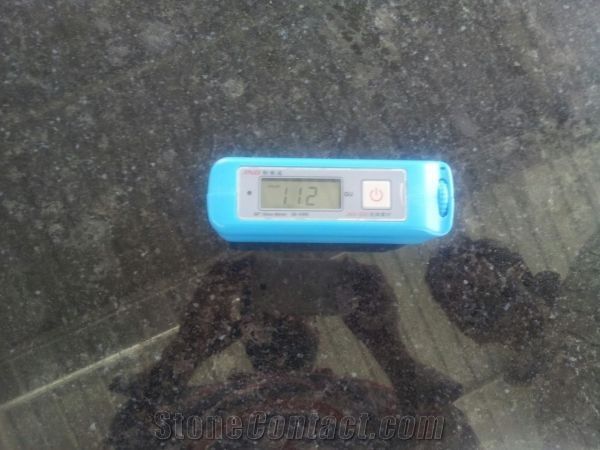

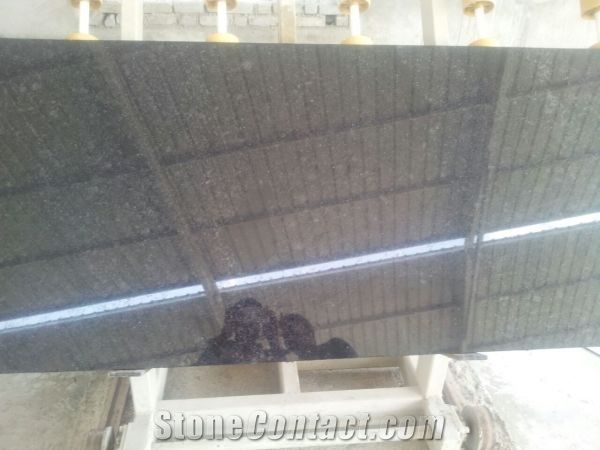

Processed Stone Photos
Components
-

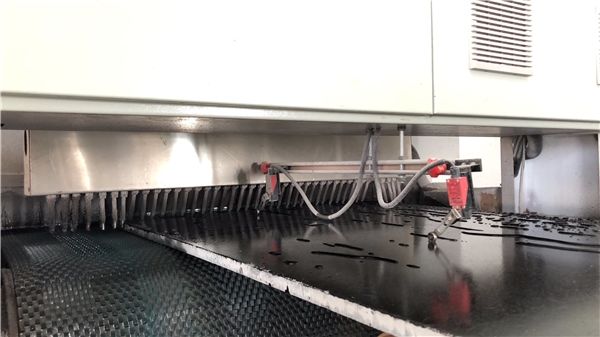

Slabs Entering
¥Payment Required -
Pressure Valve
¥Payment Required -

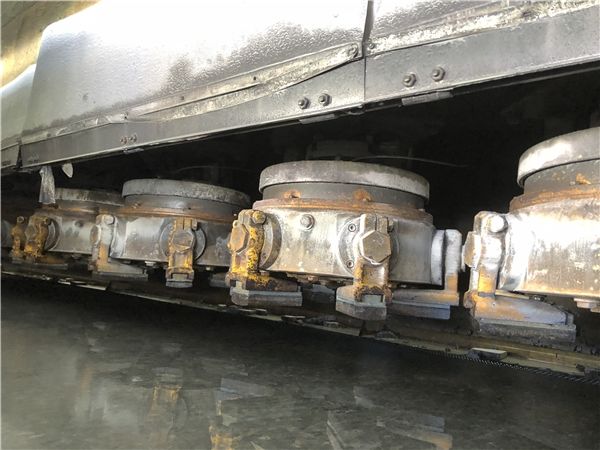

Fickert Polishing Head
¥Payment Required
Consumables
-

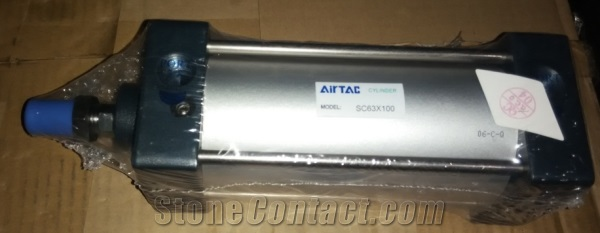

Air Cylinder
-

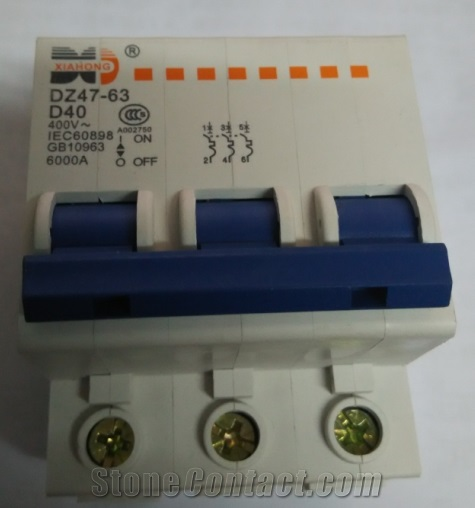

Air Switch
-

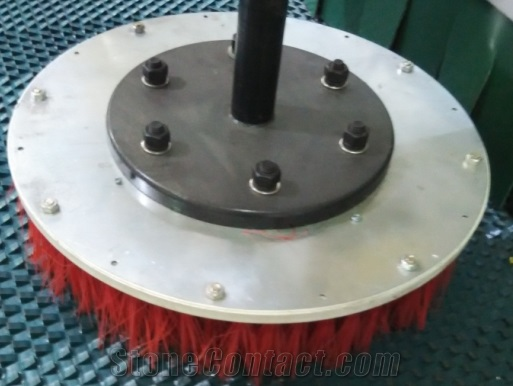

Cleaner
-
Magnetic Valve
Customer Case
granite factory
China
2014
China
2014
granite factory
India
2015
India
2015
Video

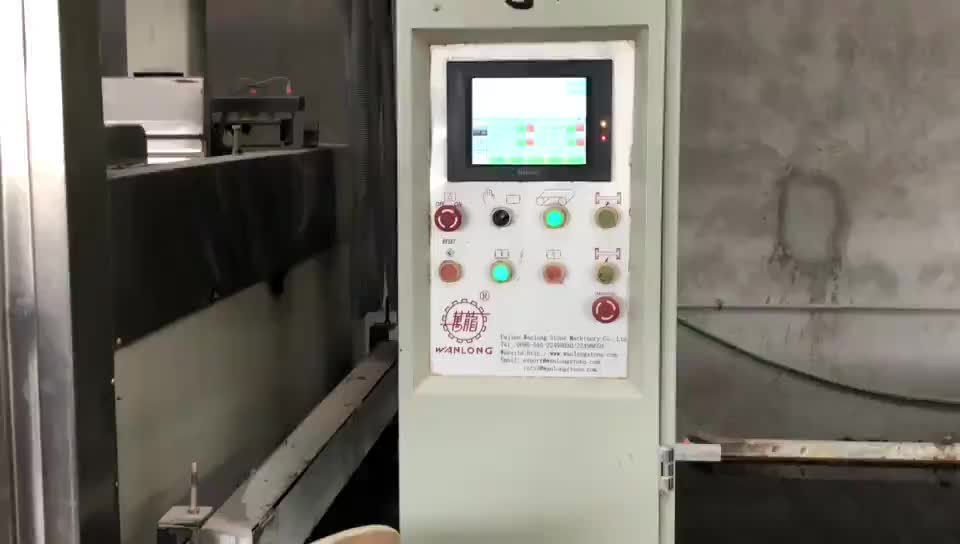

Install Video
