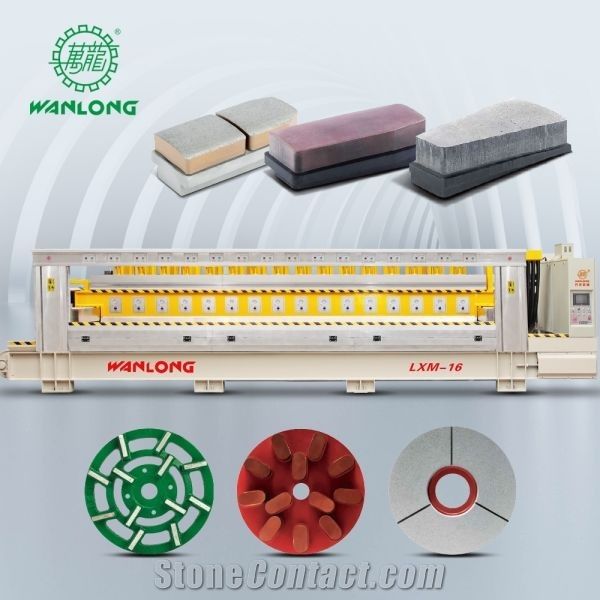

marble granite stone line polisher multi polishing machine
FOB Price:$60000-92000
Parameters |
Unit |
LXMF-16 |
Total installed electrical power |
kW |
248 |
Number of polishing heads/honing units |
nr |
16 |
Power of each dressing unit |
kW |
15 |
Bridge travel power |
kW |
12 |
Polishing heads/honing units motor power |
kW |
15 |
Approx. Weight |
Kg |
24000 |
Slabs min. processable thickness |
mm |
10 |
Number of abrasives for each plate |
nr |
6/7 |
Slab polishing speed |
m/min |
0-2.6 |
Slabs max. processable thickness |
mm |
50 |
Conveyor belt width |
mm |
2200 |
Belt advancement motor power |
kW |
15 |
Slabs max. processable length |
mm |
3000 |
Number of Dressing spindles |
nr |
16 |
Slabs max. processable width |
mm |
1300 |

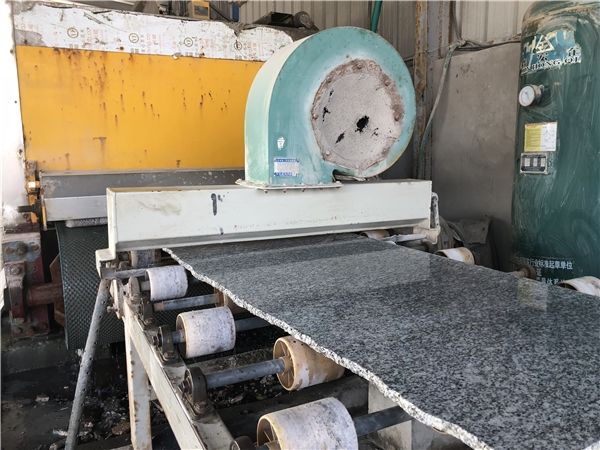

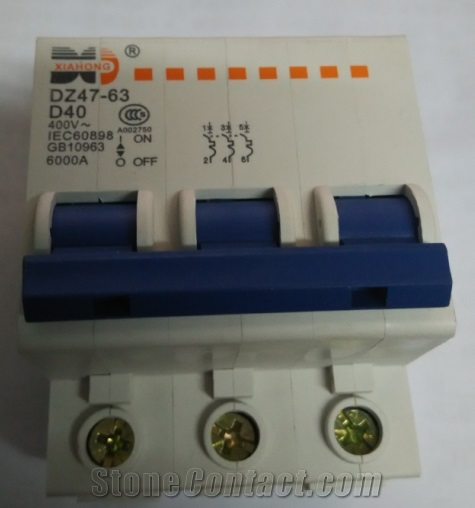

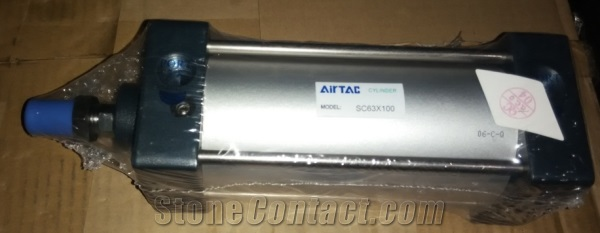

1. Features & Configurations Top brand components such as Siemens Main motor, Mitsubishi PLC, Siemens and Yaskawa frequency converter, Fuji relay etc Japan brand NSK bearing and Taiwan AIRTEC Air Cylinder Taiwan brand electronic valve Taiwai Hiwin Linear Movement Polishing head made up by iron+rubber+aluminum and equipped with throttle valve for press adjustable to have long service life and good polishing contact and shinning With loading & unloading trolley, 2 conveying trolley, air tank, compressor, blower & dryer

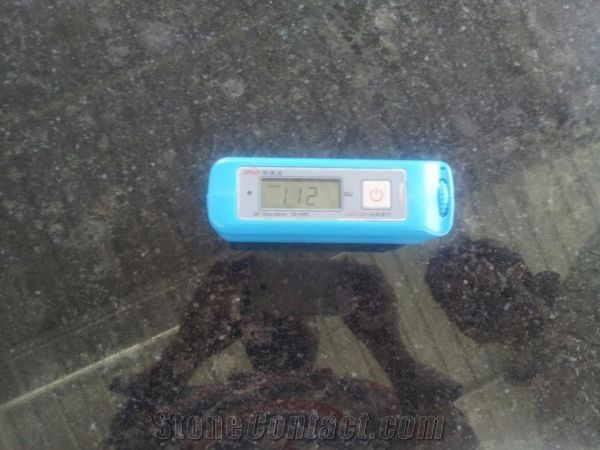

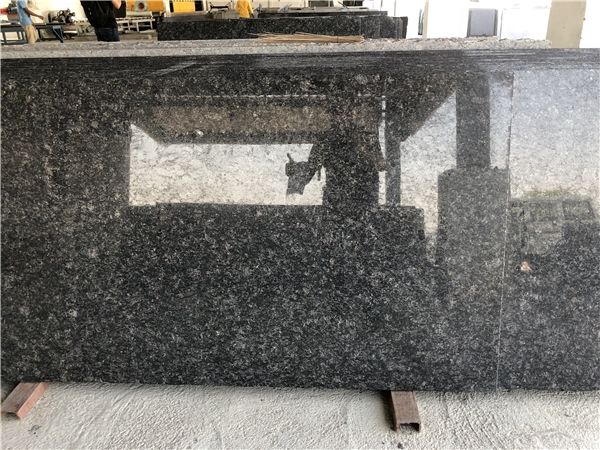

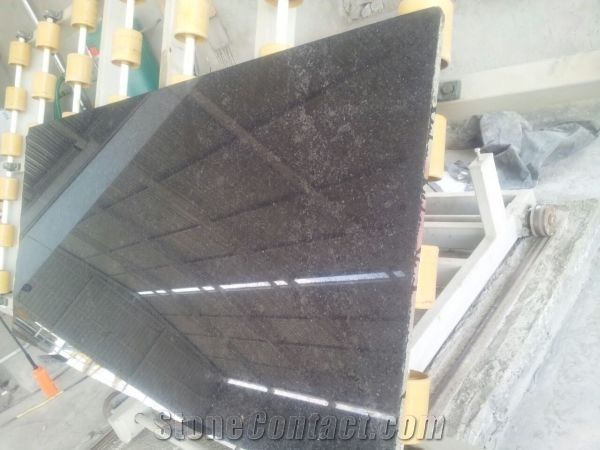

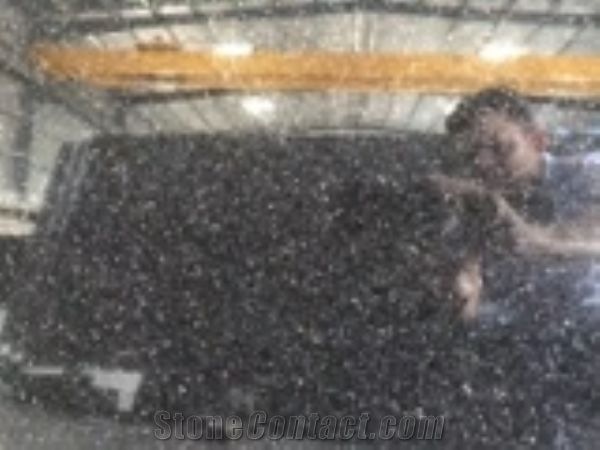

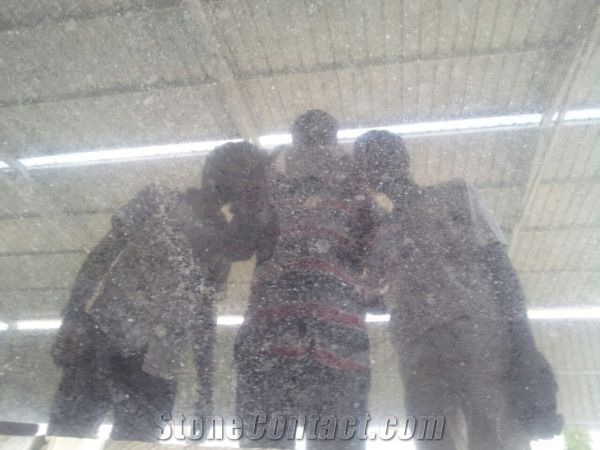

Brake motor to stop the machine immediately if a sudden power outage to protect machine. Can be available for both granite & marble General glossiness requirement of slabs is around 80-85 degrees, by using this machine, we achieved 114 degree for Indian grey granite.
