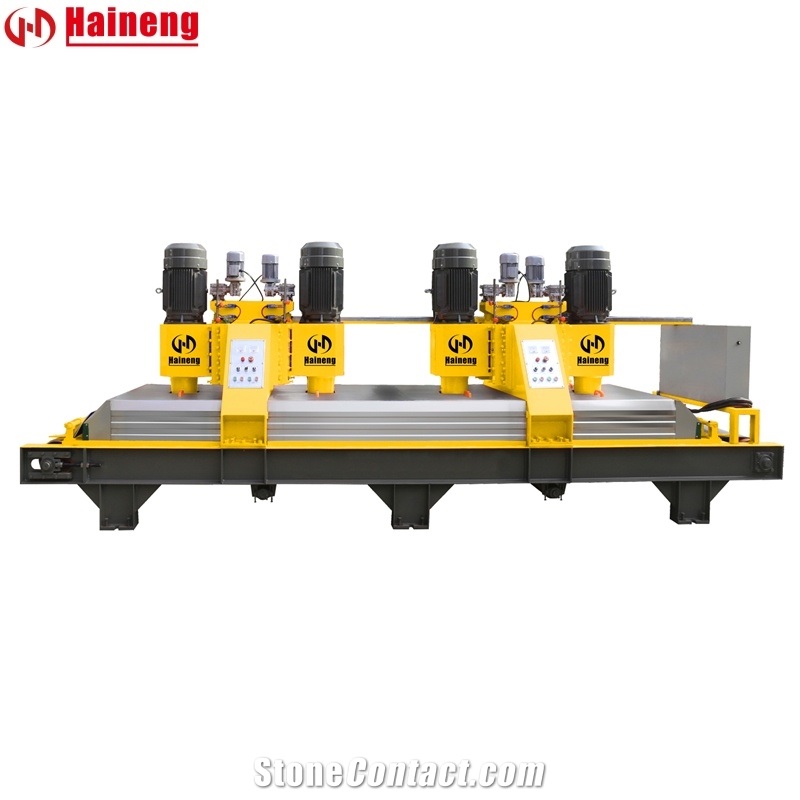

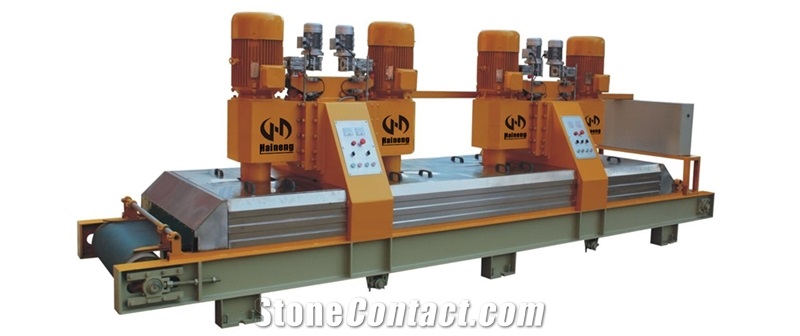

Four Heads Calibrating Machine

FOB Price:$21800-22800

Type: Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 25 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

Quanzhou Xinhaineng Machinery Co,. Ltd.

Quanzhou Xinhaineng Machinery Co,. Ltd.
New Haineng

ChinaChina level4YR idicon

Eatablished :Apr 13,2017

Main Product:

Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|

Contact supplier

Start Order

You may also like
Four Heads Calibration Machine
Four Heads Calibration Machine
SAC-880/1080/1280 Stone Continuous Calibrating Machine
SAC-880/1080/1280 Stone Continuous Calibrating Machine
HLDH Multi Calibrating Machine Granite&Marble Process
HLDH Multi Calibrating Machine Granite&Marble Process
Double Heads Continuous Calibrating Machine
Double Heads Continuous Calibrating Machine
Multi-Disc Stone Calibration Machine
Multi-Disc Stone Calibration Machine
  • Overview
  • Components
  • Video
Machinery Function Features

This machine adopts the structure of portal n type,good rigidity,conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate,make the surface of the stone plate to get a flat, ensure the thickness of the plate is consistent, So as to greatly improve the polishing efficiency and quality, reduce the cost of subsequent polishing, It Is the preferred equipment for the slab thickness of stone plate.

Technical Data
Parameters
Unit
ANH-4-600
ANH-4-800
Speed of conveyor belt
m/min
0.4-3
0.4-3
Maximum workable thickness
mm
100
100
Approx. Weight
Kg
5600
5600
Machine overall width
mm
1080
1590
Water requirement
m3/h
4
4
Maximum workable width
mm
600
800
Machine overall height
mm
1880
1880
Total power
kw
46.23
62.23
Machine overall length
mm
5270
5570
Power of main motor
kw
11kw/4pcs
15kw/4pcs

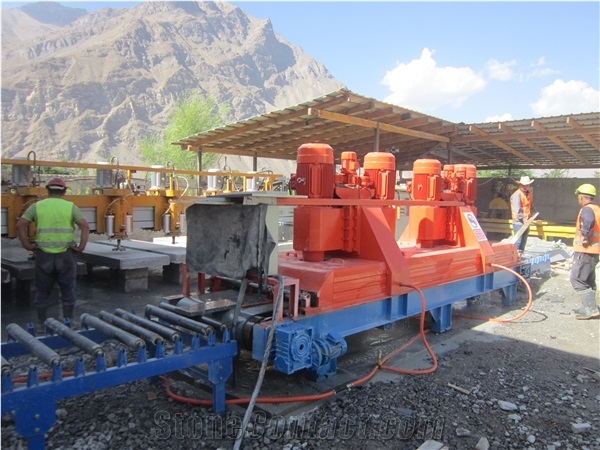

Processed Stone Photos
  • Processed Stone Photos

Components
  • limit switch

    limit switch

    ¥Payment Required
Consumables
  • Diamond Segments

    Diamond Segments

Video

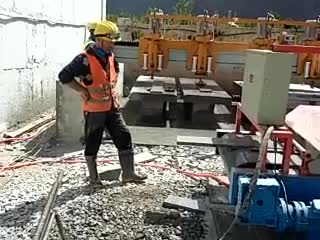

Install Video
