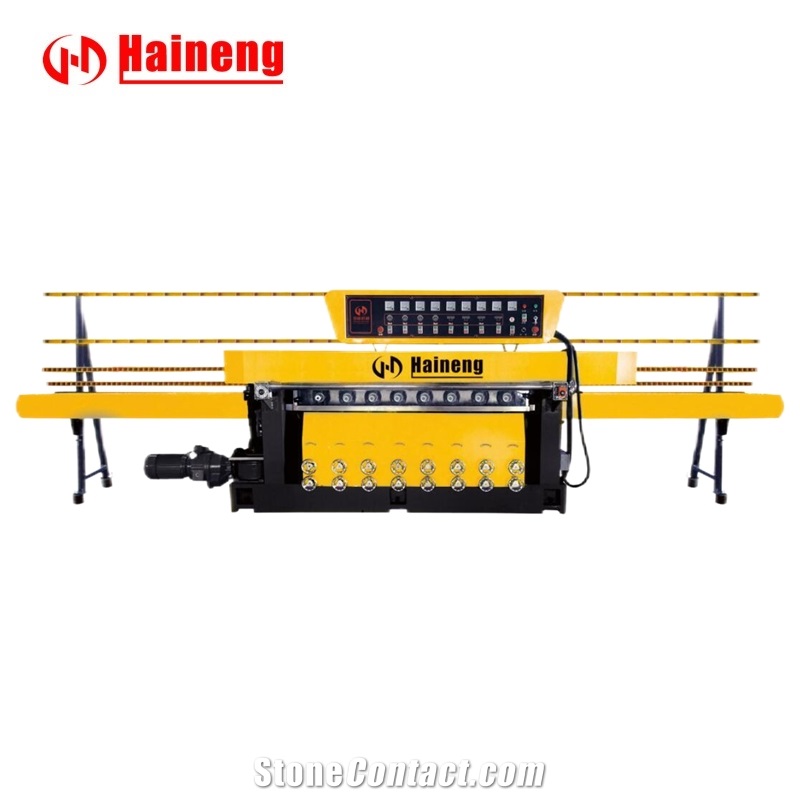

ZBP-6 / 8 Straight & Irregular Stone Edge Profiling &Polishing Machine

FOB Price:$12000-13000

Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 60 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

Eatablished :Apr 13,2017

Main Product:

Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|

Contact supplier

Start Order

  • Overview
  • Components
  • Video
Machinery Function Features
This is the model specially for polishing various irregular edges such as chicken mouth edge, French edges, duck mouth edge, big/small round edge, chess pieces edge, thickening chess pieces edge, etc.The machine has a fully automatic NC control system that detects wear and tear on the polishing wheel intelligently and self-compensates in time, preventing missing polishes and damaging the polishing quality.The wheels are stick to the market specification, they are easy to purchase and convenient to assemble/disassemble.profiling and polishing can be proceed at the same time, which replaces the former models' repeatedly wheel exchanges and polishes. t has a fast processing speed (the same working efficiency of a dozen worker working together) and a low cot.The processed products have a high glossiness (lighter than the board face), consistent lines and shapes, and a low rate of waste, making it the necessary type of model for stone deep processing factory.
Technical Data
Parameters
Unit
ZBP-6
ZBP-8
Overall size (L×W×H)
mm
6500×1300×2000
7000×1300×2000
Remark
Manual
Manual
Working width
mm
80-2000
80-2000
No.of polishing wheel
pcs
6
8
Working speed
m/min
0.8-5
0.8-5
Gross weight kg
3000
3300
Gross power
kw
21.7
27.7
Processed Stone Photos
  • Processed Stone Photos

Components

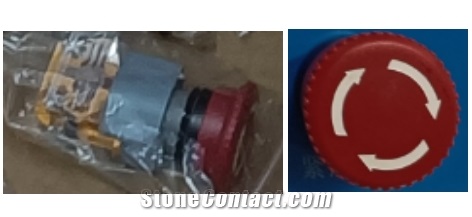

  • emergency stop switch

    emergency stop switch

    ¥Payment Required

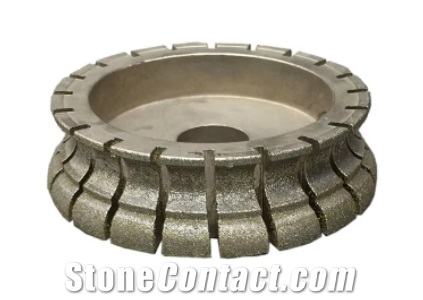

Consumables

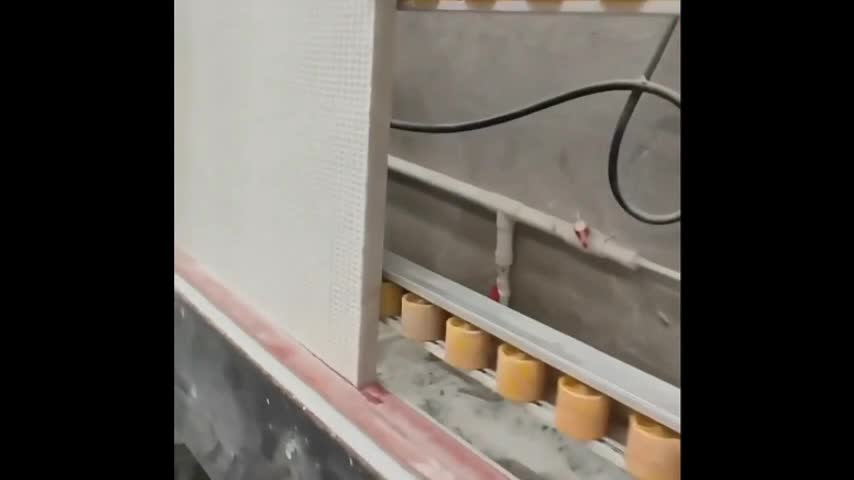

Video
Install Video
Operation Video Screen.PrimaryScreen.Bounds.Height
