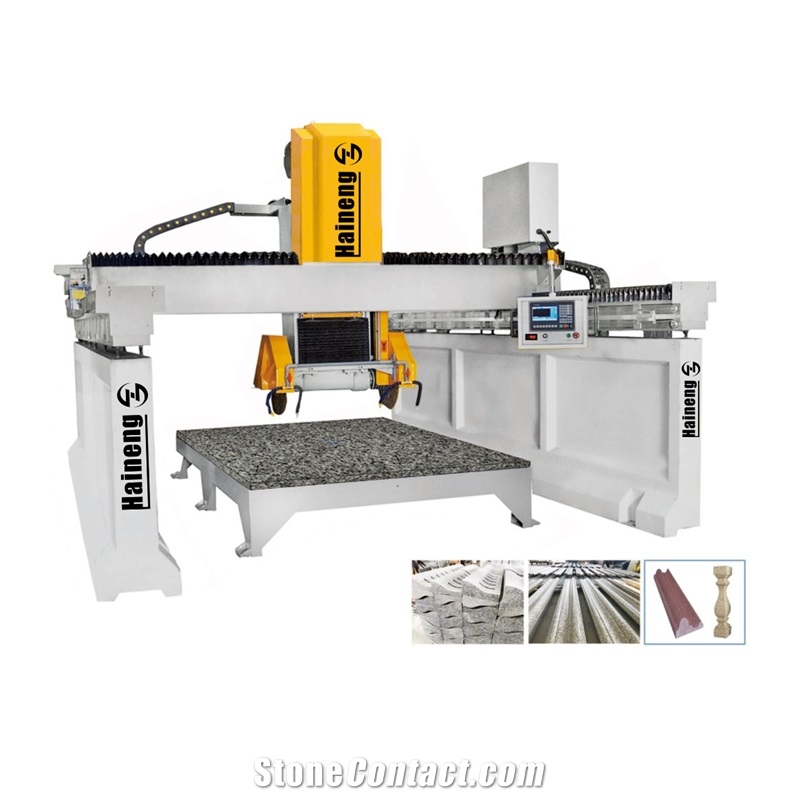

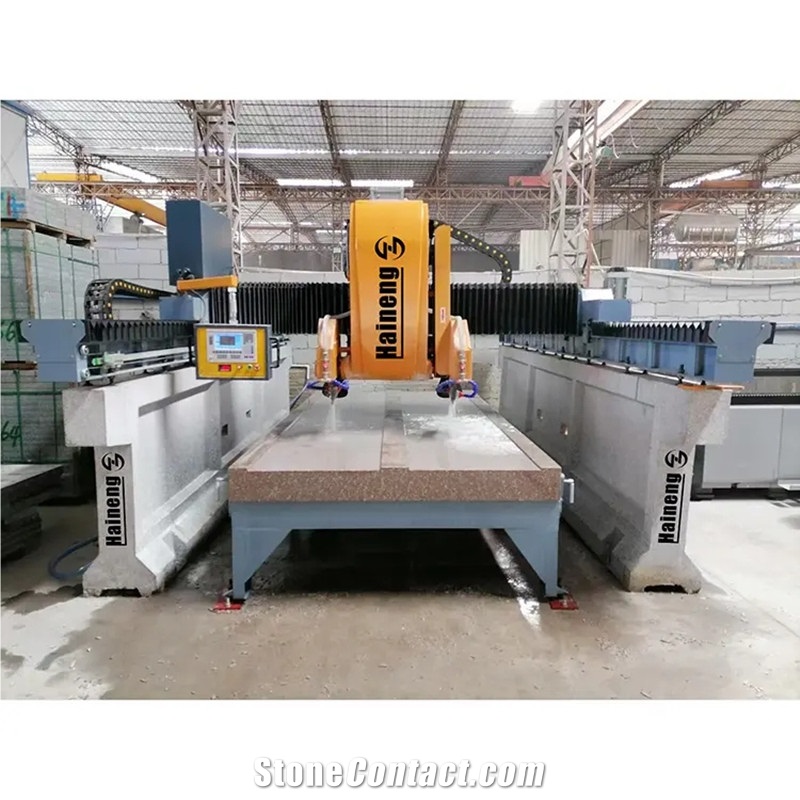

Bridge ( Double Beam) CNC Profiling Machine
FOB Price:$14500-15500
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
60 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
You may also like
Machinery Function Features
The machine adopts double beam structure of gantry type. Full servo control, high precision linear track and oil-immersed and dust-proof structure, to ensure equipment accuracy and service life. This machine can realize CNC programming and CAD import, template copying tracking, to meet all kinds of high precision stone (cement products) special-shaped workpiece processing. Adjusting the parameters can realize the operation of one person and multiple machines.
Technical Data
Parameters |
Unit |
HQ600FA-3 |
Maximum machining size (L x Wx H) |
mm |
2000x1800x400 |
Saw blade diameter |
mm |
350-600 |
Overall dimensions(L xWx H) |
mm |
4000x4800x2400 |
Main motor power |
kw |
22 |
Weight |
kg |
5500 |
Number of saw blades |
pcs |
2 |
Water consumption |
m/h |
4 |
Total power |
kw |
30.7 |
Maximum cutting height |
mm |
400 |
Size of work table |
mm |
2000x1800 |
Maximum machining depth |
mm |
180 |

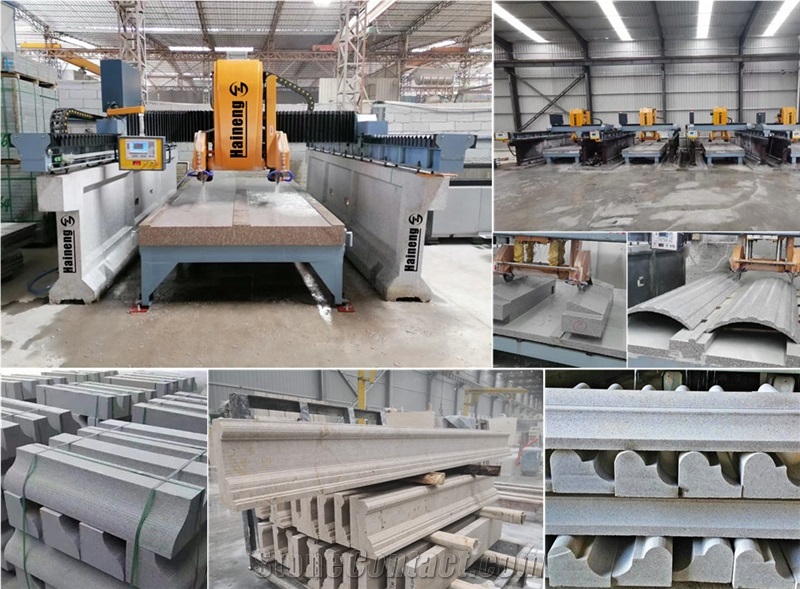

Processed Stone Photos
Components
-

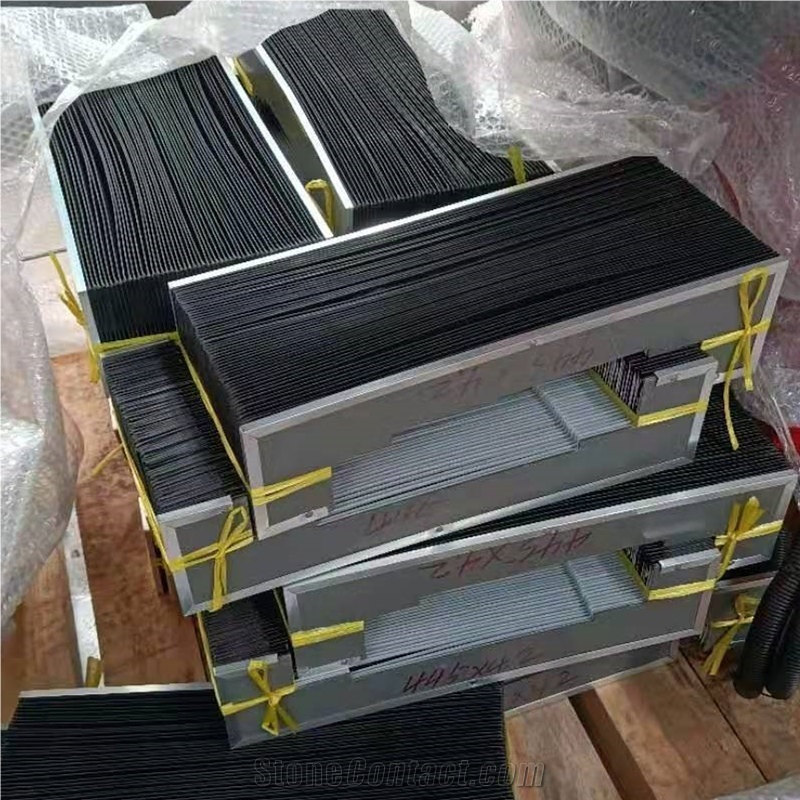

dust cover
¥Payment Required
Consumables
-
saw blade
Video
Install Video
Operation Video
Screen.PrimaryScreen.Bounds.Height
