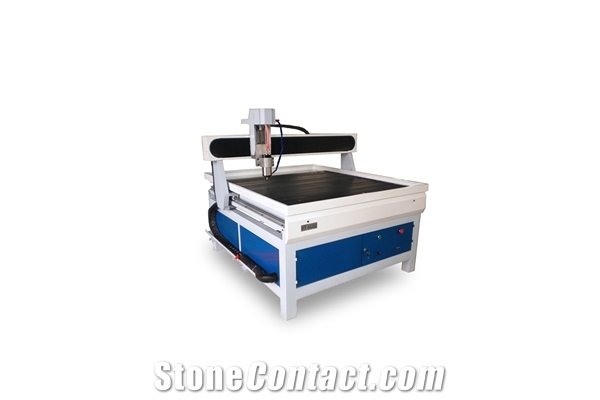

CNC Engraving Machine For Stone
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Aug 06,2012
Main Product:
CNC Router, Laser Machine, Fiber Laser Cutting Machine, Digital Cutting Machine, Plasma Cutting Machine|
You may also like
Machinery Function Features
number Description parameter
1 XYZ working area 1200*1200*150mm
2 Table size 1300*1500mm
3 XYZ travel positioning accuracy ±0.01mm
4 XYZ repositioning positioning accury ±0.01mm
5 Table surface Aluminum molding
6 Lathe structure Cast iron
7 drive system X-Y axis Ball screw
8 drive system Z axis Ball screw
9 Spindle power 2.2KW
10 Max velocity 8m/min
11 Max working speed 6m/min
12 Spindle speed 0-24000rmp
13 work mode Stepper
14 Working voltage AC220V
15 Command language G code
16 Interface USB or parallel port
17 Operating system Ncstudio/DSP/Mach3
18 Flash memory 128
19 X-Y resolution ﹤0.025mm
20 Software environment Ucancam, Type3, Artcam
21 Running environment Temperature:0-45℃
22 Paking size 1480*1650*1350mm
23 Net weight 300kg
24 Gross weight 350kg
Technical Data
Parameters |
Unit |
CNC Engraving Machine |
XYZ travel positioning accuracy |
mm |
±0.01 |
Drive system Z axis |
Ball screw |
|
Max. working speed |
m/min |
6 |
XYZ repositioning positioning accury |
mm |
±0.01 |
Work table dim.(LxWxH) |
mm |
1300*1500 |
Drive system X-Y axis |
Ball screw |
|
Machine overall width |
mm |
1650 |
Command language |
G code |
|
Approx. Weight |
Kg |
300-350 |
Main spindle speed |
r/min |
0-24000 |
Electricity-Voltage |
V/Hz |
AC220V |
Interface |
USB or parallel port |
|
Running environment-Temperature |
℃ |
0-45℃ |
Flash memory |
128 |
|
X-Y resolution |
mm |
﹤0.025 |
Software environment |
Ucancam, Type3, Artcam |
|
Max. processing length |
mm |
1200 |
Machine overall height |
mm |
1350 |
Work mode |
Stepper |
|
Max velocity |
m/min |
8 |
Max. Processing Width |
mm |
1200 |
Control System |
Ncstudio/DSP/Mach3 |
|
Max. processing thickness |
mm |
150 |
Machine overall length |
mm |
1480 |
Main spindle motor power |
kw |
2.2 |
Table surface |
Aluminum molding |
