5+1 Axis Stone CNC Bridge Cutting Machine
FOB Price:$21000-23000
Supplier
Eatablished :Jan 03,2001
Main Product:
Stone Cnc Machine , Stone Polishing Machine , Stone Countertops Cnc Machine , Stone Cutting Machine , Quartz Sink Machine Line , Quartz Slab Machine Line|
Parameters |
Unit |
E-5+1 Axis |
Crossbeam motor power |
kw |
1.5 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
8000 |
Approximate weight without table |
Kg |
3500 |
Average level of equivalent sound pressure |
dB |
0.1 |
Center-to-center distance vertical cutting spindles |
mm |
2000 |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
Transversal stroke speed (Y displacement speed) |
m/min |
8000 |
Max number of interpolated axes |
pcs |
5 |
Vertical stroke speed (Z displacement speed) |
m/min |
2000 |
Head raising/lowering stroke(Z axis travel) |
mm |
400 |
Hydraulic station motor power |
kw |
2.2 |
Center-to-center distance 5-axis head/vertical cutting spindles |
mm |
3200 |
Tools holder head inclination(A axis blade rotation) |
° |
45 |
Dimensions of the work table(L×W) |
mm |
3200x2000 |
Disc diameter |
mm |
400 |
Max.width of the cut slab |
mm |
2000 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
20 |
Machine height |
mm |
2500 |
Machine length |
mm |
5200 |
Horizontal stroke(X axis travel) |
mm |
3200 |
Worktable turn-over degree |
° |
85 |
Installed electrical power |
kw |
28 |
Max. revolutions of the spindle unit |
r/min |
24000 |
Head motor power |
kw |
1 |
Z-axis working travel vertical cutting spindles |
mm |
400 |
C axis blade rotation |
° |
360 |
Machine width |
mm |
3200 |
Worktable Weight |
Kg |
1500 |
Air consumption |
m3/h |
0.5 |
Disc motor power |
kw |
13 |
Max.length of the cut slab |
mm |
3200 |
Max. workable thickness |
mm |
100 |
Max. liftable weight with all the vacuum cups activated |
Kg |
100 |
Max. cutting depth |
mm |
90 |
Number of vertical cutting spindles |
nr |
1 |

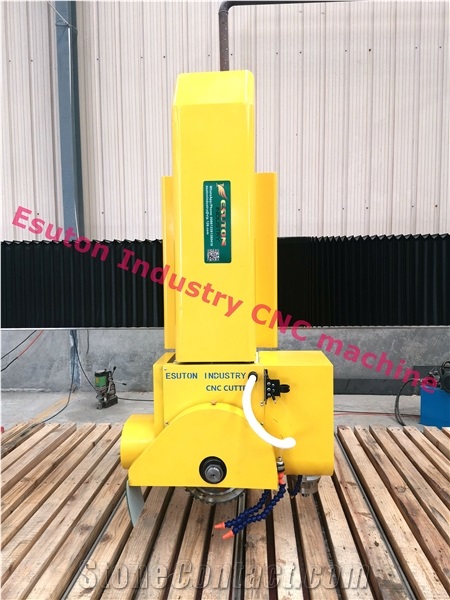

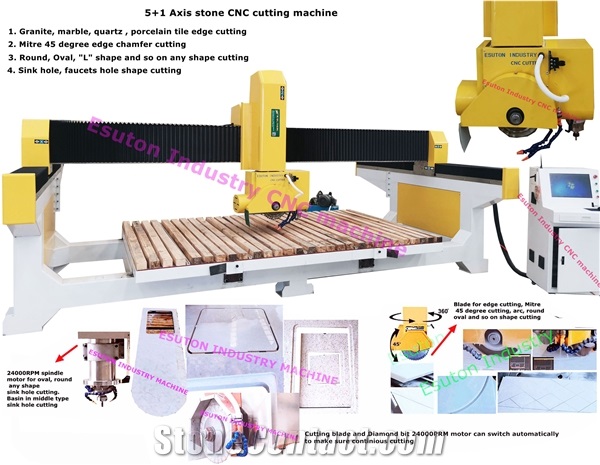

5+1 Axis stone bridge CNC cutting machine
Price not high , the best suitable machine for quartz, granite, porcelain countertops machine

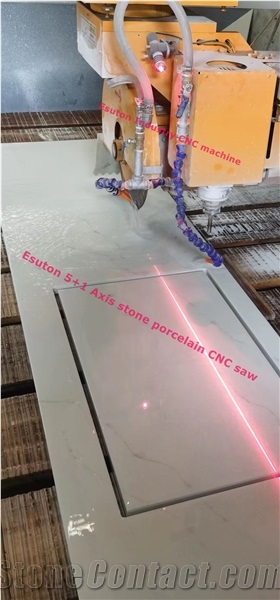

1. granite, marble, quartz stone, procelain tile edge cutting.
2. Mitre 45 degree edge cutting.

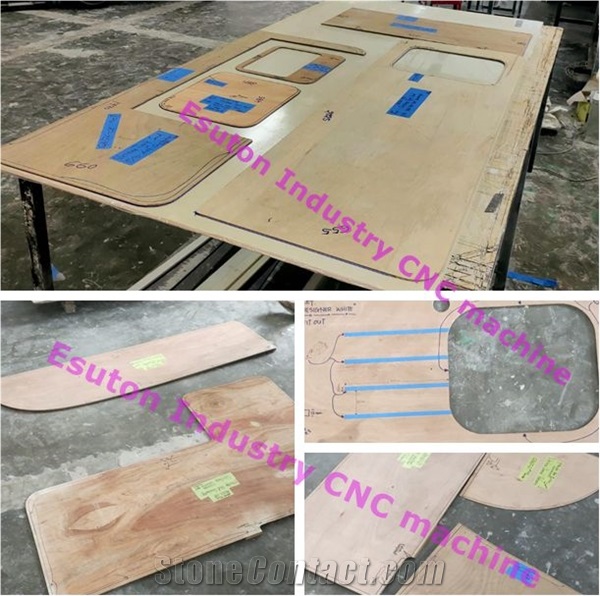

3. Can cut round, oval, arc, "L" shape and so on shape.
4. Can read AutoCad drawing DXF file

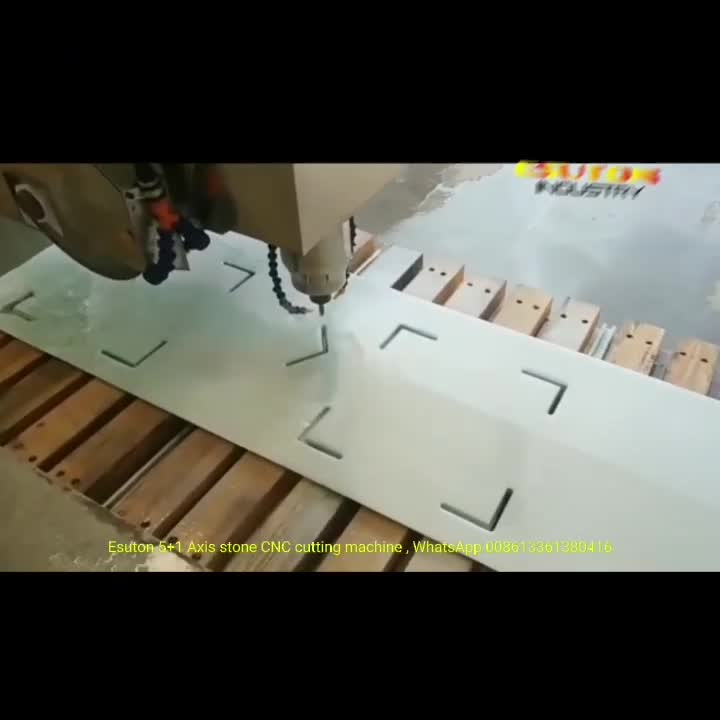

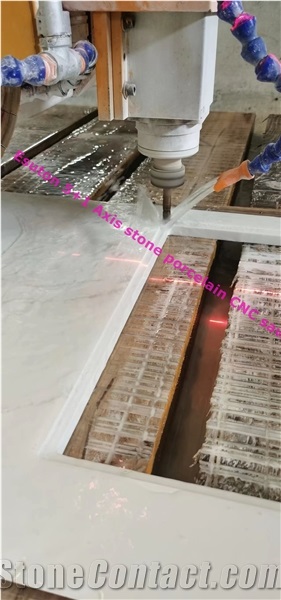

5. 24000RPM spindle motor for round , oval, square with arc corner and any shape sink hole cutting, with high speed and lower diamond bit consumption
WhatsApp 008613361380416

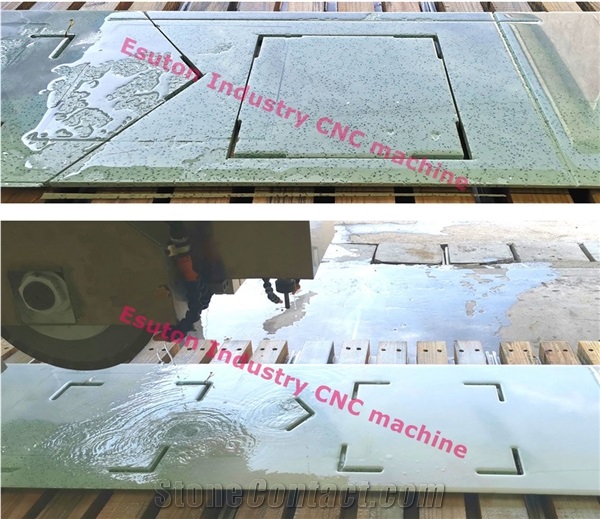

Bellow stone products all can be cut by this machine
