5 Axis Natural Stone-Artificial Stone CNC Bridge Cutting Machine
FOB Price:$16000-18000
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
20 days
Warranty:18 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 03,2001
Main Product:
Stone Cnc Machine , Stone Polishing Machine , Stone Countertops Cnc Machine , Stone Cutting Machine , Quartz Sink Machine Line , Quartz Slab Machine Line|
Machinery Function Features
1. Stone edge cutting, Deskton, Sintered stone , porcelain tile cutting
2. Mitre 45 degree edge chamfer cutting.
3. Round, Arc, Oval and so on shape cutting
4. Sink hole cutting
5. Can read AutoCAD drawing for complex shape cutting
6. "L" shape, island Arc shape countertop slab cutting
Technical Data
Parameters |
Unit |
E-5 Axis |
Average level of equivalent sound pressure |
dB |
0.1 |
Installed electrical power |
kw |
13 |
Dimensions of the work table(L×W) |
mm |
3200x2000 |
Machine height |
mm |
2400 |
Head motor power |
kw |
1 |
Max. workable thickness |
mm |
90 |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
Crossbeam motor power |
kw |
1.5 |
Machine length |
mm |
5200 |
Z-axis working travel vertical cutting spindles |
mm |
400 |
Max number of interpolated axes |
nr |
5 |
C axis blade rotation |
° |
360 |
Tools holder head inclination(A axis blade rotation) |
° |
45 |
Hydraulic station motor power |
kw |
2.2 |
Max. liftable weight with all the vacuum cups activated |
Kg |
100 |
Min.dimensions of the liftable piece |
mm |
100 |
Max. dimensions of the liftable piece |
mm |
3200 |
Vertical cutting spindles motor power |
kw |
0.5 |
Worktable Weight |
Kg |
1522 |
Max. revolutions of the spindle unit |
r/min |
6000 |
Max. dimensions of the piece for “rodding” application |
mm |
3200 |
Number of vertical cutting spindles |
nr |
1 |
Machine width |
mm |
3200 |
Horizontal stroke(X axis travel) |
mm |
3200 |
Center-to-center distance 5-axis head/vertical cutting spindles |
mm |
3200 |
Head raising/lowering stroke(Z axis travel) |
mm |
400 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
8000 |
Transversal stroke speed (Y displacement speed) |
m/min |
8000 |
Worktable turn-over degree |
° |
85 |
Vertical stroke speed (Z displacement speed) |
m/min |
2000 |
Max.width of the cut slab |
mm |
2000 |
Approximate weight without table |
Kg |
3000 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
30 |
Air consumption |
m3/h |
0.5 |
Center-to-center distance vertical cutting spindles |
mm |
50 |
Max.length of the cut slab |
mm |
3200 |
Disc diameter |
mm |
400 |
Disc motor power |
kw |
13 |
Max. cutting depth |
mm |
90 |

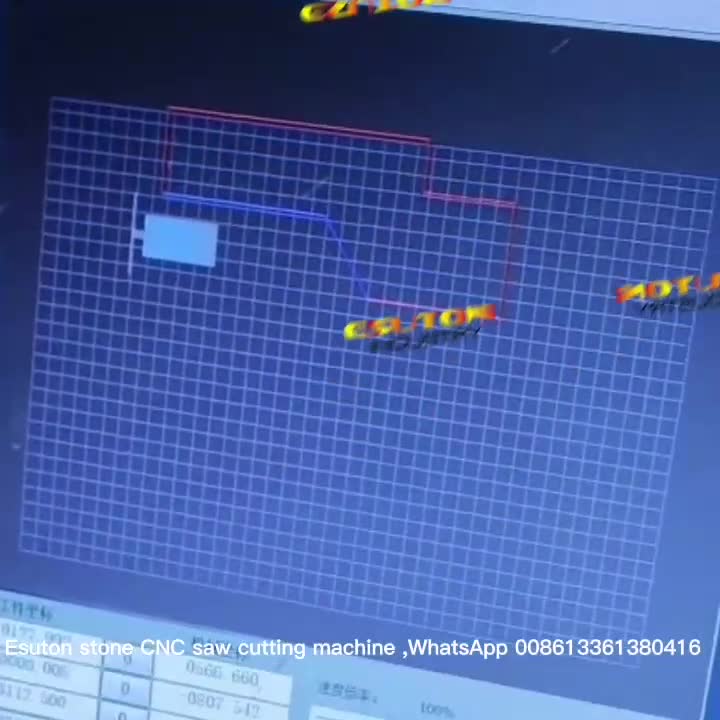

Software
Lower price 5 Axis stone porcelain tile CNC cutting machine is under promotion now.
Main function:
1. Stone edge cutting, Deskton, Sintered stone , porcelain tile cutting
2. Mitre 45 degree edge chamfer cutting.
3. Round, Arc, Oval and so on shape cutting
4. Sink hole cutting
5. Can read AutoCAD drawing for complex shape cutting
6. "L" shape, island Arc shape countertop slab cutting
Bellow stone products this machine all can cut

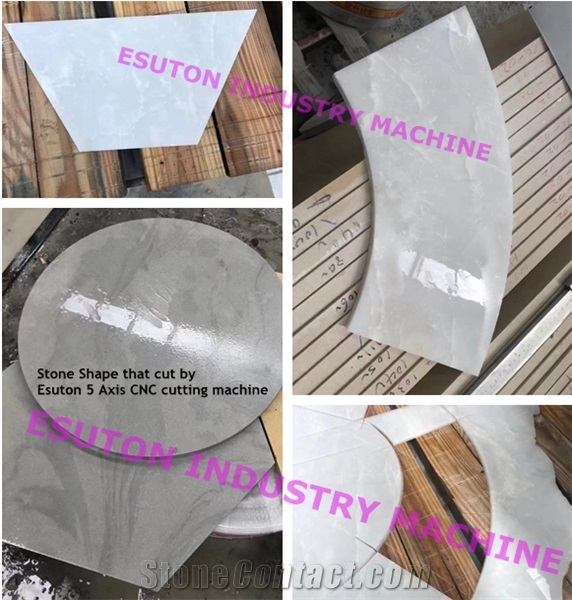

Processed Stone Photos
Components
Consumables
