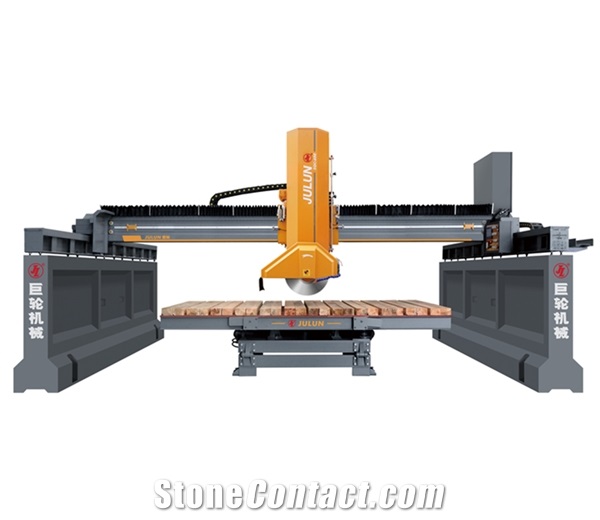

SQC-450/600/700 Bridge Cutting Machine

Name: SQC-450/600/700 Bridge Cutting Machine
Brand: FUJIAN NANAN JULUN MACHINERY CO., LTD.
SKU: 658
Price: 19300 USD
Availability: InStock

FOB Price:$19300-21700

Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: WITHIN 30 DAYS AFTER RECEIVING THE DEPOSITS

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Regular guidance & maintenance

Supplier

FUJIAN NANAN JULUN MACHINERY CO., LTD.

JULUN

China

Eatablished :Nov 29,1990

Main Product:

Stone Cutting Machine, Stone Polishing Machine, Stone Drilling Machine, Stone Calibrating Machine, Stone Chamfering Machine, Stone Profiling Cutting Machine|

Contact supplier

Start Order

You may also like

SQC-450/600/700 Bridge Cutting Machine

SQC-450/600/700-4D 4 Post Guide Bridge Cutting Machine

QCYI-1200 bridge cutting saw machine

4 Axis CNC Infrared Bridge Stone Cutting Machine For Marble/Granite

Xianda Infrared Bridge Cutting Machine

Product Detail
Company Profile

Overview
Components
Video
Customer Case

Machinery Function Features

SQC-450/600/700 (Sliding Plate Type) uses PLC system and human-machine Interface, combined with Ultra-high precision rotary encoder to locate and infrared device,uses inverter to control left-right feeding, adjusts the speed according to the stone material.It uses hydraulic lifting system,main spare parts adopt imported good-quality materials.Thus the whole machine is featured as high cutting effciency,high cutting precision, high stability,easy-operating to suit granite and marble with high value and big size.

Technical Data

Parameters	Unit	SQC-450	SQC-600	SQC-700
Working table rotating angle	°	0°- 90°/0°- 360° (Set up by each 45 degree）	0°- 90°/0°- 360° (Set up by each 45 degree）	0°- 90°/0°- 360° (Set up by each 45 degree）
Machine dimension	mm	600048003100	600048003300	600048003400
Water Consumption	m³/h	3	3	3
Main motor power	kw	15	18.5	18.5
Blade diameter	mm	Φ450	Φ600	Φ700
Max. thickness cutting capacity	mm	100	180	220
Max. working dimensions(L×W×H)	mm	3200×2000×100	3200×2000×180	3200×2000×220
Max.Lifting sroke	mm	220	350	470
Total power	kw	21	24	24
Working table tilting angle	°	0°- 85°	0°- 85°	0°- 85°
Working table dimensions(L×W)	mm	3200×2000	3200×2000	3200×2000

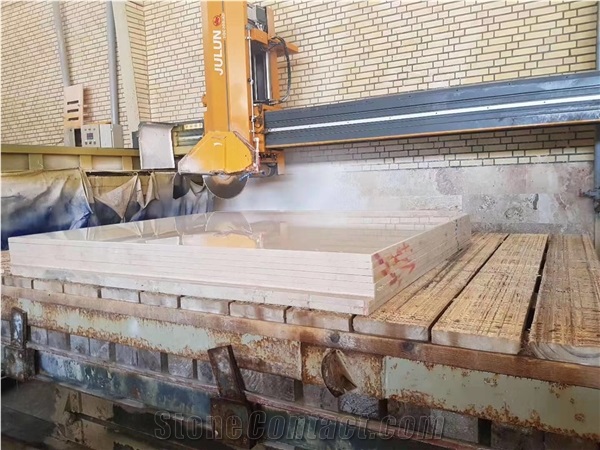

Processed Stone Photos

cutting slab

Components

Laser Device

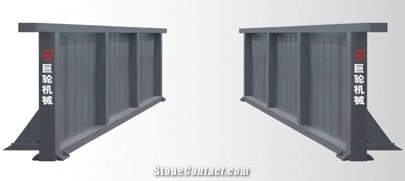

Steel Stand(Can Match)

¥Payment Required

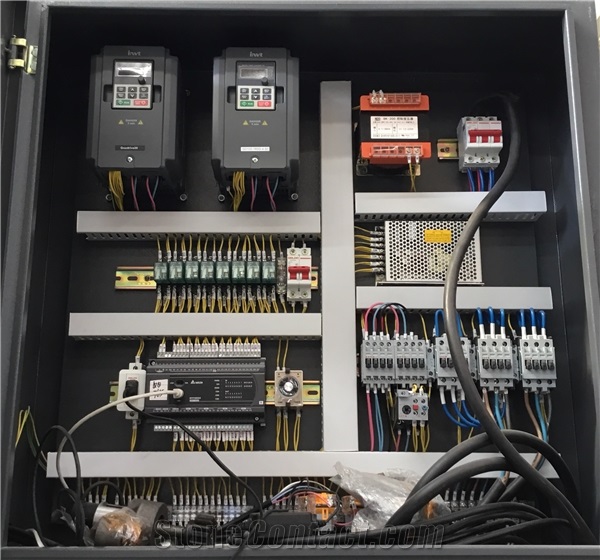

Electric Box

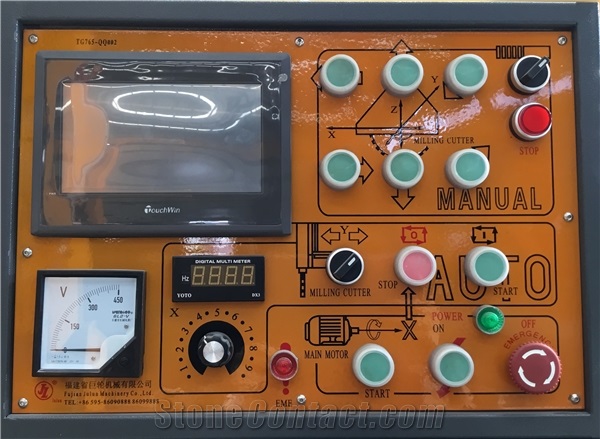

Control Panel
Single-Beam Lifting Machine(Can Match)

¥Payment Required

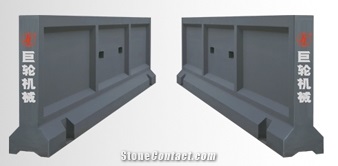

Cement Base (Can Match)

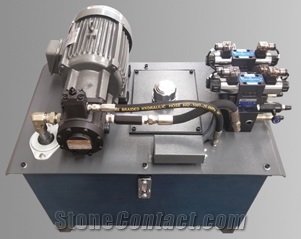

Hydraulic System

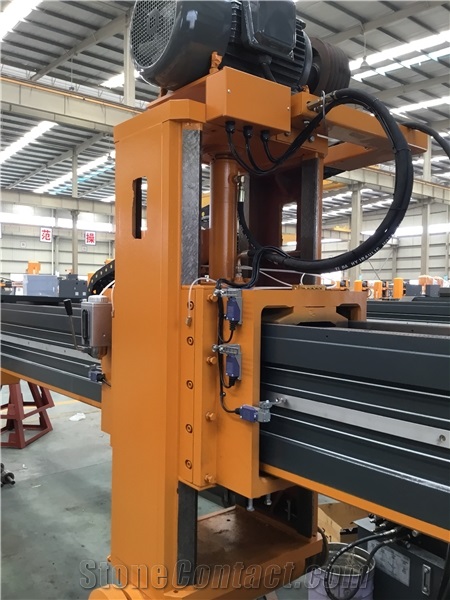

Slide Lifting System

Consumables

button

Customer Case

Nigerian customer Nigeria

Nigeria

Dubai customer

United Arab Emirates
