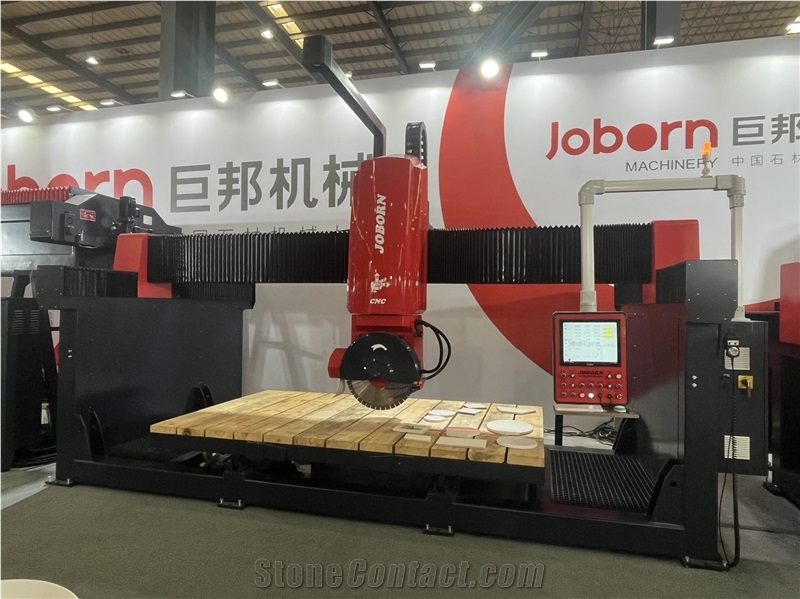

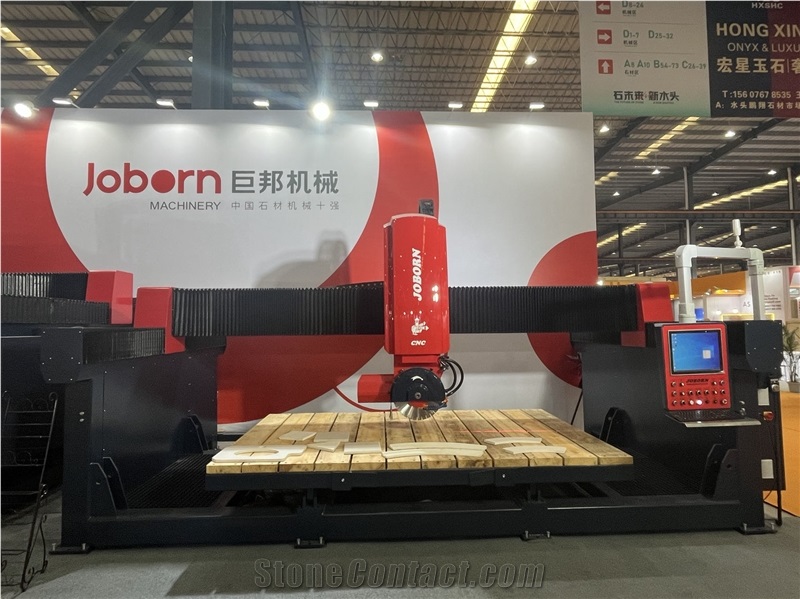

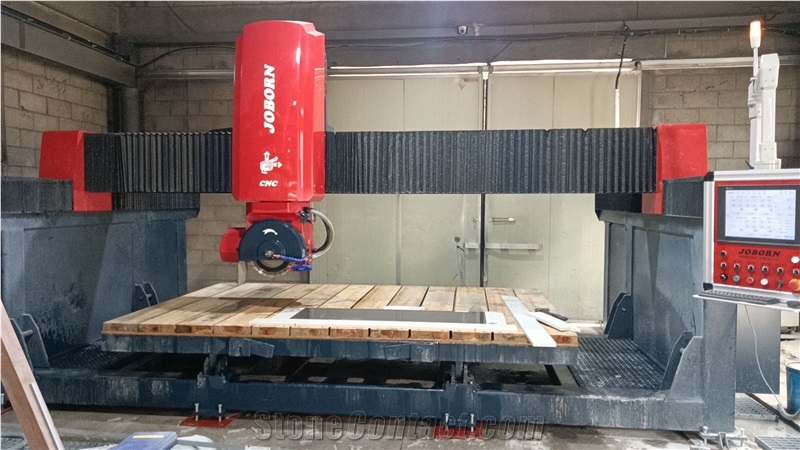

CNC 5 Axis Bridge Cutting Machine CNC450/600/700-5 AI

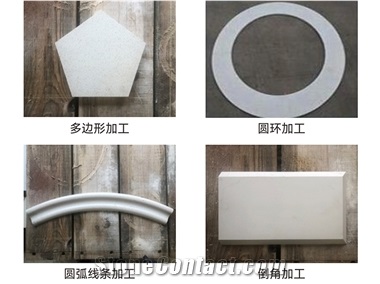

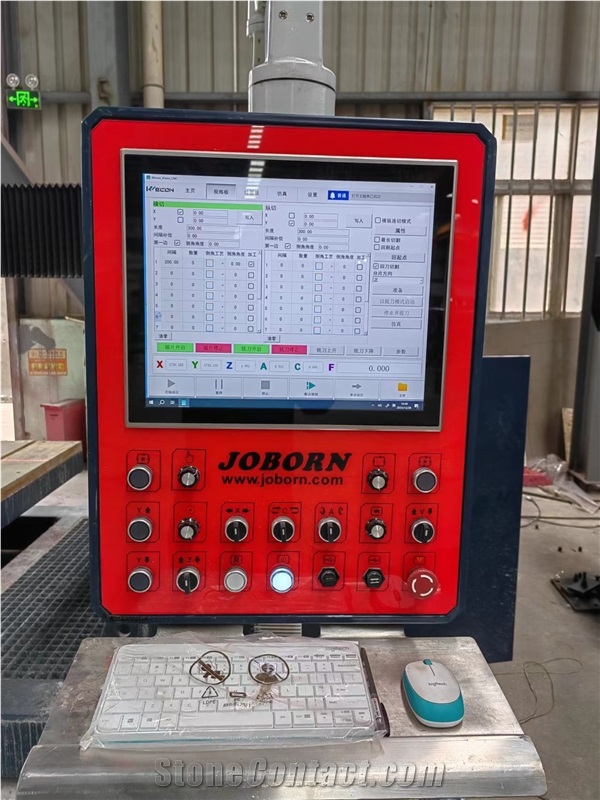

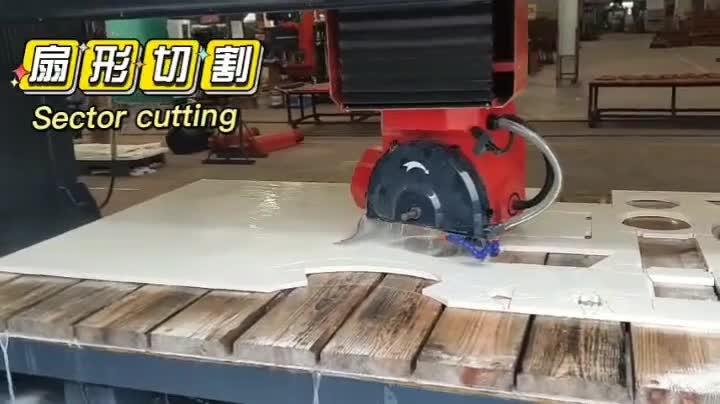

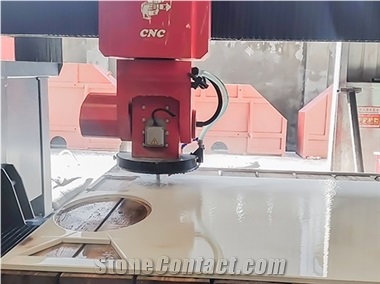

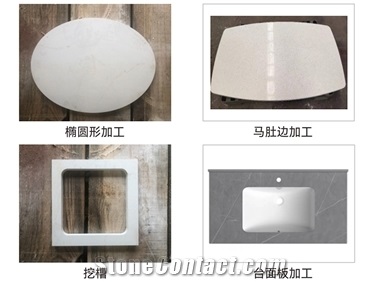

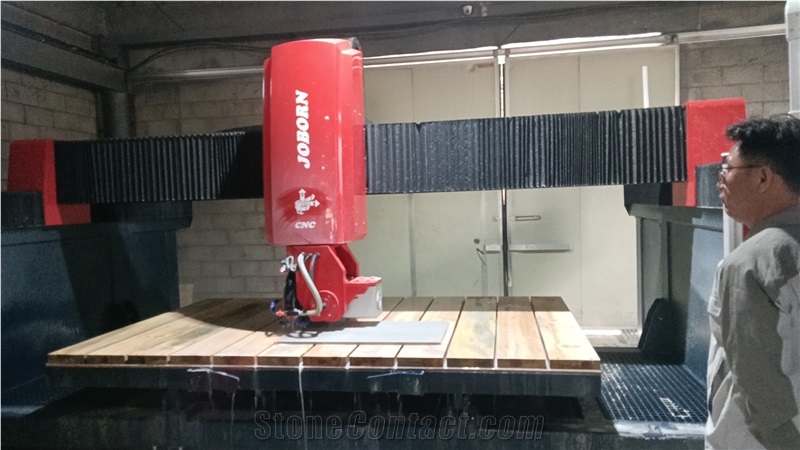

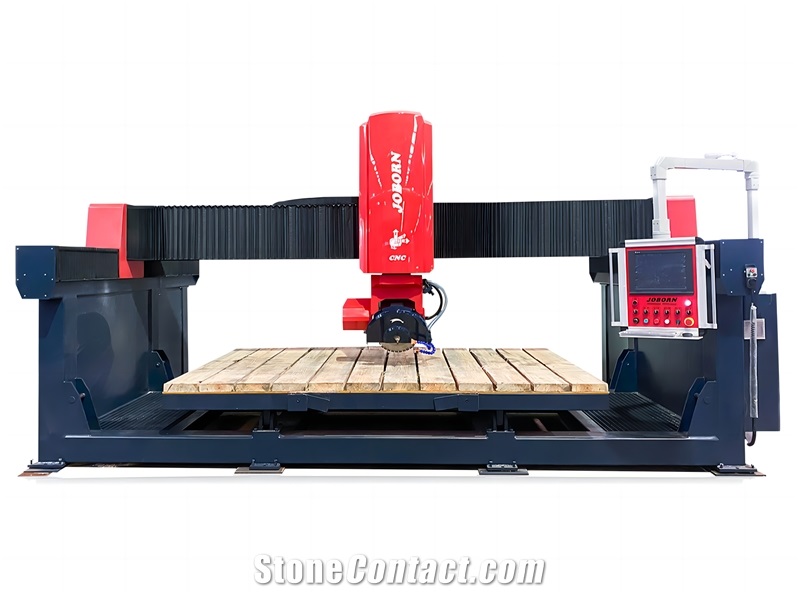

CNC450-5 five-axis CNC bridge cutting machine adopts industrial computer and is equipped with Windows system, which can realize manual programming or PC programming and other programming methods to automatically complete processing operations. Cutting, grooving, countertop processing, special-shaped processing, etc. can be performed.The structure adopts an integral steel frame, which has been treated with stress relief in multiple processes, and has a stable structure, easy installation and high precision. The main motor adopts the spindle motor, which can be equipped with a milling cutter. In terms of transmission, the XY axis adopts high-precision rack and pinion transmission and high-precision linear guide rail guidance. The Z axis is driven by a ball screw and guided by a high-precision linear guide. A-axis and C-axis all use precision robot reducer. The whole machine has high positioning accuracy, repeated positioning accuracy, good cutting accuracy and high stability, and is especially suitable for the processing of high-value and large-sized granite, marble and slate. Features: 1)5 axis linkage control with CNC control system. 2)Easy to use interface with 17" color touch-screen. 3)The machine is equipped with an industrial computer, embedded touch screen, supports CAD file import. 4)The machine adopts integrated structure, the frame and beam are welded by high-quality carbon steel plate and profiles, solid and reliable, high stability. 5)The X-axis lateral movement adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive. 6).Y-axis longitudinal movement adopts double servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive; 7).The Z-axis main machine lifting adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision ball screw drive. 8).A-axis head tilt rotation 0-90° and C-axis head plane rotation 0-360° are driven by servo motor + precision robot RV reducer, supporting five-axis linkage, high dimensional precision and shape precision. 9)Working platform can tilt 85 degrees, easy for slabs loading. 10)Milling cutter function. 11)Suction cup function(optional). 12)Thickness measurement function(optional).
