5 Axis CNC Granite Marble Quartz Stone Cutting For Kitchen Countertops
FOB Price:$30000-35000
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
30-35days
Warranty:24 Months
Install and Guarantee:Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jan 20,2021
Main Product:
Bridge Saw, Stone Cutting Machine, Block Cutting Machine, Wire Saw Machine, Stone Splitter, Stone Polishing Machine|
You may also like
Machinery Function Features

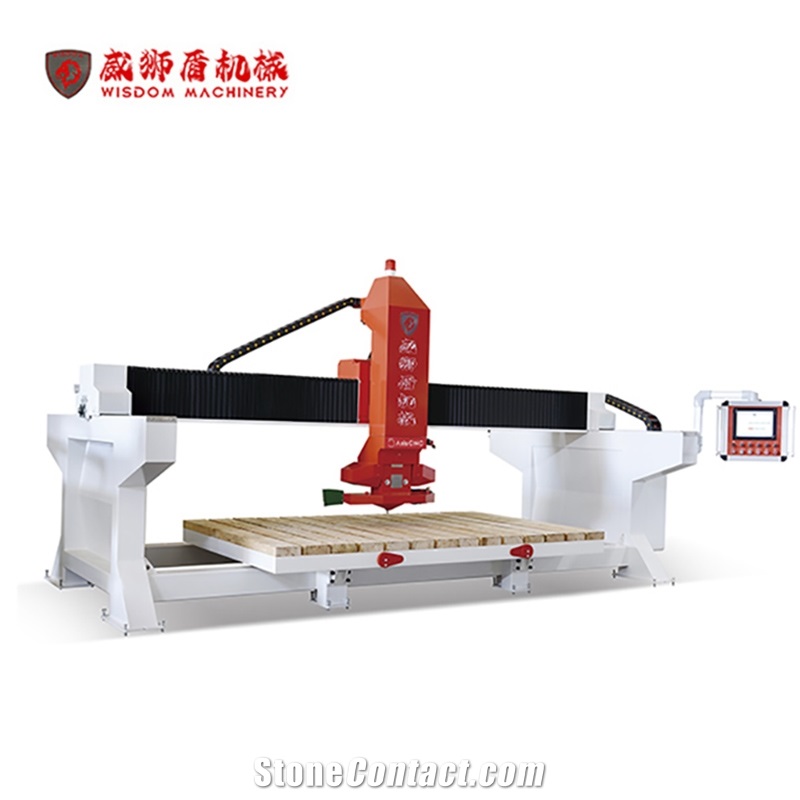

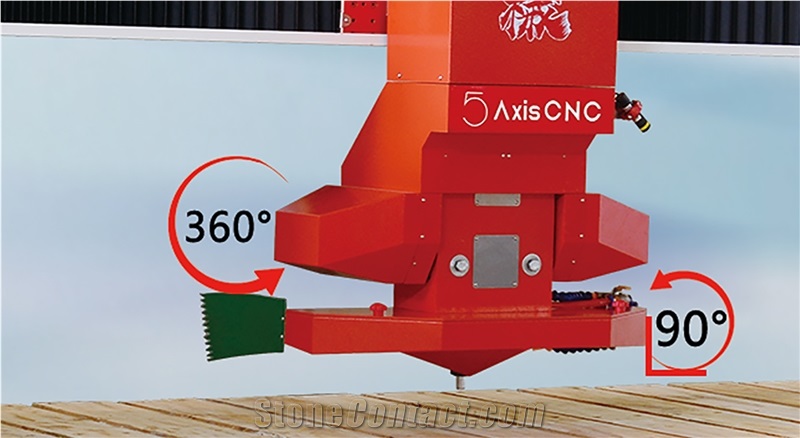

Wisdom 500CNC Bridge Cutting Machine is a 5-Axis simultaneous movement control machine with cutting,milling,carving and drilling fuctions,which can provide remote control and remote fault diagnosis.
-It adopts a stone CNC 5-axis special numerical control system to achieve the processing of irregular surfaces in one installation,facilitating,monoblock frame make it easy installation and transportation.
-Ether CAD bus servo.
-17-bit absolute value encoding counting,with power-off memory function.
-Supports CAD file import.
-Supports G-code 5-Axis linkage processing.
-Oil-bath bridge and rails.
-Equipped with industrial waterproof heavy-duty remote controller.
-Can be operated and controlled remotely,with remote fault diagnosis capabilities.
Technical Data
Parameters |
Unit |
WSD500CNC |
Miter degree |
° |
0-90 |
Milling arbor |
mm |
5-25 |
Main motor power |
kw |
11 |
Dimension |
mm |
5800*3000*2800 |
Table tilt angle |
° |
85 |
Blade size |
mm |
350-500 |
Table size |
mm |
3200*2000 |
Bridge oil |
# |
LHG68 |
Motor speed |
rpm |
0-3600 |
Permanent magnet motor(Optional) |
rpm |
0-24000 |
Water consumption |
m³/h |
4 |

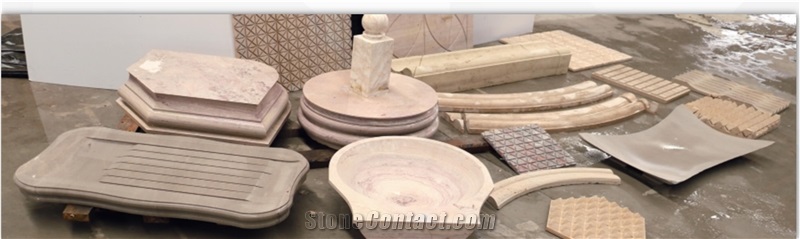

Processed Stone Photos

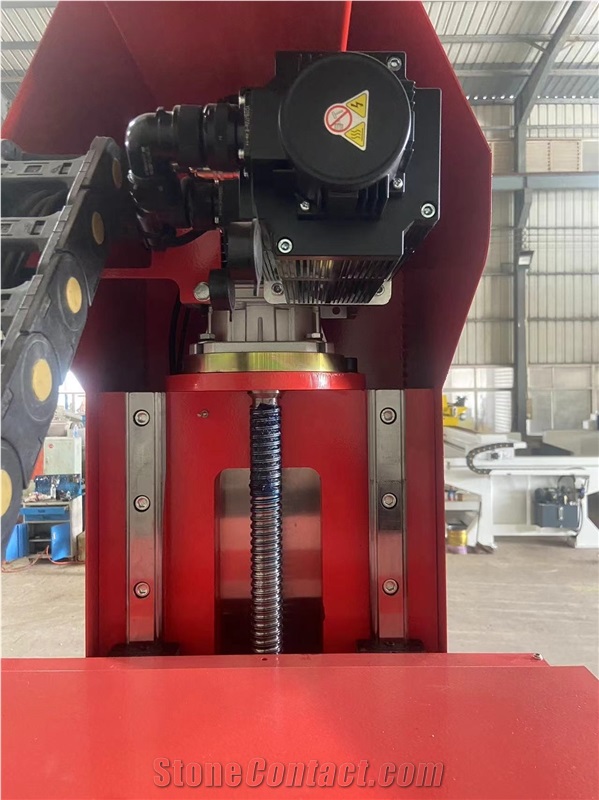

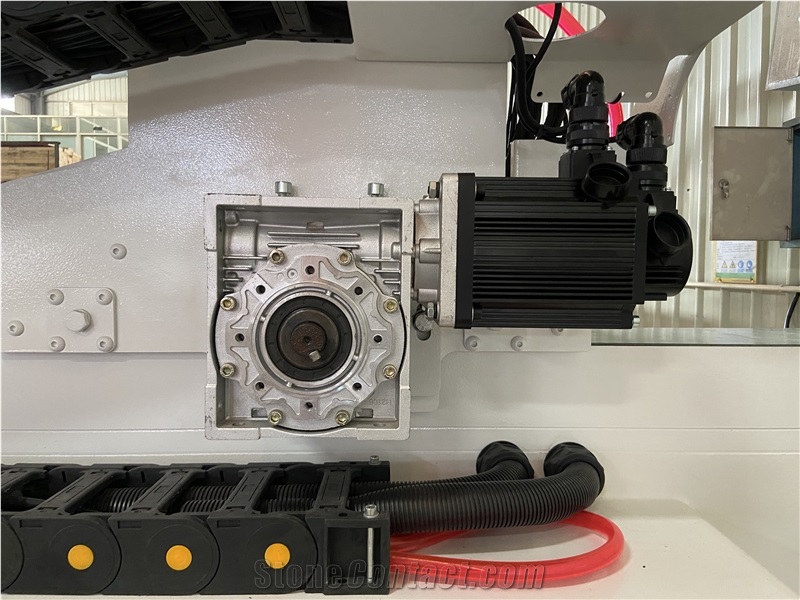

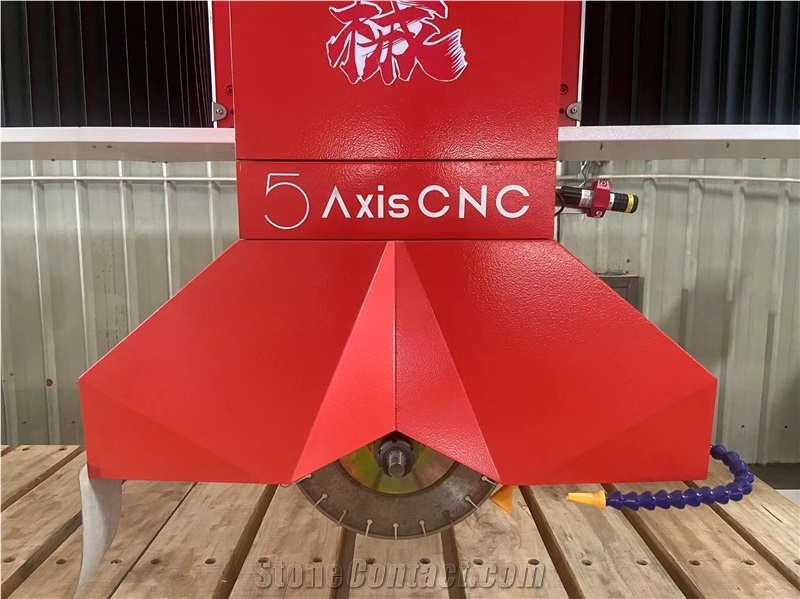

Components
Consumables

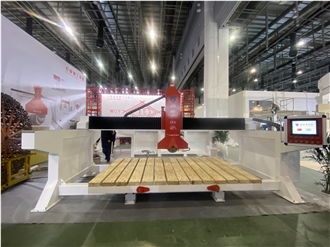

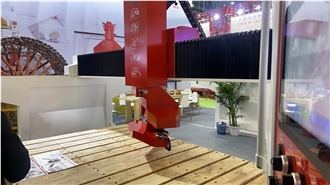

Customer Case

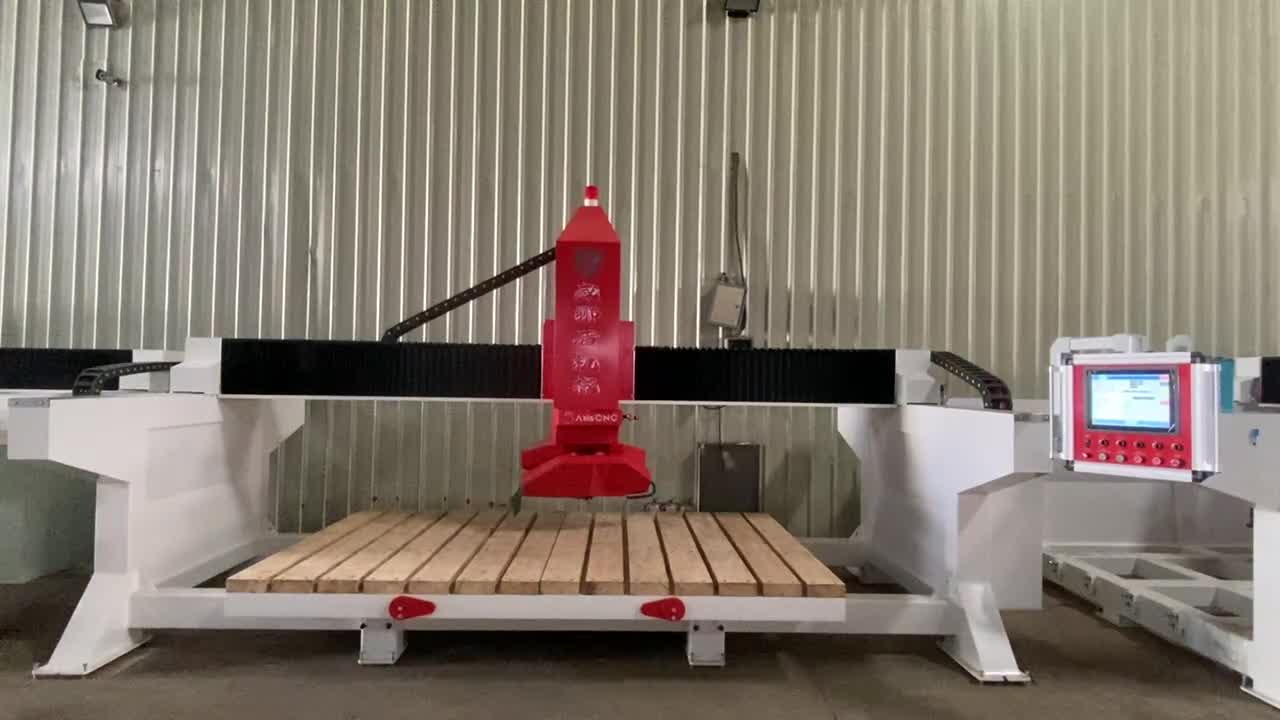

Video
Operation Video
