Back Bolt Drilling Tool For Mechanical Fixings
FOB Price:$900-1000
Type:
Stone Hand Held MachinesStone Hand Drill Machines
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
3-7 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery
Payment :
Supplier
Eatablished :May 01,2010
Main Product:
Undercut Anchors, Aluminium Brackets, Stainless Steel Brackets, Stone Fixing Systems, Drill Bits, Drill Machines|
Machinery Function Features

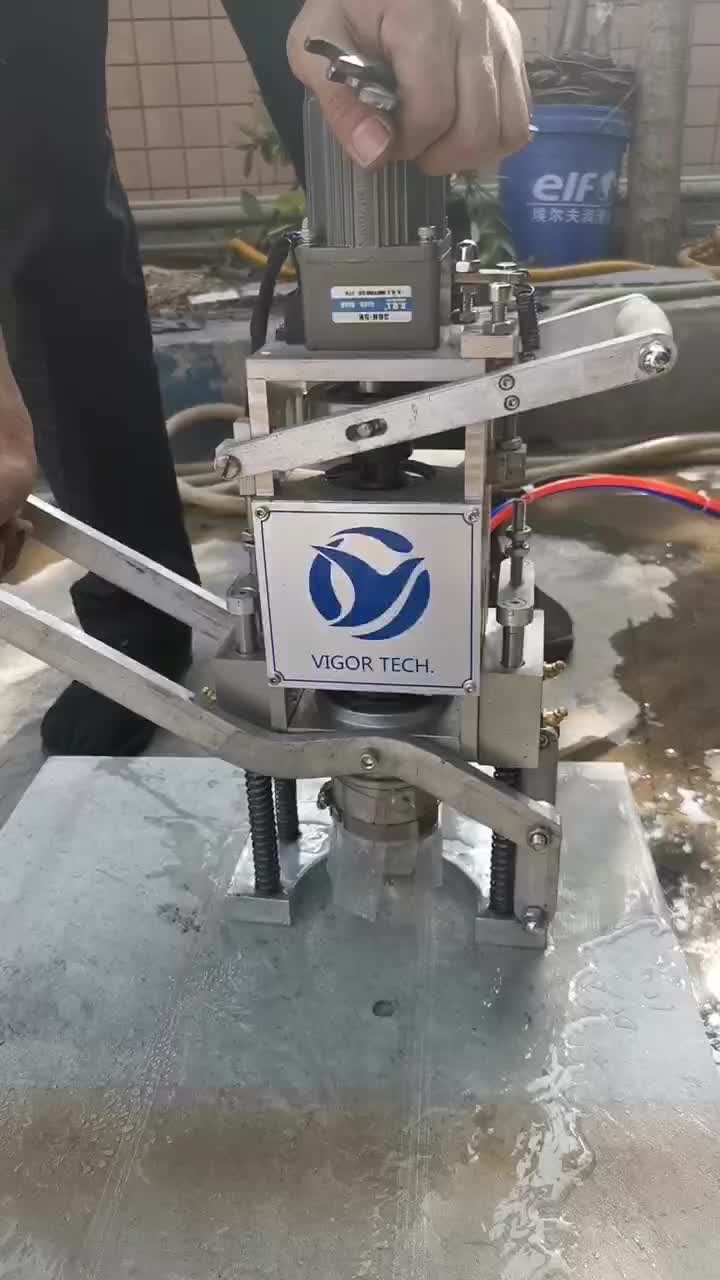

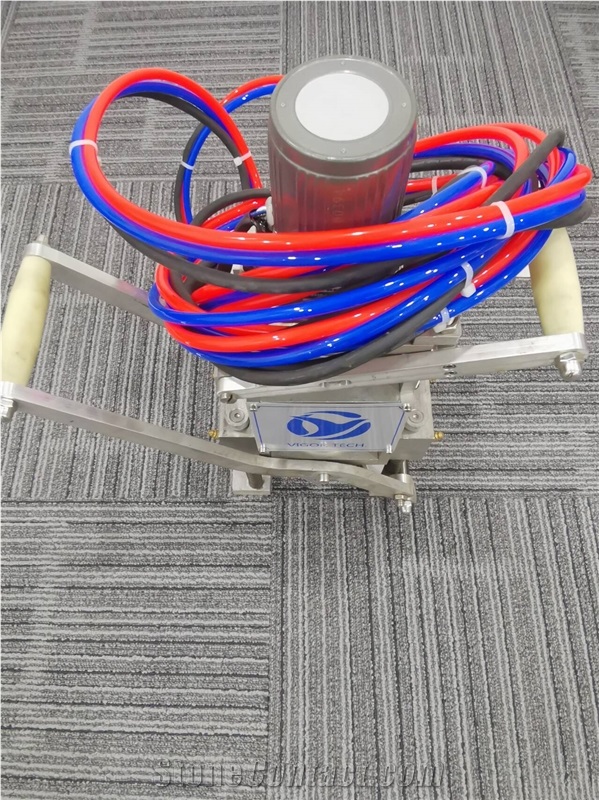

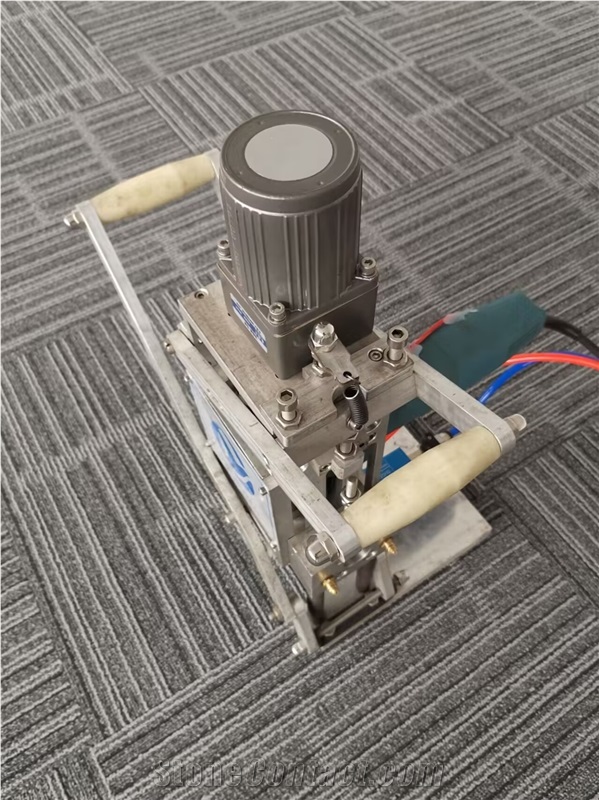

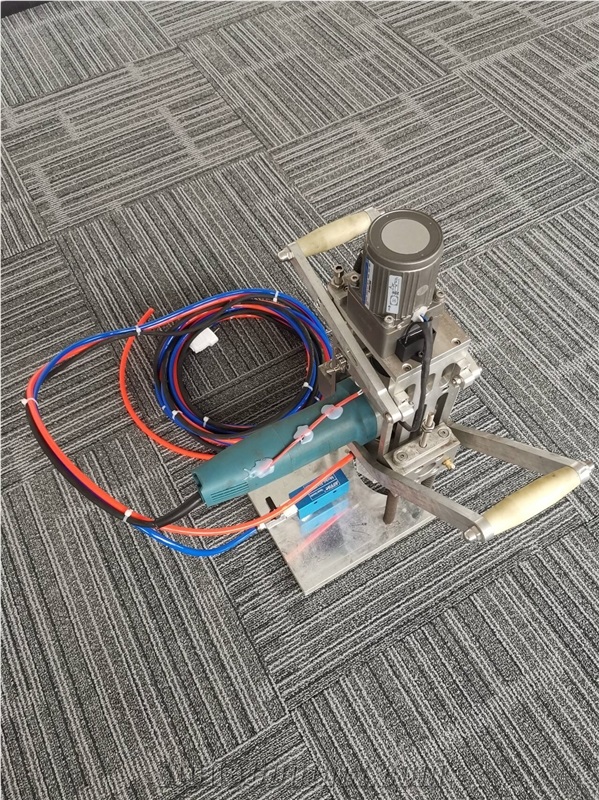

Back Bolt Drilling Tool for Mechanical Fixings
Application:Stone hand drill machine for granite fixing anchor used with diamond drill bits to drill holes for undercut anchors in ceramic or stone panels of granite, marble,travertine, limestone, sand stone, concrete panels, cement fiber board, etc. For exterior and interior wall cladding projects.
Specification: 350mm(Length)x380mm(Width)x500mm(Height).
Accessory: Air Compressor, Water Pump, tools.
Advantages:
1. High quality with long life.
2. High working efficiency.
3. Portable and light, easy to carry.
4. Easy to adjust and operate.
Technical Data
Parameters |
Unit |
VTDM-P01 |
Power source |
Electric Supply |
|
Rotating speed/Drilling speed |
r/min |
12000 |
Min. drill rod diameter |
mm |
7 |
Max. drilling depth |
mm |
50 |
Overall width |
mm |
380 |
Drill rod length |
mm |
25 |
Output power |
w |
1250 |
Apr. weight |
Kg |
13 |
Max. drill rod diameter |
mm |
13 |
Rated voltage |
V |
220 |
Max. sound |
dB |
60 |
Processing type(Dry or Wet) |
Wet |
|
Frequency |
Hz |
50 |
Overall height |
mm |
500 |
Overall length |
mm |
350 |

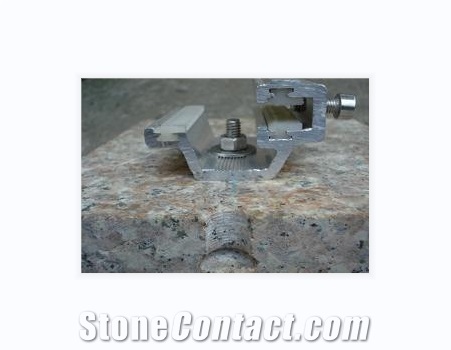

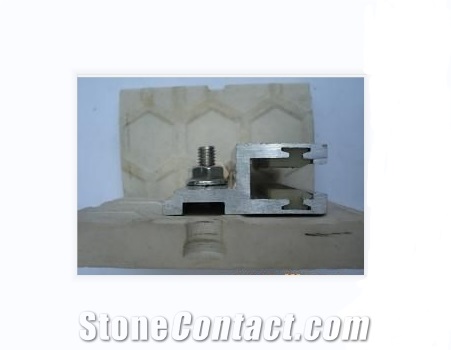

Processed Stone Photos
Components
-

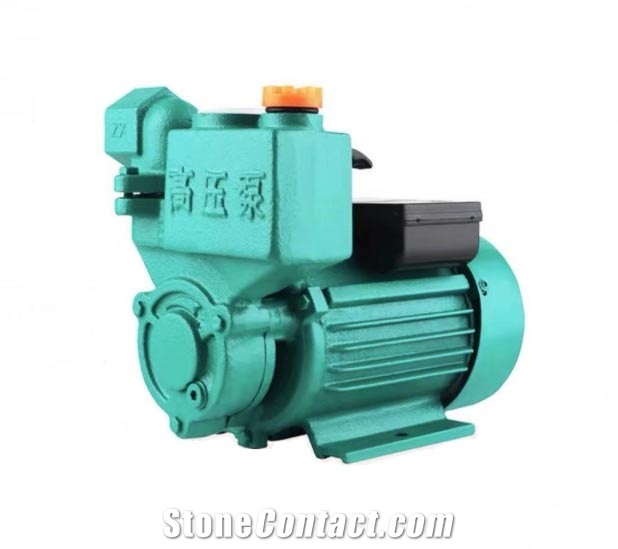

Water Pump
¥Payment Required -

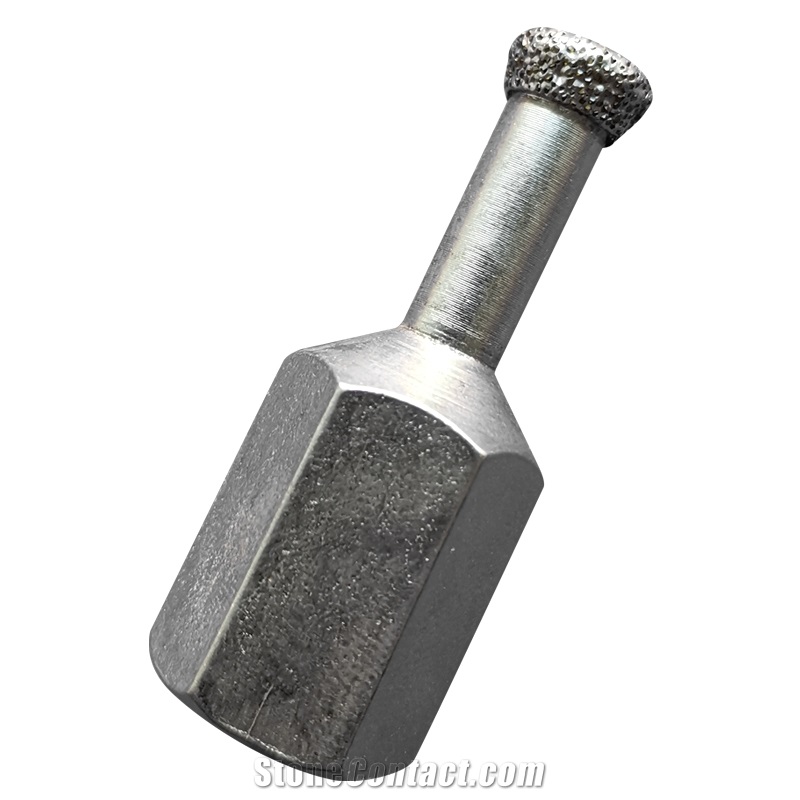

Diamond Drill Bit
¥Payment Required -

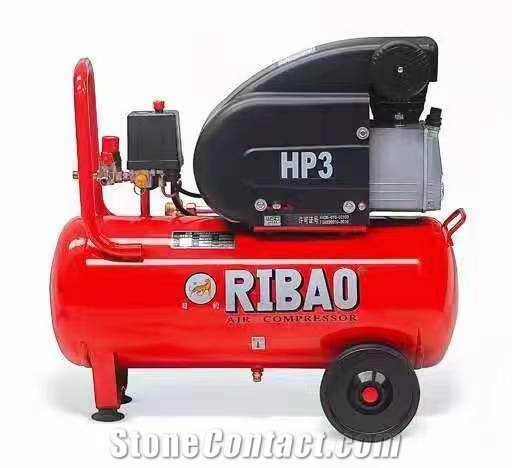

Air Compressor
¥Payment Required
Consumables
-
Diamond Drill Bit
Need to be replaced
