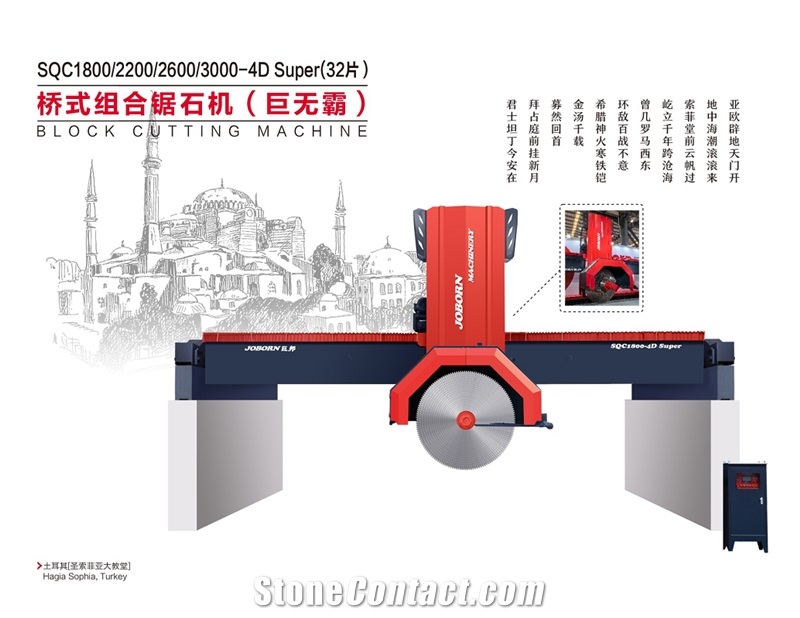

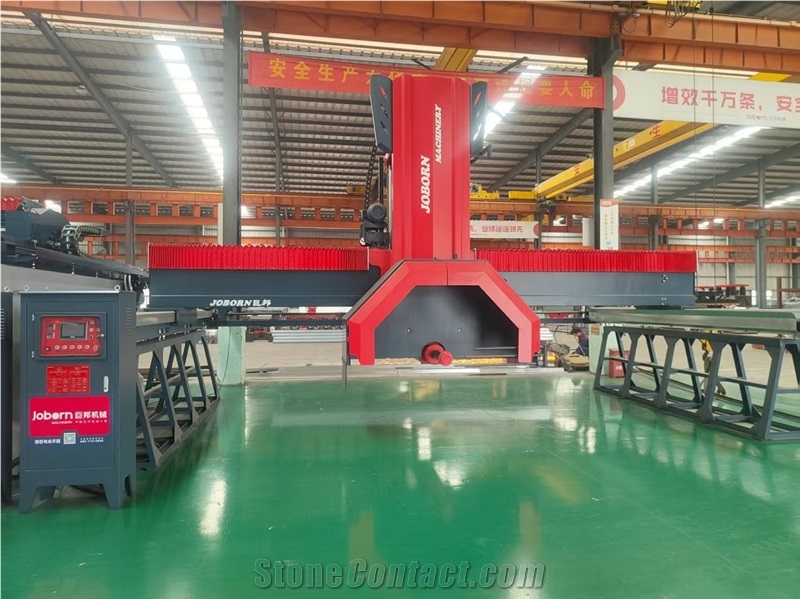

SQC 1800/2200/2600/3000-4D Super Block Cutting Machine (32 Discs)

FOB Price:$47999-50999

Type: Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 25~30 days after prepayment received
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

FUJIAN JOBORN MACHINERY CO.,LTD.

JOBORN MACHINERY

ChinaChina level4YR idicon

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

  • Overview
  • Components
  • Video
Machinery Function Features
1.Taiwan famous hydraulic system. The hydraulic components from Taiwan first-line brand, react more quickly,works more stable; 2.Domestic premium brand main motor with high efficiency and more energy saving, make the cutting more powerful, and saving electricity more; 3.Germany Siemens inverter, feeding more stable; imported or domestic famous brand electrical components, with lower failure rate, help you to worry less and save more labor; 4.Side-beam rails use slide V-rail, contacting area is large, not easy to shake when cutting, ensure the plate/slabs are flatness after cutting; meanwhile, the forward and backward slicing take high precision screw-nut transmission, have automatic slicing function; 5.It uses hydraulic lifting system, combination of chrome-plated guide pin and wear guide bush, with small gap, wearable, beautiful structure, and guide sleeve with multi-layer seals, with waterproof, dust-proof, anti-spill, improving the service life; 6.Revolving working platform (Optional);
Technical Data
Parameters
Unit
SQC 1800-4D Super (32 discs)
SQC 2200-4D Super (32 discs)
SQC 2600-4D Super (32 discs)
SQC 3000-4D Super (32 discs)
Horizontal disc diameter
mm
1800
2200
2600
3000
Machine length(front)
mm
11500
11500
11500
11500
Installed power
kw
128/150
128/150
128/150
128/150
Max. cutting depth
mm
500
500
500
500
Machine height
mm
3700
3700
3700
3700
Machine width
mm
9000
9000
9000
9000
Vertical disc diameter
mm
1800
2200
2600
3000
Approximate Weight
Kg
33000
33000
33000
33000
Cooling water (1.5 bar pressure)
m3/h
20
20
20
20
Software

PLC computer operating system, LCD touch screen(7 inches) using Chinese, English, Russian, Arabic operation interface

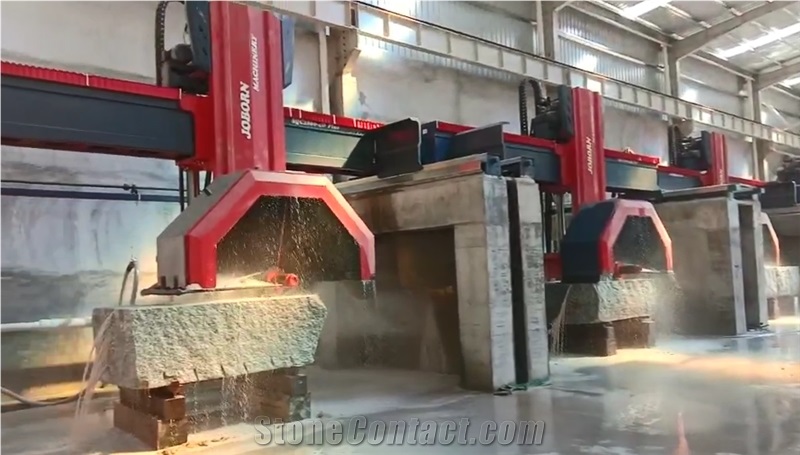

Work Example

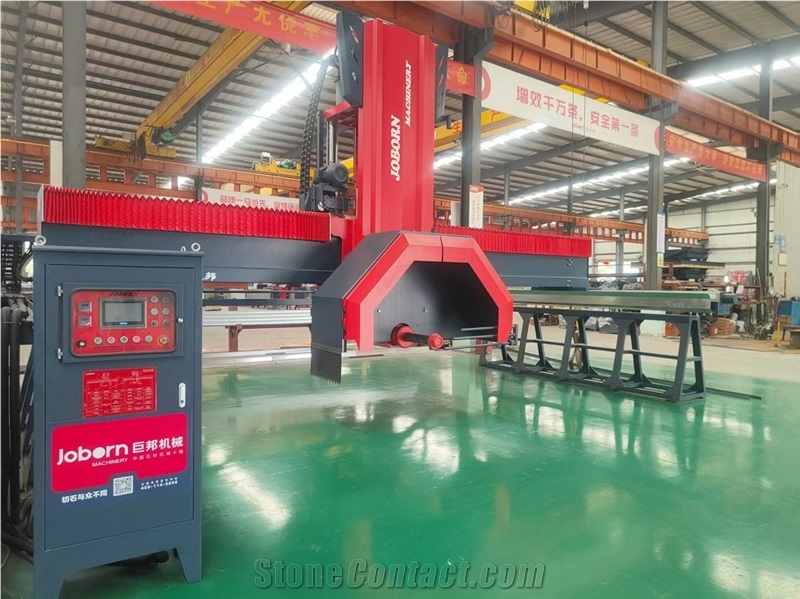

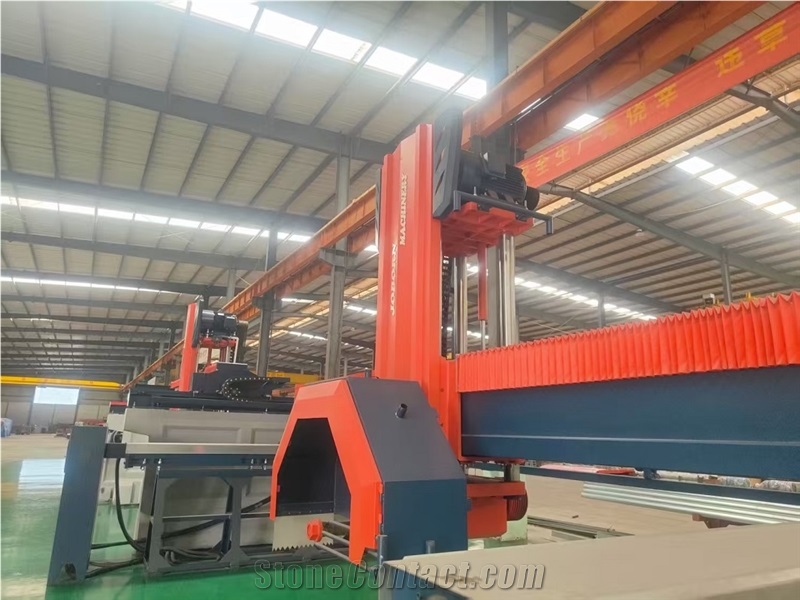

The whole beam and side beam are welded with high-quality carbon steel plate and profiles. The beam length is 9.5 meters, the section size is 900*1300mm, and the side beam length is 6.2 meters. Both are designed with wide oil groove. The main engine is a four-guide column lifting, the diameter of 265mm chromium plated guide column, the wear resistance guide sleeve of ductile cast iron, the four guide columns are oil-soaked lubrication, the upper and lower link plates are made of integral casting, the spindle box adopts one stage gear change, the bearing adopts heavy tapered roller bearing + heavy cylindrical roller bearing, the side beam transmission adopts screw nut transmission. The position of transmission beam motor reducer adopts waterproof offset design;

Processed Stone Photos
  • Processed Stone Photos

Components

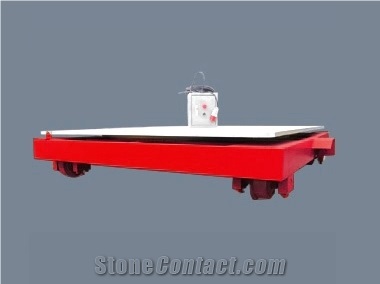

  • rotary worktable (optional)

    rotary worktable (optional)

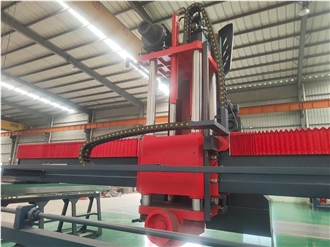

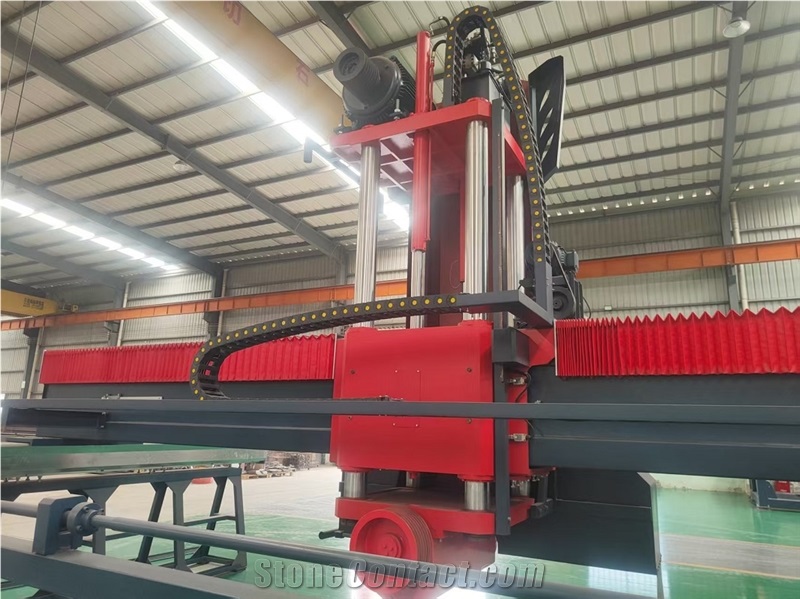

  • main motor

    main motor

    ¥Payment Required

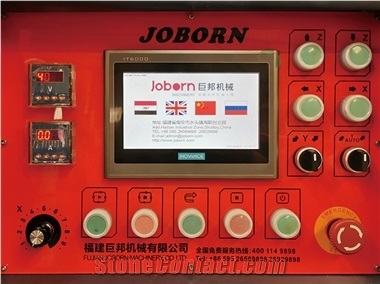

  • human-computer interaction interface

    human-computer interaction interface

Consumables

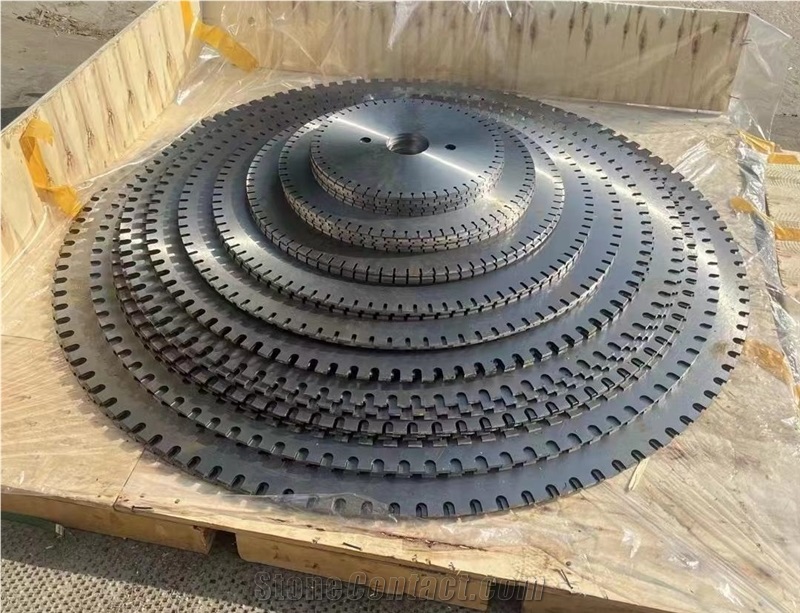

  • blade

    blade

    blade

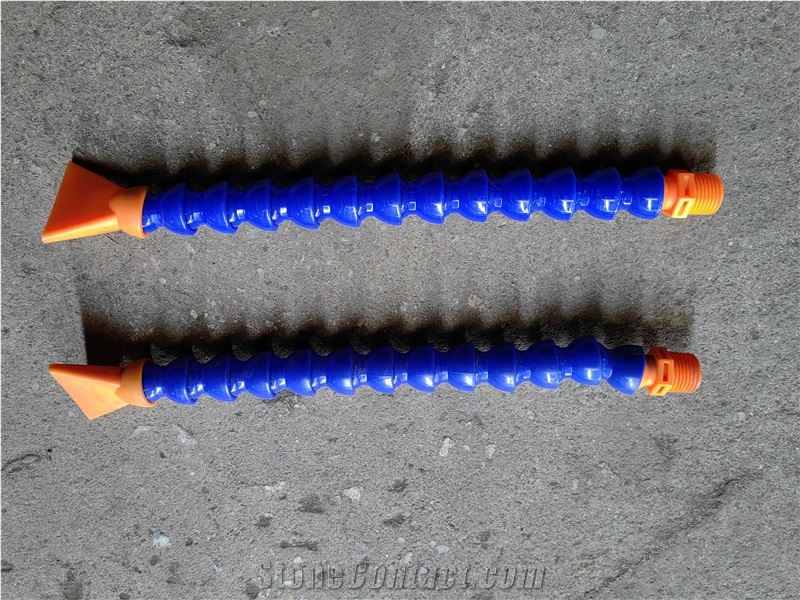

  • universal spray pipe

    universal spray pipe

    universal spray pipe
