SQC-1600S,1800S, 2000S Block Horizontal Cutting Machine

FOB Price:$34500-42500

Type: Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 25~30 days after prepayment received
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

FUJIAN JOBORN MACHINERY CO.,LTD.

JOBORN MACHINERY

ChinaChina level4YR idicon

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

  • Overview
  • Components
  • Video
Machinery Function Features
1.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly,works more stable; 2.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more powerful,and saving electricity more; 3.Germany Siemens inverter, feeding more stable; imported or domestic famous brand electrical components, with lower failure rate, help you to worry less and save more labor; 4.It uses hydraulic lifting system, combination of chrome-plated guide pin and wear guide bush, with small gap, wearable, beautiful structure, and guide sleeve with multi-layer seals, with waterproof, dust-proof, anti-spill, improving the service life; 5.The machine have a horizontal knife strcture,help you saving more labor; 6.Revolving working feed platform (Optional); 7.Processed products;
Technical Data
Parameters
Unit
SQC-1600S block horizontal cutting machine
SQC-1800S block horizontal cutting machine
SQC-2000S block horizontal cutting machine
Installed power
kw
100/115
100/115
100/115
Max. cutting depth
mm
500
500
500
Horizontal disc diameter
mm
1600
1800
2000
Machine height
mm
3700
3700
3700
Vertical disc diameter
mm
1600
1800
2000
Machine width
mm
4400
4400
4400
Cooling water (1.5 bar pressure)
m3/h
10
10
10
Machine length(front)
mm
8000
8000
8000
Approximate Weight
Kg
14000
14000
14000
Software

PLC computer operating system, LCD touch screen (7 inches) using Chinese, English, Russian, Arabic operation interface, wireless remote control.

Work Example

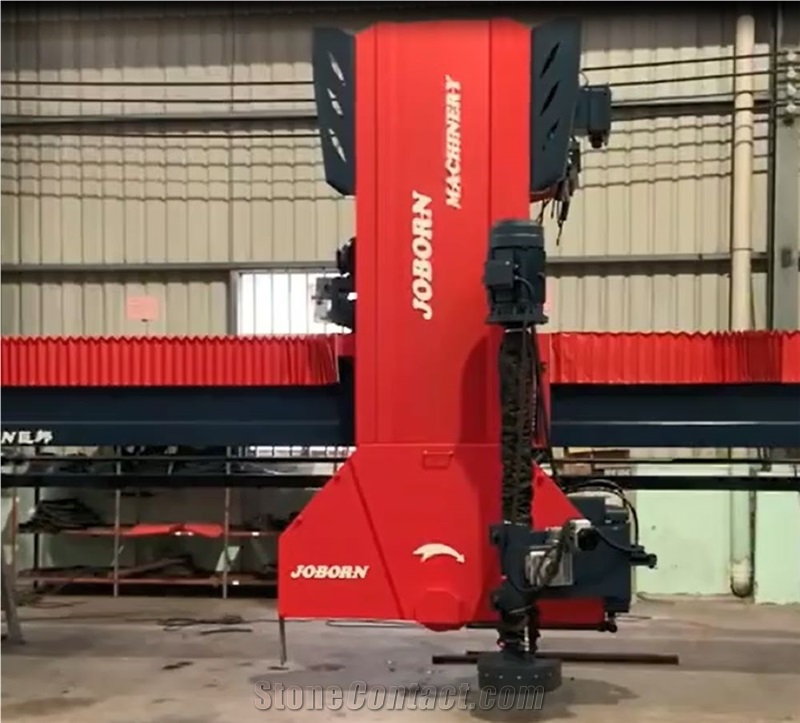

The beam is cast as a whole, skate board type, the crossbeam length is 7.5 meters, the section size is 600 * 530mm, wide oil groove design, the side beam length is 3.7 meters. The main engine is a four-guide column lifting, solid chrome-plated guide column, ductile cast iron wear-resistant guide sleeve, the four guide columns are oil-immersed lubrication, and the upper and lower link plates are cast as a whole; The spindle box adopts one stage gear change, the bearing adopts heavy tapered roller bearing + heavy cylindrical roller bearing, the side beam transmission adopts screw nut transmission, and the position of the transmission beam motor reducer adopts waterproof offset design.

Processed Stone Photos

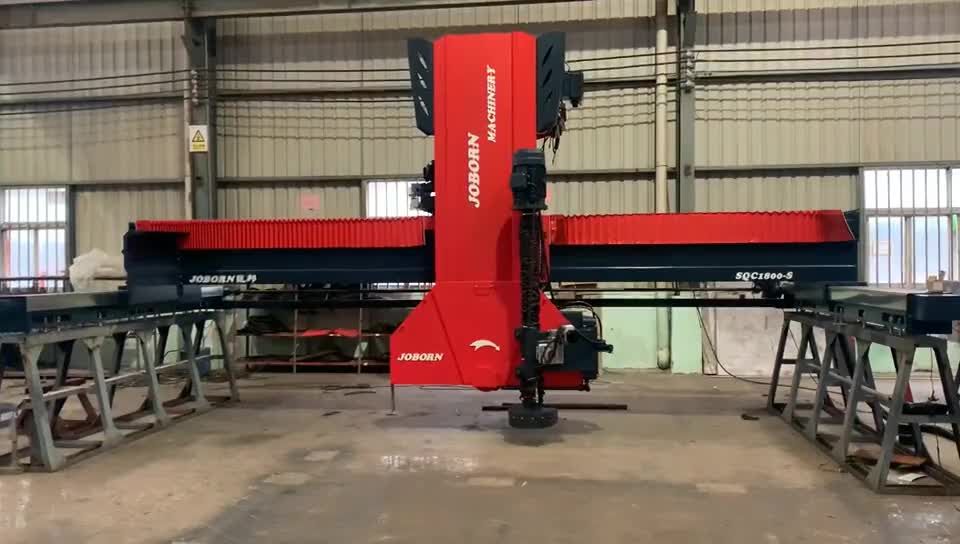

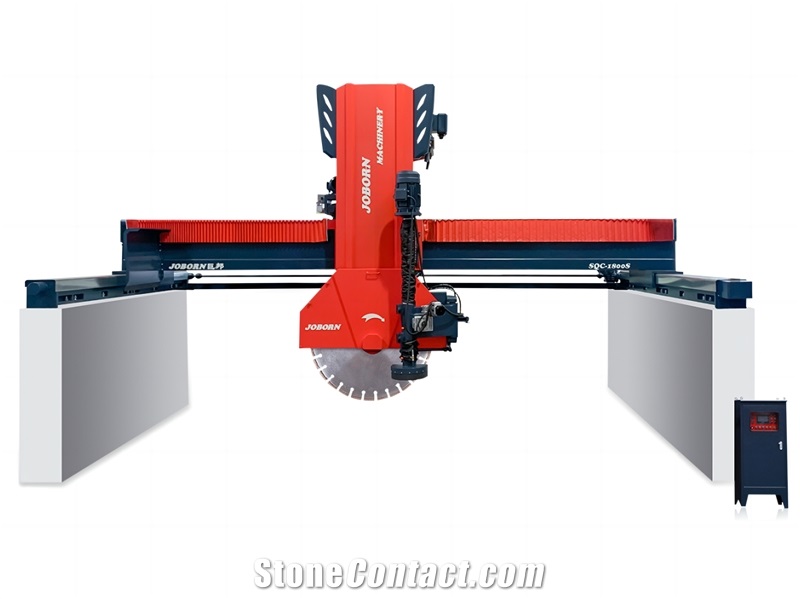

  • SQC-1600S/1800S/2000S

    SQC-1600S/1800S/2000S

Components
  • human-computer interaction interface

    human-computer interaction interface

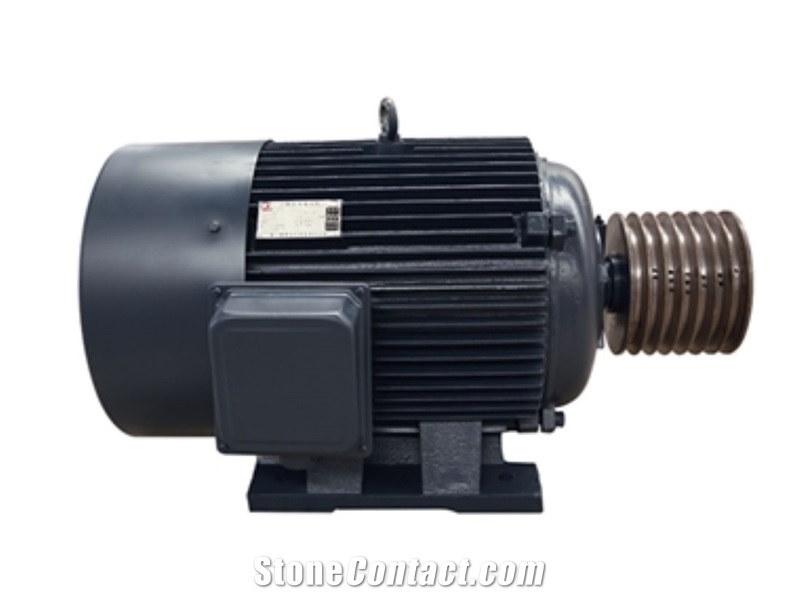

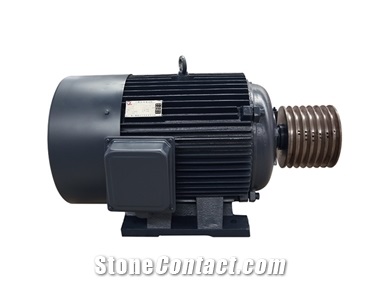

  • main motor

    main motor

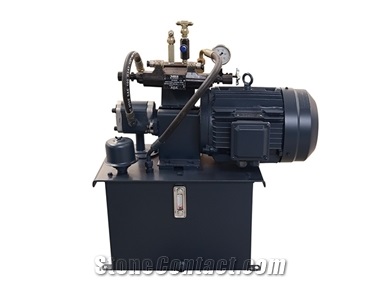

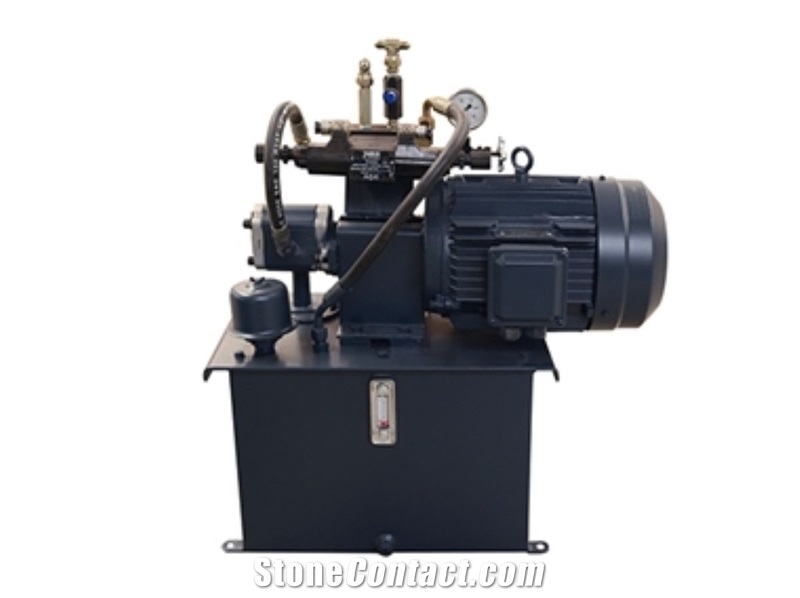

  • hydraulic system

    hydraulic system

    ¥Payment Required
Consumables

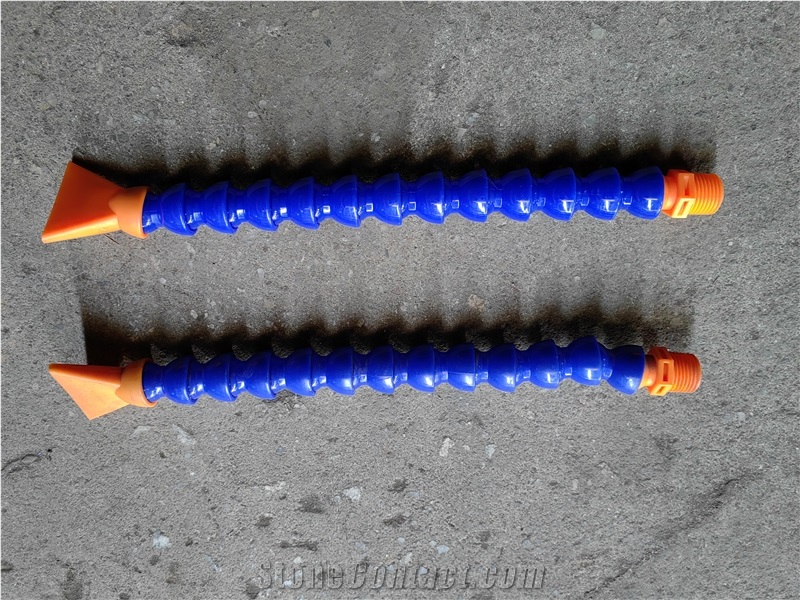

  • universal spray pipe

    universal spray pipe

    universal spray pipe
