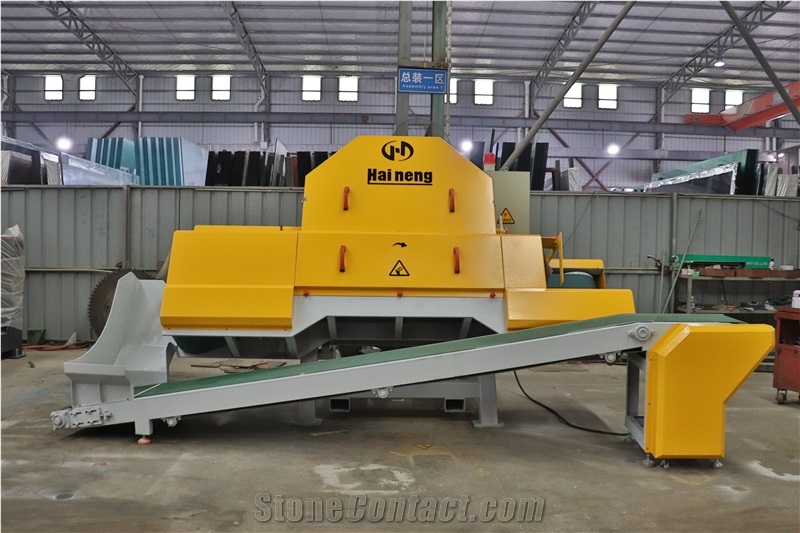

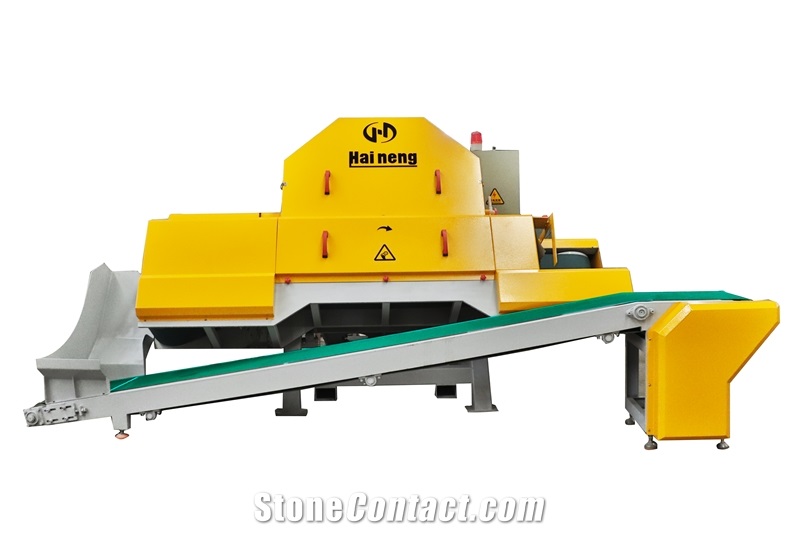

ZQ-1000/22 - ZQ-1200/45 Thin Stone Veneer Saw

FOB Price:$12000-14400

Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 15 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

Quanzhou Xinhaineng Machinery Co,. Ltd.

Quanzhou Xinhaineng Machinery Co,. Ltd.
New Haineng

ChinaChina level4YR idicon

Eatablished :Apr 13,2017

Main Product:

Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|

Contact supplier

Start Order

You may also like
Single Group Multi Blades Automatic Cutting Machine (HY1-800)
Single Group Multi Blades Automatic Cutting Machine (HY1-800)
Thin Stone Veneer Saw With Dual Blades
Thin Stone Veneer Saw With Dual Blades
Semi Automatic Manual Cutting Machine For Marble Granite Slab And Tile
Semi Automatic Manual Cutting Machine For Marble Granite Slab And Tile
Right Angle Saw Cut Brick And Cladding Stone Cutting Machine For Wall
Right Angle Saw Cut Brick And Cladding Stone Cutting Machine For Wall
Stone Tile Edge Cutting Machine
Stone Tile Edge Cutting Machine
  • Overview
  • Components
  • Video
Machinery Function Features
Our patented veneer saws make cutting thinstone veneer flats and 90-degree corners quick, simple, and profitable. The unique v-structured cutting surface easily cuts split-face or natural finished sandstone, brick, limestone, and other hard stones up to 16” high and 2.5” thick.
Technical Data
Parameters
Unit
ZQ-1000/22
ZQ-1200/45
Overall Width
4
1950
2200
Gross weight
kg
2200
3100
Overall Length
4
2850
3300
Exhausted water
m³/h
4
4
Main motor power
kw
22
45
Max.blade diameter
mm
800-1000
1000-1200
Overall Height
4
1750
2200
Max cutting width
mm
380
480
Total power
kw
22.75
45.75
Max cutting thickness
mm
380
480
Processed Stone Photos
  • Processed Stone Photos

Components
  • limit switch

    limit switch

    ¥Payment Required
Consumables

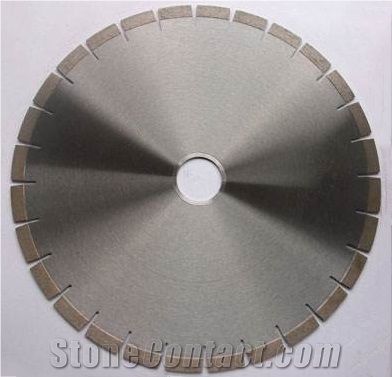

  • saw blade

    saw blade

    800-1200mm
