Double-Purpose Composite Thin Slab Wire Saw Cutting Machine
FOB Price:$10500-11000
Type:
Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features

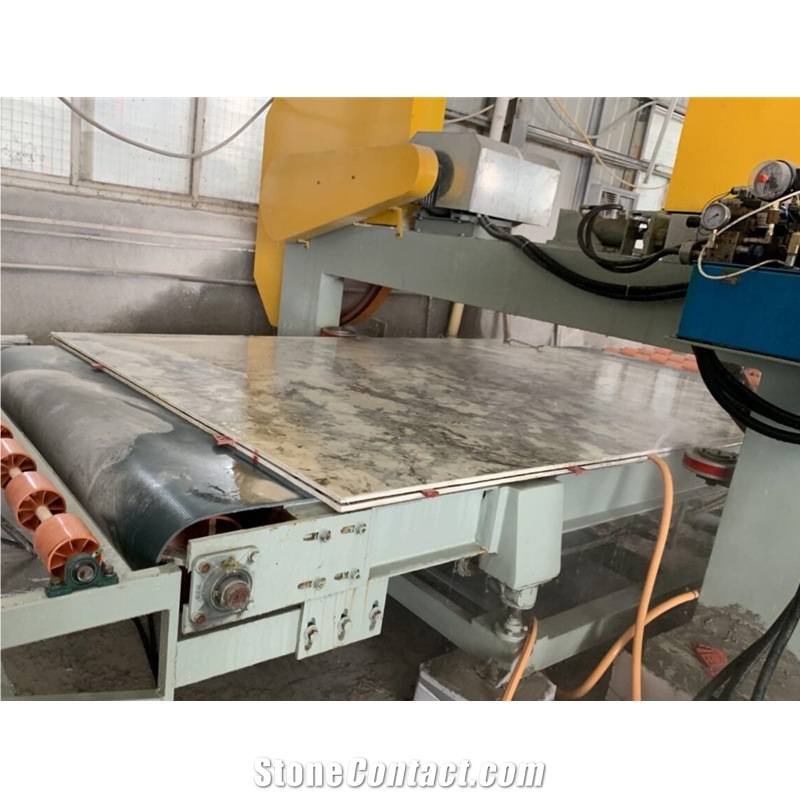

This machine is the basic equipment for the production of thin marble slabs and composite slabs. It uses band saw blades (diamond wire) to split or saw the slabs into slices. The saw blade tension adopts an automatic constant pressure hydraulic device. Compared with the traditional machine using manual tension, it has the advantages of uniform strength, stable pressure, longer service life of the saw blade, and convenient operation. The slice (thickness) adjustment adopts screen setting and PLC automatic control,. which greatly reduces the difficulty of operation and improves work efficiency.
Technical Data
Parameters |
Unit |
SBD-1200 |
SBD-1600 |
SBD-1600 |
Fly wheel dia. |
mm |
1100 |
1100 |
1350 |
Weight |
kg |
2500 |
3200 |
3800 |
Band blade length |
mm |
8300 |
9100 |
11000 |
Wire saw length |
mm |
8200 |
9000 |
10900 |
Gross power |
kw |
8.99 |
9.55 |
13.4 |
Main motor power |
kw |
7.5-6 |
7.5-6 |
11-6 |
Band blade thickness |
mm |
2-7 |
2-7 |
2-7 |
Max.working thickness |
mm |
80 |
80 |
80 |
Water consumption |
m³/h |
2 |
2.1 |
2.3 |
Feeding speed |
mm/min |
0-177 |
0-177 |
0-177 |
Max.working width |
mm |
1250 |
1650 |
2200 |
Overall dimensions |
mm |
3500×3700×2200 |
4800×4100×2200 |
5300×4900×2100 |
Processed Stone Photos
Components
-

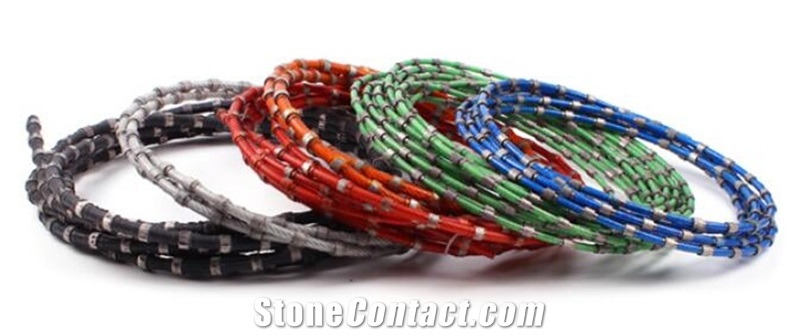

wire saw
¥Payment Required

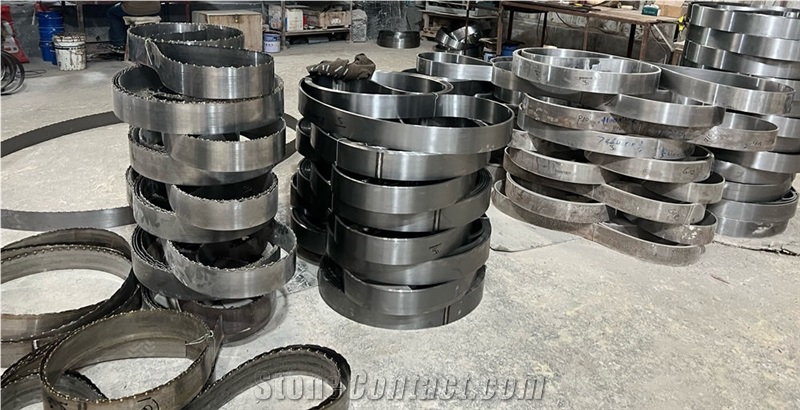

Consumables
Video
Operation Video
