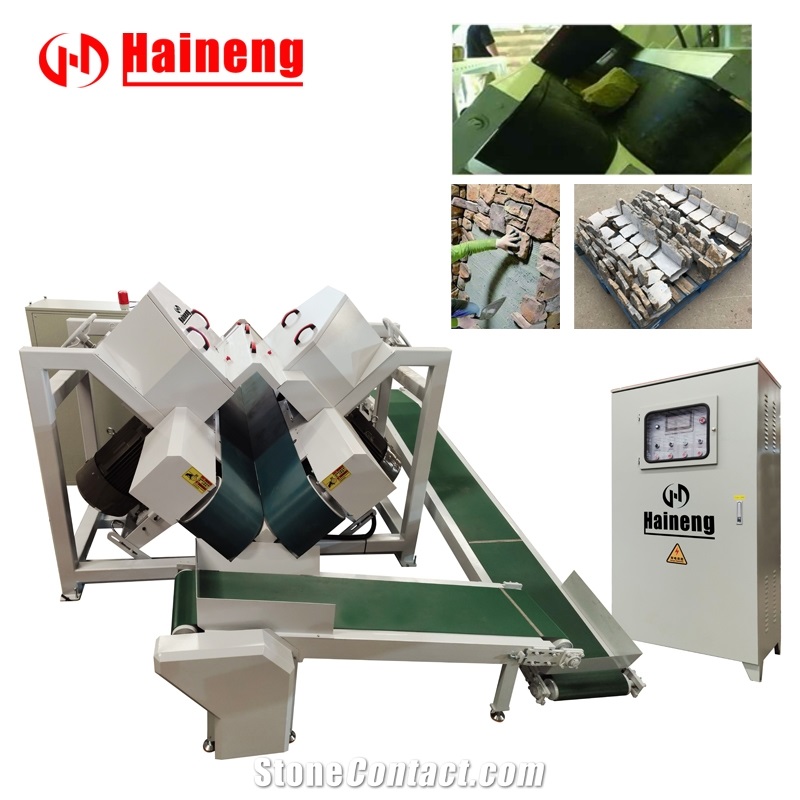

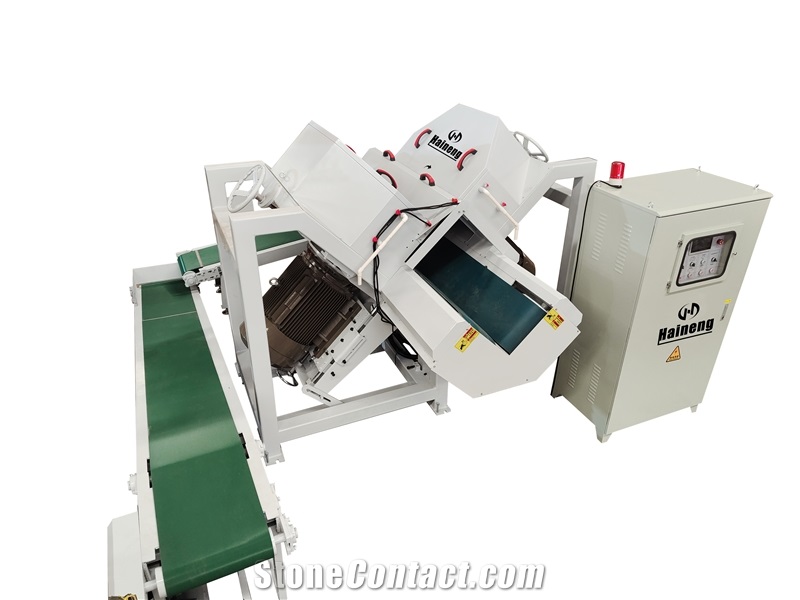

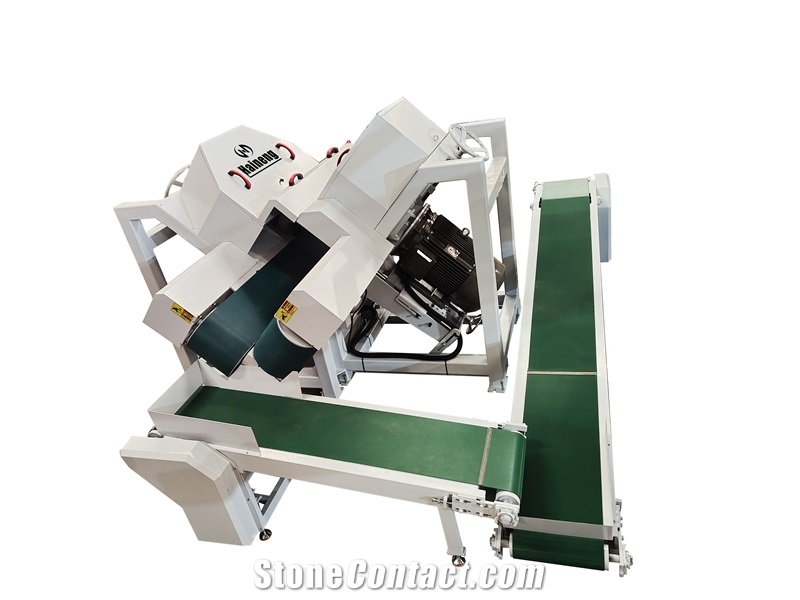

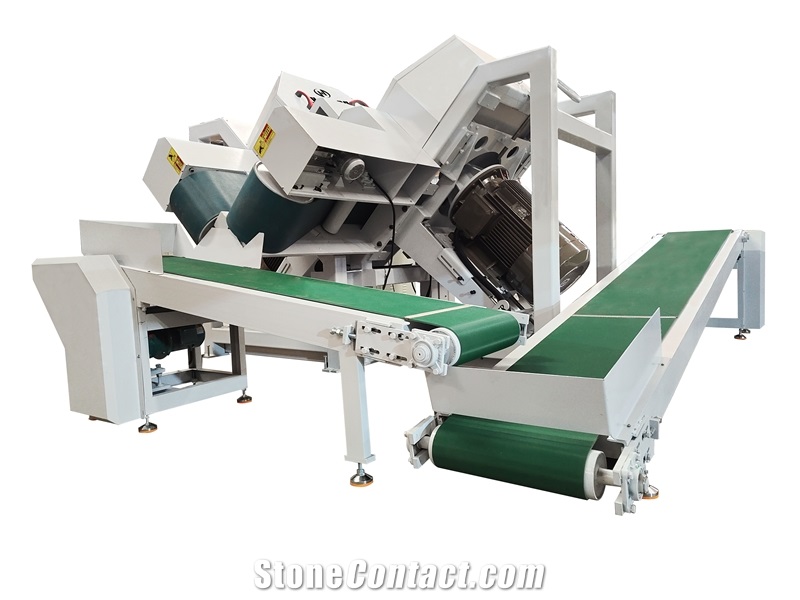

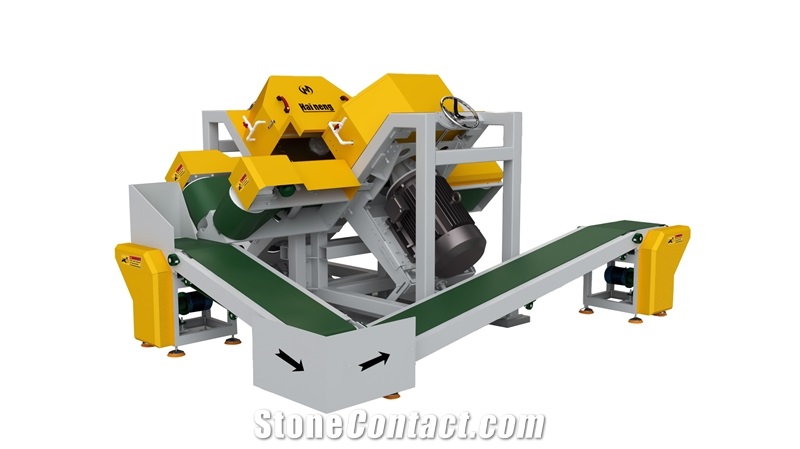

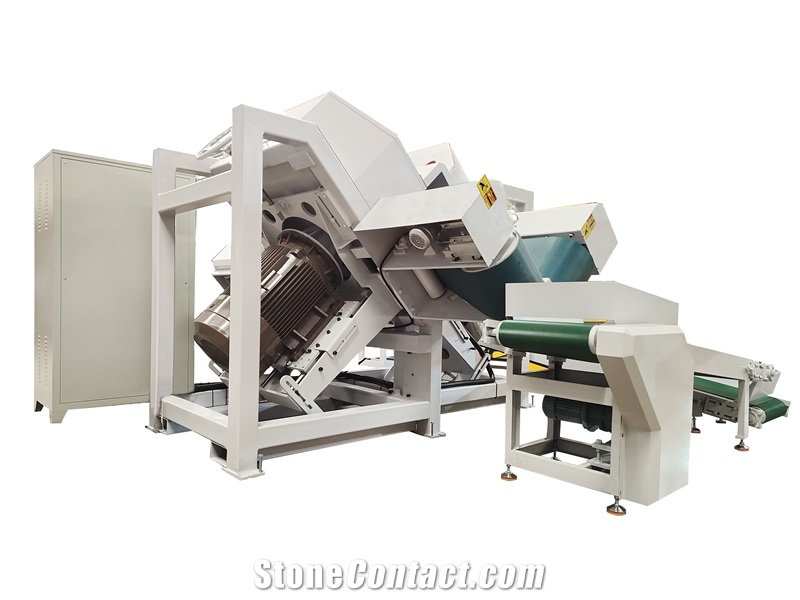

Double Blade Thin Stone Veneer Saw Strip Cutting Machine
FOB Price:$22000-23000
Type:
Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features

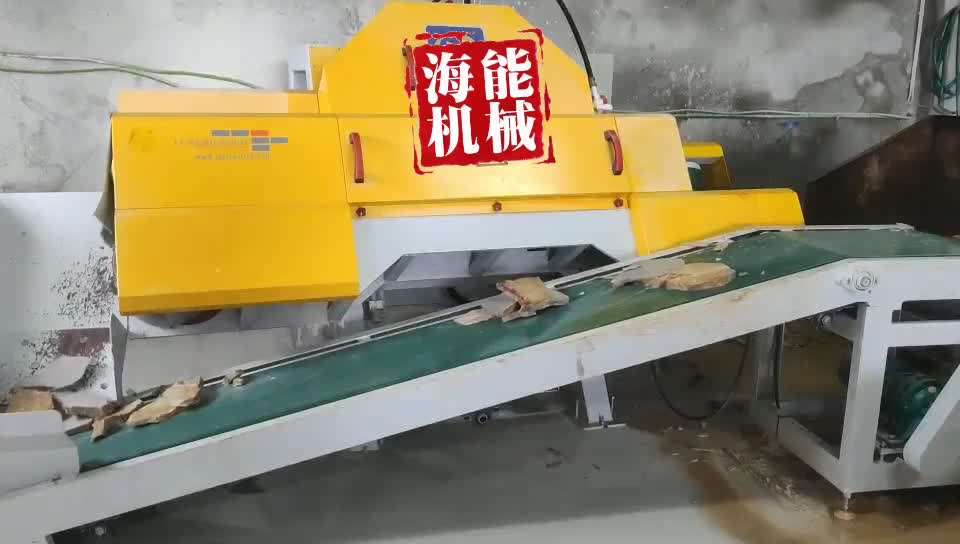

The machine is a monolithic structure with compact structure and convenient installation and transportation.The main control components are all international brand components, and the cutting main motor and cutting conveyor belt are all stepless speed regulation.The working mode of the machine adopts the continuous cutting mode of the pipeline, which is mainly used for cutting the plane of irregular elliptical stones such as goose warm stone.
Technical Data
Parameters |
Unit |
ZQ-1000/22×2 |
ZQ-1200/45×2 |
Main Motor Power(kw) |
22kw(30HP)×2 |
45kw(60HP)×2 |
|
Electricity |
3 phases,380V,50Hz |
3 phases,380V,50Hz |
|
Max.Cutting Depth |
mm |
280 |
350-450 |
Water Consumption(m⊃3;/h) |
4 |
4 |
|
Machine Weight |
kg |
4500 |
6000 |
Blade Speed Standard(adjustable) |
Max.900rpm. |
Max.780rpm. |
|
Saw blade adjustable distance(up/down) |
mm |
0-120 |
0-250 |
Amperage |
(86/43A)×2 |
(172/86A)×2 |
|
Dimensions (L*W*H) |
mm |
3050×3000×1800 |
3550×3500×2200 |
Conveyor Belt Speed(Adjustable) |
mm/min |
600-2450 |
600-2450 |
Saw blade adjustable distance(back/forth) |
mm |
0-200 |
0-250 |
Max.stone height |
mm |
0-350 |
0-450 |
Blade Size |
mm |
800-1000 |
1000-1200 |
Max.stone thickness |
mm |
20-220 |
20-270 |
Conveyor Belt Length*width*thickness |
mm |
5970×280×7 |
6800×400×7 |

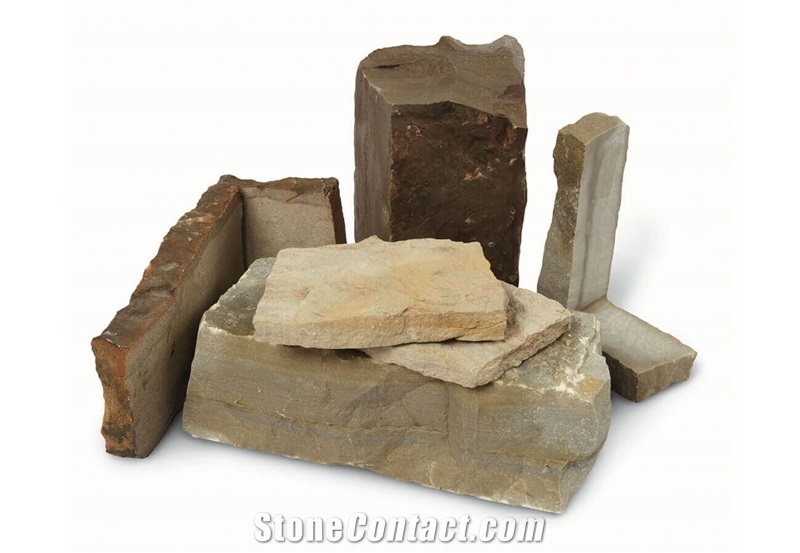

Processed Stone Photos

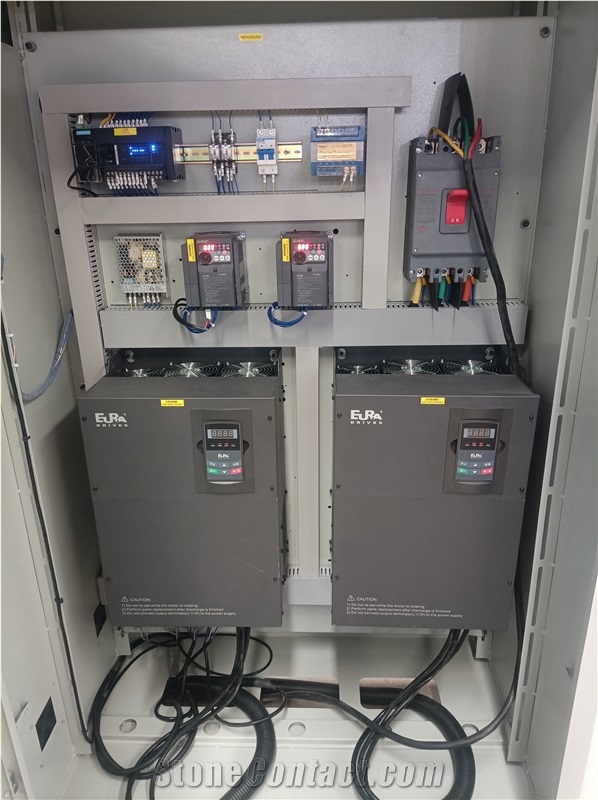

Components
-
¥Payment Required
Consumables
