Limestone CNC Bridge Cutting Machine in China

1. Multi function, full automatic
2. Cutting blade 360 degree rotate for cut arc, round, oval and so on shape.
3. Cutting blade 0-90 degree tilt for mitre cutting.
4. Worktable 85 degree tilt for easy load big slabs.
5. X,Y,Z,A,C Axis adopt pure servo moving motors for fast cutting speed and stability.
6. Heavy duty double vacuum sucker for moving slab , lifting capacity 310KGS
7. Can install diamond drilling bit, diamond cutting bits to do faucets hole, sink hole, vanity shape cutting.
8. Can install edge profile tools for edge profile grinding & polishing
9. Machine was Full encirclement to avoid water spray everywhere and for more clean
www.beststonemachine.com
WhatsApp: 008613361380416

One machine can finish all stone countertops fabrication works.
1. Stone edge cutting.
2. Mitre 45 degree edge cutting.
3. Sink hole, faucets hole, any shape vanity top cutting.
4. Stone edge profile grinding polishing.
5. Heavy duty double vacuum sucker for moving slab , lifting capacity 310KGS
6. Machine was Full encirclement to avoid water spray everywhere and for more clean
www.beststonemachine.com
WhatsApp: 008613361380416

5 axis stone CNC bridge cutting machine under promotion now
Just need 15,800 USD , price valid until 20th, July,2021
1. Stone edge cutting
2. Round , arc, oval and so on shape cutting .
3. Mitre 45 degree edge cutting .
WhatsApp: 008613361380416
www.beststonemachine.com

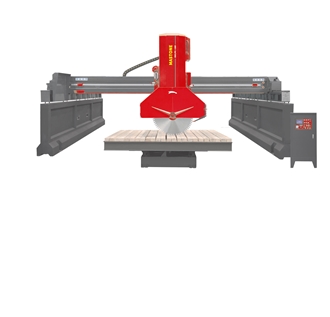

DAP prices Ukraine, Moldova of MAS-14 STONE CUTTING Machine With Tools:7400USD/unit

5+1 Axis stone bridge CNC cutting machine
Price not high , the best suitable machine for quartz, granite, porcelain countertops machine
1. granite, marble, quartz stone, porcelain tile edge cutting.
2. Mitre 45 degree edge cutting.
3. Can cut round, oval, arc, "L" shape and so on shape.
4. Can read AutoCad drawing DXF file
5. 24000RPM spindle motor for round , oval, square with arc corner and any shape sink hole cutting, with high speed and lower diamond bit consumption
WhatsApp 008613361380416

1. Stone edge cutting, Deskton, Sintered stone , porcelain tile cutting
2. Mitre 45 degree edge chamfer cutting.
3. Round, Arc, Oval and so on shape cutting
4. Sink hole cutting
5. Can read AutoCAD drawing for complex shape cutting
6. "L" shape, island Arc shape countertop slab cutting

5 axis CNC Bridge Saw Orbit B5
This bridge saw has everything a technologically advanced bridge saw needs to have today: spindle with half inch fitting with trough-spindle lubrication, on-board camera, blade presetting and stone thickness probe.
This machine is a fully interpolated 5 axis bridge saw. Head rotate 0° to 400° interpolate with blade tilting 0° to 90° makes it suitable for any jobs . This machine can runs large production , at the same time containing costs.
The absolute precision of the movements is guaranteed by a state of art transmission on linear ball guide, moved by brushless motors through high precision helical gears and racks.
This machine comes with the “absolutely zero” technology, which allows the machine to work without doing the homing process.
It has an extremely easy to use interface, designed to facilitate easy interaction between operator and machine.
The ORBIT B5 imports and works with DXF (standard CAD file) f and standard G-Code ( Standard RS-274 machine tool programming language), but can also do simple cuts in manual mode.
The structure is hot-galvanized and painted to last a long life.

available with 4 or 5 axis

This machine is a fully interpolated 4 or 5 axis bridge saw with automatic tilting 0° to 90° (BK4 head titled 0°to 45° manually).

The first “green” machine in the stone market, “green” standing for: Energy efficiency, Quality, Durability, Costs.

The BK machines do the same job and more of a traditional bridge saw with only 25% of the energy.

They are 30% the size of a traditional bridge saw, but keep or exceed the same working area;

The X axis of the BK machine is moved by two motors in gantry, that home independently, assuring a perfect square every time

The hydraulic table tilts to 85 degrees allowing easy loading of the slabs to cut.

The user interface facilitates the interaction between operator and machine, it’s easy to setup simple cuts (linear) and cut any complex shape (rectangles, ovals, arcs etc.) imported from DXF files.

Machine is equipped with point laser for copy 2D template and saves in DXF format.

The TOP CUT 500 it’s a bridge saw, completely constructed in cast iron, the axis move on linear guideways, by brushless motors on high precision racks, the movement is very precise and the the structure is very rigid.
The machine is available as a standard 3 axis machine, or as a 5 axis machine with everything that the standard machine has, more the high speed spindle and the automatic table rotation.
3 AXIS
The standard machine has 3 interpolated axis, the machine does all the normal bridge saw cuts with the blade, the table is manual but it can be locked at any degree.
The machine can also combine DXF to work 3D shapes with the blade on the surface and on the edge of stones.
The tilting of the blade motor is manual but controlled by logic, this mean that the axis move interpolated depending on the tilting angle.
The machine is supplied with a mountable finger bit head, this head allow the machine to cut complex shapes from DXF files.
4 AXIS
More of what you get with the standard machine, with the adding of automatic table rotation, and the high speed spindle, the machine can combine the blade and the finger bit to cut any kind of shape from a slab.
Watch the 4 Axis video to see it in action.
The high speed spindle allow also the machine to make incisions on the stone following G-code input.
5 AXIS
This version of the machine only adds the automatic tilting of the blade, this allow the machine to add to the automatic process bewel cuts.

5 axis CNC Bridge Saw BK2020 5+V
This bridge saw has everything a technologically advanced bridge saw needs to have today: 5 interpolated axis, spindle with half inch fitting with trough-spindle lubrication, tilting table up to 85°, vacuum system for parts movement during automatic cut process, on-board camera, blade and stone thickness probe (optional).

Relationship between the slab size and overall size of the machine
The first evident advantage is the ratio between working area and overall machine dimensions.
This machine with a working area of 4000mm x 2420mm occupies only 15.5 square meters, making it possible to fit two machines in the space of a traditional bridge saw.

Easy unload of parts from the table
The table has three sides that are always accessible to the operator, who can then unload parts more easily and more safely.

Increased rigidity of the machine
The guides of the bridge are anchored to the ground and thus provide a better rigidity to the whole machine.

Bridge resistance to twisting
5-axis bridge saws are exposed to always-changing twist forces, because the blade cutting direction is not always parallel to the bridge.
The shorter bridge solidly anchored, not on wheels or rollers, has greatly improved twist resistance.

Improved Z axis rigidity
An improved motor tilting system combined with a correctly sized blade allowed us to lower the bridge and to shorten the Z slide.
The shorter Z frontally mounted on the bridge has increased rigidity but kept the same working height capacity.

Lower water consumption
The traditional cooling system expects huge quantity of water to cool 30% of the blade perimeter, or only the contact side, this cover (patent n° 3684608) keeps the blade submerged in water for 70% of the perimeter.
Cooling trough submersion needs less water and almost totally eliminate water splashes.

Rapid movements
The smaller size of the machine allows it to reach a point before compared to a larger machine.

Blade motor with vector technology
A vector motor and an induction motor have different performance.
With the same consumption (kW) the vector motor has twice the torque (Nm).
Vector motor technology allows the motor to keep a constant torque up to 6000 rpm, instead with an induction motor, even if controlled by VFD, as the speed increases it loses torque, but the consumption increases.
Using vector motor technology allowed us to increase performance, and drastically reduce consumption and the dimensions of the blade motor.

Increased cutting depth
The motor and flange diameter of only 160mm allows cutting 100mm thick stone with a blade of only 360mm diameter.
With a traditional motor you would instead need a 450mm blade to cut the same thickness.

Better cutting performance
A small blade because it’s thinner reduces sludge left from the cutting process, also because it’s cutting less it can cut faster, and it leaves shorter overcuts. Another advantage of a small blade is that it requires less water and less power to run.

Machine installation
Machine’s mono-block structure allows installation in less than a full working day on a flat concrete floor, without needing to spend more to build walls or special foundations.

AitalMAC’s Orbit A8 is the future of kitchen countertops fabrication, it’s the ultimate evolution of the modern fabrication facility. Where in a current countertop manufacturing process multiple machines need to be deployed, which are a bridge saw, a CNC router, an edge polisher, and a waterjet, AitalMAC’s A8 is the all-in-one reliable machine that can do it all, a combination of all of the indispensable machines to fabricate kitchen countertops.
AitalMAC’s engineers designed this multitasking machine to be efficient and reliable, testing and evaluating countless different solutions, the A8 incorporates all the best decisions made by seasoned engineers, to create the ultimate all-in-one stone processing center.
The Orbit A8 is a double table 5-axis SawJet with vacuum manipulator, it’s also a full-fledged 5-axis CNC work center and a straight edge polisher all in one!
The waterjet technology allows the A8 to process a wide range of materials including ceramic stone, natural stone and sintered synthetic stone.
The easy to program and versatile AitalMAC CAM solution allows for cutting polishing and engraving, which makes the Orbit A8 the ideal solution for all kind of stone fabrication like architectural projects, constructions, funerary and monuments.
AitalMAC’s Orbit A8 will have an unprecedent impact on your shop productivity, all the time associated with planning and moving will be exponentially reduced.
The A8 fabrication process starts with the easy load of the slabs on the tilting table, then the machine produces every straight cut with the saw blade, parts that don’t line up to match will be moved with the vacuum manipulator and then be finished with the saw blade, the waterjet then takes over to finish sink corners, tight curves and other complex cuts. The parts that don’t require finishing can then be unloaded by the machine, parts that do require finishing will be moved to the finishing table (optionally parts can be taken to a flipping station first), this incredible finishing table with completely automatic vacuum pods system will retain the parts, the machine can then change to CNC profiling tools to produce polished edges on the sinks, and also use the three pads polishing system located behind the main motor to quickly polish straight edges, the finished parts will then be unloaded while the next slab will be loaded ready for the next project.

1. Stone edge cutting, Deskton, Sintered stone , porcelain tile cutting
2. Mitre 45 degree edge chamfer cutting.
3. Round, Arc, Oval and so on shape cutting
4. Sink hole cutting
5. Can read AutoCAD drawing for complex shape cutting
6. "L" shape, island Arc shape countertop slab cutting

5 Axis Bridge cutting machine adopt 5 Axis linkage CNC System Control,Bus-based absolute value servo (with memory function for power off).high-precision linear guide rail,ball screw transmission.oil-immersed track structure.with multi-function, high precision,strong stability and other advantages.Its processing functions include arbitrary-shaped lines,fan-shaped plates, wash basin and special-shaped edge profiling,etc.The equipment has multiple processing functions,wide application, small space, and simple operation.It is a great equipment for stone processing.

Bridge cutting machine
Simply complete the form below, click submit, you will get the price list and we will contact you within one business day. Please also feel free to contact us by email or phone.

This bridge cutting machine is used for cutting stone slab,which is controlled by microcomputer with touch-sensitive operation system. A fine adjustable inverter controls the cut and return. The bridge saw is equipped with a laser illumination system,which makes the disc adjustment easier.
