Rock Crushers, Jaw Crushers
( 148 )Quarry Rock Crushers, Compact Jaw Crushers are also known as “rock breakers” and are used to break up larger, harder stone materials into more manageable pieces. They tend to do well with many different types of natural stone and don't display as much wear and tear as impact-style rock crushers. Quarry Rock Crushers, Compact Jaw Crushers are applied to fine crushing of various stone material of which compressive strength is less than or equal to 320 MPa, is applied to relatively small feeding material granularity and relatively small discharging gate, and is fitted for the secondary crushing. Stonecontact.com provides a variety of brands and model machines for a complete line of crushed stone productions, the output is widely used in road, bridge, house, high building, railway, highway, water project as the type of construction material, such as aggregate, foundation stone, etc.
More Hide-
Add To CompareType: Stone Quarry MachinesRock Crushers, Jaw Crushers
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:

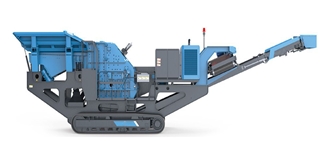

E-MP Series Mobile lmpact Crusher
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesRock Crushers, Jaw Crushers
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:

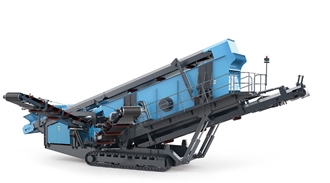

E-MP Series Mobile Screen
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesRock Crushers, Jaw Crushers
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:

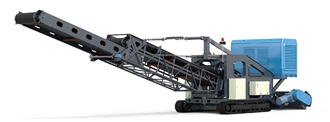

Crawler Reclaimer
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesRock Crushers, Jaw Crushers
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Features of CPXL Gyratory Crusher
1. The crushing cavity has a large angle of inclination and longer crushing surface. This ensures higher efficiency, continuous crushing and bigger capacity.
2. The unique crushing cavity design makes discharge more smooth, increases the crushing capacity, and reduces abrasion of side plate.
3. Spiral bevel gear transmission design brings great loading capacity, smooth running and low noise.
4. Hydraulic device adjusts the discharge opening size, reducing the intensity of labor.
5. Equipped piston-type accumulator provides overload protection.
6. Effective dust sealing; Assembled with a positive pressure air blower, no dust falls into the eccentric and driving device.
7. Crusher designed with high strength and steady frame can be fed directly by the conveying machine and work perfectly well in harsh environments.
8. The indicating system of the main shaft can monitor discharge opening size.
9. Auto-control hydraulic and lubrication system.
TRUSTON
China
Shanghai UnItruston Intelligent Technology Co.,Ltd.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesRock Crushers, Jaw Crushers
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite
Machinery Function Features:
A hammer crusher from the high-performance series is a machine designed for medium and fine-grained crushing of materials of various hardness (for stone, e.g. sandstone - basalt), including recycled waste (for aluminum, electronic equipment). In our offer you will find machines with horizontal or vertical operation, in various sizes (power, amount of charge, production capacity, fraction of the finished product).
In principle, the impact is the most important for the operation of the hammer crusher. Inside the crushing chamber there is a rotor to which hammers are attached. Falling fragments are hit by them, which changes the direction of their fall. This is to maximize the force with which they collide with the plates on the swinging beams. Then it goes to further, mutual collisions, thanks to which an even greater fragmentation is achieved.
Purpose of machines:
Due to its properties, the hammer crusher is often used in mining and aggregate mines, especially for stone. It is also often used where recycling is important for entrepreneurs - during demolition works or in scrap yards. The most frequently processed materials include:
basalt
sandstone
charcoal
coal
stone
concrete
brick
calcium
aluminum
electronic equipment
Hammer crushers with horizontal action have the ability to regulate the obtained fraction of goods by using a transverse grate at the material outlet. Thanks to this, you have full control over the obtained fraction of the finished material. Machines designed for crushing materials with a moisture content of up to 15%!
Vertical action hammer crushers are characterized by crushing the material to fractions below 1 mm. The characteristics of the machine and the lack of the use of a grate / sieve allow for crushing materials with increased humidity, with the possibility of wet crushing (feeding a stream of water along with the material to be crushed).
In all types of hammer crushers, the internal walls and hammers are made of high-quality and wear-resistant manganese steel, which makes the use of the machines effective, long-lasting and economical.
AVAILABLE MODELS
HORIZONTAL PERFORMANCE HAMMER CRUSHERS
model max load capacity power fraction (adjustable)
KM-PO / E-300x400 to 350mm up to 6 t / h 11Kw 0.5mm to 30mm
KM-PO / E-400x600 up to 550mm up to 15 t / h 18.5 - 30 Kw 0.5mm up to 50mm
KM-PO / E-600x800 up to 750mm up to 25 t / h 55 Kw 0.5mm up to 70mm
KM-PO / E-800x1000 up to 950mm up to 38 t / h 75 Kw 0.5mm up to 80mm
KM-PO / E-1000x1200 up to 1150mm up to 50 t / h 110 - 132 Kw 0.5mm up to 100mm
Caution:
1. The given capacities refer to the material with a density of 1000 kg / m3.
2. Our products are constantly updated and improved, AZ TECH Sp. z .o. reserves the right to change parameters and design without prior notice to the user;
3. The above product configuration is not necessarily a standard configuration. Please consult us carefully when purchasing.
HAMMER CRUSHERS WITH VERTICAL ACTION
model max load capacity power fraction
KM-PI-800 up to 300mm up to 15 t / h 22 Kw under 1mm
KM-PI-1000 up to 200mm up to 25 t / h 37 Kw under 0.8mm
KM-PI-1250 up to 700mm up to 40 t / h 55 - 75 Kw under 0.6mm
KM-PI-1500 up to 550mm up to 60 t / h 75 - 110 Kw under 0.5mm
Caution:
1. The given capacities refer to the material with a density of 1000 kg / m3.
2. Our products are constantly updated and improved, AZ TECH Sp. z .o. reserves the right to change parameters and design without prior notice to the user;
3. The above product configuration is not necessarily a standard configuration. Please consult us carefully when purchasing.
Aztech
Poland
Aztech Sp. z o.o.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesRock Crushers, Jaw Crushers
$-1000000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite
Machinery Function Features:
Marble Grinding Plant, namely, is machinery system used to grind Marble mineral chips to small granule or powder, as industrial filler or material.
Guilin HCM
China
Guilin HCM Machinery
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
€19500-20000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
AZTECH is a leading POLISH manufacturer of industrial machinery on both Polish and foreign markets. Our company is selling new and used machines and also spare parts for machines.
TWO-SHAFT MILL SHREDDER is a low-speed device, equipped with cutting knives and scraper counter-knives. The device has been adapted to grinding various types of materials: wood (walls, pallets), plastics (foil, jute bags, plastic barrels), paper (waste paper, cardboard), thimbles, steel / aluminum barrels, tires, chipboard, household appliances, furniture waste , cartridge case, sheet metal, aluminum profiles, cables, electric garbage, municipal waste, aluminum shavings and many more.
The sales offer applies to a new machine - TWO-SHAFT MILL SHREDDER model: MS-600x400
MANUFACTURER'S WARRANTY!! BEST PRICE / QUALITY ON THE MARKET !!
Technical data :
Cutting chamber dimensions - 600x400mm
Thickness of the knives - from 10 to 30 mm (possibility to configure)
Number of moving knives - from 20 to 60 (depending on thickness)
Knives rotation speed - 15-22 rpm
Engine - 2x 15 kW
Weight: 2600 kg
Models available:
Cutting chamber dimensions - 1000x600mm
The thickness of the knives - from 10 to 30 mm (possibility to configure)
Number of movable knives - from 100 to 33 (depending on thickness)
Knives rotation speed - 15
Engine - 2x 30 kW
Weight: 4600 kg
The machine has a direct drive, on each shaft separately through huge WD400 gearboxes and electric motors. It has speed regulation and reverse.
The device includes a machine, a solid platform and a complete control cabinet.
We have in stock other types of new, never used double shaft mills and hammer crushers of various powers and capacities.
The universal mill is excellent for recycling !!!
THE GIVEN PRICES ARE NET PRICES !!
We invite you to try our offer and if in Poland, to visit our point of sales in Opole region – YOU HAVE THE POSSIBILITY TO TEST OUR MACHINE WITH YOUR MATERIAL.
Aztech
Poland
Aztech Sp. z o.o.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
$3000-30000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Hammer type rock breaker is a kind of equipment for crushing materials in the form of impact. It is a single-rotor crusher, which can directly crush materials with the maximum particle size of 100 mm to a crusher of 10 mm or less.Hammer crusher is suitable for crushing medium hardness materials such as limestone, slag, coke, coal, etc.
Shisheng Machinery
China
Zhengzhou Shisheng Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone
Machinery Function Features:
The 250-80 series include Stone Crushers with Special Blades and related accessories, such us Separators, Tipper Containers, Conveyor Belts (and others) are designed to recycle raw materials and scraps from processing of stone, marble, granite, porphyry, quartz, ceramics, building demolitions, similar material and glass, in small and large size, reducing the fragmented output for every requirement.
Crushing process: it takes places due to a compression with a direct eccentric mechanism between different special plates (fixed and mobile), actuated by a transmission with trapezoidal belts, which can assume different levels of adjustment.
Benefits: reduce the space of the same waste with its reuse in gardening, mosaic, road fills, furnishings and so on.
The 250-80 Model is the basic version of the Crusher, to which you can add the desired accessories, according on your personal processing needs
Tecnoporro
Italy
TECNOPORRO s.a.s.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Basalt, Quartzite
Machinery Function Features:
GNR - MC110 Mobile jaw crusher is designed to crush hard materials such as basalt, granite. The GNR - MC110 mobile crusher is the ideal solution for companies who prefer a mobile crusher.
1. VIBRATING FEEDER
1.1. Bunker
- Capacity : 35 m³
Side Bunker sheets are supported from the outside with a "U" profiles to prevent erosion during truck feeding.
1.2. Vibrating Feeder
- Model : GNR110
- Size : 1100x4750 mm
- Drive : 2x11 kW 1000 r/m vibro motor.
1.3. Jaw Crusher Maintenance Platform and Cabinet
2. JAW CRUSHER
- Model : GNRK-110
- Size : 1100x850 mm
- Drive : 132 kW 1000 r/m - electric motor
- Jaws … : % 16-18 Mn. 2.2 Cr Steel Casting
- Pitman : Special production subject to normalization
- Flywheels : GG22 gray cast iron. Shaft flywheel connection
- Body : 50 mm DIN 17100 material, welded and bolted construction.
- Bearings : Heavy duty, Spherical roller bearing, Spherical roller bearing
- Eccentric shaft : Cr.Ni.Mo. alloy steel.
- Flywheel speed : 228 rpm.
- Hydraulic jaw opening adjustment mechanism.
- Bolt system for easy maintenance of belt and flywheel housing.
3.PRIMARY IMPACT CRUSHER
- Model : GNR-PDK 01
- Rotor Diameter : 1400 mm
- Rotor Width : 1500 mm
- Drive : 160 KW X 2 Electric motors – 1450 rpm
- Max. Feed Size : 1200 mm
- Pallets : GX120 Mn 12 (16-18% Manganese) steel casting
- Rotor Shaft : Ch 4140 alloy steel.
- Body sheet thickness : 25 mm, St37
- Body Backing : Manganese casting with a thickness of 30 mm.
- Bearings : Heavy duty type, Spherical roller bearing, Spherical roller bearing - Crusher For easy maintenance and repair, crusher hydraulic system to open and close the upper body hydraulically.
4. VIBRATING SCREEN
- Model : GNR2060
- Dimension : 2000x6000 mm
- Number of Deck : 3 Deck
- Drive : Drive from center, 30 KW – 1500 rpm
- The beds are liquid lubricated.
- SKF or FAG brand bearings.
- Adjustable eccentric weight for vibration control.
- Screen body is one piece of sheet.
- The screen will work on 8 springs in total.
- A maintenance platform will be installed on 3 sides of the screen.
- Heavy duty type
- Sieves 6 mm, ERD 9435 lined.
5. DOUBLE SCREW CLASSIFIER
800X8000 mm
DOUBLE
11 kW x 2 Pcs Motor
6.CONVEYOR BELTS
7. ELECTRIC PANEL AND REMOTE-CONTROL SYSTEM
General Makina
Turkey
General Makina
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
$999-16000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone
Machinery Function Features:
Jaw crusher is one of the main type of primary crusher, can be divided into two types: PE series coarse crushing jaw crusher and PEX series fine crushing jaw crusher. It has been widely used for the coarse,medium and fine crushing of various kinds of ores and rocks whose compression strength is not more than 350Mpa in many industrial departments,such as mining,construction,highways,
railways,water conservancy,chemical industry and etc. -
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Tertiary Cone Crushers are the crushers that receives feed from the secondary crusher, further reducing rock in size.
SMAN SHCC-T (Tertiary) Gyratory Hydraulic Cone Crushers are the ultimate solution for the tertiary crushing to achieve uniform product size of hard rocks, ores and minerals.
SMAN SHCC-T (Tertiary) Gyratory Hydraulic Cone Crushers are equipped with the most advanced crushing techniques. The outer shells and the other body components are made out of the finest quality steel castings and its robust design helps withstand high crushing loads. The main shaft and eccentric system is made out high grade forged alloy steel and precision machined for accurate Gyro Crushing action resulting in maintenance free operation.
SMAN SHCC-T (Tertiary) Gyratory Hydraulic Cone Crushers are supplied inclusive of Hydro-Lube power pack, electrical control panel with motor and soft starter for instant installation.
Features :
1) Uniformity in output product
2) Provided with tramp release accumulator
3) Heavy duty skid with discharge conveyor
4) Installation is very easy and quick.
5) For quick inter site movement, optional mobile attachment is provided
6) Electronically synchronized hydraulic lubrication system
7) Crushing capacity is very high
8) Electrical panel is well equipped with soft starter
9) Heavy duty cast shell made from steel
10) Compact hydro-lube power pack with inbuilt safety features -
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Features of CGF Impact Crusher
1. Designed based on international advanced technologies.
2. Front and rear racks can be opened automatically by using the hydraulic adjusting device.
3. The discharge opening size can be adjusted by using the hydraulic device.
4. Most of the liners with same dimensions can be exchanged with each other.
5. Liner is fastened by wedge plate which is easy to install and replace.
6. The third cavity adopts the concept of “stone strikes stone”.
TRUSTON
China
Shanghai UnItruston Intelligent Technology Co.,Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
€6000-6500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
AZTECH is a leading POLISH manufacturer of industrial machinery on both Polish and foreign markets. Our company is selling new and used machines and also spare parts for machines.
The horizontal hammer crusher from our high-efficiency series is a device designed for second or third level crushing, depending on the used sieves. It is designed for medium and fine-grain crushing. Its maximum input can reach up to 800mm, which makes it possible to obtain a ready product with a granulation from 0.5 mm to 100 mm at the machine exit, set according to your own needs, thanks to the use of a moving grate (in the form of a thick sieve) at the machine exit. The crusher is used to crush hard, medium-hard and soft materials with a low moisture ratio, such as:
- aggregate (granite, basalt, lime, stone)
- construction waste (concrete, brick, stone)
- loose / brittle materials (asphalt, ceramics, coal, glass)
and materials of other origin:
- plastics
- scrap (rotors, stators, alternators)
- aluminum (can, caps)
- household appliances (power supplies, computers, kettles, irons)
- electronics (fuses, contactors, resistors)
We have in stock other types of hammer crushers with different powers and capacities.
AVAILABLE MODELS
HORIZONTAL PERFORMANCE HAMMER CRUSHERS
model inlet efficiency power fraction regulated with a sieve or grate
KM-PO / E-300x400 200x300mm up to 6 t / h 11Kw 0.5-50mm
KM-PO / E-400x600 300x400mm up to 15 t / h 18.5 Kw 0.5 -50mm
KM-PO / E-600x800 400x500mm up to 30 t / h 55 Kw 0.5-70mm
KM-PO / E-800x1000 500x700mm up to 50 t / h 75 Kw 0.5-80mm
KM-PO / E-1000x1200 500x1050mm up to 90 t / h 110 Kw 0.5-100mm
ATTENTION:
1. The given capacities refer to loose material with a density of 1000 kg / m3.
2. Our products are constantly updated and improved, AZTECH reserves the right to change the parameters and design without prior notice to the user;
3. The above product configuration is not necessarily a standard configuration. Please consult us carefully when purchasing.
The prices given are NET prices.
We invite you to try our offer and if in Poland, to visit our point of sales in Opole region – YOU HAVE THE POSSIBILITY TO TEST OUR MACHINE WITH YOUR MATERIAL.
Aztech
Poland
Aztech Sp. z o.o.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Model: PE-200*300
Inlet Size: 200*300mm
Max.Feeding Size: 180mm
Adjustment Range of Discharge Port: 15-50mm
Capacity: 2-6t/h
Eccentric Shaft Speed: 260r/min
Motor Power: 7.5kw
Weight: 1.2t
Dimensions: 910*750*990mm
PE-150*250
PE-200*300
PE-200*350
PE-250*400
PE-400*600
PE-500*750
PE-600*750
PE-600*900
PE-750*1060
PE-900*1200
PE-1000*1200
PE-1200*1500
PE-1500*1800
PE-1600*2100
PEX-150*750
PEX-250*750
PEX-250*1000
PEX-250*1200
PEX-300*1300
Shisheng Machinery
China
Zhengzhou Shisheng Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
CPF impact crusher emerged in China in the 1990s. It’s emergence introduced advanced foreign technology. It adopts the force of impact as its crushing principle. During operation, the rotor rotates at a high speed. When materials enter the blow bar crushing area above the rotor, they are thrown into the impact plates with the strike strength of blow bar for second crushing and finally discharged at the bottom. Output sizes and product shape can be changed by adjusting the clearance between impact rack and rotor. CPF impact crusher is suitable for crushing stones and rocks with input size less than 500mm and compressive strength less than 250~300Mpa, such as, limestone, slag, coke, coal, etc. It is not appropriate for crushing sticky materials or materials with apparent moisture more than 8%-10%. Characterized by cubic shape product size, high reduction ratio, high crushing efficiency and easy maintenance, CPF impact crusher is an ideal crushing equipment for highway construction, hydropower construction, water conservation project, and building industries, etc.
TRUSTON
China
Shanghai UnItruston Intelligent Technology Co.,Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
€9500-10000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
AZTECH is a leading POLISH manufacturer of industrial machinery on both Polish and foreign markets. Our company is selling new and used machines and also spare parts for machines.
The vertical hammer crusher uses a new type of fine-grained crushing (maximum input 400mm, which gives the possibility of obtaining a ready product with a granulation from 0.01mm to 5mm at the machine exit).
A important advantage is the possibility of crushing raw material with increased HUMIDITY ratio.
The vertical crushing combination has many other advantages such as: high reduction ratio, low wear factor, stable work process of the machine. The crusher is designed to crush medium-hard and soft raw materials, such as:
- limestone
- sandstone
- gypsum
- slag
- charcoal
- hard coal
- stone
- concrete
- glass
- cap
- anthracite
MODEL- KM-PI-800
INLET (mm) - 150x250mm
CAPACITY (t / h) - 15
ENGINE (kW) - 22
We have in stock other types of new, never used hammer crushers of various powers and capacities.
model: KM-PI-1000 / inlet 200x300mm (2 pcs) / 37 kw engine / capacity up to 20 t / fraction of finished goods 0-15mm (adjustable with the number of hammers)
model: KM-PI-1250 / inlet 300x400mm (2 pcs) / engine 75 kW / capacity up to 35 t / fraction of finished goods 0-20mm (adjustable with the number of hammers)
model: KM-PI-1500 / inlet 400x500mm (2 pcs) / engine 130 kW / capacity up to 50 t / fraction of finished goods 0-25mm (adjustable with the number of hammers)
model: KM-PI / 1700 / inlet 500x600mm (2 pcs) / engine 160 kW / capacity up to 100 t / fraction of finished goods 0-30mm (adjustable with the number of hammers)
The hammers are made of high-quality, hard-wearing MANGANESE STEEL
ATTENTION:
1. The given capacities refer to loose material with a density of 1000 kg / m3.
2. Our products are constantly updated and improved, AZTECH reserves the right to change the parameters and design without prior notice to the user;
3. The above product configuration is not necessarily a standard configuration. Please consult us carefully when purchasing.
The prices given are NET prices.
We invite you to try our offer and if in Poland, to visit our point of sales in Opole region – YOU HAVE THE POSSIBILITY TO TEST OUR MACHINE WITH YOUR MATERIAL.
Aztech
Poland
Aztech Sp. z o.o.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone
Machinery Function Features:
The 250-80 series include Stone Crushers with Special Blades and related accessories, such us Separators, Tipper Containers, Conveyor Belts (and others) are designed to recycle raw materials and scraps from processing of stone, marble, granite, porphyry, quartz, ceramics, building demolitions, similar material and glass, in small and large size, reducing the fragmented output for every requirement.
Crushing process: it takes places due to a compression with a direct eccentric mechanism between different special plates (fixed and mobile), actuated by a transmission with trapezoidal belts, which can assume different levels of adjustment.
Benefits: reduce the space of the same waste with its reuse in gardening, mosaic, road fills, furnishings and so on.
The 250-80S Model is composed of the Crusher and Bags collection system, allowing the accumulation of the crushed output in bags for easy transfer.
Tecnoporro
Italy
TECNOPORRO s.a.s.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Basalt
Machinery Function Features:
GENERAL 950 MOBILE CRUSHER with its new system, it is the first in Turkey!!!
New System Crushing and Screening Plant, with 150-240 tons / hour capacity. Ideal for crushing granite and basalt.
GENERAL 950 Closed Circuit Crushing and Screening system is all collected in one single platform and can be easily transpoted with one truck. These group crushers have designed for short term installation.
It is the most suitable for crushing hard stones (basalt, granite) and mines (iron ore, chrome mine, quartz).
It is the ideal crushing unit to crush the abrasive materials.
* Vibrating Feeder and Bunker
The feeder system is driven by two vibromotors. At this count, trouble-free and minimal maintenance is offered.
The feeder reservoir is suitable for feeding with Excavator and Loader and can be fed in the truck with additional reservoirs during continuous operation.
All wear points in the feeder and in the bunker are protected by wearable armor.
The Feeder Tablet has a screening system. Thanks to the by-pass conveyor, sifted ground material can be poured into the stock area.
* Jaw Crusher
Size : 900x650 mm Primary type
Motor Power : 75 Kw
Adjustable mechanism and jaw crusher can be easily adjusted.
* Main Conveyor Belt 800 mm
Pallet type, rubber conveyor.
* High Screen Capacity, Dual Transverse Screener.
Size : 1600x5000mm
Motor Power : 15 KW
Number of decks : 3
*Secondary Impact Crusher (Hard Material Crusher)
1200x1400 mm Special type Secondary Impact Crusher system
Engine : 160 Kw
* Under-Sieve Stock Conveyor Belt 1000 mm Scorpion Model
* Stock Conveyor Belt x 2 pcs 600 mm Folded type
* Mobile Chassis 3-axle Chassis Special constructed Chassis
* Hydraulic System
* Thanks to 8 hydraulic feet and 8 fixed feet provides easy installation.
* The electric panel is Siemens brand
* Panel System has Siemens Soft Starter system and special control system. All functions can be controlled with Remote Control (Radio Control System). The special touch screen remote control system provides easy installation.
Generator System Optional, 6 Cylindrical diesel engine and Marelli Alternator of Cummins, Perkins, Doosan, Deutz brands.
Capacity: Capacity is 160 240 t/h, it depends on crushing material, feding size and final sizes.
The dust removal system prevents dusting by conveying high pressure water to the nuzzle to prevent the dusting.
Drive drums are rubber coated and threaded.
The gear units are 3 transmission type and the new generation is with torque connection system.
Conveyor Belt Tires Derby or Eksash Brand.
Bearings: SKF or FAG Bearings
The Iron and Steel Products used are Eregli Brand and A1 quality.
* By-pass system
* Magnetic magnet (optional)
* Generator System (optional)
* Additional hopper to feed with truck
* Dust Removal System
* Frequency Control System is used instead of Soft starter.
This system allows to adjust the working speed of the crusher. Moreover, thanks to this system it is possible to work without demurrage, low generator selection and low fuel consumption. Approximate fuel consumption 30 - 35 Lt / hour (Optional)
** All of our products are CE certified.
** Shipping Dimensions: Width 4300 mm x Length 18.800 mm x Height 4330 mm
Weight: 70.000 Kg
General Makina
Turkey
General Makina
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Features of CPKW Hammer Crusher
1. Hammers can crush materials completely.
2. A large quantity of impact plates with high impact force and crushing frequency.
3. Reversible rotors can change the crushing direction to extend the life-span of hammers and impact plates.
4. High rotation speed and capacity; this leads to effective and up to standard crushing.
5. With features of no-grate, no-grinding and low over-crushing ratio, the crusher has high qualified final products. No-block makes it suitable for wet materials and middle & high.
TRUSTON
China
Shanghai UnItruston Intelligent Technology Co.,Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
$30000-30000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Model: PCΦ400*300
Feeding Particle Size: ≤200mm
Discharge Size: ≤25mm
Capacity: 5-10t/h
Motor Power: 11kw
Weight: 0.8t
Dimensions: 900*670*860mm
PCΦ200*300
PCΦ400*300
PCΦ600*400
PCΦ800*600
PCΦ1000*800
PCΦ1000*1000
PCΦ1250*1250
PCΦ1400*1400
PCΦ1600*1600
Shisheng Machinery
China
Zhengzhou Shisheng Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
$10800-16800
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
GC series high-performance jaw crusher is uesed as primary and secondary crusher,V-shaped structure crushing cavity is able to meet a big feeding, assembled of the world mots advanced crushing technologh and production process. -
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
A crusher that breaks material by squeezing or compressing it between convex and concave shaped surfaces covered by manganese as the wear surface.
SMAN SHCC Gyratory Hydraulic Cone Crushers are the ultimate solution for the secondary crushing to achieve uniform product size of hard rocks, ores and minerals
SMAN SHCC Cone Crushers are supplied inclusive of Hydro-Lube power pack, electrical control panel with motor and soft starter for instant installation.
Features :
1)Quick Installation. NO RCC foundation required
2)Optional Mobile attachment for quick inter site movement
3)Heavy duty skid with discharge conveyor
4)High crushing capacities
5)Tramp release accumulator
6)Compact hydro-lube power pack with inbuilt safety features
7)Uniformly in output product
8)Heavy duty cast steel shell
9)Electronically synchronized hydraulic lubrication system
10)Well equipped electrical panel with soft starter -
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
€4729-4999
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
250/400 diesel engine ; This model is equipped with an 15-kilowatt motor size: 210*116*180cm 4.38CBM 2100KGS
Faithful Machinery
China
Quanzhou Faithful Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
$7357-7708
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
300/500 diesel engine ; This model is equipped with an 22-kilowatt motor Hourly diesel consumption: 5-7 liters; feeding size：≤290mm output size: 20-80mm ;size: 230*140*170cm 5.48CBM 3850KGS；Consumable parts A set of jaw plates is EXW Quanzhou USD541.31 per set, gross weight around 280KGS, a set of toggle plates is EXW Quanzhou USD252.61 per set, gross weight around 150KGS
Faithful Machinery
China
Quanzhou Faithful Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Features of CPLS Vertical Shaft Impact Crusher
1. Unique rotor and cavity design, high sand ratio, good particle shape, less flat and elongated particles.
2. Stone strikes Stone, low abrasion and power consumption.
3. Automatic control, hydraulic start and stop, shockproof and temperature sensing ensure the crusher safe operation.
4. Artful self-circulation of inner main flow, no dust and more green.
5. Hydraulic equipment, easy maintenance.
TRUSTON
China
Shanghai UnItruston Intelligent Technology Co.,Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
$2000-50000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone
Machinery Function Features:
PE Series Construction Stone Jaw Crusher
Application of Jaw Crusher:
The crusher is applicable for the rough and medium crushing of rocks and ores with a compressive strength less than 245Mpa.
Structure of Jaw Crusher: The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs.
Operating principle of Jaw crusher: Jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
$2000-50000
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
Application of Jaw Crusher:
The crusher is applicable for the rough and medium crushing of rocks and ores with a compressive strength less than 245Mpa.
Structure of Jaw Crusher: The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs.
Operating principle of Jaw crusher: Jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Features of CPW Hammer Crusher
1. High crushing ratio, single-stage crushing, compact structure, large capacity.
2. Fixed crushing cavity, high rigidity, easy to fasten and maintain.
3. With long crushing cavity, the crusher can completely crush and reshape materials.
4. For features of no-grate, no-grinding and low over-crushing ratio, the crusher has high qualified final products. No-block makes it suitable for wet materials.
5. Rotor with multi-protection can avoid great accidents in case the hammer plate break.
6. Easy adjustment.
7. The crusher’s racks can be opened. It’s easy to replace wom out parts of the liner.
TRUSTON
China
Shanghai UnItruston Intelligent Technology Co.,Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
€41000-41500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
AZTECH is a leading POLISH manufacturer of industrial machinery on both Polish and foreign markets. Our company is selling new and used machines and also spare parts for machines.
The offer applies to a complete production line for crushing glued glass
The line consists of :
1) TWO-SHAFT MILL SHREDDER MW-600x400
2) CONVEYOR BELTS 2 pcs - PT6
3) VERTICAL HAMMER CRUSHER KM-PI-800
4) CONTROL CABINET
THIS OFFERED LINE ISSUES A READY PRODUCT SIZE 0-5mm !
Whole window glasses can be milled, inside foil is separated during this process.
The standard setting of the crusher (number of hammers- 21 pcs) gives the ready product in the fraction given above.
It is possible to change the fraction of the ready product by changing the number of hammers and their settings.
Below you can see the working line:
https://www.youtube.com/watch?v=khawmOStW00
https://www.youtube.com/watch?v=mH6WO8u9IcI
1. The given capacities refer to loose material with a density of 1000 kg / m3.
2. Our products are constantly updated and improved, AZTECH reserves the right to change the parameters and design without prior notice to the user;
3. The above product configuration is not necessarily a standard configuration. Please consult us carefully when purchasing.
The prices given are NET prices.
We invite you to try our offer and if in Poland, to visit our point of sales in Opole region – YOU HAVE THE POSSIBILITY TO TEST OUR MACHINE WITH YOUR MATERIAL.
Aztech
Poland
Aztech Sp. z o.o.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone
Machinery Function Features:
The 250-80 series include Stone Crushers with Special Blades and related accessories, such us Separators, Tipper Containers, Conveyor Belts (and others) are designed to recycle raw materials and scraps from processing of stone, marble, granite, porphyry, quartz, ceramics, building demolitions, similar material and glass, in small and large size, reducing the fragmented output for every requirement.
Crushing process: it takes places due to a compression with a direct eccentric mechanism between different special plates (fixed and mobile), actuated by a transmission with trapezoidal belts, which can assume different levels of adjustment.
Benefits: reduce the space of the same waste with its reuse in gardening, mosaic, road fills, furnishings and so on.
The 250-80C Model is composed of the Crusher, a large structure with a lateral staircase and a tipping Container, allowing the accumulation of the crushed output in the container for easy transfer.
Tecnoporro
Italy
TECNOPORRO s.a.s.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
€23000-23500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
AZTECH is a leading POLISH manufacturer of industrial machinery on both Polish and foreign markets. Our company is selling new and used machines and also spare parts for machines.
The offer applies to a complete crushing line for hard and medium-hard material, which includes:
VIBRATING TABLE - length 3000mm
JAW CRUSHER - model KSZ-250x400
BELT CONVEYOR - PT6
CONTROL CABINET
Line capacity: about 15 t / h
Obtained aggregate: 20-70mm
It is possible to change the configuration of the combined devices.
1. The given capacities refer to loose material with a density of 1000 kg / m3.
2. Our products are constantly updated and improved, AZTECH reserves the right to change the parameters and design without prior notice to the user;
3. The above product configuration is not necessarily a standard configuration. Please consult us carefully when purchasing.
The prices given are NET prices.
We invite you to try our offer and if in Poland, to visit our point of sales in Opole region – YOU HAVE THE POSSIBILITY TO TEST OUR MACHINE WITH YOUR MATERIAL.
Aztech
Poland
Aztech Sp. z o.o.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
$3000-6000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Stone Crusher-Smart50 This is a small,practical and silent jaw crusher to make gravels. Good for stone fabricators to make leftover stone valuable. The reinforced mouth gives long life of the machine. The machine is equipped with the separator. For crush small stones,make waste stone valuable.
Stoneplus
China
STONEPLUS MACHINERY CO.,LTD
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Basalt, Quartzite
Machinery Function Features:
GENERAL 640 Closed circuit Crushing system, the whole system is collected on one platform and can be transported with 1 truck.
It is designed for operation within 30 minutes.
It is the most suitable for crushing hard and hard-to-break stone (basalt, granite) and mines (iron ore, chrome mine, quartz).
It is the ideal breaker unit to break the abrasive materials.
Vibrating Feeder and Reservoir
The feeder system is driven by 2 vibro motors. In this way, it is smooth and operation is provided with minimum maintenance.
The feeder reservoir is suitable for feeding with Excavator and Loader, and can be fed in the truck with additional chambers in continuous operation.
All wear points in the feeder and in the reservoir are protected by wearable armor.
The Feeder Tablet has a screening system. Thanks to the by-pass conveyor, this sifted ground material can be poured into the stock area.
Jaw Crusher
Dimension: 600x400 mm Primer type
Engine power: 30-37 Kw
Adjustable mechanism and jaw crusher can be easily adjusted.
- Main Conveyor Belt System 600 mm
Pallet type conveyor is rubber.
- Vibrating Screen System High Capacity Type
Dimension: 1300x4000mm
Engine Power 11 KW
Number Of Floors: 3 Floors
Secondary Impact Crusher (Hard Material Crusher)
1120 x 500 mm Special Type Impact Crusher System
Engine: 90 Kw - 110 Kw
Tonnage By Request
1000 x 750 mm Special Type Secondary Impact Crusher System
Engine: 45 Kw
Under-Screen Stock Conveyor 800 mm
Folding type
- Stock Conveyor 2 units 500 mm Folding type
- 2. Crusher Main Belt Conveyor 5000 mm Crisscross type
- Mobile Chassis System 3-Axis Special Constructed Chassis
- Hydraulic System
There are 4 hydraulic foot mechanisms in the system. After these feet are locked, they are strengthened with 6 Fixed feet.
There are also 2 lift pistons for opening and closing in the crusher. These 6 pistons are controlled by special control system.
Hydraulic Power System 125 Liter
Magnetic Conveyor Belt 750 mm (Optional)
- Panel Material is Schneider Electric or Telemecanique Mark.
- The board system has the Abb Soft Starter system and special control system.
- All of our products are European Union CE certified.
- Total weight: 32,000 Kg
- Transportation Measurements: Width 3600 mm x Length 17.000 mm x Height 4500 mm
General Makina
Turkey
General Makina
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
$119500-150000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone
Machinery Function Features:
Cone crusher is a compression type of machine that reduces material by squeezing the feeding material between concave and mantle,normally used as secondary and tertiary crushing stages,widely used in aggregate production,mining,metallurgy,highway,road construction,building material. -
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Secondary Gyratory Hydraulic Cone Crushers are the crushers that receives feed from the primary crusher, further reducing rock in size.
SMAN SHCC-S (Secondary) Gyratory Hydraulic Cone Crushers are the ultimate solution for the secondary crushing to achieve uniform product size of hard rocks, ores and minerals.
SMAN SHCC-S (Secondary) Gyratory Hydraulic Cone Crushers are equipped with the most advanced crushing techniques. The outer shells and the other body components are made out of the finest quality steel castings and its robust design helps withstand high crushing loads. The main shaft and eccentric system is made out high grade forged alloy steel and precision machined for accurate Gyro Crushing action resulting in maintenance free operation.
SMAN SHCC-S (Secondary) Gyratory Hydraulic Cone Crushers are supplied inclusive of Hydro-Lube power pack, electrical control panel with motor and soft starter for instant installation.
Features :
1) Crushing capacity is very high
2) For quick inter site movement, optional mobile attachment is provided
3) Heavy duty skid with discharge conveyor
4) Installation is very easy and quick.
5) Provided with tramp release accumulator
6) Electronically synchronized hydraulic lubrication system
7) Uniformity in output product
8) Electrical panel is well equipped with soft starter
9) Compact hydro-lube power pack with inbuilt safety features
10) Heavy duty cast shell made from steel -
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
€40000-40500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
AZTECH is a leading POLISH manufacturer of industrial machinery on both Polish and foreign markets. Our company is selling new and used machines and also spare parts for machines.
The offer applies to a complete crushing line for 30-40 t/h capacity
The products are mainly LIMESTONE, MINE STONE, COAL, BASALT ETC. The offer includes:
1) CHARGING HOPPER - KZ-750
2) BELT CONVEYORS 2 pcs - PT6
3) KM-PI-1250 HAMMER CRUSHER
4) CONTROL CABINET
THE OFFERED LINE PRODUCES THE READY AGGREGATE:
1-2mm / 60%
2-6mm / 39%
6-30mm / 1%
From a raw material with a fraction of 20 to 150 mm!
The standard setting of the crusher (number of hammers- 21 pcs) gives the ready product in the fraction given above.
It is possible to change the fraction of the ready product by changing the number of hammers and their settings.
Below you can see the working line:
https://www.youtube.com/watch?v=khawmOStW00
https://www.youtube.com/watch?v=mH6WO8u9IcI
1. The given capacities refer to loose material with a density of 1000 kg / m3.
2. Our products are constantly updated and improved, AZTECH reserves the right to change the parameters and design without prior notice to the user;
3. The above product configuration is not necessarily a standard configuration. Please consult us carefully when purchasing.
The prices given are NET prices.
We invite you to try our offer and if in Poland, to visit our point of sales in Opole region – YOU HAVE THE POSSIBILITY TO TEST OUR MACHINE WITH YOUR MATERIAL.
Aztech
Poland
Aztech Sp. z o.o.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
€64000-64500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
AZTECH is a leading POLISH manufacturer of industrial machinery on both Polish and foreign markets. Our company is selling new and used machines and also spare parts for machines.
The offer applies to a complete crushing/grinding line for ALUMINUM, CAST IRON and includes :
1. Belt conveyors: charging, receiving, sorting
2. Vibratory screener
3. Magnetic separator
4. Hammer mill
5. Control cabinet for the entire system of devices
The line capacity is about 5 t / h, depending on the size and hardness of the material. The power of the entire line is approximately 70 kW.
1. The given capacities refer to loose material with a density of 1000 kg / m3.
2. Our products are constantly updated and improved, AZTECH reserves the right to change the parameters and design without prior notice to the user;
3. The above product configuration is not necessarily a standard configuration. Please consult us carefully when purchasing.
The prices given are NET prices.
We invite you to try our offer and if in Poland, to visit our point of sales in Opole region – YOU HAVE THE POSSIBILITY TO TEST OUR MACHINE WITH YOUR MATERIAL.
Aztech
Poland
Aztech Sp. z o.o.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone
Machinery Function Features:
The 250-80 series include Stone Crushers with Special Blades and related accessories, such us Separators, Tipper Containers, Conveyor Belts (and others) are designed to recycle raw materials and scraps from processing of stone, marble, granite, porphyry, quartz, ceramics, building demolitions, similar material and glass, in small and large size, reducing the fragmented output for every requirement.
Crushing process: it takes places due to a compression with a direct eccentric mechanism between different special plates (fixed and mobile), actuated by a transmission with trapezoidal belts, which can assume different levels of adjustment.
Benefits: reduce the space of the same waste with its reuse in gardening, mosaic, road fills, furnishings and so on.
The 250-80A-M3 Model is full version of crushing plant, composed of the Crusher and 3 output Separation System, simultaneously at the crushing occurs a sectioned division of the crushed output into three customizable parts, with potential to add tipping containers and conveyor belts
Tecnoporro
Italy
TECNOPORRO s.a.s.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Warranty: 12 Months
Usage: Granite, Basalt, Quartzite
Machinery Function Features:
Feeding range 1500 x 1300mm
Rotor: 1400 x 1500 mm Crusher There are 2 special chambers that provide thinning.
Motor Power 200 Kw - 250 Kw Thanks to special adjustment blocks, Primer has been collected in one machine with secondary function.
It is unprecedented with high reduction rates of up to 50 times.
Main Conveyor Belt System 1000 mm conveyor belt rubber.
Vibrating Screen System High Capacity Type
Dimension: 2000 x 5000mm
Motor Power 22 Kw Floor Number: 3-4 Floors
Under-Screen Stock Conveyor 1000 mm Folding type
Stock Conveyor 2 pieces 800 mm Folding type
Return system is provided with 2 pieces of 600 mm 2 conveyor belts.
Mobile Chassis System 3 Mobile system with axle scissors.
Hydraulic system has 6 hydraulic foot mechanisms. After these feet are locked, they are strengthened with 6 Fixed feet.
The crusher also has 2 lift pistons for opening and closing. These 2 Pistons are controlled by special control system. The product size is determined by 2 pistons which determine the pandul setting and the product size and also with a special arm.
Hydraulic Power System 125 Liter
Magnetic Conveyor Belt 600 mm (Optional
Panel Material is Siemens Brand
Board System has Abb Soft Starter system and special control system.
Remote Control (Cable Control System) can be done with the crusher control. It can self-assemble by amperage system.
Generator System Optional, 6 Cylindrical diesel engine and Marelli Alternator of Cummins, Perkins, Doosan, Deutz brands. (Optional
Capacity Breaking Material and Feeding, It is 250-300 ton Capacity according to final product sizes.
Dust Removal System In order to suppress the dust in the conveyors, high pressure water is sprayed to prevent dusting. (Optional
Feeders are Vibromotor, Emtas, Italvibras, Oli Brand.
Main Belt Drive Drum Rubber Coated and Threaded.
Electric Motors are Gamak, Emtaş, Inter Mark.
Gearboxes are special gearboxes with 3 gears.
Conveyor Belt Tires Derby, Eksaş and Ycel Brand.
Roller Bearings: SKF or equivalent Bearings Used for flat products are Ereğli Iron and Steel Products and are of A1 Size.
By-pass system (optional
Magnetic magnet (optional
Generator System (Optional
Additional reservoir to feed with truck (Optional
Dust Removal System (Optional
Frequency Control System is used instead of Soft Starter (Optional
This system allows to adjust the run time of the crusher. In addition, with this generator, it is possible to work without load, low generator selection and low fuel consumption. Approximate fuel consumption 19 - 21 Lt / h (Optional
All our products are European Union CE certified.
Total Weight: 60,000 Kg
Shipping Dimensions: Width 4.200 mm x Length 17,000 mm x Height 4,500 mm
We are proud to offer you GENERAL 03 with 35 years of experience.
Our Company General Makina is located in Turkey.
General Makina
Turkey
General Makina
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
$1000-1000000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
Machinery Function Features:
MJ series jaw crusher is mainly used as primary crusher. It is made of advanced technology in Europe and America and high-quality wear-resistant raw materials. The equipment has good performance, large crushing ratio and high output. It mainly deals with high strength and high hardness materials. It is the primary equipment of mine crushing production line and lays a good foundation for subsequent equipment. The design of this new type of jawbone structure is more scientific and reasonable, and the operation parameters, structural form, maintenance and adjustment of the equipment have more advantages than traditional machines.
China
Meilancrusher
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
$20000-999999
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Mobile jaw crusher plant is equipped with the good-performance vibrating feeder and jaw crusher, which applies to crush the hard and high abrasive materials. There are several models of jaw crushers available to meet customers’ requirements.Wheel type Mobile Jaw Crusher is composed of primary crushing plant and secondary one, belt conveyor, etc. Every crushing plant is an independent working unit. They can respectively assume their different responsibility, and the belt conveyor is responsible for material transmitting and piling up between each crushing plants.
China
HENAN XINGCHANG IMPORT AND EXPORT TRADE CO.,LTD
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
$30000-30000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Model: PCΦ400*300
Feeding Particle Size: ≤200mm
Discharge Size: ≤25mm
Capacity: 5-10t/h
Motor Power: 11kw
Weight: 0.8t
Dimensions: 900*670*860mm
PCΦ200*300
PCΦ400*300
PCΦ600*400
PCΦ800*600
PCΦ1000*800
PCΦ1000*1000
PCΦ1250*1250
PCΦ1400*1400
PCΦ1600*1600
Shisheng Machinery
China
Zhengzhou Shisheng Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
$12500-13000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Circular vibrating screen
7YR
China
XIAMEN EASTERN PEGASUS CO., LTD.
Contact Supplier
Have a Question? Ask our expert
Ask now
Questions & Answers on Rock Crushers, Jaw Crushers
What are the types of jaw crusher?
Posted by Visitor
Reply to this question
Post ReplyCancel
There are two basic types of jaw crushers: single toggle and double toggle. In the single toggle jaw crusher, an eccentric shaft is on the top of the crusher. Shaft rotation causes, along with the toggle plate, a compressive action. A double toggle crusher has two shafts and two toggle plates.
Answered by StoneContact
Like
What is the working principle of compact jaw crusher?
Posted by Visitor
Reply to this question
Post ReplyCancel
The working principle of jaw crushers is based on the reciprocating movement of the movable jaw that compresses and crushes the rock or ore between itself and the fixed jaw, as the material enters the zone between the jaws.
Answered by StoneContact
Like
What are jaw crushers used for?
Posted by Visitor
Reply to this question
Post ReplyCancel
A jaw crusher is a large piece of equipment that's used in mine and ore processing plants to crush rocks.
Answered by StoneContact
Like
