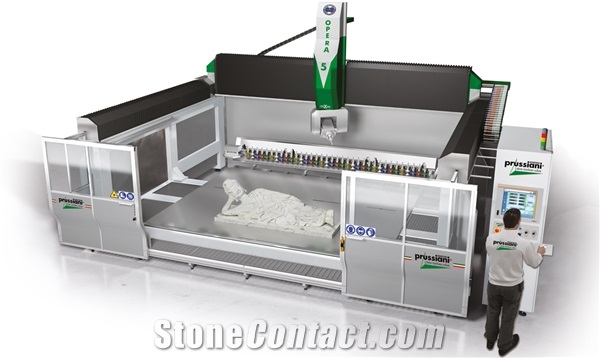

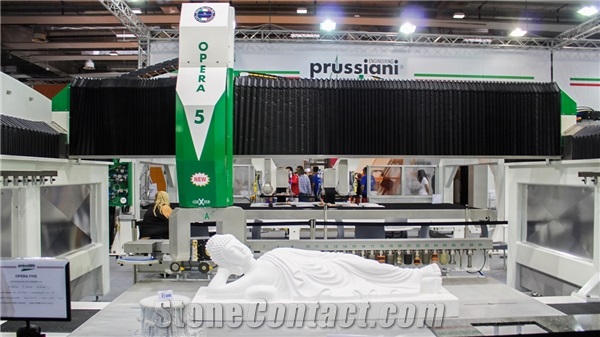

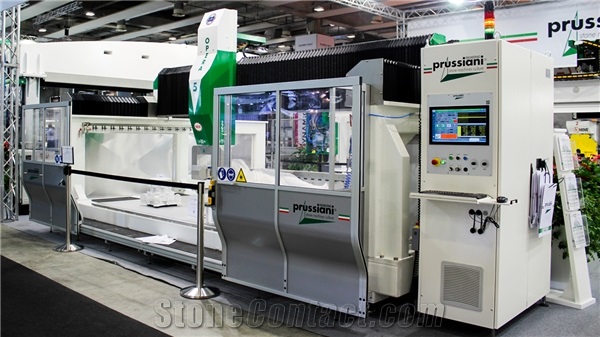

Opera Five CNC Working Centers
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Dec 28,1991
Main Product:
Stone Machinery, CNC Waterjet Machine, Polishing Machine, CNC Bridge Saw, 5 Axes Milling Machines, CNC Working Centers|
Machinery Function Features
automatic centralized greased lubrication. In case of anomalies the machine stops;
watertight IP 55 electric cabinet with safety thermostat;
sound power level: 84 ÷ 90 dB(A);
Technical Data
Parameters |
Unit |
Opera Five |
Linear tool-store capacity |
nr |
38 |
Sound pressure level |
dB |
84 ÷ 90 |
Tool-holder spindle rotation speed |
r/min |
0 – 12.000 |
Tool-holder spindle motor power |
kw |
13,2 |
A axis rotating (degrees) |
° |
-185° + 185° |
Approx. Weight |
Kg |
8.700 |
Total Power required |
kw |
27 |
X axis rapid speed |
m/min |
50 |
Z axis stroke |
mm |
650 |
Z axis rapid speed |
m/min |
30 |
Y axis stroke |
mm |
3.000 |
Y axis rapid speed |
m/min |
50 |
C axis inclination (degrees) |
° |
-120° + 120° |
Tool-holder spindle motor torque |
N·m |
27 |
Machine overall width |
mm |
4.700 |
X axis stroke |
mm |
3.800 |
Machine overall length |
mm |
6.600 |
Spindle tool holder |
ISO 40 |
|
Machine overall height |
mm |
3.600 |
Software
Powered by a numerical control interfaced with CAD/CAM systems allow the Customer to produce different workings like contouring, profiling, drilling, milling, polishing, engraving and bas-relief.
