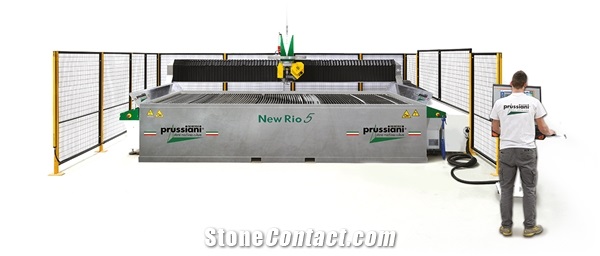

NEW RIO 5 CNC Waterjet Machine
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Supplier
Eatablished :Dec 28,1991
Main Product:
Stone Machinery, CNC Waterjet Machine, Polishing Machine, CNC Bridge Saw, 5 Axes Milling Machines, CNC Working Centers|
Machinery Function Features
automatic centralized greased lubrication. In case of anomalies the machine stops;
watertight IP 55 electric cabinet with safety thermostat;
sound power level: 80 ÷ 90 dB(A);
VERSIONS
NEW RIO 5

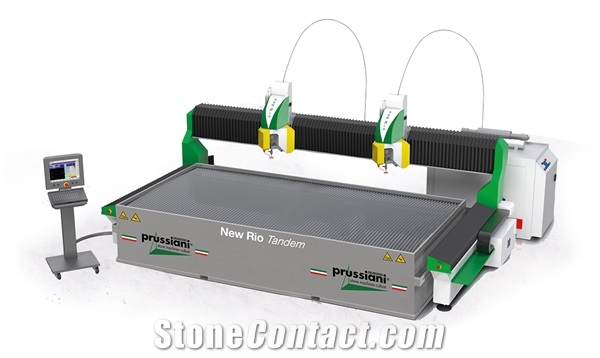

NEW RIO TANDEM
Technical Data
Parameters |
Unit |
NEW RIO 5 |
NEW RIO TANDEM |
X axis stroke |
mm |
4.000 |
4.000 |
Machine overall length |
mm |
5.820 |
5.820 |
Y axis rapid speed |
m/min |
60 |
60 |
Machine overall height |
mm |
2.200 - 3.500(with hp pipe) |
2.200 - 3.500(with hp pipe) |
Capacity of abrasive container |
kg |
425 |
425 |
X axis rapid speed |
m/min |
60 |
60 |
Machine overall width |
mm |
3.630 |
3.630 |
Approx. Weight |
Kg |
5.000 |
5.000 |
A axis rotating (degrees) |
° |
-130° ÷310° |
-130° ÷310° |
C axis inclination (degrees) |
° |
-60° ÷60° |
-60° ÷60° |
Z axis stroke |
mm |
180 |
180 |
Number of axes |
nr |
5 |
5 |
Z axis rapid speed |
m/min |
15 |
15 |
Y axis stroke |
mm |
2.000 |
2.000 |
Max total absorbed power – Machine |
kW |
5 |
5 |
Total Power required |
kw |
29 |
37 |
Software
Powered by a numerical control interfaced with CAD/CAM systems and by a dedicated software WJ CAM, they allow to get precise cuts without thermal deformations.
