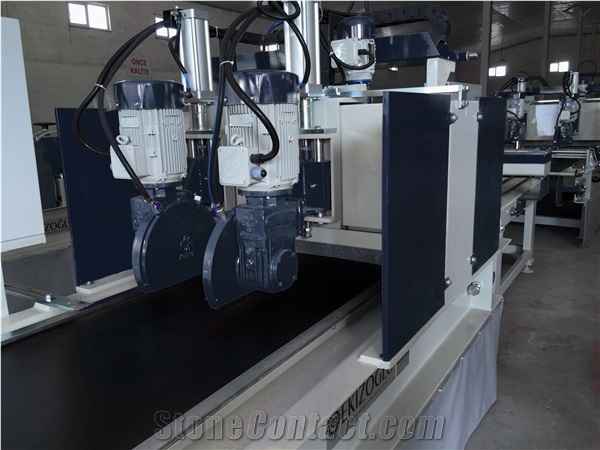

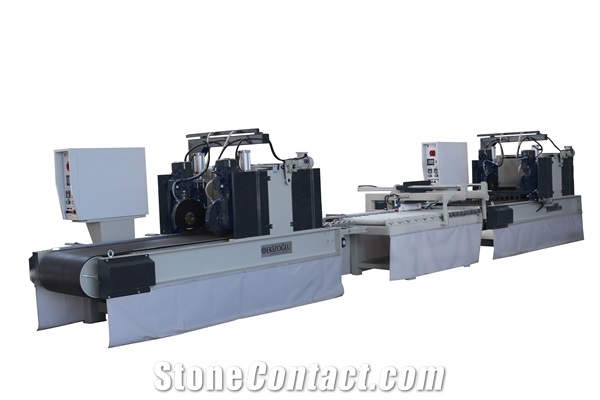

EM11 - Trimming Line - Multi-Blade Cross-Cutter,Trimming Machine

FOB Price:

Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: Optional
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Regular guidance & maintenance

Supplier

Ekizoglu Makina

Ekizoglu Makina
Ekizoglu

TurkeyTurkey idicon

Eatablished :Nov 29,1986

Main Product:

Makina, Ekizoglu, Marble Machines, Granite Machines, Basalt Machines, Ceramic Machines, Crushing Machines, Ekizoglu Makina|

Contact supplier

Start Order

You may also like
Mighty Stone Saw With Dual Blades - Multi-Blade Cross-Cutter, Trimming Machine
Mighty Stone Saw With Dual Blades - Multi-Blade Cross-Cutter, Trimming Machine
Stone Cutting Line Cross Cutting Machine, Straight Cutter
Stone Cutting Line Cross Cutting Machine, Straight Cutter
Automatic Curbstone Cutting Machine Line
Automatic Curbstone Cutting Machine Line
FULLY AUTOMATIC PNEUMATIC AXE CUTTER, INTEGRATED MACHINE
FULLY AUTOMATIC PNEUMATIC AXE CUTTER, INTEGRATED MACHINE
Auto.Cross-Lengthway Cutting Machine- Multi-Blade Cross-Cutter
Auto.Cross-Lengthway Cutting Machine- Multi-Blade Cross-Cutter
  • Overview
  • Components
Machinery Function Features
EM11 - Trimming Line • Number Of Cutting Discs: 4 • Diameter of Disc: 350 mm • Working Thickness: 10 – 60 mm • Length Cutting Belt Width: 700 mm • Length Cutting Working Width: 650 mm • Sizing Belt Width: 1300 mm • Sizing Working Width: 1200 mm • Minimum Working Width: 100 mm • Cutting Head Motor Power: 4 x 7,5 kW • Head Movement Motor Power: 2 x 0,55 kW • Belt Motor Power: 2 x 0,75 kW • Rotator Motor Power: 0,55 kW • Rotator Width: 1200 mm • Total Electric Power: 34 kW • Machine Dimensions ( W / L / H ): 2200 / 9500 / 2000 mm • PLC Automatic Sizing Setting • Pneumatic Piston Pusher • Pneumatic Miter https://ekizoglumakina.com/en/product/trimming-line-em11
Technical Data
Parameters
Unit
EM11
Disc-holder head motor power
kw
4 × 5.5
Max. working strip thickness
mm
50
Machine width (W)
mm
1400
Min.Strip Machinable width
mm
100
Motor power of rotator system
kw
0.37
Discs diameter
mm
350
Motor power of rotator
kw
0.55
Machine length (L)
mm
9000
Number of disc-holder heads
nr
4
Max.Strip Machinable width
mm
650
Installed electrical power
kw
24
Machine height (H)
mm
1900
Outfeed conveyor belt motor power
kw
2 × 0.75

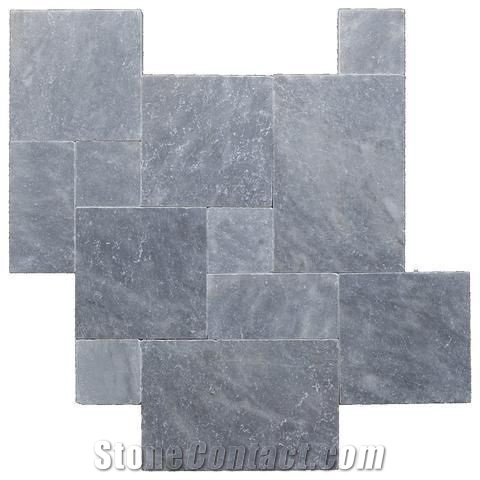

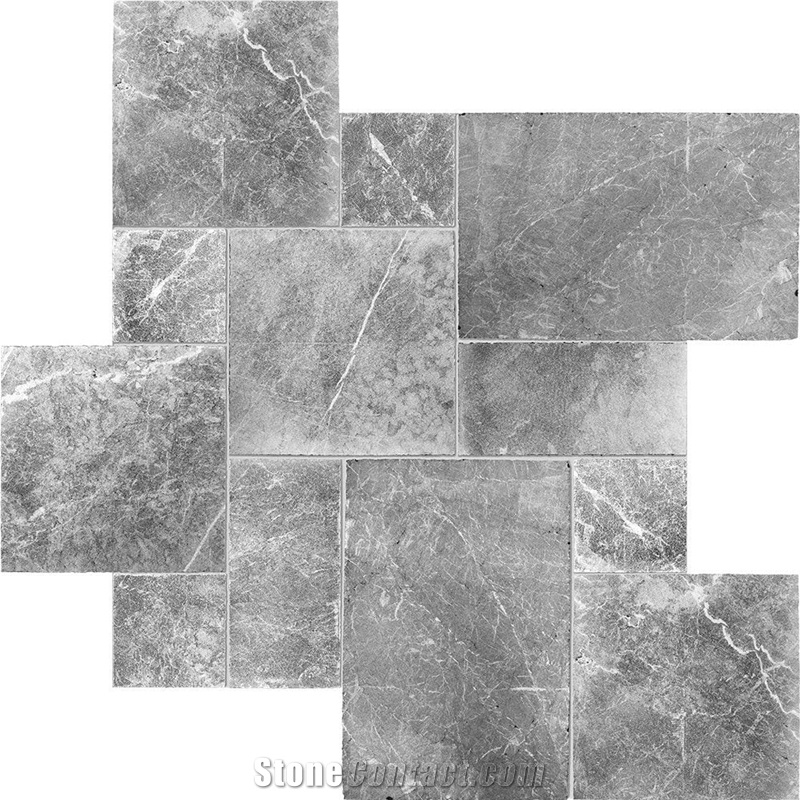

Processed Stone Photos
  • Cut -Size

    Cut -Size

Components
  • Cutting Disc

    Cutting Disc

    ¥Payment Required
Consumables

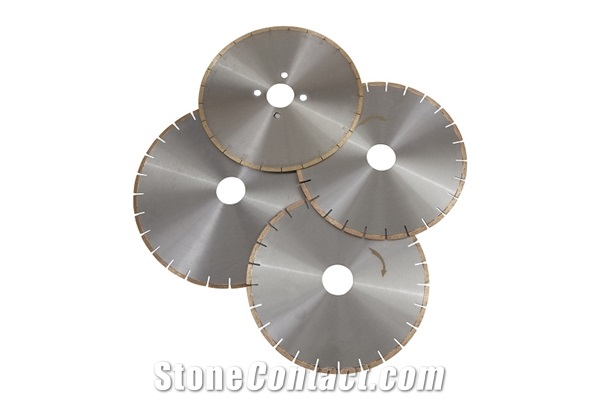

  • Cutting Discs

    Cutting Discs

    Cutting Discs
