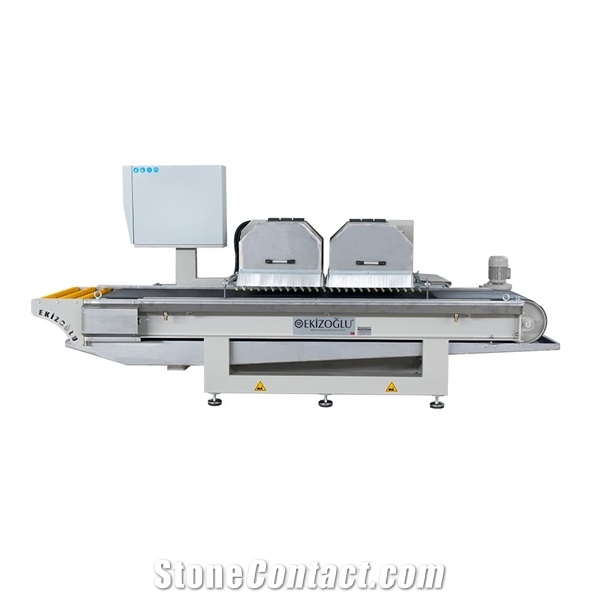

EM07 - Double Head Ceramic & Porcelain Cutting Machine

FOB Price:

Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: Optional
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Regular guidance & maintenance

Supplier

Ekizoglu Makina

Ekizoglu Makina
Ekizoglu

TurkeyTurkey idicon

Eatablished :Nov 29,1986

Main Product:

Makina, Ekizoglu, Marble Machines, Granite Machines, Basalt Machines, Ceramic Machines, Crushing Machines, Ekizoglu Makina|

Contact supplier

Start Order

You may also like
Double Blades Thin Stone Veneer Mighty Saw
Double Blades Thin Stone Veneer Mighty Saw
Multi-Blade Kerbstone Slab Cutting Machine
Multi-Blade Kerbstone Slab Cutting Machine
THREE-GROUP MULTI-BLADE AUTOMATIC CUTTING MACHINE (HY3-1200)
THREE-GROUP MULTI-BLADE AUTOMATIC CUTTING MACHINE (HY3-1200)
Stone Cutting Line Cross Cutting Machine, Straight Cutter
Stone Cutting Line Cross Cutting Machine, Straight Cutter
Auto.Cross-Lengthway Cutting Machine- Multi-Blade Cross-Cutter
Auto.Cross-Lengthway Cutting Machine- Multi-Blade Cross-Cutter
  • Overview
  • Components
  • Video
Machinery Function Features
EM07 DOUBLE–HEAD CERAMIC & PORCELAIN CUTTING MACHINE • Belt Width: 700 mm • Working Width: 650 mm • Working Thickness: 10 – 60 mm • Number Of Cutting Heads: 2 • Disc Diameter: 300 mm • Cutting Unit Motor Power: 2 x 11 kW • Up – Down Control Motor Power: 0,55 kW • Belt Motor Power: 0,75 kW • Belt Speed: 3 mt / min • Water Consumption: 120 lt / min • Total Eletric Power: 24 kW • Machine Dimensions ( W / L / H ): 2200 / 4500 / 1980 mm https://ekizoglumakina.com/en/product/double-head-ceramic-cutting-machine
Technical Data
Parameters
Unit
EM06
Approximate weight
Kg
2250
Max. working strip thickness
mm
10 - 50
Discs diameter
mm
300
Belt width
mm
700
Machine width (W)
mm
2000
Water requirement for each spindle
L/min
120
Machine length (L)
mm
3000
Outfeed conveyor belt motor power
kw
0.75
Cutting motor power
kw
11
Max.Strip Machinable width
mm
650
Number of disc-holder heads
nr
2
Main conveyor belt speed
m/min
0.75
Machine height (H)
mm
1980
Processed Stone Photos
  • Ceramic

    Ceramic

Components

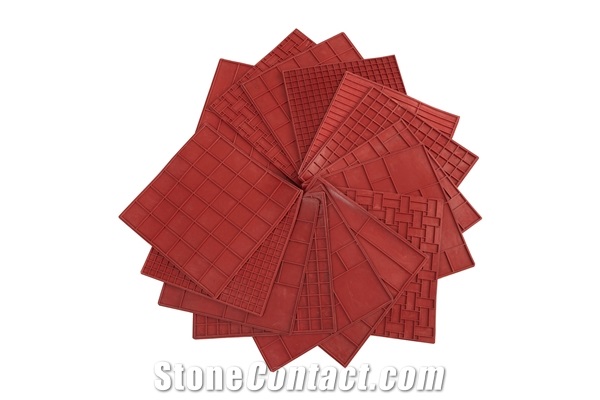

  • Cutting Molds

    Cutting Molds

    ¥Payment Required
  • Spacers

    Spacers

    ¥Payment Required
  • Cutting Discs

    Cutting Discs

    ¥Payment Required
  • String Molds

    String Molds

    ¥Payment Required
Consumables
  • Cutting Discs

    Cutting Discs

  • Disc Holder

    Disc Holder

  • Cutting Molds

    Cutting Molds

  • String Molds

    String Molds

  • Belt

    Belt

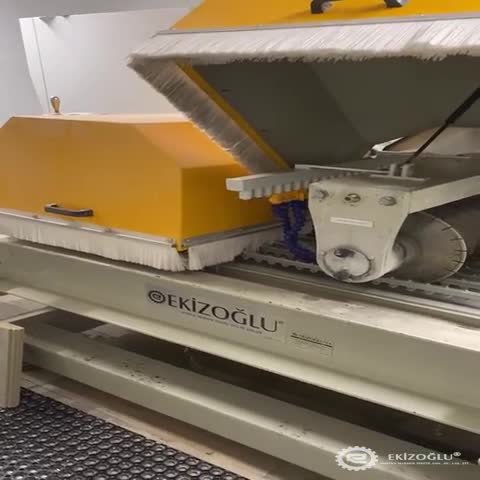

Video
