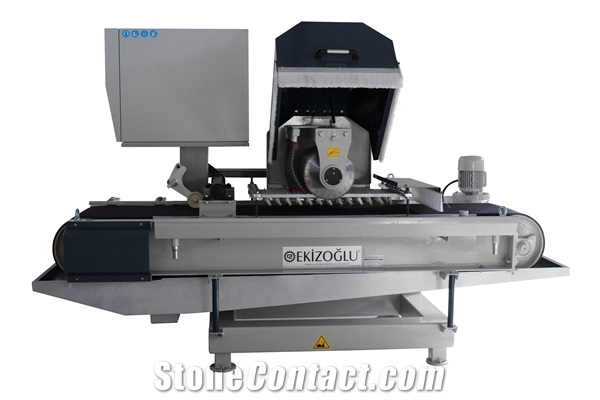

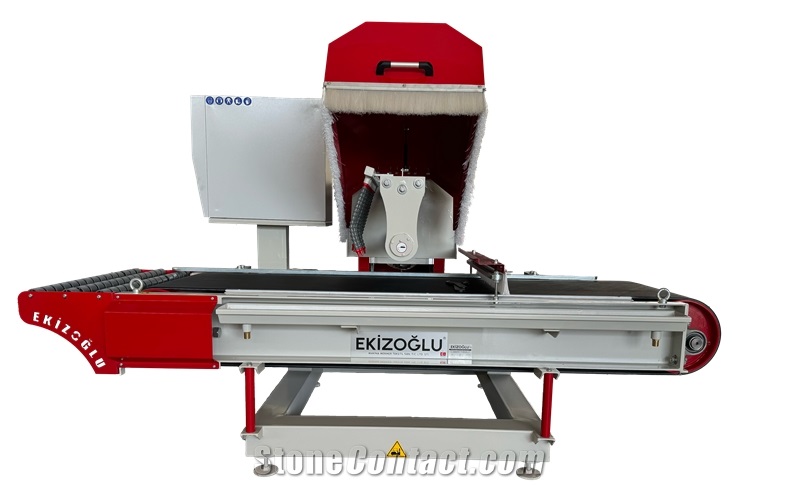

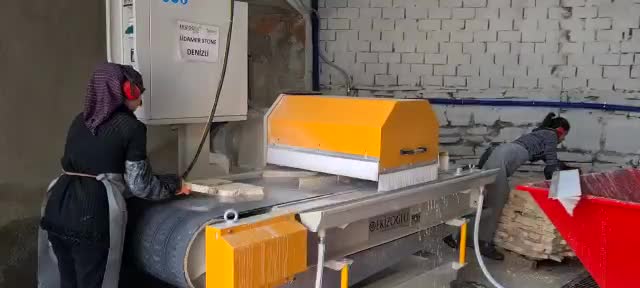

EM05 - Multi-Disc Cutting Machine

FOB Price:

Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: Optional
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance

Supplier

Ekizoglu Makina

Ekizoglu Makina
Ekizoglu

TurkeyTurkey idicon

Eatablished :Nov 29,1986

Main Product:

Makina, Ekizoglu, Marble Machines, Granite Machines, Basalt Machines, Ceramic Machines, Crushing Machines, Ekizoglu Makina|

Contact supplier

Start Order

You may also like
PGQ800*800/1000*1000 Automatic Multi Blade Cutting Line
PGQ800*800/1000*1000 Automatic Multi Blade Cutting Line
Multi-Blade Kerbstone Slab Cutting Machine
Multi-Blade Kerbstone Slab Cutting Machine
Double Blades Cutter- Multi-Blade Cross-Cutter,Trimming Machine
Double Blades Cutter- Multi-Blade Cross-Cutter,Trimming Machine
Slicing Machine For Kerbstone With Two Worktables
Slicing Machine For Kerbstone With Two Worktables
Stone Cutting Line Cross Cutting Machine, Straight Cutter
Stone Cutting Line Cross Cutting Machine, Straight Cutter
  • Overview
  • Components
  • Video
Machinery Function Features

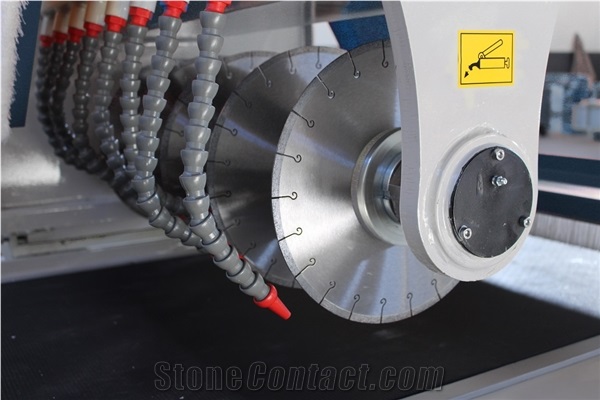

EM05 - Multi-Disc Cutting Machine • Belt Width *Optional: 700 mm • Working Width: 650 mm • Working Thickness: 10 – 60 mm • Number Of Head: 1 • Disc Diameter: 300 – 350 mm • Cutting Motor Power: 22 kW • Up – Down Control Motor Power: 0,55 kW • Belt Motor Power: 0,75 kW • Belt Speed: 3 mt / min • Machine Dimensions ( W / L / H ): 2200 / 3000 / 1980 mm https://ekizoglumakina.com/en/product/multi-disc-cutting-machine
Technical Data
Parameters
Unit
EM05
Cutting motor power
kw
11/ 18/ 22
Approximate weight
Kg
1700
Machine length (L)
mm
3000
Discs diameter
mm
300 - 350
Machine width (W)
mm
2000
Unloading robot driving motor power
kw
0.37
Number of disc-holder heads
nr
1
Max.Strip Machinable width
mm
600
Belt width
mm
700
Outfeed conveyor belt motor power
kw
0.75
Water requirement for each spindle
L/min
120
Main conveyor belt speed
m/min
4
Machine height (H)
mm
1980
Processed Stone Photos

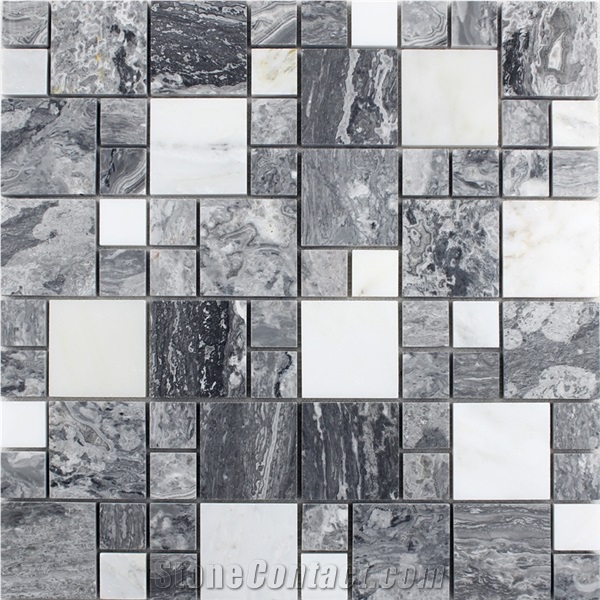

  • Mosaics

    Mosaics

  • Panels

    Panels

Components

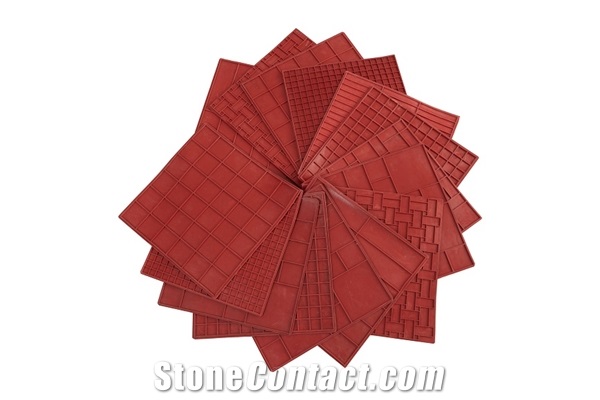

  • Cutting Molds

    Cutting Molds

    ¥Payment Required

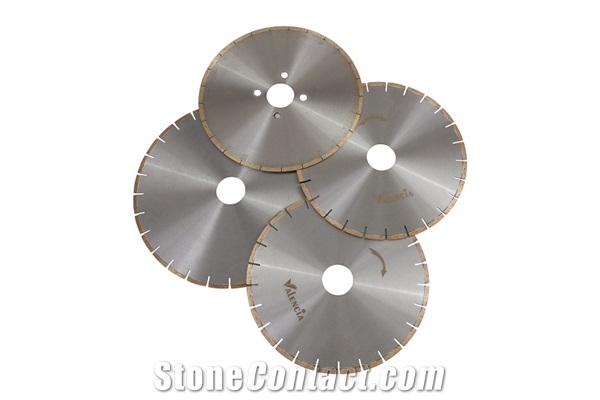

  • Cutting Discs

    Cutting Discs

    ¥Payment Required

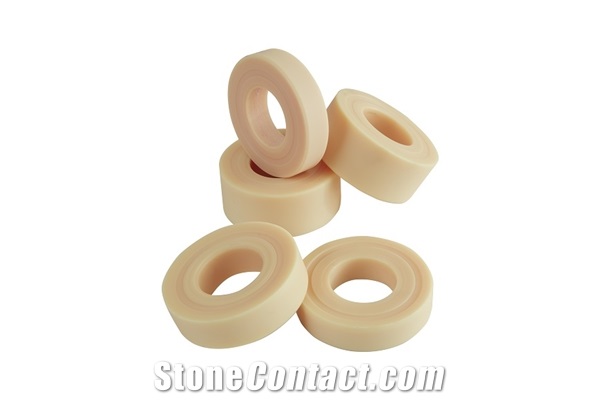

  • Spacers

    Spacers

    ¥Payment Required

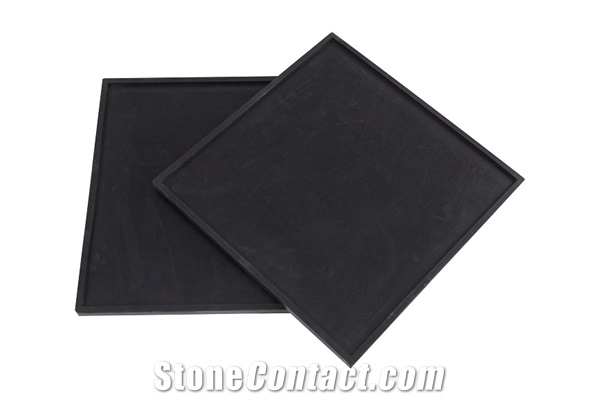

  • String Molds

    String Molds

    ¥Payment Required
Consumables
  • Cutting Discs

    Cutting Discs

  • Cutting Molds

    Cutting Molds

  • String Molds

    String Molds

Video
Install Video
Operation Video Screen.PrimaryScreen.Bounds.Height
