EM08 - Head Cutting Machine

FOB Price:

Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: Optional
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Regular guidance & maintenance

Supplier

Ekizoglu Makina

Ekizoglu Makina
Ekizoglu

TurkeyTurkey idicon

Eatablished :Nov 29,1986

Main Product:

Makina, Ekizoglu, Marble Machines, Granite Machines, Basalt Machines, Ceramic Machines, Crushing Machines, Ekizoglu Makina|

Contact supplier

Start Order

You may also like
3200 CNC Double Head Bridge Cutting Machine
3200 CNC Double Head Bridge Cutting Machine
Double Blades Thin Stone Veneer Mighty Saw
Double Blades Thin Stone Veneer Mighty Saw
Automatic Curbstone Cutting Machine Line
Automatic Curbstone Cutting Machine Line
Slicing Machine For Kerbstone With Two Worktables
Slicing Machine For Kerbstone With Two Worktables
Stone Cutting Line Cross Cutting Machine, Straight Cutter
Stone Cutting Line Cross Cutting Machine, Straight Cutter
  • Overview
  • Components
Machinery Function Features
EM08 Head Cutting Machine • Working Width: 680 mm • Working Thickness: 10 – 100 mm • Number Of Heads: 1 • Disc Diameter: 400 mm • Cutting Unit Motor Power: 7,5 kW • Bridge Motor Power: 0,75 kW • Total Electric Power: 8,25 kW • Machine Dimensions ( W / L / H ): 2200 / 3600 / 2100 mm • Sensor Cutting Width Adjustment • Linear Guide Bridge Movement https://ekizoglumakina.com/en/product/head-cutting-machine
Technical Data
Parameters
Unit
EM08
Machine width (W)
mm
2150
Max.Strip Machinable width
mm
680
Water requirement for each spindle
L/min
120
Approximate weight
Kg
1200
Bridge motor power
kw
0.75
Installed electrical power
kw
8.25
Machine length (L)
mm
3380
Motor power
kw
7.5
Machine height (H)
mm
1900
Max. working strip thickness
mm
100
Discs diameter
mm
350 - 450
Processed Stone Photos
  • Processed Stone Photos

Components

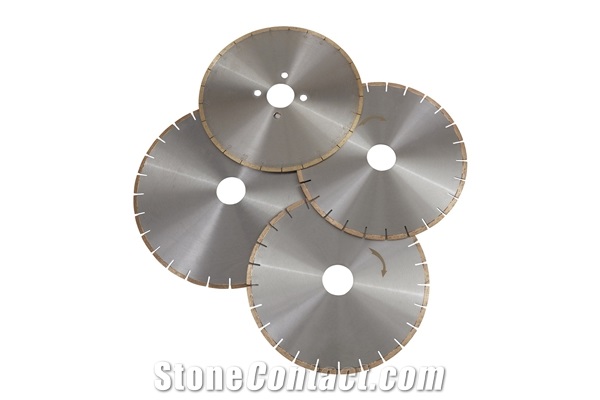

  • Cutting Disc

    Cutting Disc

    ¥Payment Required
Consumables
  • Cutting Disc

    Cutting Disc
