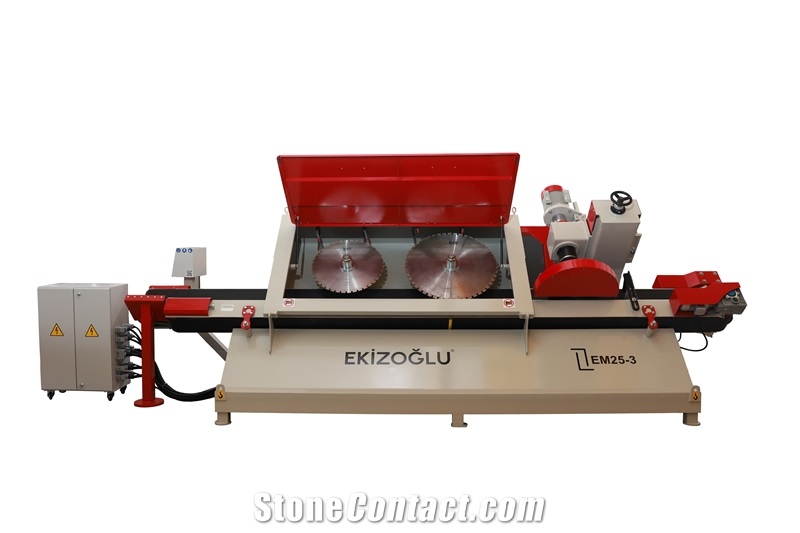

EM25-3 Stone Veneer Cutting, Trimming Machine
FOB Price:
Supplier
Eatablished :Nov 29,1986
Main Product:
Makina, Ekizoglu, Marble Machines, Granite Machines, Basalt Machines, Ceramic Machines, Crushing Machines, Ekizoglu Makina|

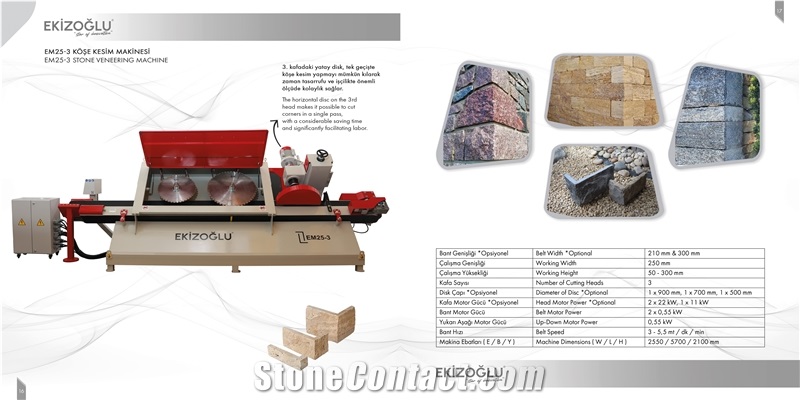

EM25-3 STONE VENEERING MACHINE • Belt Width: 210 mm & 300 mm • Working Width: 250 mm • Working Height: 50 - 300 mm • Double 45 Degree Conveyor Belts • Number Of Heads: 3 • Disc Diameter *Optional: 900 mm - 700 mm - 500 mm • Head Motor Power *Optional: 2 x 22 kW, 1 x 11 kW • Belt Motor Power: 2 x 0,55 kW • Up-Down Motor Power: 0,55 kW • Belt Speed: 3- 5,5 mt / min • Machine Dimensions ( W / L / H ) : 2550 / 5700 / 2100 mm
Parameters |
Unit |
EM25-3 |
Approximate weight |
Kg |
4000 |
Machine width (W) |
mm |
2550 |
Machine length (L) |
mm |
5700 |
Discs diameter |
mm |
900 |
Disc-holder head motor power |
kw |
22 |
Number of disc-holder heads |
nr |
3 |
Machine height (H) |
mm |
2100 |
