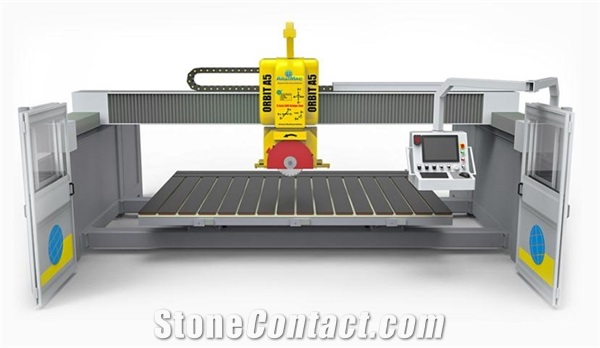

5 axis CNC Bridge Saw Orbit A5

This bridge saw has everything a technologically advanced bridge saw needs to have today: 5 interpolated axis, spindle with half inch fitting with trough-spindle lubrication, tilting table up to 85°, vacuum manipulator system for parts movement during automatic cut process, on-board camera, blade presetting and stone thickness probe. The machine in details -This machine is a fully interpolated 5 axis bridge saw. The Y axis is moved by a gantry system. This guarantees a perfect square of the bridge. Automatic head rotation from 0° to 400° combined with automatic blade tilting from 0° to 90° makes it suitable for large production runs, at the same time containing costs. -The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by brushless motors through high precision helical gears and racks. -This machine comes with the “absolutely zero” technology, which allow the machine to work without doing the homing process. -It has an extremely easy to use interface, realized to facilitate the interaction between the operator and the machine. -It can quickly do easy cuts in manual, the machine also can import and work with DXF (AutoCAD) files and “G-code” ( RS-274 machine tool programming language). -The cable-drag chain and the electric cables used on the machine are purposely made for use at high speed (robot materials).
