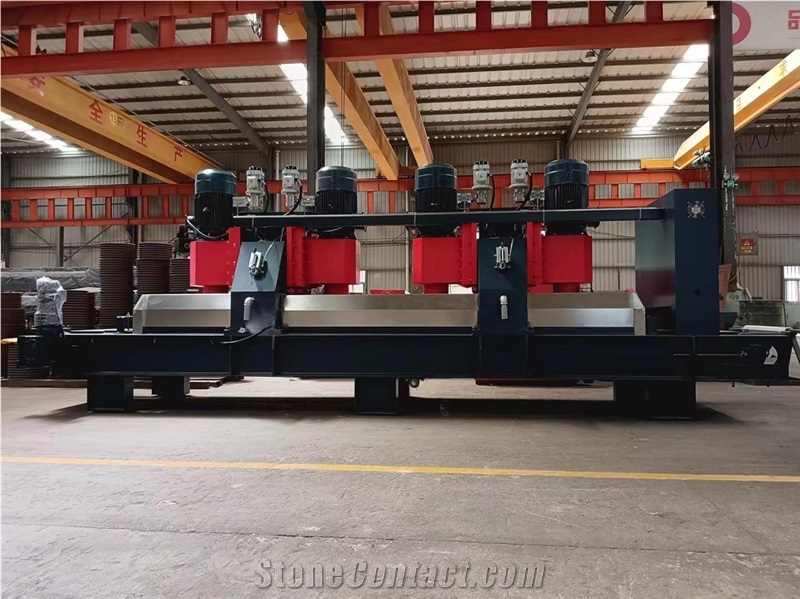

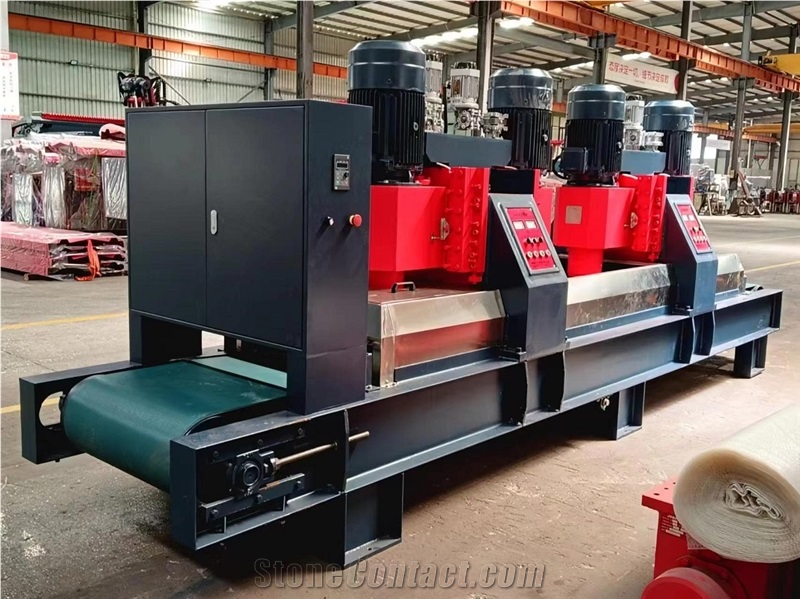

SAC-880/1080/1280 Stone Continuous Calibrating Machine
FOB Price:$18000-22500
Supplier
Eatablished :Jul 28,2015
Main Product:
Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|
Parameters |
Unit |
SAC-880 Stone continuous calibrating machine |
SAC-1080 Stone continuous calibrating machine |
SAC-1280 Stone continuous calibrating machine |
Machine overall width |
m |
1.6 |
2 |
2.2 |
Machine overall height |
m |
2.1 |
2.4 |
2.4 |
Machine overall length |
m |
4.4/6.5/8.7 |
4.9/7.3/9.9 |
5.5/8.5/11.4 |
Maximum workable width |
mm |
850 |
1050 |
1250 |
Processing thickness |
mm |
10~60 |
10~60 |
10~60 |
Maximum workable thickness |
mm |
10 |
10 |
10 |
Number of calibrating units |
pcs |
2/4/6 |
2/4/6 |
2/4/6 |
Water requirement |
m3/h |
8/16/24 |
8/16/24 |
8/16/24 |
Total power installed |
kw |
18.5(6P) |
22(6P) |
22(8P) |
Standard voltage |
Volt |
380 |
380 |
380 |
This series machine adopts the structure of Long men type,good rigidity,conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate,make the surface of the stone plate to get a flat, ensure the thickness of the plate is consistent, So as to greatly improve the polishing efficiency and quality, reduce the cost of subsequent polishing, It Is the preferred equipment for the slab thickness of stone plate.
-
processed stone
-

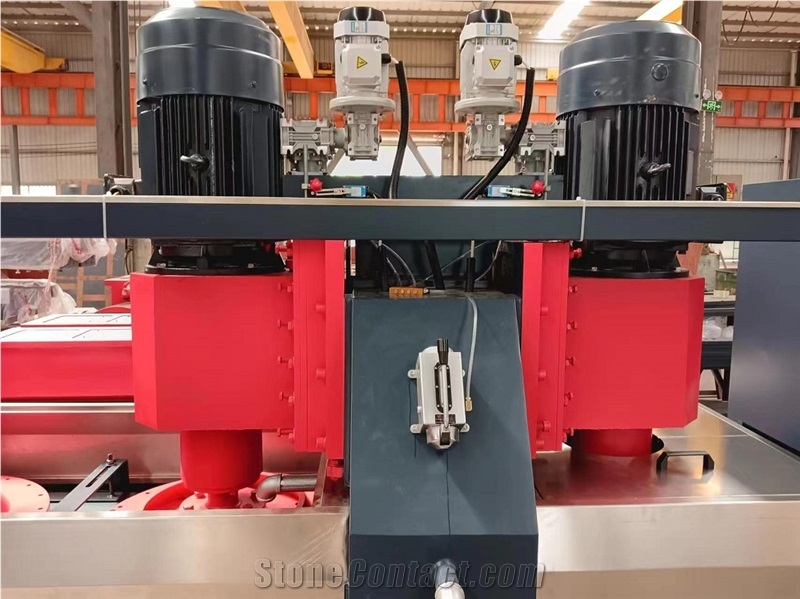

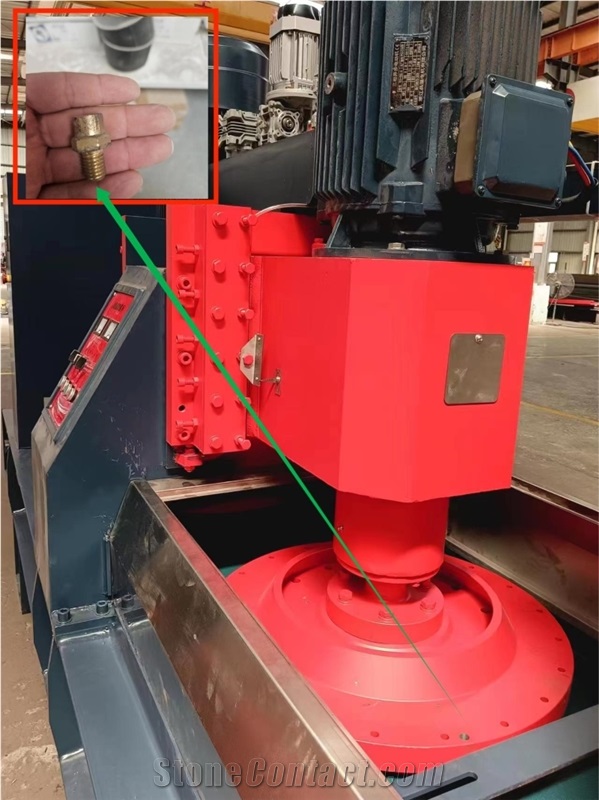

calibrating head
