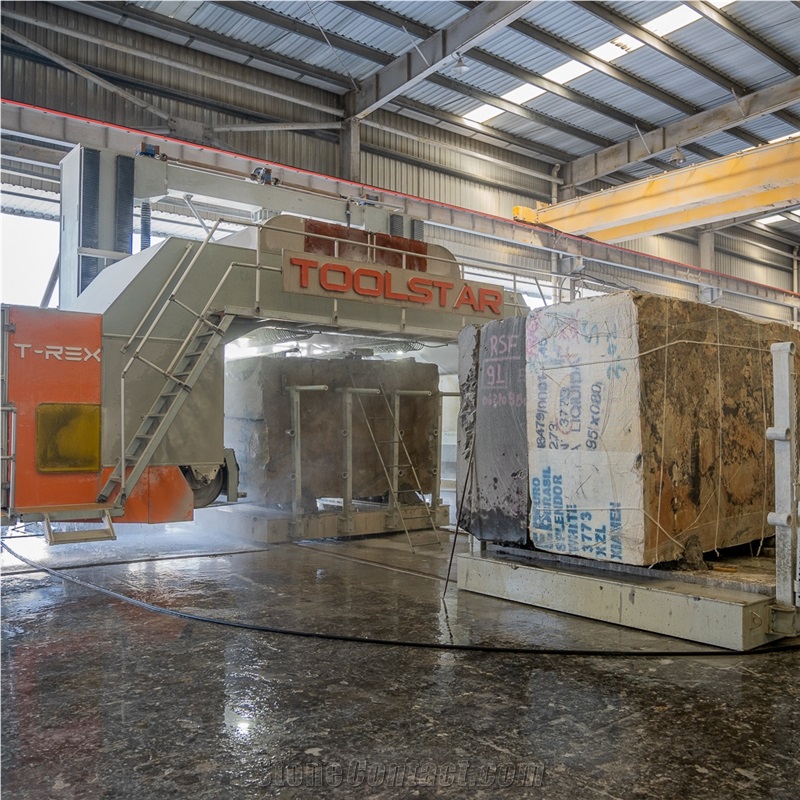

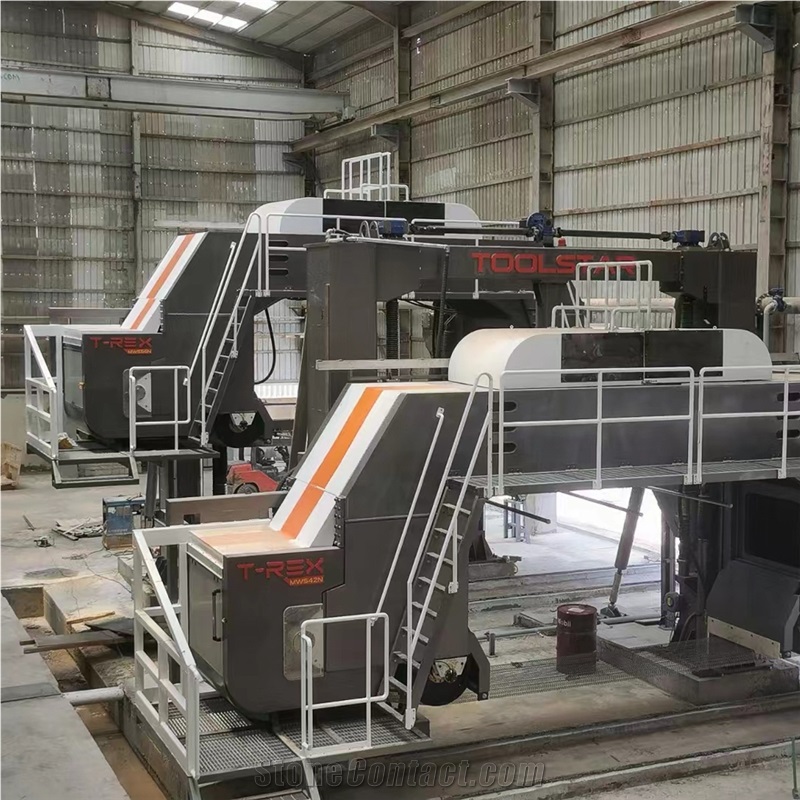

Multi Wire Saw Machines For Marble Granite Slabs Cutting

Name: Multi Wire Saw Machines For Marble Granite Slabs Cutting
Brand: CHANGSHA TOOLSTAR MACHINERY MANUFACTURING CO., LTD
SKU: 4906
Price: 300000 USD
Availability: InStock

FOB Price:$300000-500000

Type: Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 3 months

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Trade Terms

Port: shenzhen- China

Delivery Details: FOB,CFR,CIF,EXW,FCA

Payment :

Supplier

CHANGSHA TOOLSTAR MACHINERY MANUFACTURING CO., LTD

TOOLSTAR

China level 3YR

Eatablished :Sep 15,2022

Main Product:

Multi Wire Saw Machine, Block Dressing Machine, Quarry Machine, Dth Bit, Diamond Wire Saw, Dth Hammer|

Contact supplier

Start Order

You may also like

TOOLSTAR Multi Wire Saw Machine For Slabs Cutting

TJ3520 Multi Wire Block Cutting Machine Thin Wire Saw For Stone

Stable Multi Wire Saw Machine For Granite And Marble Blocks Cutting

ZJP86 Diamond Multi-Wire Saw Machine- Stone Block Cutting Machine

Multi Wire Saw Block Cutting Machine

Product Detail
Company Profile

Overview
Components
Video
Trade Terms
Customer Case

Machinery Function Features

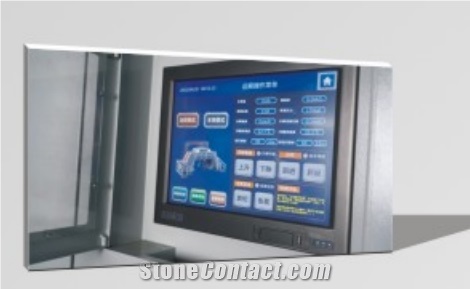

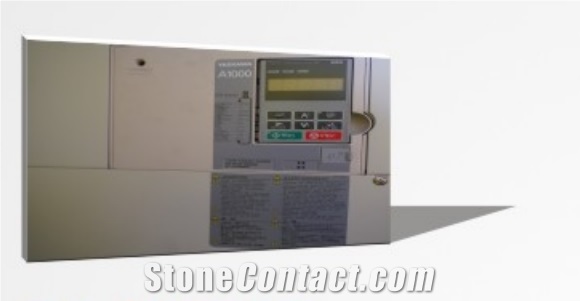

1. Adopt international brand of motor/inverter/electronics to maintain the stable working and excellent performance; 2. Stainless steel covers with three coating and painting ensures the good protection from the rusts,especially in the water and dust working condition. 3. Ergonomical and user-friendly design makes it easy for operator to run the machine, especially for assembling the wires and regular maintainence.

Technical Data

Parameters	Unit	T-Rex MWSXB with 7.3mm Diameter Wires	T-Rex MWSXN with 6.3mm Diameter Wires	T-Rex MWSXS with 4.3mm-4.8mm Diameter Wires
Max. Cutting width	mm	600-2100	600-2100	1600-2100
Diamond wires speed	m/s	0~35	0~35	0~35
Wire pitch for sawing 30mm thick.	mm	38	37.2	none
Production efficiency 20mm thick.	m2/h	it depends，contact us to know more details	it depends，contact us to know more details	it depends，contact us to know more details
Wire pitch for sawing 20mm thick.	mm	28.5	27.9	24.8
Max. individual diamond wire tension	Kg	220-260	180-220	160-200
Max. Number of wires for sawing 30mm thick.	nr	76	76	88

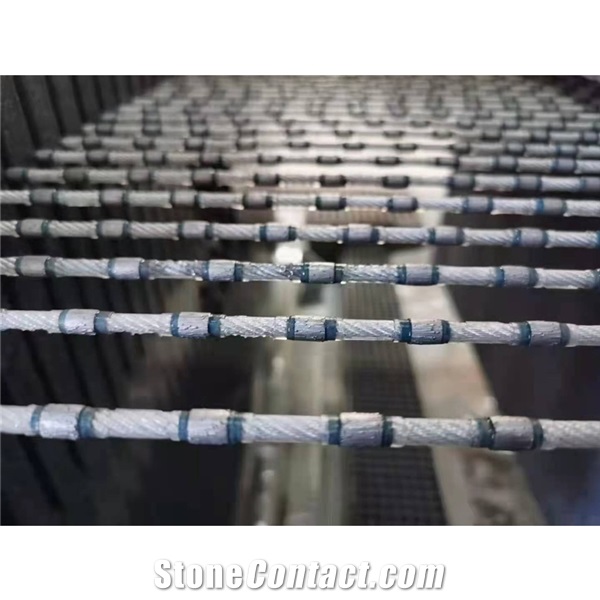

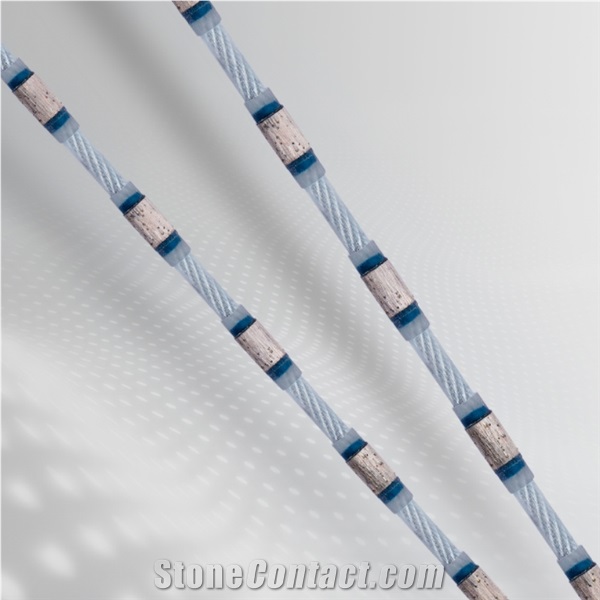

Diamond bead diameter	mm	7.3	6.3	4.3-4.8
Diamond wire length	mm	21.52	21.52±0.02	21.52
Approximative Weight	T	25-62	50-62	50-62
Dim. Trolley Size/Worktable size	mm	20002500-25003200	2500*3200	2500*3200
Output number of slabs 30mm per linear mt.	nr	it depends	it depends	it depends
Machine height (H)	mm	6500	6500	6500
Machine width (W)	mm	2600-7400	4500-7400	4500-7400
Machine length (L)	mm	11200	11200	11200
Voltage/Frequency	V/Hz	it depends on which country	it depends on which country	it depends on which country
Main motor power	kw	37-280	90-280	200-280
Max. Cutting length	mm	3400	3400	3400
Max. Number of wires for sawing 20mm thick.	nr	76	76	88
Wires set width	mm	7.3	6.3	4.3-4.8
Worktable max. rotate angle	°	not allowed	not allowed	not allowed
Output number of slabs 20mm per linear mt.	nr	it depends	it depends	it depends
Cooling water(min. required pressure 3.5 bar)	L/min	150-1500	1000-1500	1500
Pitch groove wire driving	mm	2450	2450	2450
Slabs nominal thickness	mm	20/30/40/50/60/70/80/90/100	20/30	18
Fast lowering unit power	kw	37	132	200
Worktable load capacity	T	40-80	80	62
Installed electrical power	kw	57-300	110-300	220-300
Max. Cutting height	mm	2100	2100	2100
