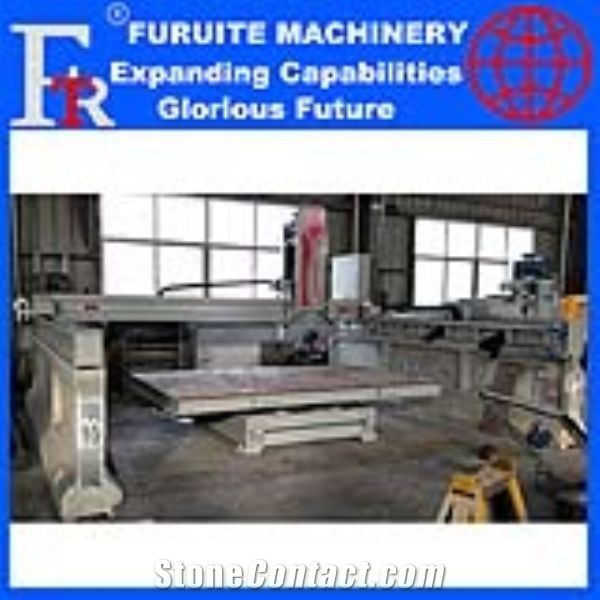

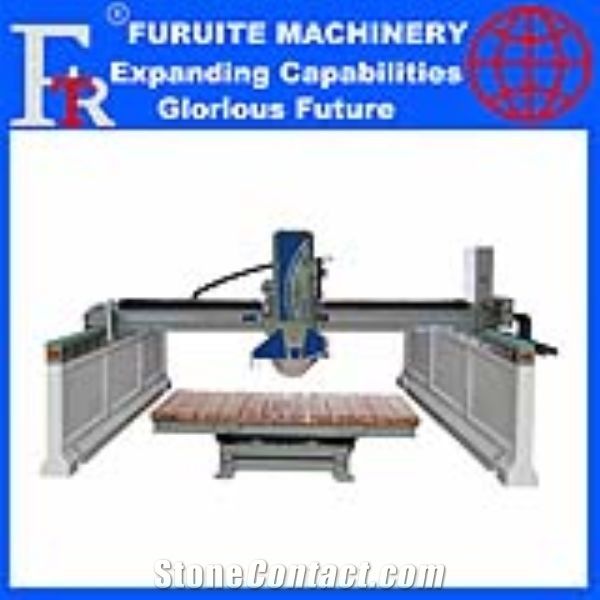

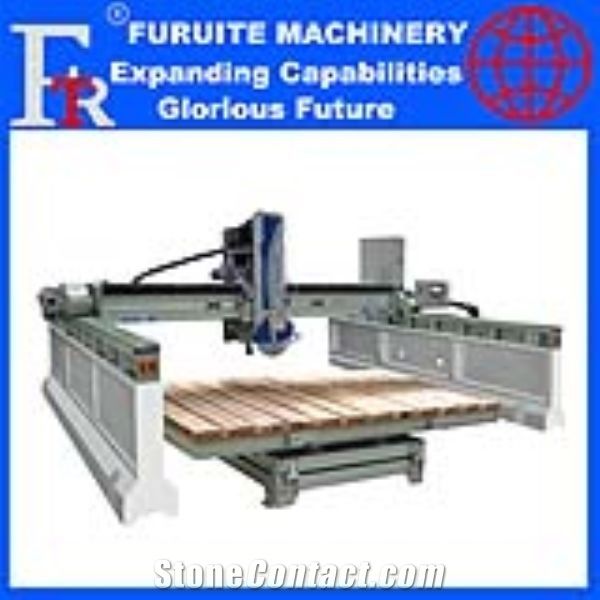

Frt-450 Infrared Bridge Saw Stone Cutting Machine for marble and granite with 360 degree workbench rotating
FOB Price:$14800-15800
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Slate
Supplier
Eatablished :Dec 19,2005
Main Product:
Granite Slab Polishing Machine, Bridge Combination Cutting , Infrared Bridge Diamond Wire , Manual Edge Cutting Machine, Cnc System Marble Machine, Stone Profiling Machine|
Machinery Function Features
This machine adopts PLC programmable control system, man-machine integration of touch screen operation interface, with high precision rotary encoder and the infrared liner, cutting left and right adopts the frequency converter to control the speed, speed can be adjusted according to the stone material, lift up and down adopts hydraulic, the high speed moving parts adopt imported high quality spare parts, so it cutting with high efficiency, high cutting precision, high stability, easy and flexible operation etc, especiallysuitable for the high value of large specifications of granite, marble slabs cutting.
Technical Data
Parameters |
Unit |
Frt-450 |
Machine length |
mm |
6000 |
Cooling water requirement(1.5 bar min. pressure) |
l/min |
58.3 |
Working table tilting angle |
° |
0°- 85° |
Machine height |
mm |
2600 |
Voltage |
V/Hz |
380V/50Hz (or in you demand) |
Approximate weight without table |
kg |
5200 |
Blade diameter |
mm |
￠350-￠500 |
Machine width |
mm |
5000 |
Max. working dimensions(L×W×H) |
mm |
3200x3200x100 |
Main motor power |
kW |
15 |
Weight including concrete base |
kg |
8800 |
Working table dimensions(L×W) |
mm |
3200x2000 |
Total power |
kW |
20.2 |
Working table rotating angle |
° |
0°- 45°- 90°- 360° |
