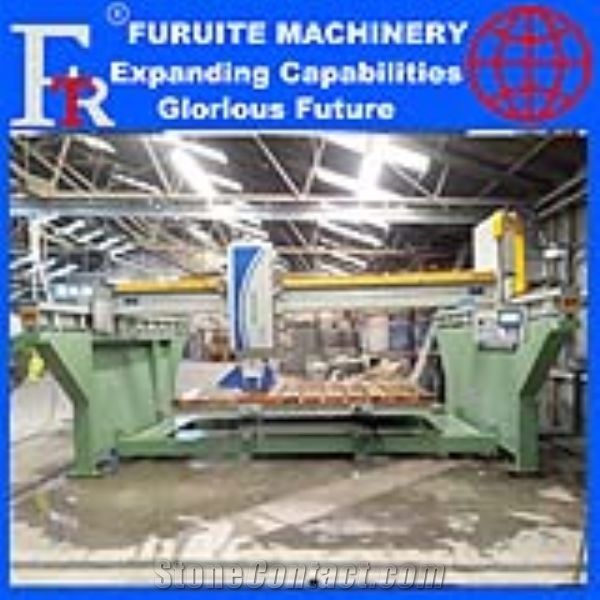

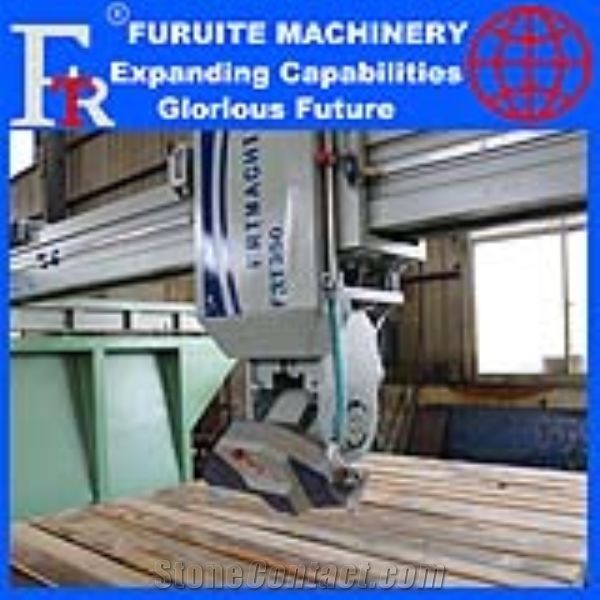

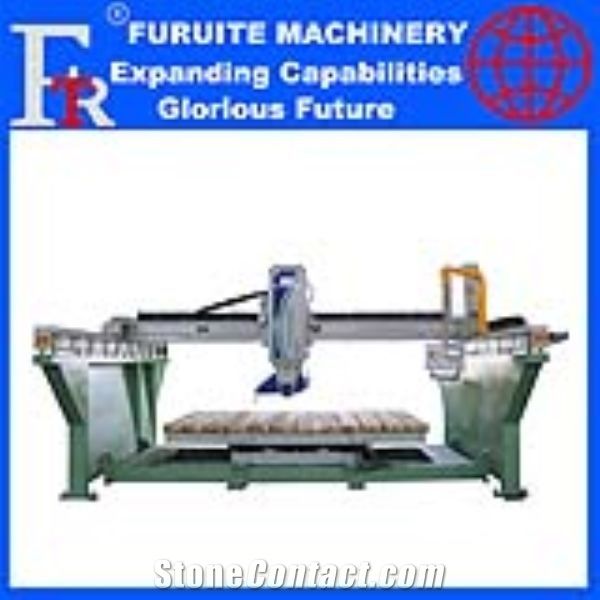

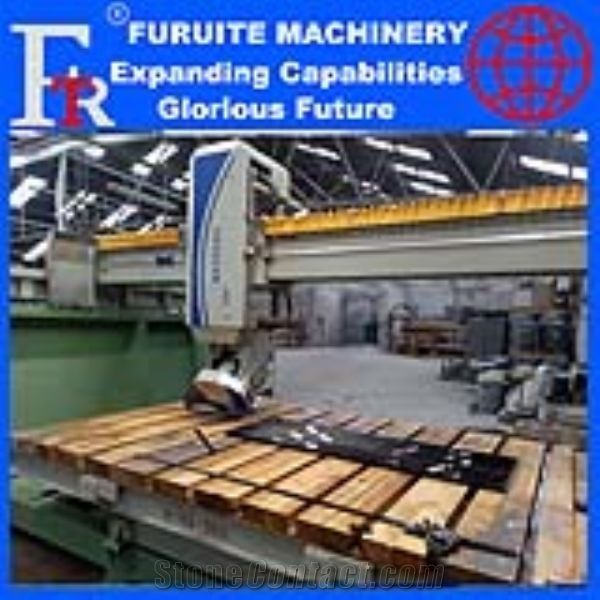

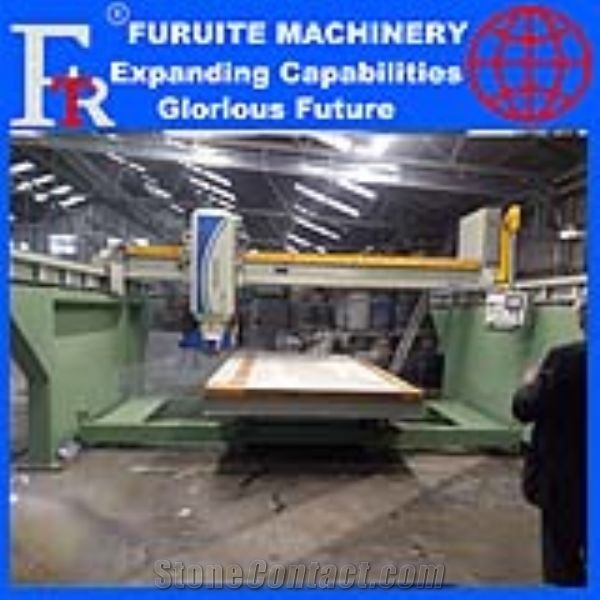

Frt-350 Inregrated stone Bridge Cutting Machine 45 degree tilting cut

Name: Frt-350 Inregrated stone Bridge Cutting Machine 45 degree tilting cut
Brand: Fujian Province Furuite Machinery Co.,Ltd
SKU: 665
Price: 19300 USD
Availability: InStock

FOB Price:$19300-20300

Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Sandstone, Travertine

After-Sale

Warranty:3 Months

Install and Guarantee:Customer pay for installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Fujian Province Furuite Machinery Co.,Ltd

FURUITE

China

Eatablished :Dec 19,2005

Main Product:

Granite Slab Polishing Machine, Bridge Combination Cutting , Infrared Bridge Diamond Wire , Manual Edge Cutting Machine, Cnc System Marble Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like

Automatic Infrared 4 Axis Bridge Cutting Machine

HTQ500A Infrared Integrated Bridge Cutter(Heavy Duty)

SQC-450/600/700 Bridge Cutting Machine

Infrared Automatic Stone Bridge Cutting Machine

Infrared 45 Degree Marble Granite Bridge Saw Cutter

Product Detail
Company Profile

Overview
Video
Trade Terms

Machinery Function Features

This machine adopts PLC programmable control system, man-machine integration of touch screen operation interface, with high precision rotary encoder and the infrared liner, cutting left and right adopts the frequency converter to control the speed, speed can be adjusted according to the stone material, lift up and down adopts hydraulic, the high speed moving parts adopt imported high quality spare parts, so it cutting with high efficiency, high cutting precision, high stability, easy and flexible operation etc, especially suitable for the high value of large specifications of granite, marble slabs cutting.

Technical Data

Parameters	Unit	Frt-350
Approximate weight without table	kg	6800
Total power	kW	20.2
Machine length	mm	6000
Blade tilting angle	°	0°-45°
Machine width	mm	4800
Max. working dimensions(L×W×H)	mm	3200x3200x100
Working table tilting angle	°	0°-85°
Cooling water requirement(1.5 bar min. pressure)	l/min	58.3
Main motor power	kW	15
Voltage	V/Hz	380V/50Hz(or in you demand)
Machine height	mm	2600
Working table rotating angle	°	0°-45°-90°-360°
Blade diameter	mm	￠350-￠450
Working table dimensions(L×W)	mm	3200x2000
