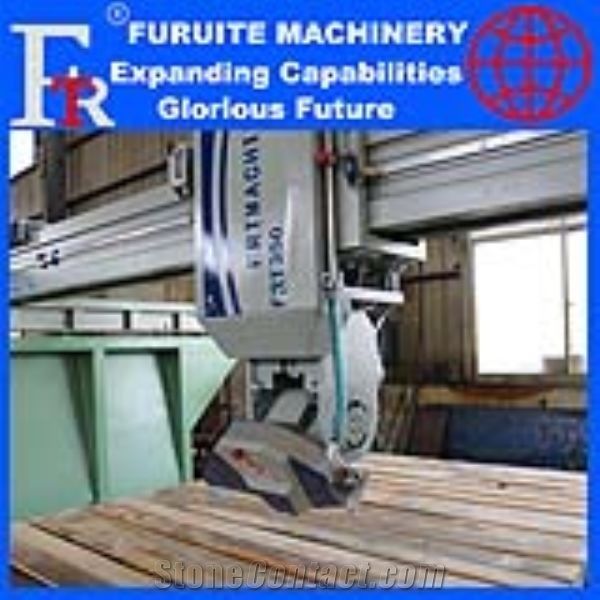

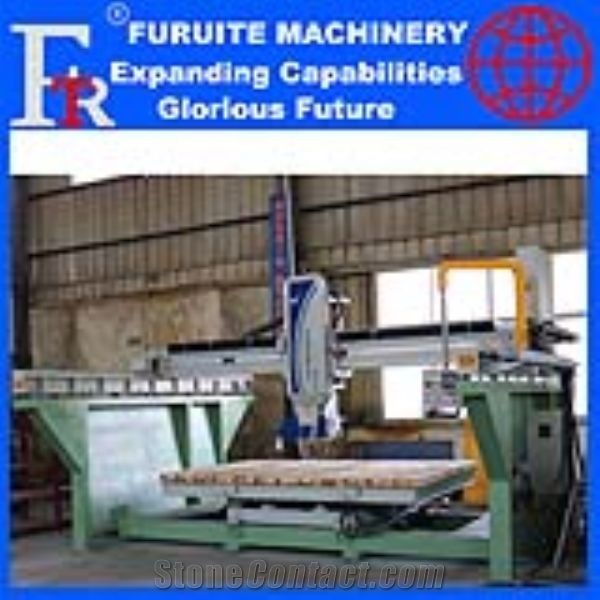

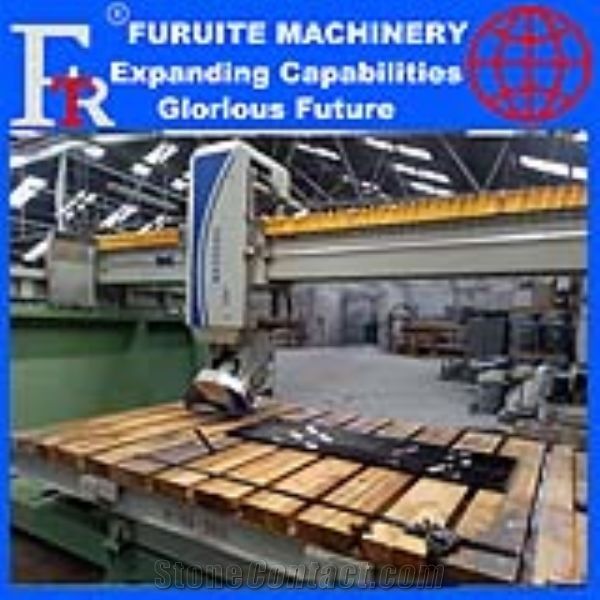

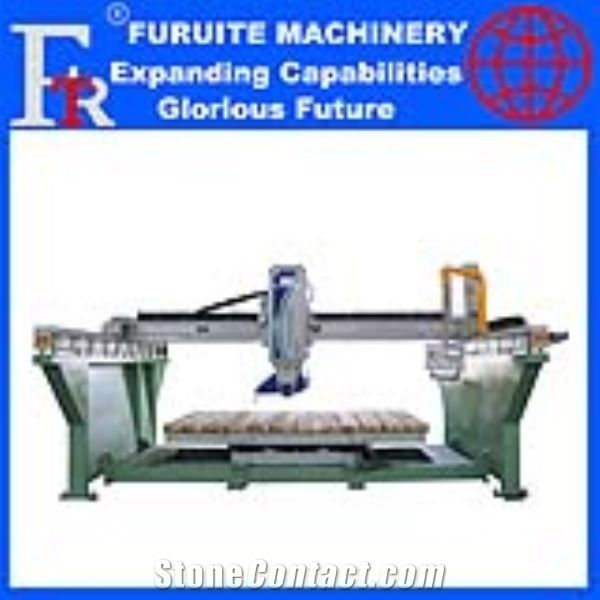

Frt-350 Inregrated Bridge Cutting Machine with 45 degree titting cut

Name: Frt-350 Inregrated Bridge Cutting Machine with 45 degree titting cut
Brand: Fujian Province Furuite Machinery Co.,Ltd
SKU: 727
Price: 18700 USD
Availability: InStock

FOB Price:$18700-19300

Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine

Usage: Granite, Marble, Artificial Stone, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 15-30 working days depends on voltage&frequency

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Fujian Province Furuite Machinery Co.,Ltd

FURUITE

China

Eatablished :Dec 19,2005

Main Product:

Granite Slab Polishing Machine, Bridge Combination Cutting , Infrared Bridge Diamond Wire , Manual Edge Cutting Machine, Cnc System Marble Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like

Bottom Granite Slab Shaving Machine DFQ-B500

Middle Block Cutting Machine(Slide Type)

Joborn Infrared Bridge Saw Laser Cutting Machine For Granite/Marble

HXQ-800 Tilting Bridge Type Stone Cutting Machine

QCYI-450,600,700 bridge saw

Product Detail
Company Profile

Overview
Components
Video
Trade Terms

Machinery Function Features

This machine adopts PLC programmable control system, man-machine integration of touch screen operation interface, with high precision rotary encoder and the infrared liner, cutting left and right adopts the frequency converter to control the speed, speed can be adjusted according to the stone material, lift up and down adopts hydraulic, the high speed moving parts adopt imported high quality spare parts, so it cutting with high efficiency, high cutting precision, high stability, easy and flexible operation etc, especially suitable for the high value of large specifications of granite,marble slabs cutting.

Technical Data

Parameters	Unit	FRT-350
Cutter rotating angle	°	0
Worktable Weight	kg	380
Working table dimensions(L×W)	mm	3200x2000
Machine length	mm	6000
Blade diameter	mm	350-450
Main motor power	kW	15
Machine height	mm	2600
Working table tilting angle	°	85
Crossbeam motor power	kW	1.5
Cooling water requirement(1.5 bar min. pressure)	l/min	58.3
Machine width	mm	4800
Total power	kW	20.2
Max. thickness cutting capacity	mm	100
Head motor power	kW	1.5
Approximate weight without table	kg	6800
Blade tilting angle	°	45
Voltage	V/Hz	380V/50Hz
Max. working dimensions(L×W×H)	mm	3200x3200x100
Working table rotating angle	°	360
Hydraulic station motor power	kW	2.2

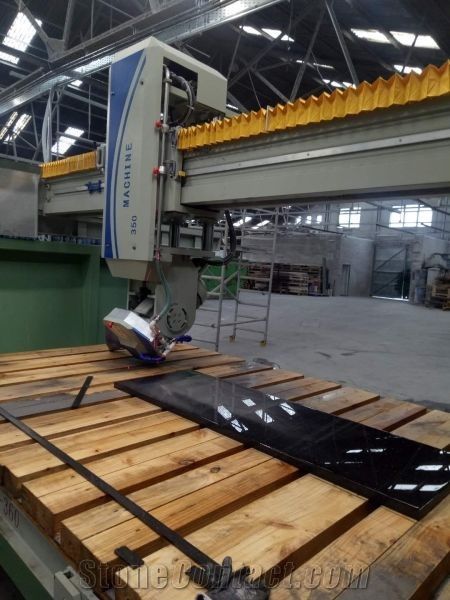

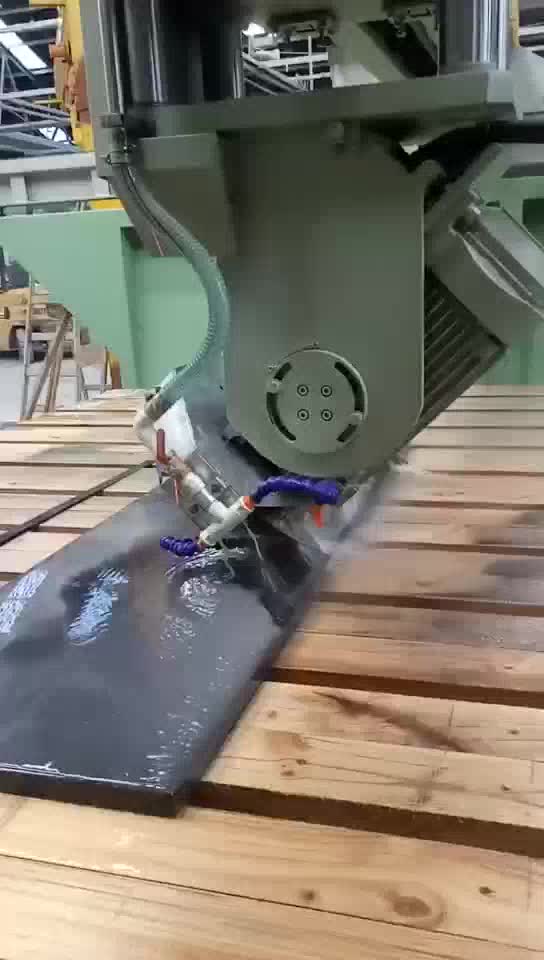

Processed Stone Photos

Components

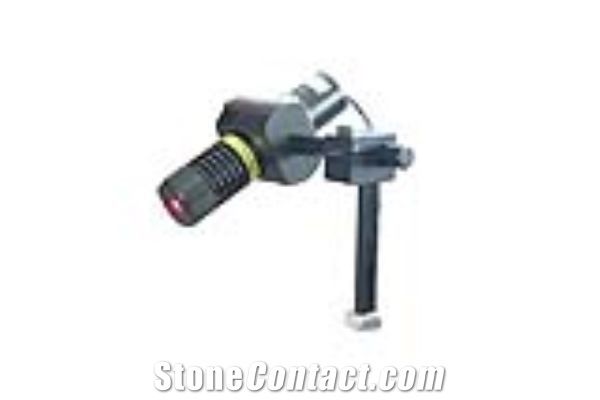

laser device

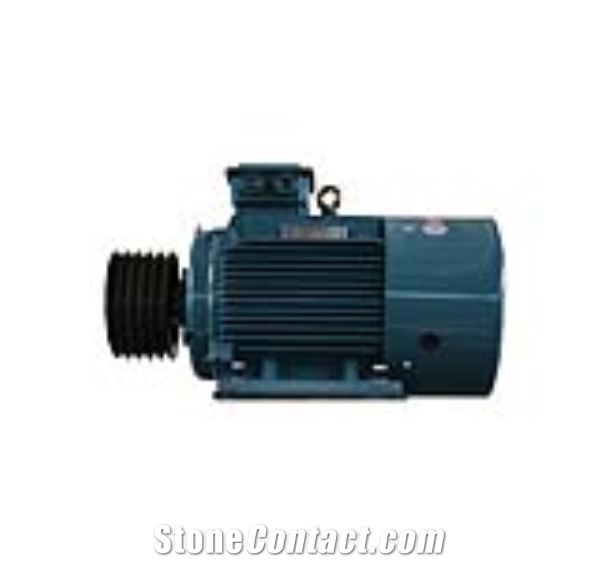

main motor

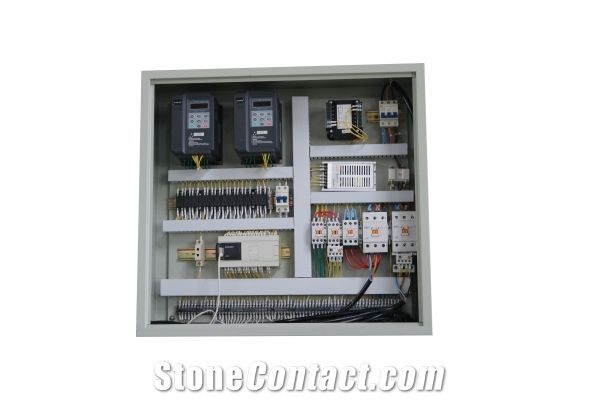

Main Electric Box

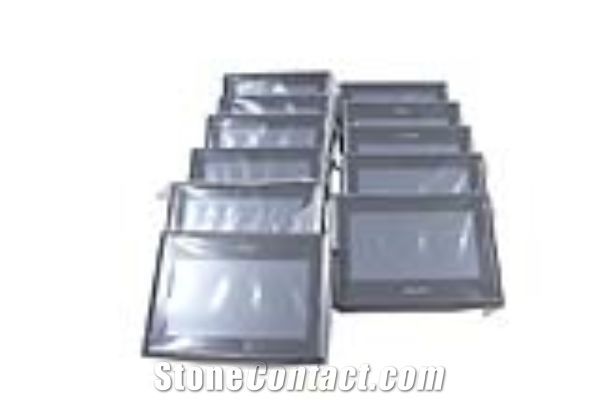

touch screen

Consumables

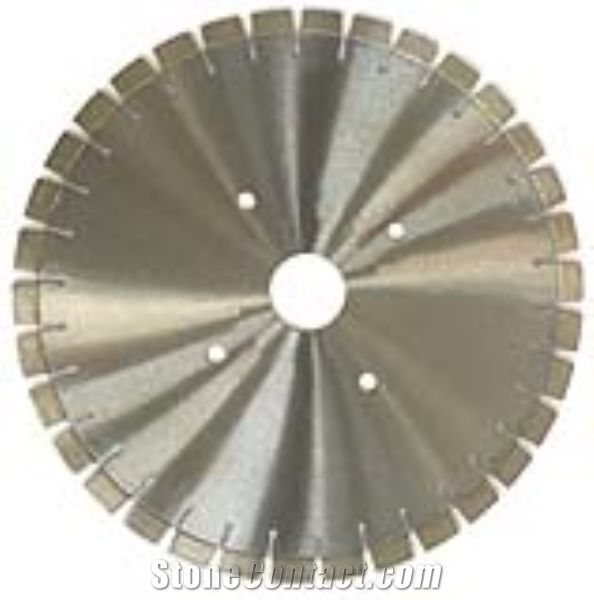

granite blade

350mm

Video

Install Video

Operation Video Screen.PrimaryScreen.Bounds.Height
