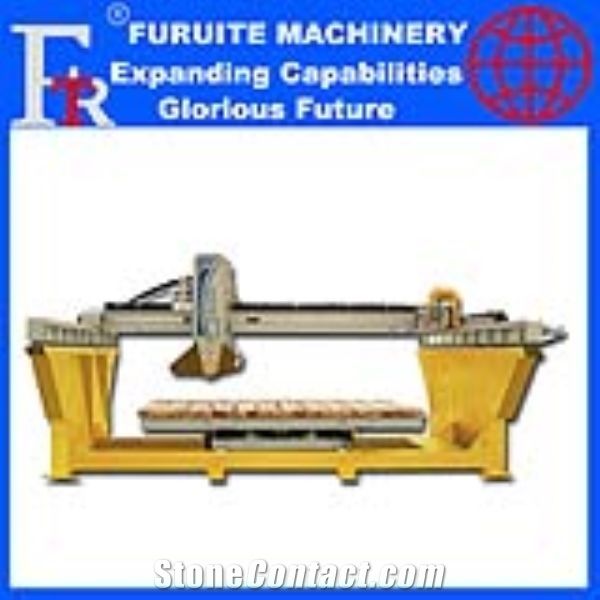

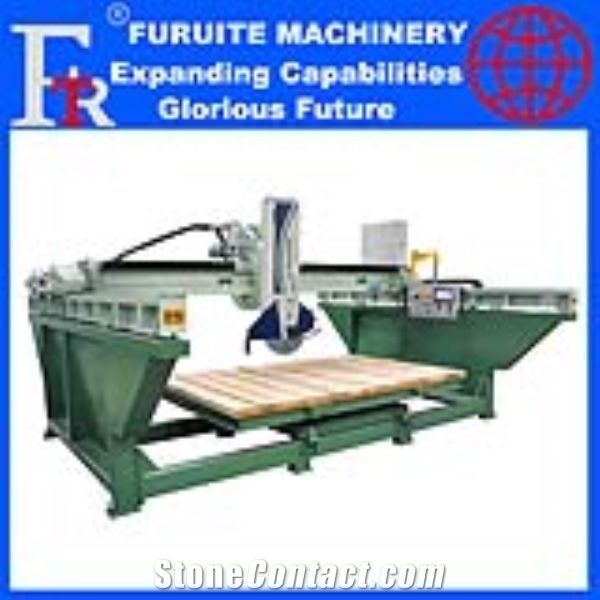

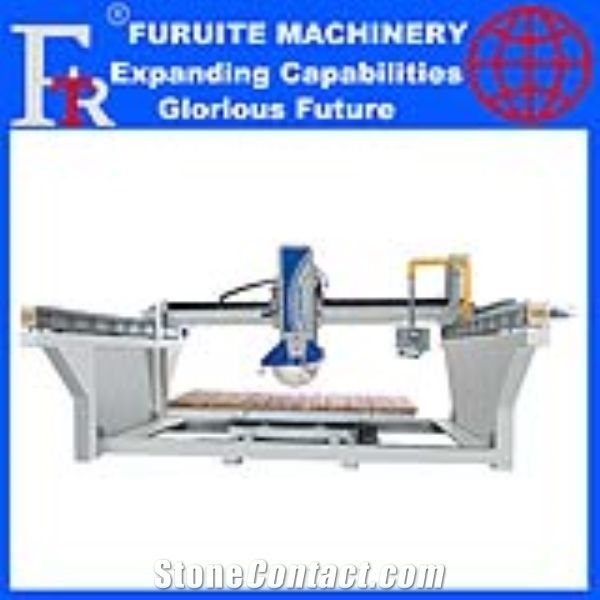

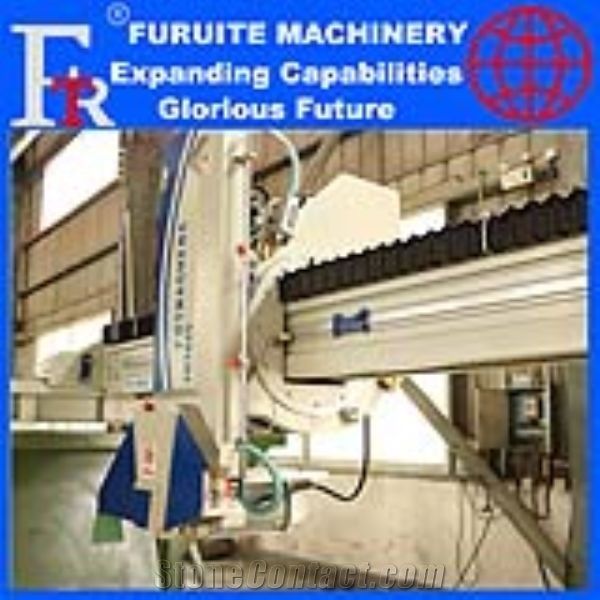

FRT-625 steel frame marble granite stone cutting machine bridge saw for kitchen countertop
FOB Price:$25000-27000
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Sandstone
After-Sale
Lead Time:
15-30 working days for 3p380v50hz
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Dec 19,2005
Main Product:
Granite Slab Polishing Machine, Bridge Combination Cutting , Infrared Bridge Diamond Wire , Manual Edge Cutting Machine, Cnc System Marble Machine, Stone Profiling Machine|
Machinery Function Features
This machine is controlled by computer.The whole head can tilt 45° ,in solid,the match worktable can turn over 85°and rotate 0-45-360°.Precision manufacturing and assembly of the unique side beam protection devices,touch system which makes the whole machine high precision,high stability and efficiency easy to operate and so on.It is especially suitable for processing granite or marbles with high value and oversize.
Main motor: Jiangsheng
PLC: Mitsubishi
Touch Screen: Xinje
Transducer: Mitsubishi
Contactor: LG
Switch button: SIEMENS
The equipment conforms to the national standard.
Technical Data
Parameters |
Unit |
FRT-625 |
Worktable Weight |
kg |
1000 |
Blade tilting angle |
° |
0-45 |
Approximate weight without table |
kg |
4800 |
Crossbeam motor power |
kW |
1.5 |
Blade diameter |
mm |
350-700 |
Max. working dimensions(L×W×H) |
mm |
3200*3200*100 |
Machine length |
mm |
6000 |
Main motor power |
kW |
18.5 |
Cutter rotating angle |
° |
0 |
Machine width |
mm |
5000 |
Working table tilting angle |
° |
0-85 |
Machine height |
mm |
3600 |
Total power |
kW |
23.7 |
Hydraulic station motor power |
kW |
2.2 |
Cooling water requirement(1.5 bar min. pressure) |
l/min |
58 |
Working table dimensions(L×W) |
mm |
3200*2000 |
Head motor power |
kW |
1.5 |
Max. thickness cutting capacity |
mm |
200 |
Working table rotating angle |
° |
0-45-360 |
Software
it adopts full automatic plc control system.
There are 2 language,Chinese and English,we can also transfer another language as per your request.the program is eddited by us.
Work Example
1.High process capacity: Max.process capacity for 10cm thickness granite slab can be 150 sqm 8 hours
2.High process precision:error ± 0.1mm
3.High broker Reducer Gear RV 90
4.PLC operation system can achieve cutting slab easily
5.Worktable is dealt with sandblasting I-shaped steel material and 3t loading weight V-shaped position has longer usage life.
6.The whole head can tilt 45 degree suitable for over 50mm(2inch) thickness big countertop process cutting.

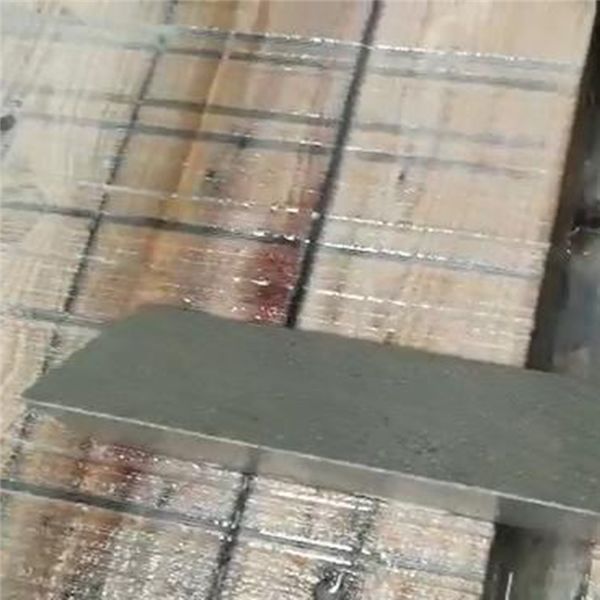

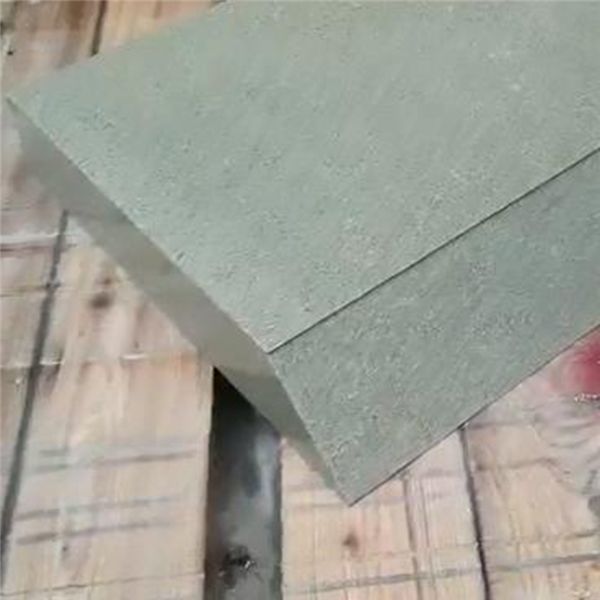

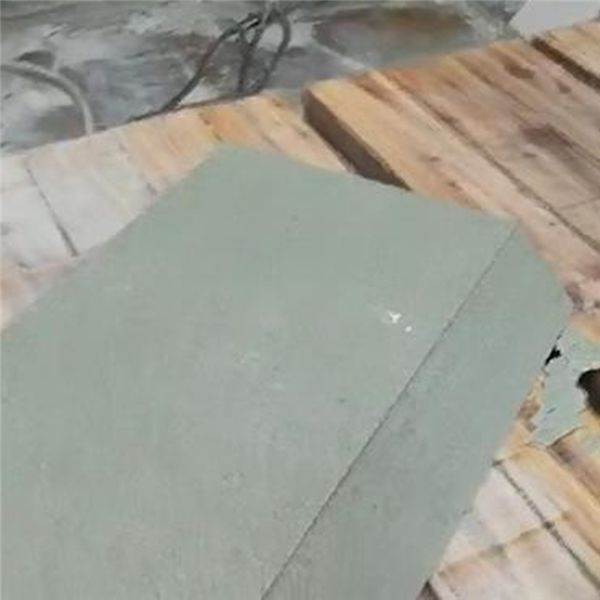

Processed Stone Photos
Components
-
sprinkler
-
side beam
¥Payment Required -
hydraulic station
¥Payment Required -
worktable
¥Payment Required -
laser device
-
plc
¥Payment Required -
main motor
¥Payment Required -
touch screen
¥Payment Required -

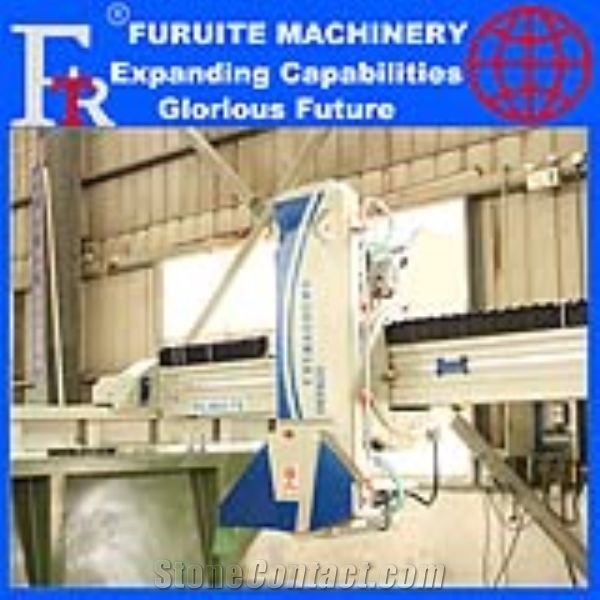

main machinery
¥Payment Required -
Proximity switch
-
encoder
-
steel frame
¥Payment Required
Consumables
-

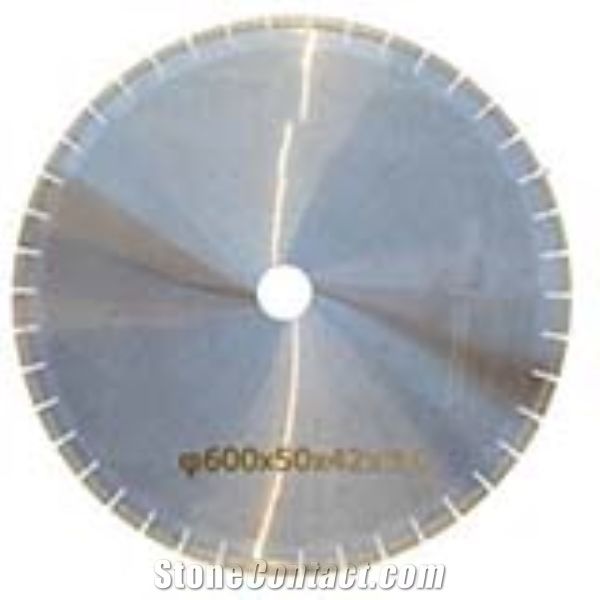

granite blade disc
600mm
-
marble bladedisc
600mm
Video
Install Video
Operation Video
