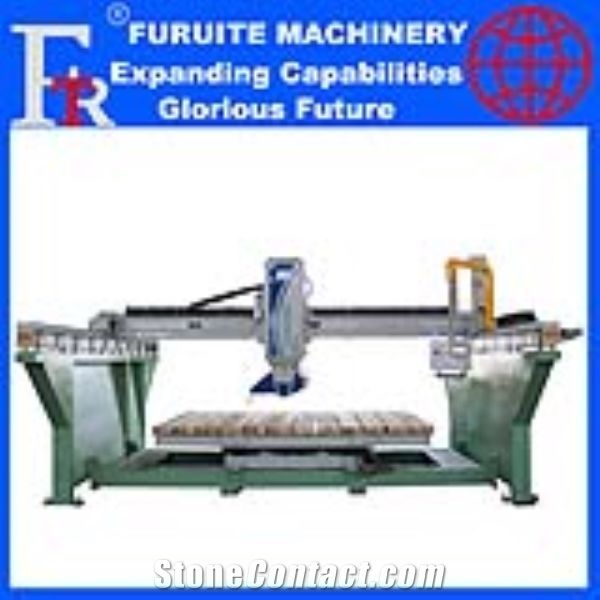

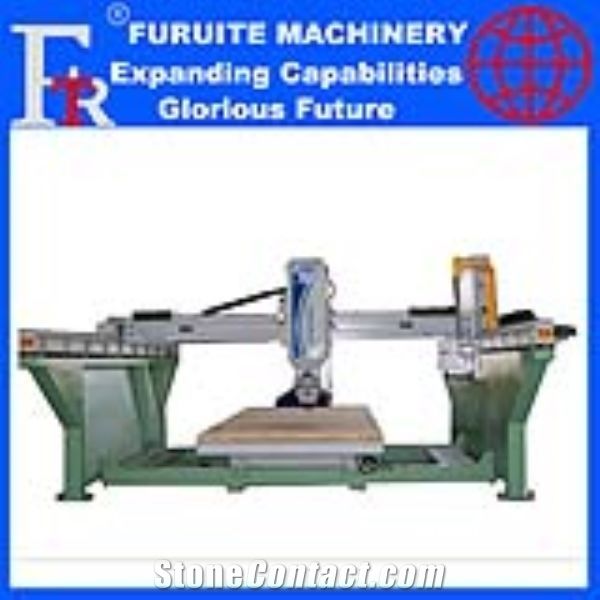

FRT-350 steel frame laser infrared bridge saw 45 degree cutting machine 360 degree rotating worktable

FOB Price:$19500-21500

Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage: Granite, Marble, Quartzite
After-Sale
Lead Time: 15-30 working days depends on voltage&frequency
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Fujian Province Furuite Machinery Co.,Ltd

Fujian Province Furuite Machinery Co.,Ltd
FURUITE

ChinaChina idicon

Eatablished :Dec 19,2005

Main Product:

Granite Slab Polishing Machine, Bridge Combination Cutting , Infrared Bridge Diamond Wire , Manual Edge Cutting Machine, Cnc System Marble Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like
Profiling Bridge Saw, Bridge Cutting Machine
Profiling Bridge Saw, Bridge Cutting Machine
Automatic Bridge Stone Cutting Machine
Automatic Bridge Stone Cutting Machine
Titlable Bridge Saw Stone Cutting Machine For Marble And Granite
Titlable Bridge Saw Stone Cutting Machine For Marble And Granite
QCYI-1200 bridge cutting saw machine
QCYI-1200 bridge cutting saw machine
ZDQJ-600 INFRARED BRIDGE CUTTING MACHINE
ZDQJ-600 INFRARED BRIDGE CUTTING MACHINE
  • Overview
  • Components
  • Video
  • Trade Terms
Machinery Function Features
FRT-350 is controlled by computer and easily installed with small footprint.It is suitable for mass production of stone processing equipment.Blade can tilt 45°,worktable is 85°tillable,Workbench rotating degree:0-45-360°.Precision manufacturing and assembly of the unique side beam protection touch system makes the whole machine featured with high precision,high stability,high efficiency and easy operating.It is especially suitable for processing granite or marbles with high value and oversize.
Technical Data
Parameters
Unit
FRT-350
Machine width
mm
4800
Machine height
mm
2600
Worktable Weight
kg
1400
Total power
kW
20.2
Cutter rotating angle
°
0
Machine length
mm
6000
Main motor power
kW
15
Working table dimensions(L×W)
mm
3200*2000
Head motor power
kW
1.5
Crossbeam motor power
kW
1.5
Approximate weight without table
kg
3800
Hydraulic station motor power
kW
2.2
Blade tilting angle
°
0-45
Max. working dimensions(L×W×H)
mm
3200*3200*100
Working table rotating angle
°
0-45-360
Working table tilting angle
°
0-85
Max. thickness cutting capacity
mm
100
Blade diameter
mm
350-450

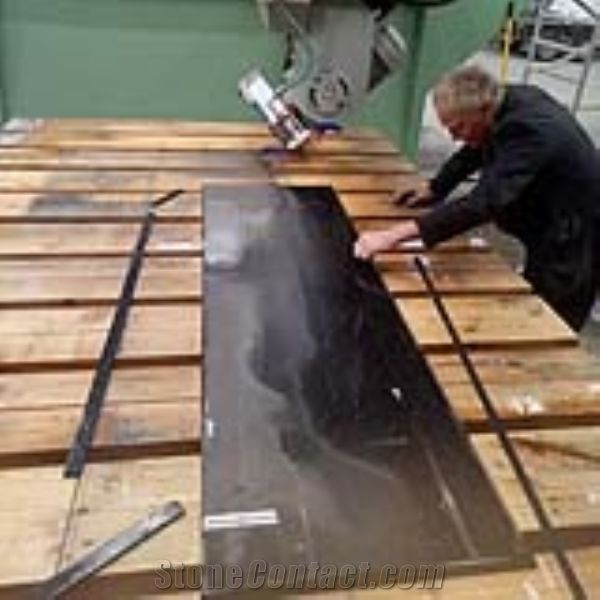

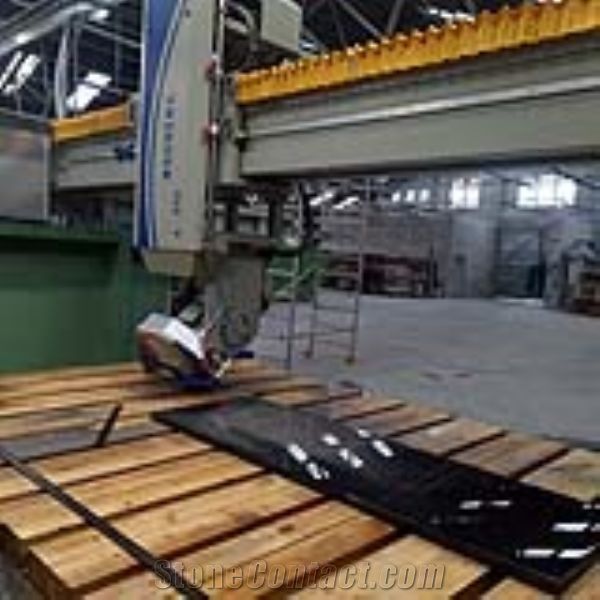

Processed Stone Photos
  • Processed Stone Photos

  • Processed Stone Photos

  • Processed Stone Photos

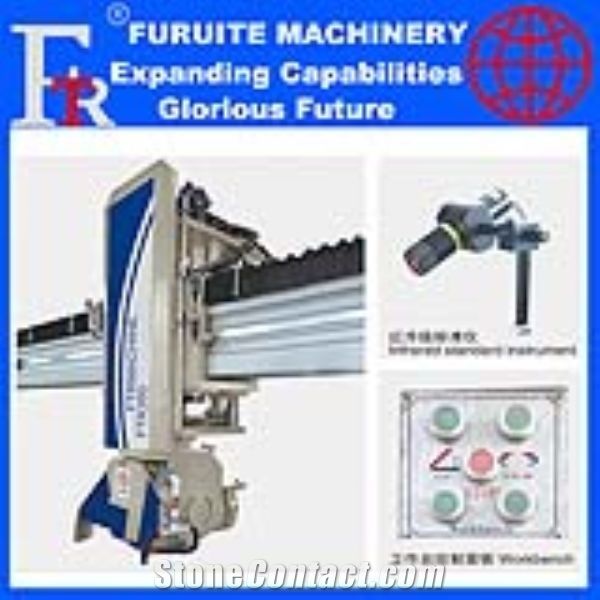

Components
  • side beam

    side beam

    ¥Payment Required
  • encoder

    encoder

  • main motor

    main motor

    ¥Payment Required
  • touch screen

    touch screen

    ¥Payment Required
  • worktable

    worktable

    ¥Payment Required
  • laser device

    laser device

  • Proximity switch

    Proximity switch

    ¥Payment Required
  • main machinery

    main machinery

    ¥Payment Required
  • steel frame

    steel frame

    ¥Payment Required
  • sprinkler

    sprinkler

Consumables

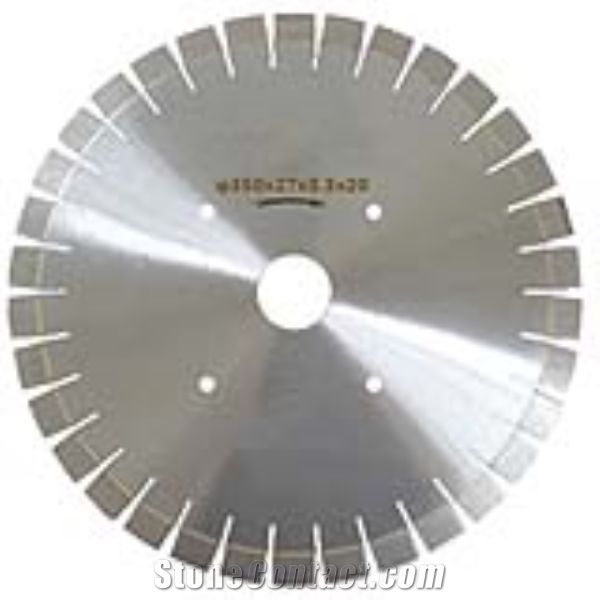

  • 350mm marble blade

    350mm marble blade

    350mm

  • 350mm granite blade

    350mm granite blade

    350mm

Video
Install Video

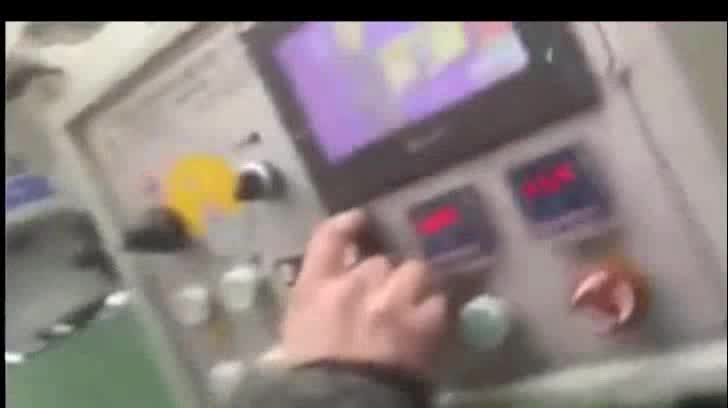

Operation Video Screen.PrimaryScreen.Bounds.Height
