Breton SmartFlex CNC cutting centre with 3 cutting spindles
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Trade Terms
Delivery Details: FOB
Payment :
Supplier
Breton S.p.A.
Italy
Eatablished :Dec 31,1962
Main Product:
Stone Machines, Cutting Machine, Polising Machine, Wire Saw, Cnc Machines|
You may also like
Machinery Function Features

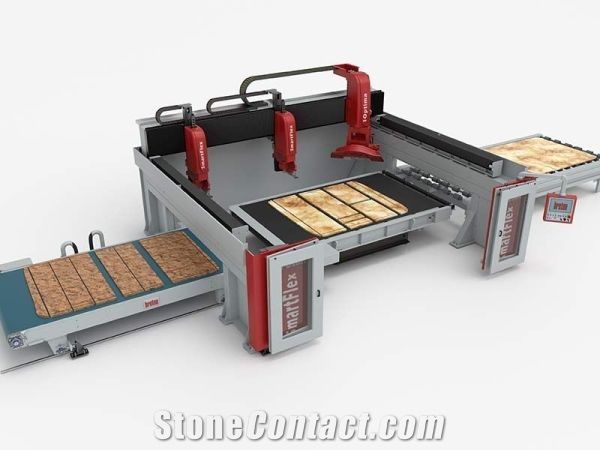

BRETON SMARTFLEX - CNC CUTTING CENTRE WITH 3 CUTTING SPINDLES

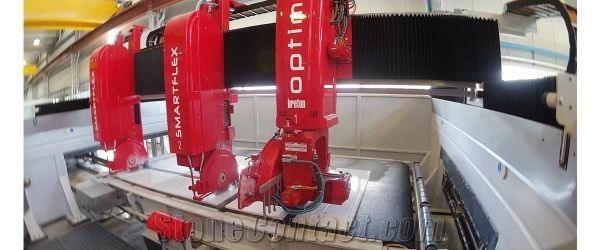

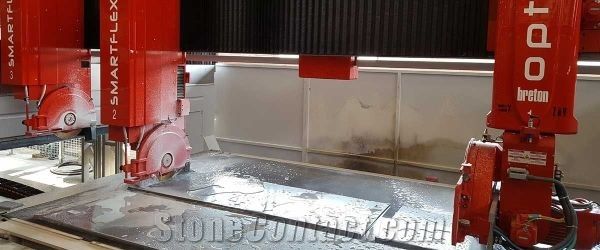

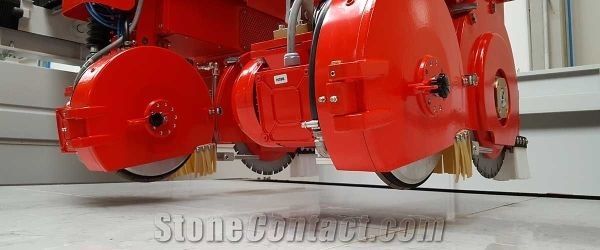

Equipped with three cutting spindles, one of which mounted on a rotating head that is also equipped with workpiece suction cups in order to optimise the surface area to be cut.
Breton SmartFlex is the most productive and flexible solution, ideal for fabshops specialised in both medium-large series production for the building trade and single slab optimisation procedures for the furniture sector (kitchens, bathrooms, etc.).
THE TRULY SMART CUTTING CENTRE
In the single slab process with cuts optimisation using exclusively the rotating spindle with vacuum lifting tool, the Breton SmartFlex is transformed precisely into a Breton Smartcut Optima.

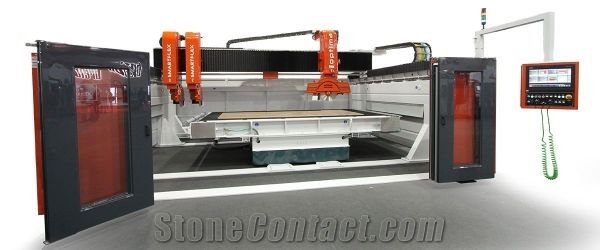

Breton SmartFlex - CNC cutting centre with three cutting spindles
Greetings to all,
Today I want to show you a preview of the new CNC cutting centre with three cutting spindles (one of which is mounted on the twist head) belt rotating work bench and twist head Breton SmartFlex.
Technical Data
Parameters |
Unit |
SmartFlex |
Dimensions of the work table(L×W) |
mm |
4000x2400 |
Vertical stroke speed (Z displacement speed) |
m/min |
10.000 |
Max. dimensions of the piece for “rodding” application |
mm |
3300 x 1000 |
Max. revolutions of the spindle unit |
rpm |
700 ÷ 3.000 |
Machine height |
mm |
3300 |
Z-axis working travel vertical cutting spindles |
mm |
270 |
Horizontal stroke(X axis travel) |
mm |
3800 |
Machine width |
mm |
6000 |
Head raising/lowering stroke(Z axis travel) |
mm |
400 |
Bridge transversal stroke(Y axis travel) |
mm |
3800 |
Max. dimensions of the liftable piece |
mm |
1000 x 3500 |
C axis blade rotation |
° |
380 |
Max. liftable weight with all the vacuum cups activated |
kg |
600 |
Center-to-center distance 5-axis head/vertical cutting spindles |
mm |
300 - 3800 |
Max.width of the cut slab |
mm |
2150 |
Approximate weight without table |
kg |
11000 |
Max.length of the cut slab |
mm |
3650 |
Machine length |
mm |
7000 |
Disc diameter |
mm |
400/550 |
Transversal stroke speed (Y displacement speed) |
m/min |
40.000 |
Min.dimensions of the liftable piece |
mm |
70 x 700 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
40.000 |
Average level of equivalent sound pressure |
dbA |
82 |
Vertical cutting spindles motor power |
kW |
15 |
Number of vertical cutting spindles |
nr |
2 |
Disc motor power |
kW |
18 |
Tools holder head inclination(A axis blade rotation) |
° |
0 /+90 |
Center-to-center distance vertical cutting spindles |
mm |
300 - 2000 |
Max. workable thickness(with 600mm blade) |
mm |
120(with 550 mm Ø saw blade) |
