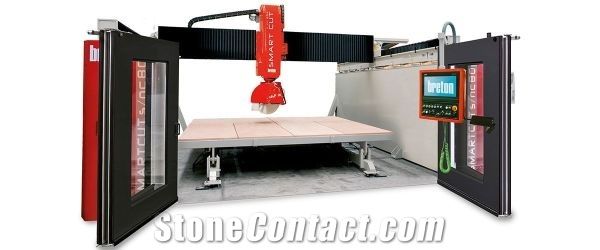

Breton SMART-CUT 800 5 Axis CNC Mobile Bridge Saw

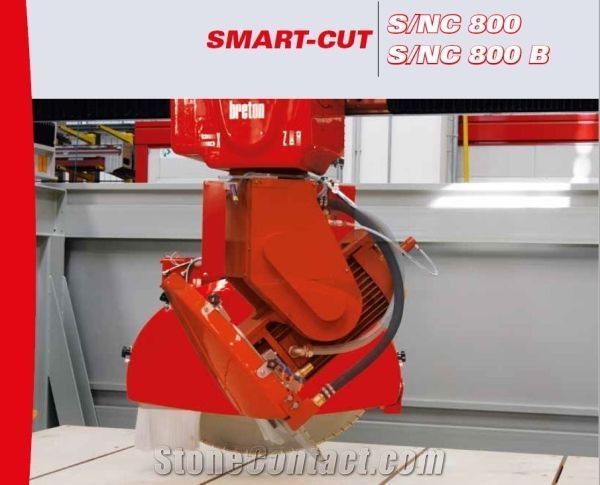

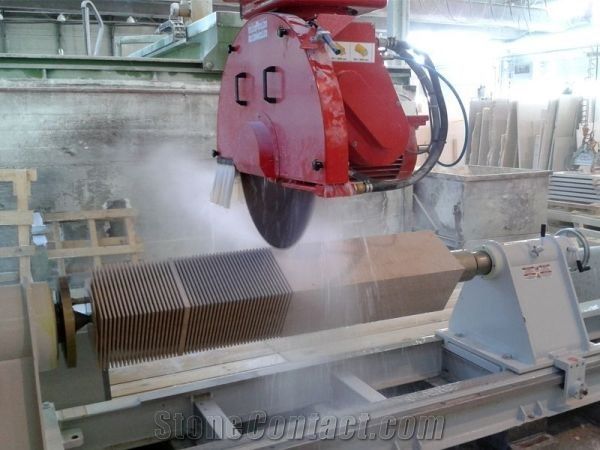

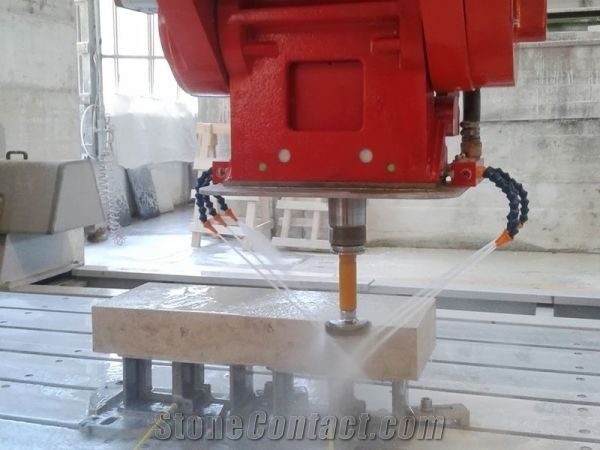

SMART-CUT 800 - 5 AXIS CNC BRIDGE SAW FOR SHAPING AND SAWING Smart-Cut 800 is a 5 axis CNC bridge saw. Its five controlled axes which can interpolate on the three Cartesian axes while the other two axes can be positioned at will; the machine cuts marble, granite, sandstone, limestone and stone slabs into machined items, shapes billets according to programmed profiles using a saw blade tool, contours profiles and performs the stock removal on billets using a shaped tool. STRUCTURAL AND FUNCTIONAL FEATURES • SMART-CUT S/NC800 is a NC bridge saw with 5 interpolated axes and is fitted with a revolving head and fixed worktable with tilting feature (upon specific request). • The fixed worktable for the S/NC800 B model is fitted with a motorised conveyor belt automating loading and unloading operations. • Latest generation SIEMENS 840 SL digital CNC • High-speed and precision in movements along axes X, Y, Z thanks to the use of brushless digital motor technology with an absolute encoder. • Spindle holder carriage in cast-iron ensures rigidity and vibration damping. • The beam is moved by a precision rack and pinion system driven by a brushless digital motor. • The spindle travels on recirculating roller skids driven by a brushless digital motor ensuring precision and rigidity. • The spindle travels on guides fitted with a recirculating roller assembly driven by a ball screw assembly with a preloaded ball nut. • All guides are protected and greased. • Twist head with a ± 190° rotation on axis “C” and 0° to 90° rotation on axis “A”. • Tilting cutting disc which is motorised and can be programmed in any position between 0° to 90° offering the possibility of step cutting (with continuous head rotation). • User friendly software and touch-screen colour monitor mounted to a control panel, joystick controls for moving the various axes. • Laser tracer for displaying cutting path
