Hydraulic Stone Splitting Machine Cobble Stone Splitter

Name: Hydraulic Stone Splitting Machine Cobble Stone Splitter
Brand: Quanzhou Xinhaineng Machinery Co,. Ltd.
SKU: 8000
Price: 23000 USD
Availability: InStock

FOB Price:$23000-25000

Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine

Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 25 Days

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

Quanzhou Xinhaineng Machinery Co,. Ltd.

New Haineng

China level 4YR

Eatablished :Apr 13,2017

Main Product:

Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|

Contact supplier

Start Order

You may also like

KSD-90Y STONE SPLITTING MACHINE

Stone Splitting Machine For Mushroom Face Cutting

Four-Blade Manual Feeding Cube Stone Splitting Machine

Stone Splitting Stamping Machine

Cobble Stone Splitting Machine

Product Detail
Company Profile

Overview
Components

Machinery Function Features

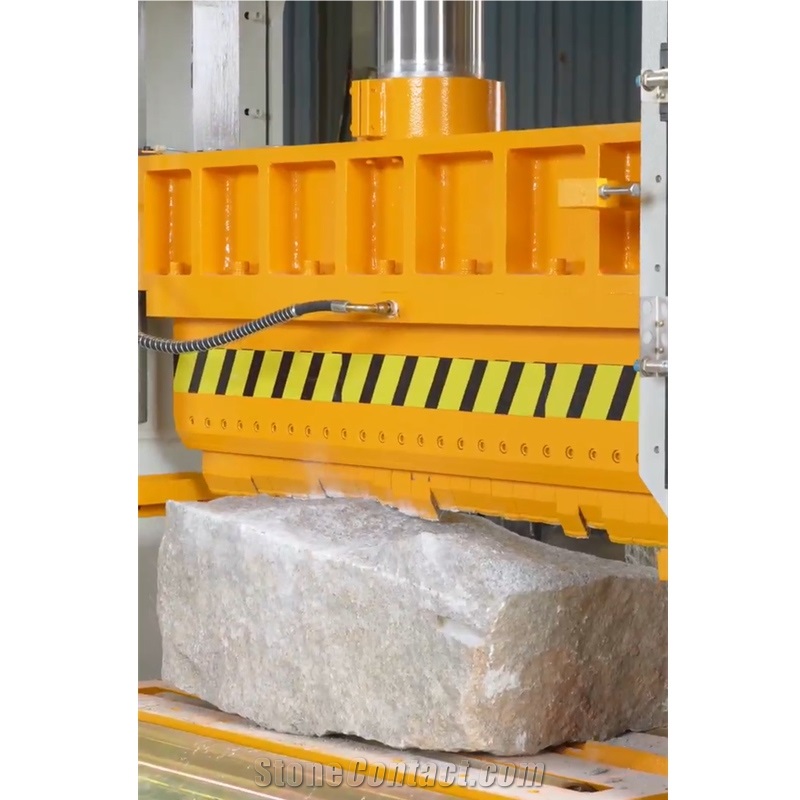

This fully hydraulic stone splitting machine adopts retractable floating knife teeth, each knife tooth is independent of each other, which can be adapted to the processing of various kinds of uneven surface stone. It is mainly used as the main machine for splitting line to produce semi-finished split stone, and can also be used to split large curbstone and wall stone.

Technical Data

Parameters	Unit	SDKJ-480
Max. working height	mm	40
Output per Hour	m2/h	25
Blade feeding speed	cm/s	7
Frequency	Hz	50
Voltage	V	380
Machine height (H)	mm	240
Machine width (W)	mm	250
Machine length (L)	mm	300
Oil tank capacity	L	200
Flow rate	L/min	60
Approximate weight	Kg	3500
Hydraulic oil grade		46
Max. Pressure	tons	200
Max. working width	mm	80
