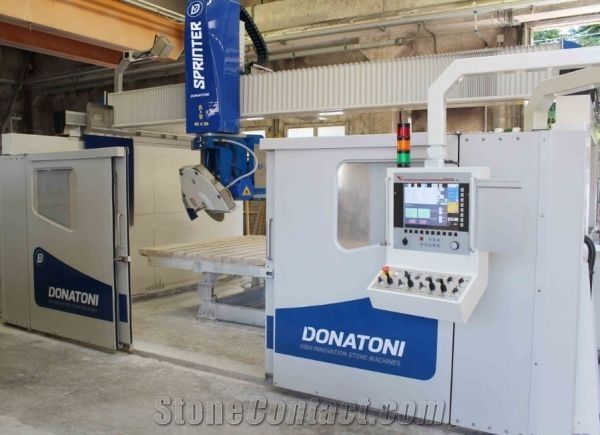

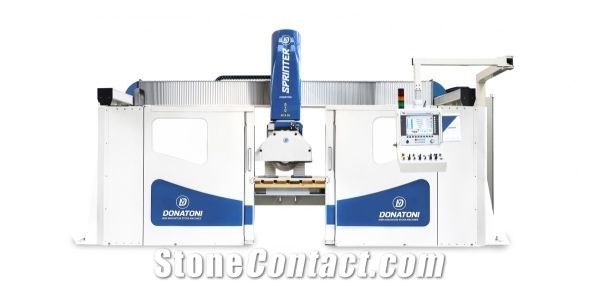

SPRINTER 825 CNC Bridge Saw Machine

FOB Price:

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance

Supplier

Eatablished :Dec 30,1958

Main Product:

Stone Machines, Bridge Cutting Machine, Carving Machine|

Contact supplier

Start Order

  • Overview
  • Components
Machinery Function Features
The SPRINTER 825 CNC is a 5 axis interpolated bridge milling machine particularly flexible, suitable for the production of different types of products such as kitchen tops, bathroom tops, shower trays, engravings, bas-reliefs and various coatings for the building industry. It is a machine that allows a wide range of processes, from cutting, to milling, drilling, shaping and, thanks to the countless accessories, it is possible to carry out these operations simultaneously without moving the piece from the bench or prolonged machine stops. Thanks to the sliding of the X and Y axes that occur on linear guides with recirculating balls and racks both with oil bath lubrication and with the new structure of the bridge and the steel carriage, the SPRINTER 825 CNC allows to obtain products with extremely fine finishes precise. SPRINTER 825 CNC is suitable for those in need of power, high output and small footprint. The different levels of customization of the machine make it possible to satisfy the most demanding customer requirements and this is made possible by the wide range of accessories available.
Technical Data
Parameters
Unit
SPRINTER 825 CNC
Tools holder head inclination(A axis blade rotation)
°
0° / 90°
Tool rotation with optional Tools / Top ISO 40
rpm
0 / 5500 0 / 7500 (opt.)
Machine height
mm
4130
Vertical cutting spindles motor power
kW
22 / S6 17 / S6
Approximate weight without table
kg
4800
Machine length
mm
7900
C axis blade rotation
°
-5° / +365°
Z-axis working travel vertical cutting spindles
mm
800
Dimensions of the work table(L×W)
mm
2000 x 3500 2400 X 3800 (con Move-System)
Machine width
mm
6625
Max. revolutions of the spindle unit
rpm
0 / 2400
Disc diameter
mm
350 min. - 850 max.
Max number of interpolated axes
nr
5
Max. workable thickness(with 1200mm blade)
mm
310
Components

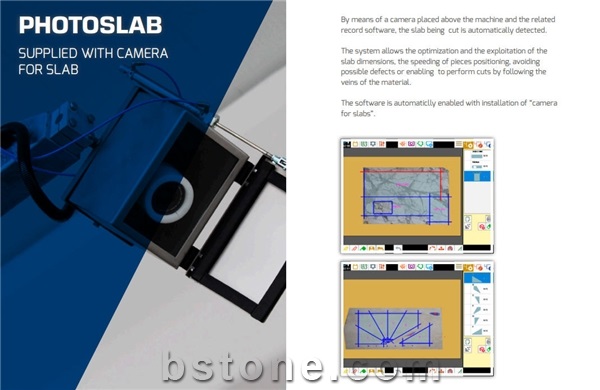

  • PHOTOSLAB

    PHOTOSLAB

    ¥Payment Required
  • DDX EasySTONE

    DDX EasySTONE

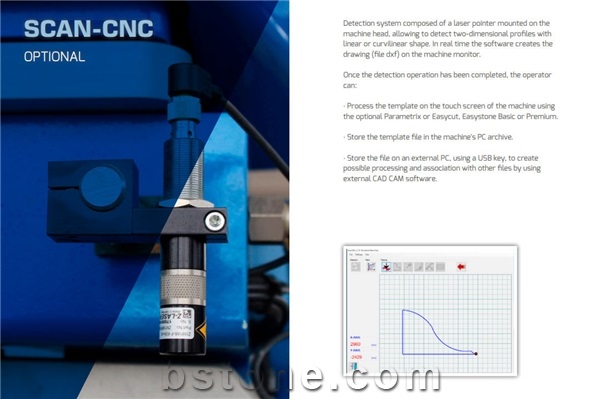

  • SCAN-CNC

    SCAN-CNC

    ¥Payment Required
