Donatoni SPIN 625 CNC Bridge Saw Machine
FOB Price:€4088-4555
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Artificial Stone
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Supplier
Eatablished :Dec 30,1958
Main Product:
Stone Machines, Bridge Cutting Machine, Carving Machine|
Machinery Function Features

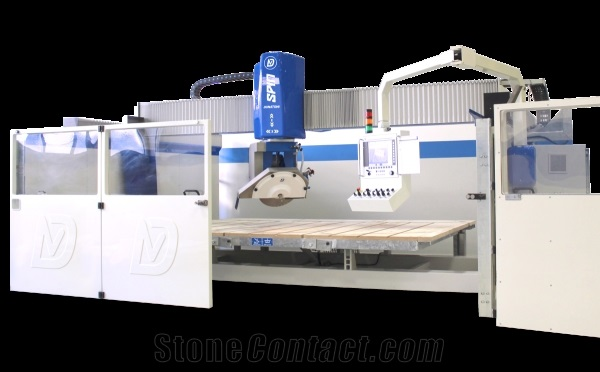

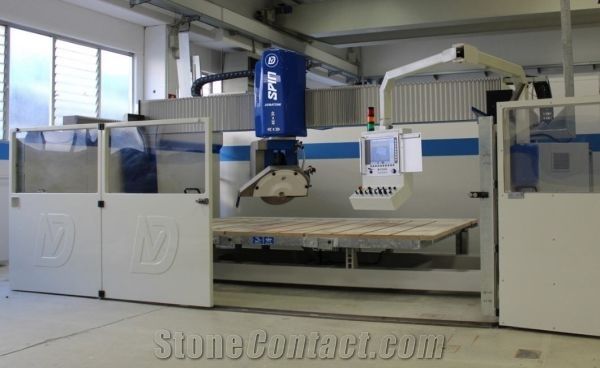

The SPIN 625 CNC is a 5 interpolated axis simple and compact bridge cutter, ideal for the production of kitchen tops, vanity tops, shower trays and claddings for the building industry in marble, granite and artificial stone.
It allows to perform several types of processing such as orthogonal cuts up to 200 mm thickness, oblique, circular, elliptical, inclined, togheter with milling, drilling and straight, concave, convex, arched or elliptical shapes.

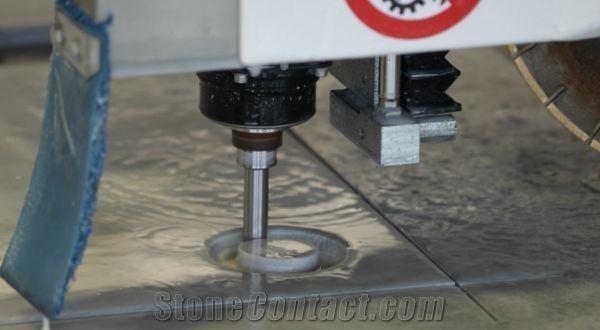

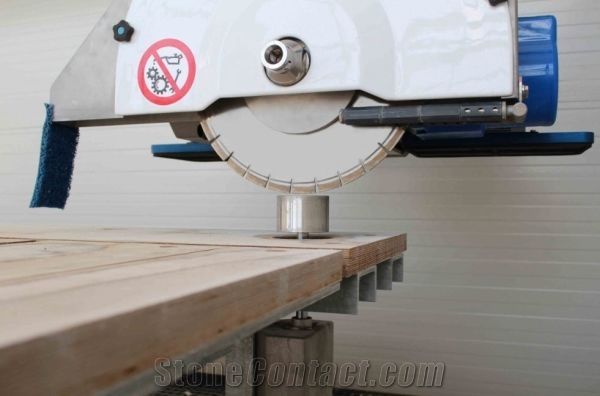

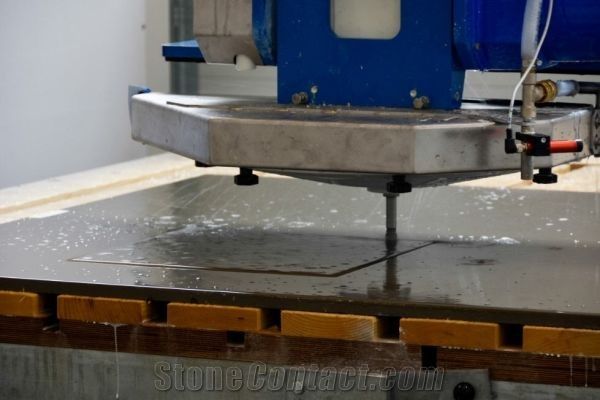

The SPIN 625 CNC is equipped with invertercontrolled electro-spindle and is fitted with diamond tools, such as an end mill, excavation wheel and horizontal blade. Thanks to X and Y axes sliding system on linear guides with recirculating balls and racks with hardened and ground steel teeth both with automatic centralized grease lubrication, the SPIN 625 CNC allows to obtain finished products extremely fine and precise.
The motion is given by brushless motors coupled to high precision gearboxes.
It is supplied complete with a series of optional and hot-galvanized monoblock structure that does not require foundations, allowing installation and startup in a very short time.
Technical Data
Parameters |
Unit |
SPIN 625 CNC |
Standard voltage |
Volt/Hz |
400/50 |
Cooling water requirement(1.5 bar min. pressure) |
l/min |
35 (3 bar) |
Max number of interpolated axes |
No |
5 |
Vertical stroke speed (Z displacement speed) |
m/min |
0 – 5 |
Air consumption |
m3/h |
20 |
Disc diameter |
mm |
400 to 625 |
Adjustable cut feeding speed |
m/min |
0 – 25 |
Vertical cutting spindles motor power |
kW |
13 / S6 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
0 – 40 |
Max. revolutions of the spindle unit |
rpm |
0 / 2400 |
Tools holder head inclination(A axis blade rotation) |
° |
0° / 90° |
Tools rotation with optional TOOLS |
rpm |
0 / 5500 |
Head raising/lowering stroke(Z axis travel) |
mm |
400 |
C axis blade rotation |
° |
-5° / 365° |
Bridge transversal stroke(Y axis travel) |
mm |
2390 |
Max. workable thickness(with 1200mm blade) |
mm |
200 |
Transversal stroke speed (Y displacement speed) |
m/min |
0 – 30 |
Max.width of the cut slab |
mm |
2050 |
Dimensions of the work table(L×W) |
mm |
2050 x 3500 |
Max.length of the cut slab |
mm |
3500 |
Horizontal stroke(X axis travel) |
mm |
3600 |
Disc motor shaft diameter |
mm |
50 |
Approximate weight without table |
kg |
4800 |
Processed Stone Photos
-
Countertop
