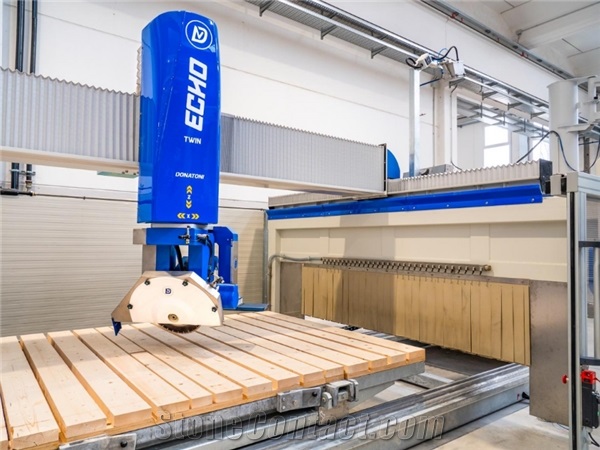

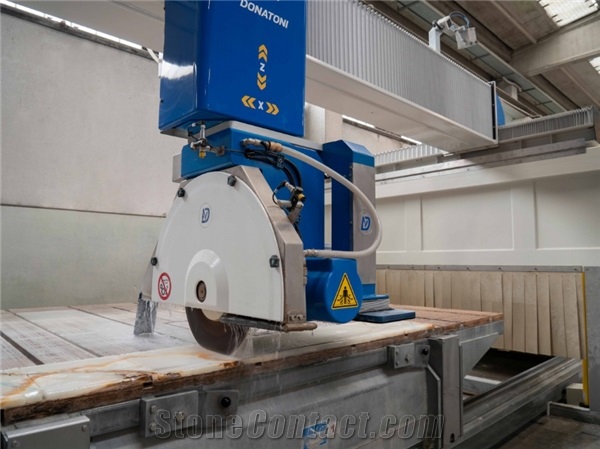

ECHO TWIN and SPRINTER TWIN CNC Bridge Saw

Name: ECHO TWIN and SPRINTER TWIN CNC Bridge Saw
Brand: Donatoni Macchine Srl
SKU: 1281
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 20 days

Warranty:3 Months

Install and Guarantee:Customer pay for installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Donatoni Macchine Srl

Donatoni

Italy

Eatablished :Dec 30,1958

Main Product:

Stone Machines, Bridge Cutting Machine, Carving Machine|

Contact supplier

Start Order

You may also like

High Efficiency CNC Multi Blade Stone Cutter

K600 EXTREME XL with Manipulator Bridge Saw Machine

Prussiani STAR XL CNC BRIDGE SAWS

5 Axis CNC Granite Bridge Saw Machine Slab Cutting Line In France FR

4 Axis CNC Bridge Saw Four-Axis Cutting Machine IK-3220-400

Product Detail
Company Profile

Overview
Components

Machinery Function Features

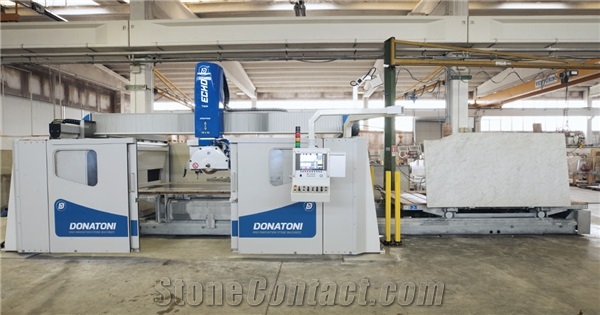

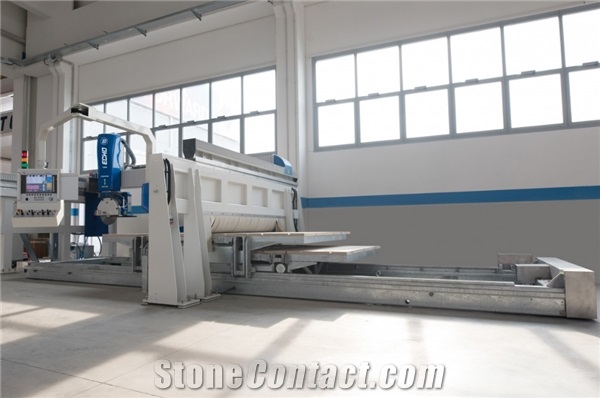

The TWIN bridge saws are the right solution for the companies willing to reduce costs, cut-off downtime, and increase production capacity. Thanks to the patented system of benches exchange the bridge saws, ECHO TWIN and SPRINTER TWIN, allow to increase productivity of kitchen tops, floors and coverings up to 70%. The Twin System consists of a double bench with automatic system of benches exchange, it lays on a rails-monoblock frame, on which the two benches are alternatively moving between cutting and unloading areas. The operator can carry-out unloading, loading and programming operations on the 1st bench while the machine is working on the 2nd bench. TWIN system advantages: Increase of production capacity Only 1 operator needed 2 saws in 1: possibility to use the machine for cutting (optimized with the advantages of the Twin System) and for shaping operations.

Technical Data

Parameters	Unit	ECHO TWIN	SPRINTER TWIN
Max number of interpolated axes	nr	5/6	5/6
C axis blade rotation	°	-5°/+365°	-5°/+365°
Dimensions of the work table(L×W)	mm	3800 x 2400 x H 900	3800 x 2400 x H 900
Benches exchange time	sec	35	35
Z-axis working travel vertical cutting spindles	mm	600	800
Disc diameter	mm	350 to 750	350 to 825
Tools holder head inclination(A axis blade rotation)	°	-0°/90°	-0°/90°
Max.width of the cut slab	mm	100	100
Max. cutting depth	mm	180 (superiore) 250 (inferiore)	280 (superiore) 300 (inferiore)

Software

Parametrix

Parametrix is the simple and intuitive Software developed by Donatoni Macchine and designed to optimise the management of cuts of variously-shaped pieces on a slab. It enables work processes involving cuts with discs, milling cutters and drills, the insertion of straight and curved forms and shapes that have been pre-set or imported from DXF files, and the optimisation of processing times and slab surfaces.

Photoslab

It allows you to measure the surface of slabs placed on the workbench using a camera located on top of the machine and the acquisition software integrated with Parametrix.

ISOSAG

ISOSAG is the software that allows you to create files for executing shaping that is straight-lined or with a concave or convex arc using either a vertical or horizontal disc

Scan cnc

SCAN-CNC is a measuring system consisting of a laser pointer mounted at the head of the machine and a software integrated with Parametrix that allows you to measure bi-dimensional shapes with a linear or curved form and create the drawing in real time (DXF file) on the monitor.

CAD-CAM

The CAD-CAM software allows you to design, import and execute 2D and 3D files in DXF, IGES, STL, PNT, STEP and RHINO formats and to define surfaces and shapes using laser scanning.

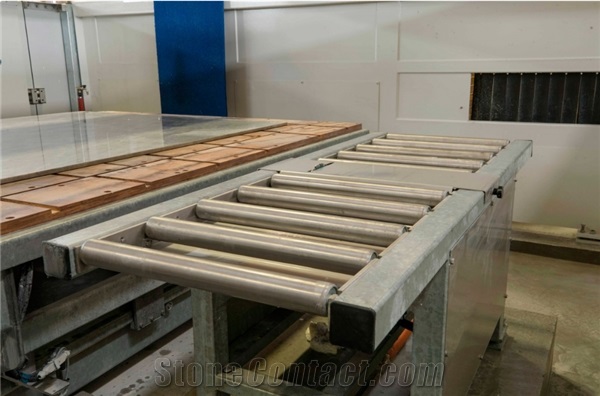

Components
