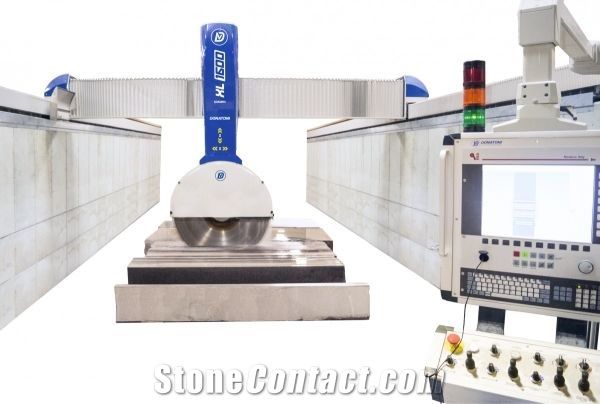

QUADRIX XL 1600 5 interpolated axes CNC working centre
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Supplier
Eatablished :Dec 30,1958
Main Product:
Stone Machines, Bridge Cutting Machine, Carving Machine|
Machinery Function Features
QUADRIX XL 1600 is a 5 interpolated axes CNC working centre with Z axis stroke of 1000mm, rotating blade head swiveling from 0 to +180 degrees and tilting from 0 to 90 degrees, to perform orthogonal cuts up to 635mm, ideal machine for performing oblique, circular, elliptical cuts, two-dimensional and three-dimensional digging and carving of blocks.
The "Top" version can use diamond tools such as: milling wheels, drill cores, horizontal blade.
Technical Data
Parameters |
Unit |
QUADRIX XL 1600 |
Standard voltage |
Volt/Hz |
400 / 50 |
Cooling water requirement(1.5 bar min. pressure) |
l/min |
40 |
Transversal stroke speed (Y displacement speed) |
m/min |
40 |
Vertical cutting spindles motor power |
kW |
35/S6 |
Tools holder head inclination(A axis blade rotation) |
° |
0° / 90° |
Bridge transversal stroke(Y axis travel) |
mm |
3000 |
Disc diameter |
mm |
min: 750 - max:1600/2000 |
Air consumption |
m3/h |
5 |
Vertical stroke speed (Z displacement speed) |
m/min |
10 |
Head raising/lowering stroke(Z axis travel) |
mm |
1000 |
Approximate weight without table |
kg |
9250 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
40 |
C axis blade rotation |
° |
-5° / 540° |
Horizontal stroke(X axis travel) |
mm |
3700 |
Max. cutting depth |
mm |
635 |
Max number of interpolated axes |
nr |
5 |
Max. revolutions of the spindle unit |
rpm |
0/2400 |
