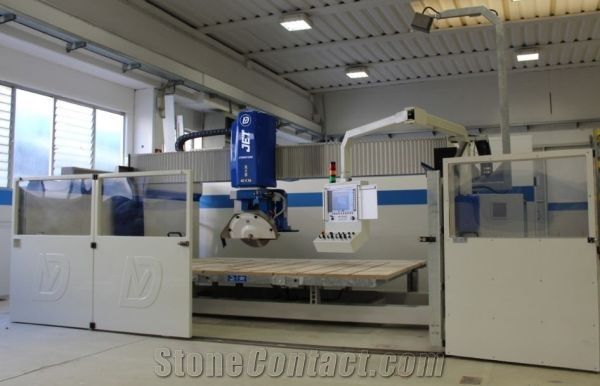

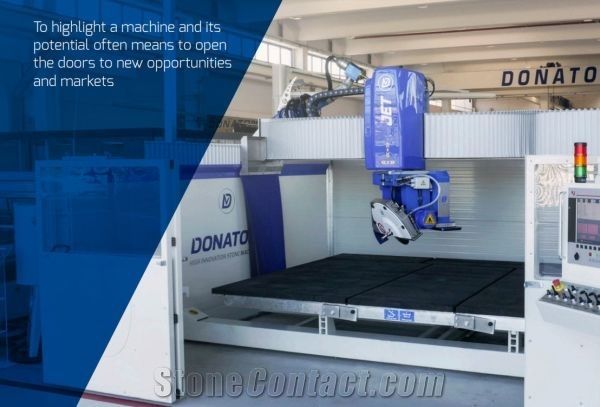

JET 625 CNC 5 interpolated axis bridge cutter

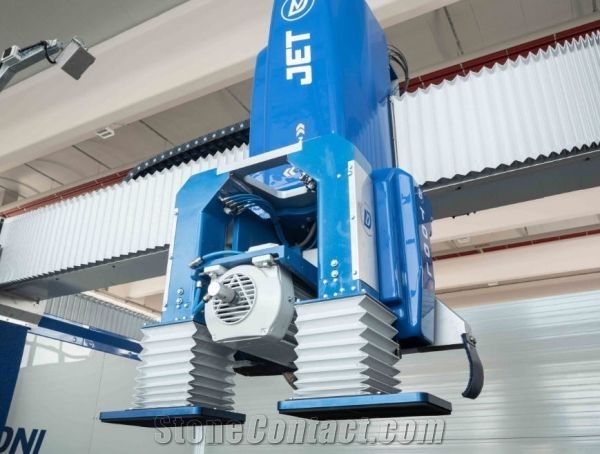

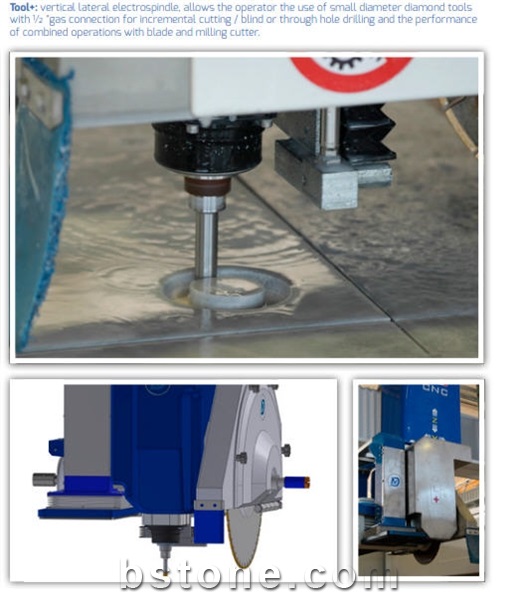

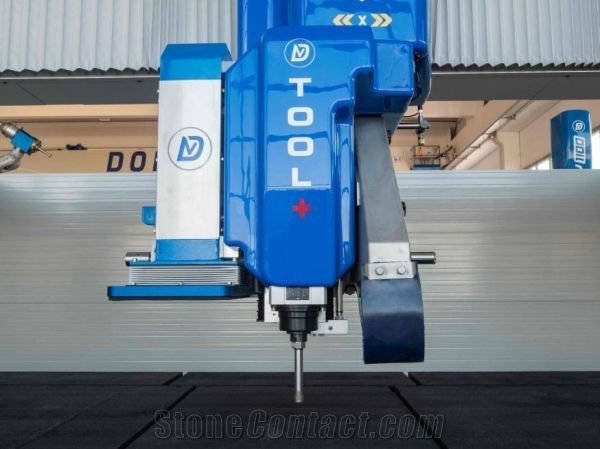

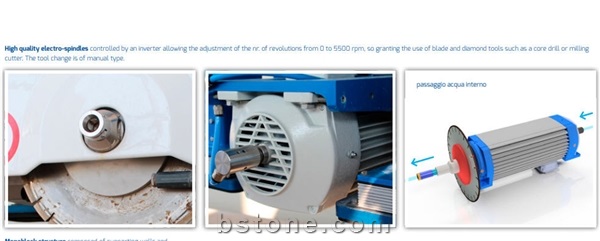

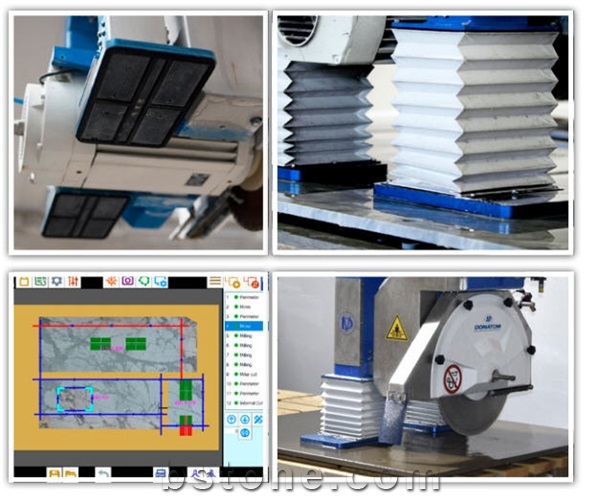

The JET 625 CNC is a 5 interpolated axis simple and compact bridge cutter, ideal for the production of kitchen tops, vanity tops, shower trays and claddings for the building industry in marble, granite and artificial stone. It allows to perform several types of processing such as orthogonal cuts up to 200 mm thickness, oblique, circular, elliptical, inclined, togheter with milling, drilling and straight, concave, convex, arched or elliptical shapes. The "Tools" version, equipped with invertercontrolled electro-spindle, is fitted with diamond tools, such as an end mill, excavation wheel and horizontal blade. Thanks to X and Y axes sliding system on linear guides with recirculating balls and racks with hardened and ground steel teeth both with automatic centralized grease lubrication, the JET 625 CNC allows to obtain finished products extremely fine and precise. The motion is given by brushless motors coupled to high precision gearboxes. It is supplied complete with a series of optional and hot-galvanized monoblock structure that does not require foundations, allowing installation and startup in a very short time. Suction cups system for the automatic lifting and positioning of cut-to-size pieces granting processing times with minimum waste. The 2 aluminum suction cups are equipped with sectors of various sizes allowing lifting operation of large and small pieces, up to a maximum of 300 kg.it can be used with blade up to 525 mm diameter.
